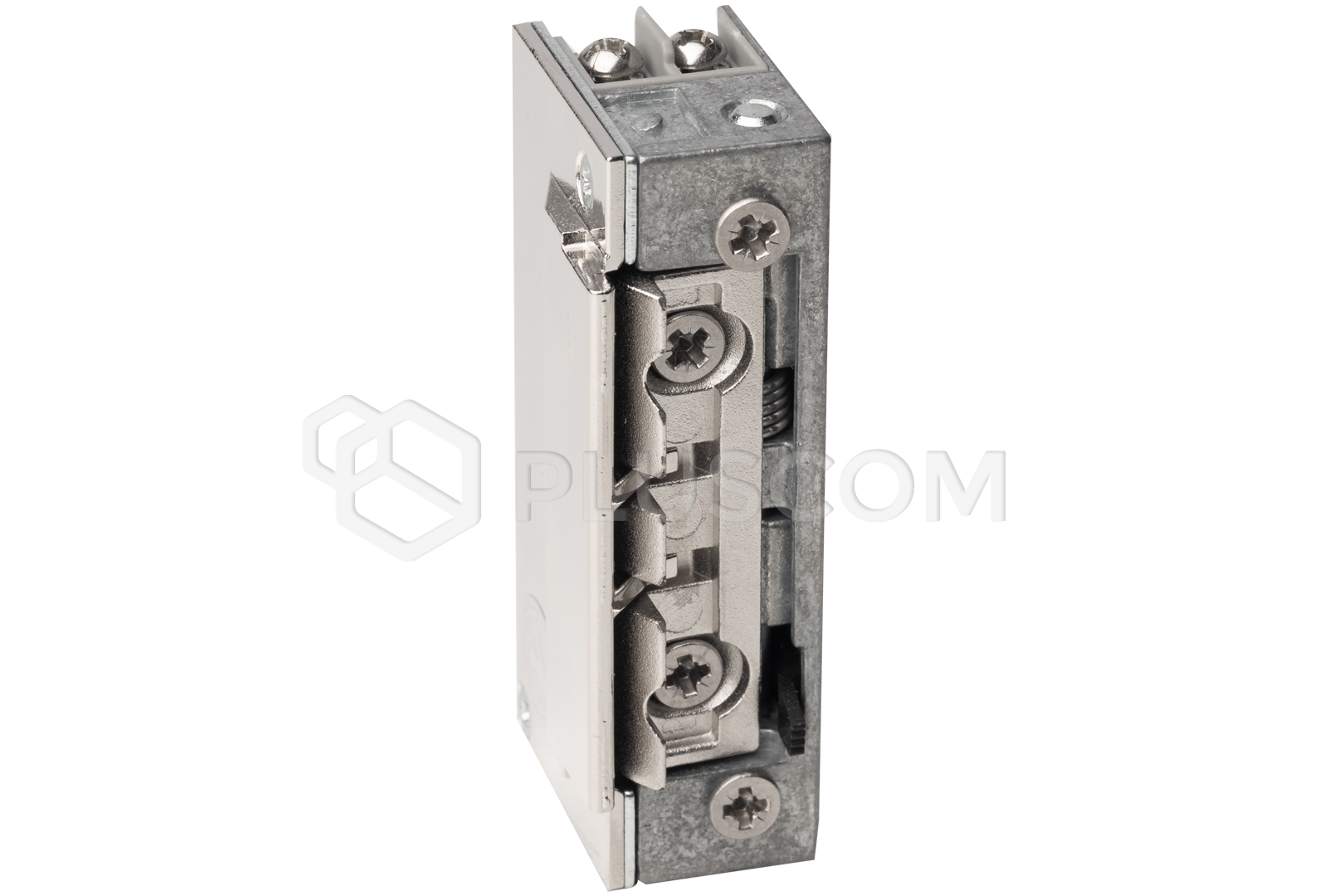

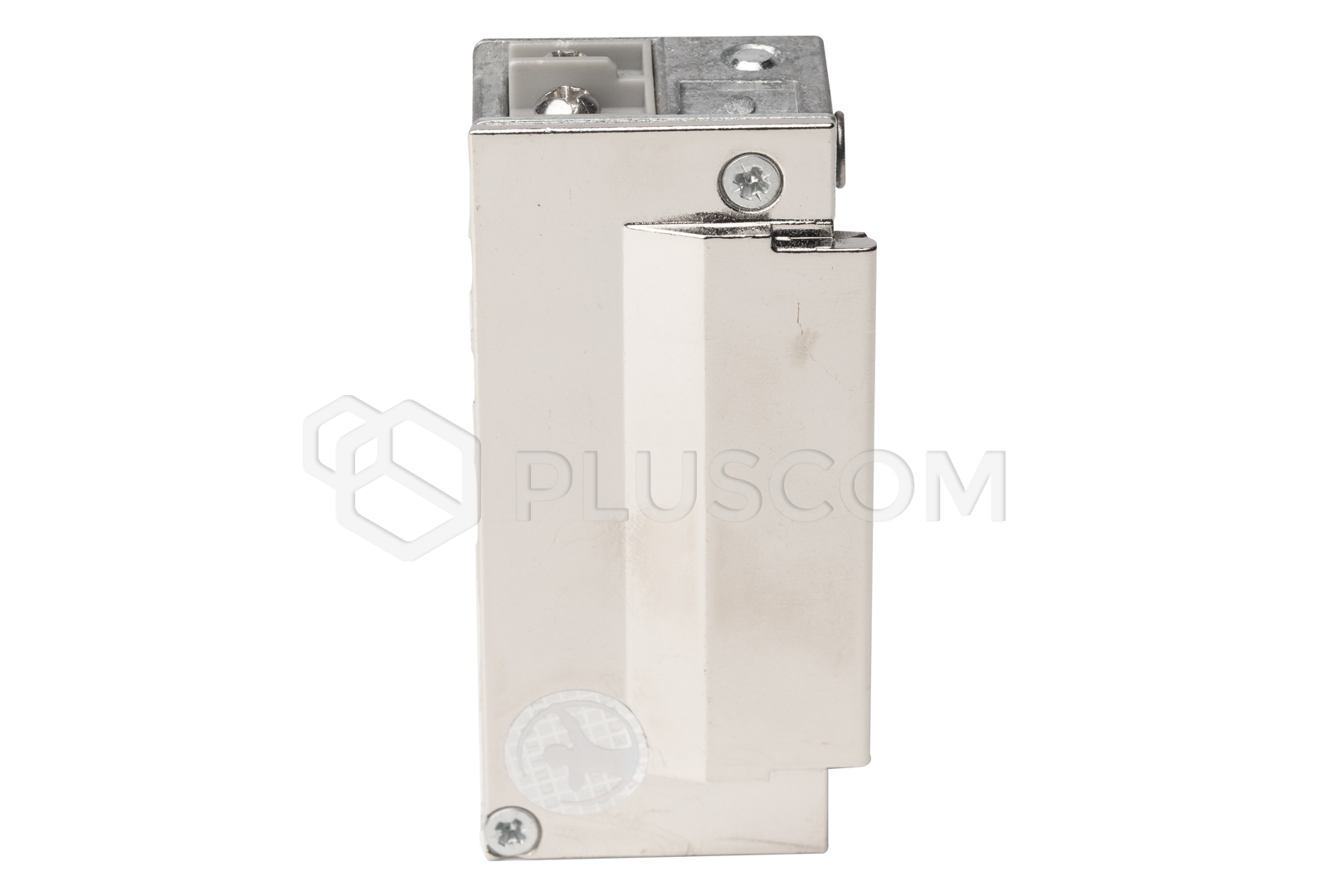

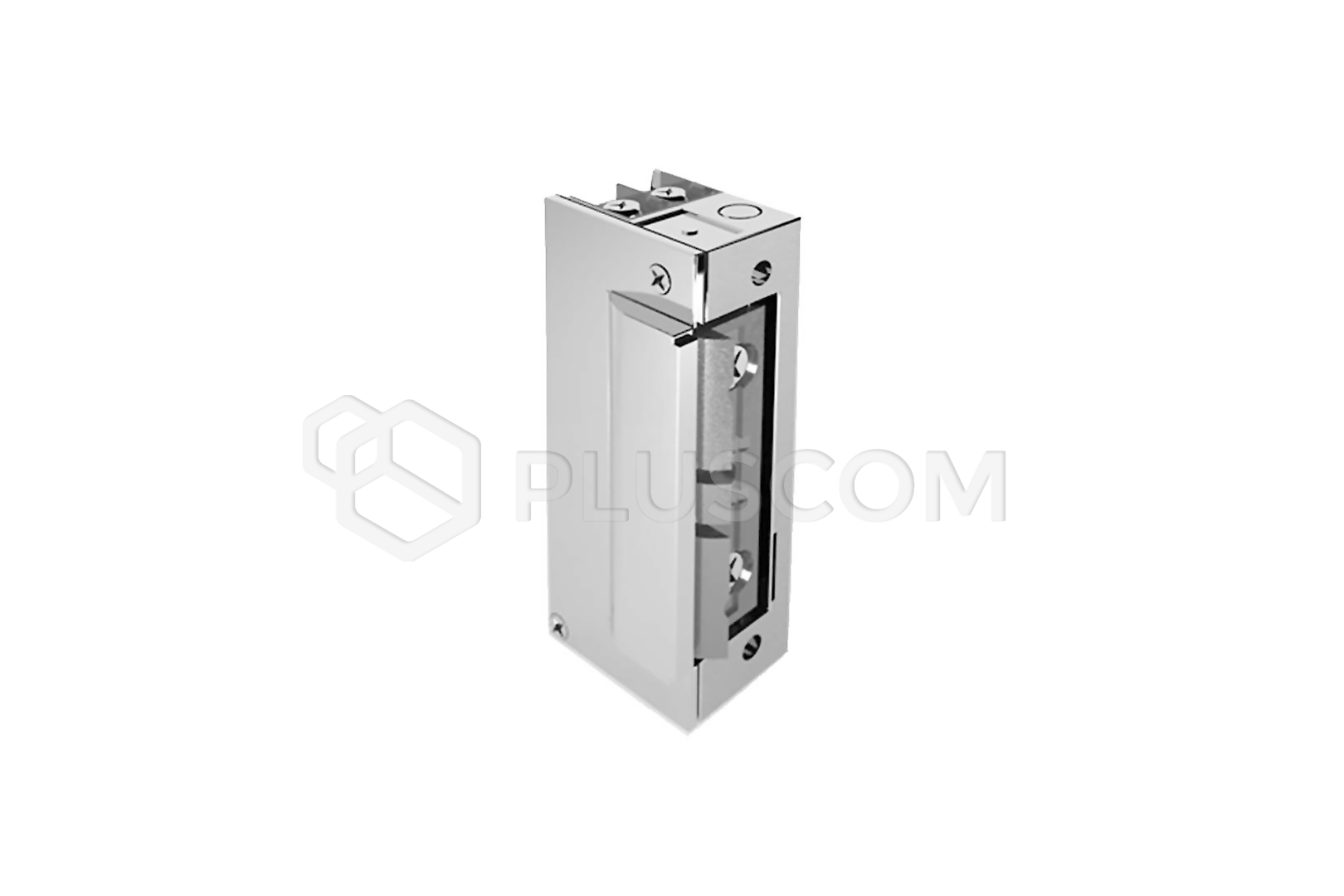

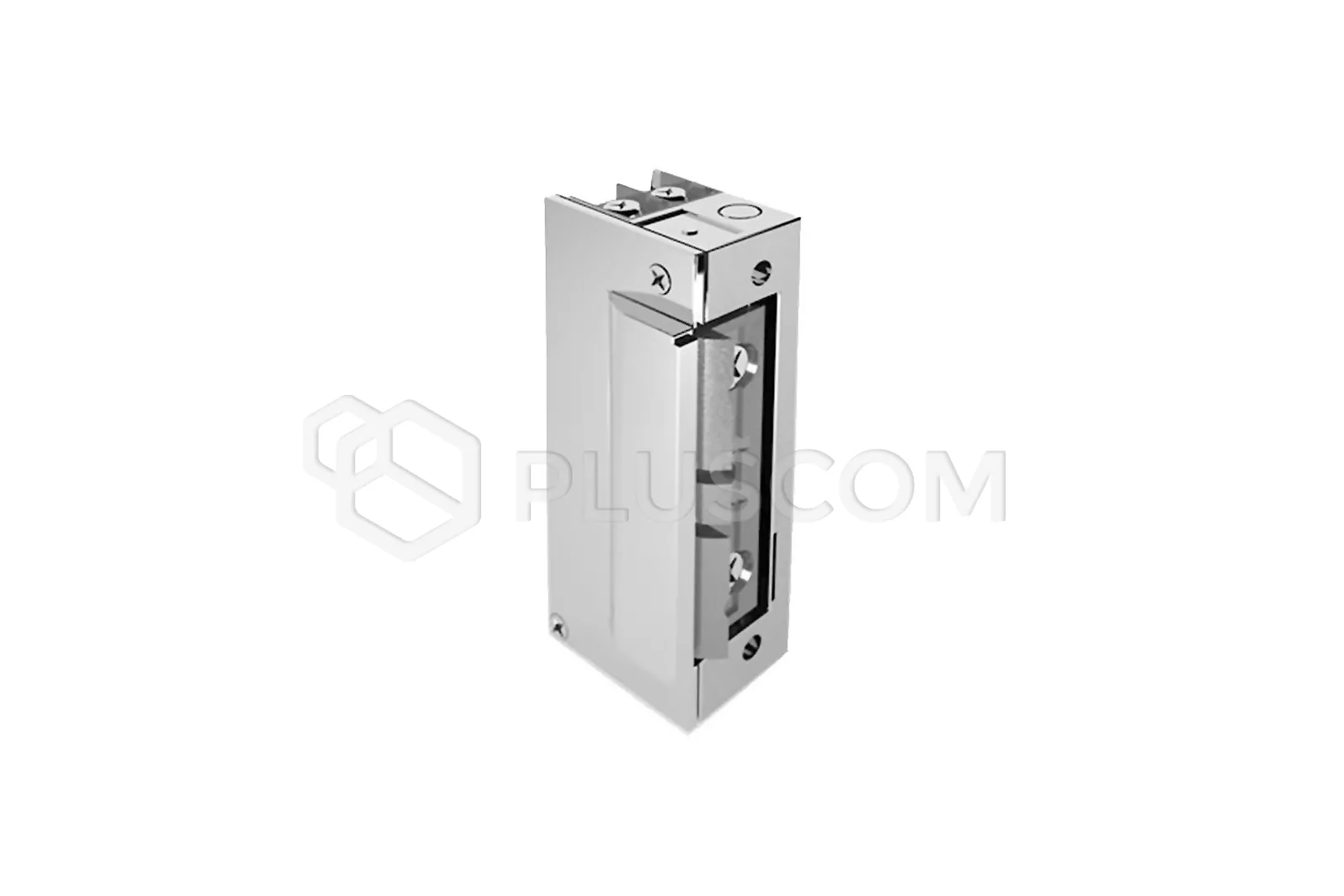

PSG 63.311 Electric strike symmetrical with narrow sliding, adjustable,
radial with lock 1420RFT 12-24V AC/DC
The symmetrical electric strike 1420RFT 12-24V AC/DC is a professional solution
designed for access control in narrow-profile doors. This model, equipped with
a radial mechanism and a latch sliding function, ensures reliability and safety
of operation, meeting the requirements of users in both public and private
buildings.
The universal design of the electric strike allows for installation in
left-hand and right-hand doors without the need to cut the door frame, which
makes it an ideal choice for use in modern door systems.
FEATURES:
- Universal: The electric strike can be used in left-handed and
right-handed doors thanks to its symmetrical design. This means that there is
no need to purchase separate models for different types of doors, which
simplifies the selection and installation process.
- Compact dimensions: The width of the electric strike is only 18.5 mm
makes it perfect for installation in narrow ALU and PVC profiles. This
preserves the aesthetics of the door without losing its functionality.
- Durability and reliability: The 1420RFT electric strike is designed for
continuous operation and offers a durability of up to 200,000 cycles. This
guarantees longevity and reliability of operation, even in heavily used
places.
- Low power consumption: The device is energy-efficient, which contributes
to reduced operating costs and is beneficial to the environment. The electric
strike is powered by 12-24V AC/DC, which ensures universality of use
- Safety: The electric strike meets the requirements of the use category of
class 3, which means that it is suitable for public buildings. It has the
PN-EN 14846:2010 certificate, which confirms its compliance with European
safety standards
- Ease of installation: The special design allows for installation without
the need to cut the door frame, which simplifies and speeds up the
installation process. This makes the electric strike ideal for modernizing
existing door systems
RADIAL MECHANISM
The 1420RFT electric strike uses advanced radial
technology, which allows the door to be opened with minimal tongue deflection.
This innovative design means that the lock tongue is hidden in the housing,
which eliminates the need to cut the door frame. Thanks to this, installation
is easier and the door looks aesthetically pleasing while maintaining full
functionality.
SWITCH FUNCTION
The electric strike has a practical switch function in
the form of a mechanical lever. It allows the lock to be unlocked to the
permanently open position, which is particularly useful in situations where the
door must remain open for a longer time.
This function increases the flexibility of use, enabling easy adjustment of the
door to various needs.
LATCH TONGUE ADJUSTMENT
The ability to adjust the latch tongue by 1 or
2 mm is a key feature of the 1420RFT electric strike. Thanks to this function,
the user can precisely adjust the position of the tongue, eliminating the play
between the lock elements. This adjustment ensures smooth and trouble-free
operation of the door, while minimizing the wear of the mechanism and extending
its service life. Such precision in adjustment is a guarantee of reliability
and comfort of use.
Technical data:
- Type: Radial with lock
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 1 or 2 mm

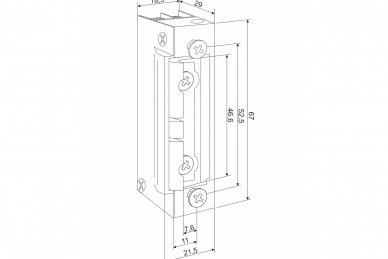

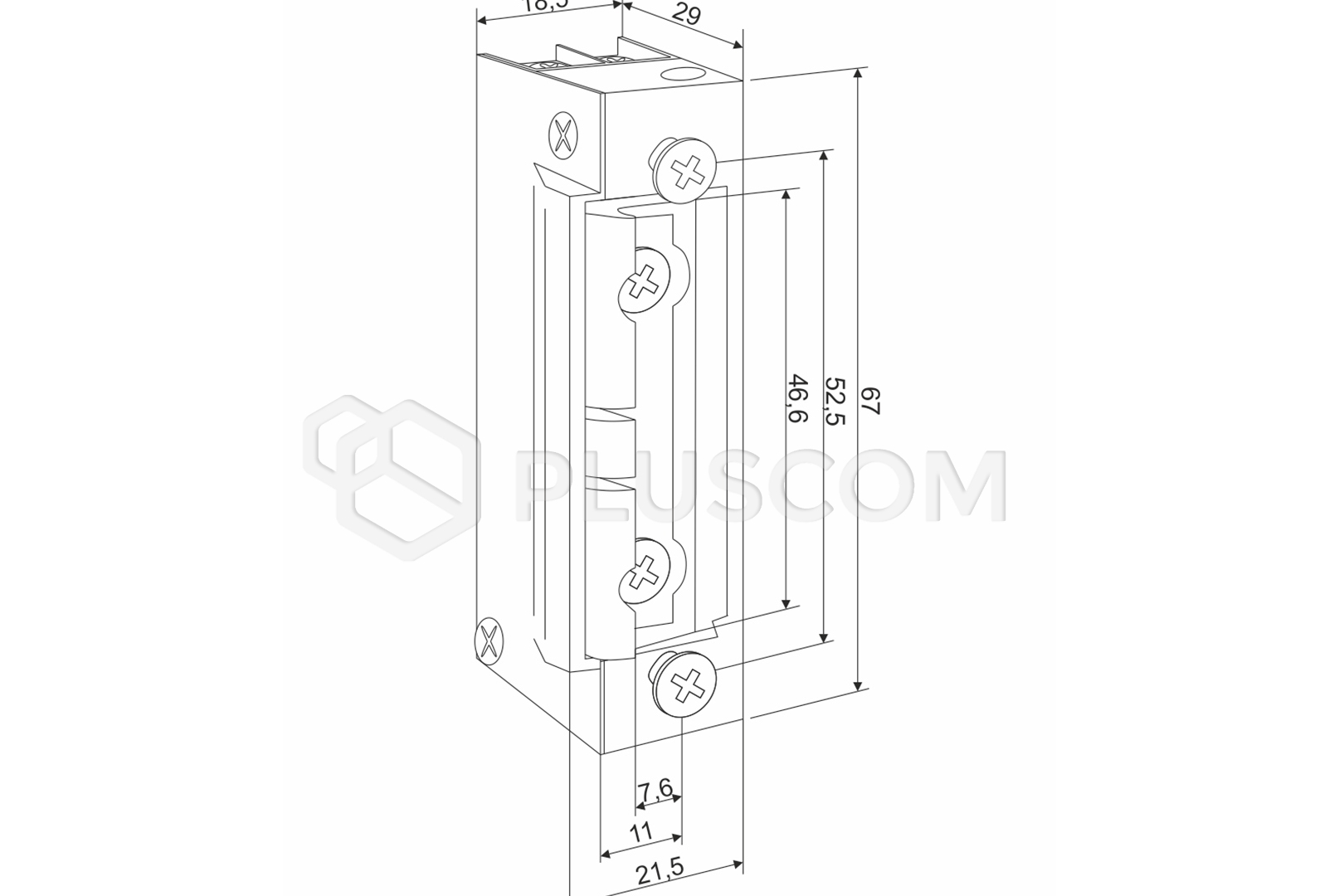

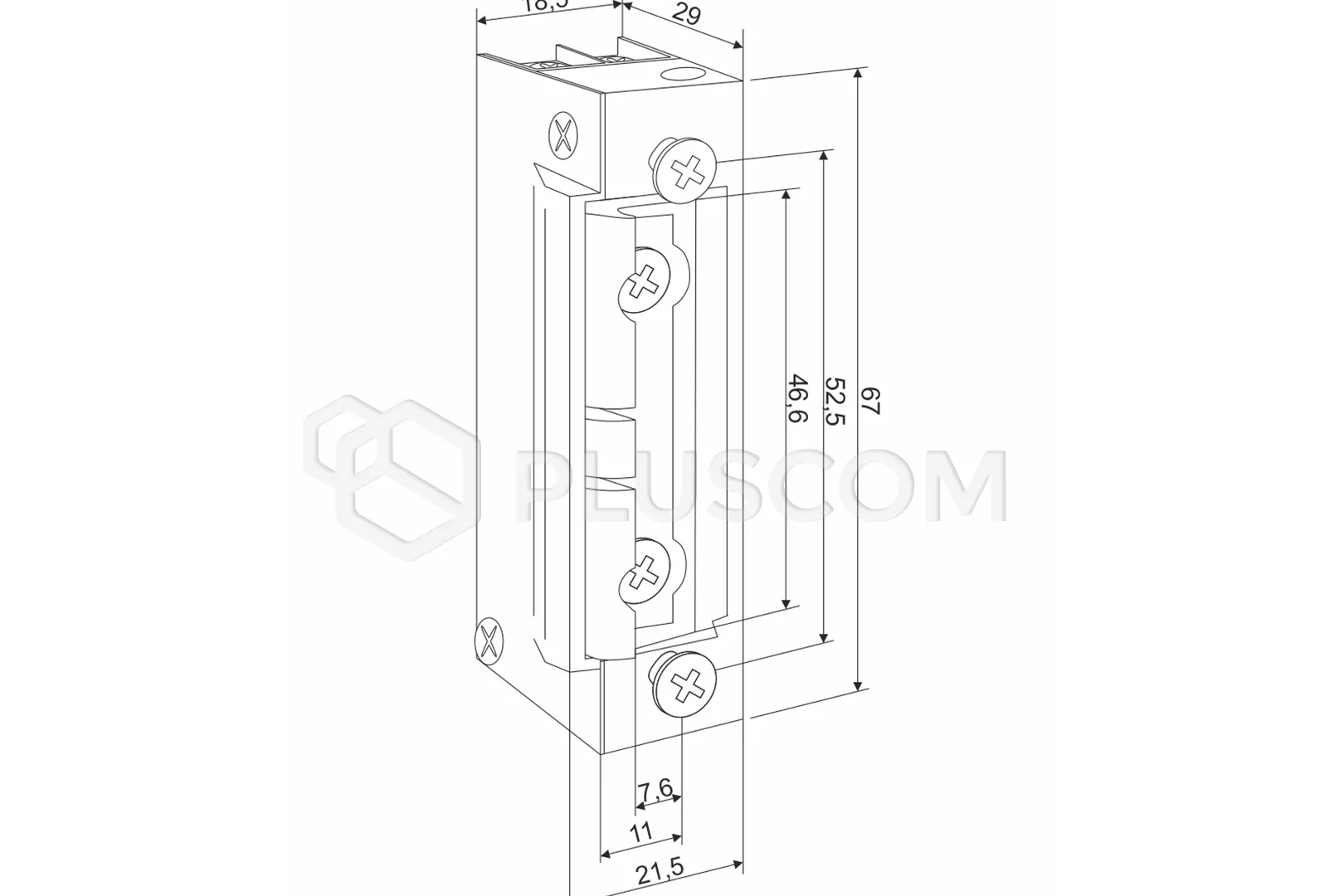

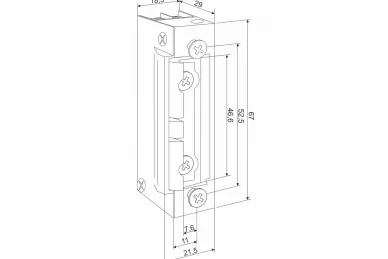

- Mounting screw spacing: 52 mm
- Continuous operation: < 1 min.
- Resistance: 20
- DC current consumption: 12V/ 680 - 24 V 1080
- AC current consumption: 12 V/ 570 - 24 V 1170
- DC permissible initial pressure: 10 N
- AC permissible initial pressure: 90 N
- Durability: 200,000 cycles
- Usage category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
