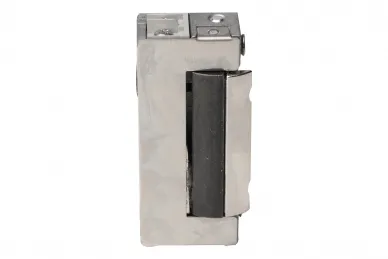

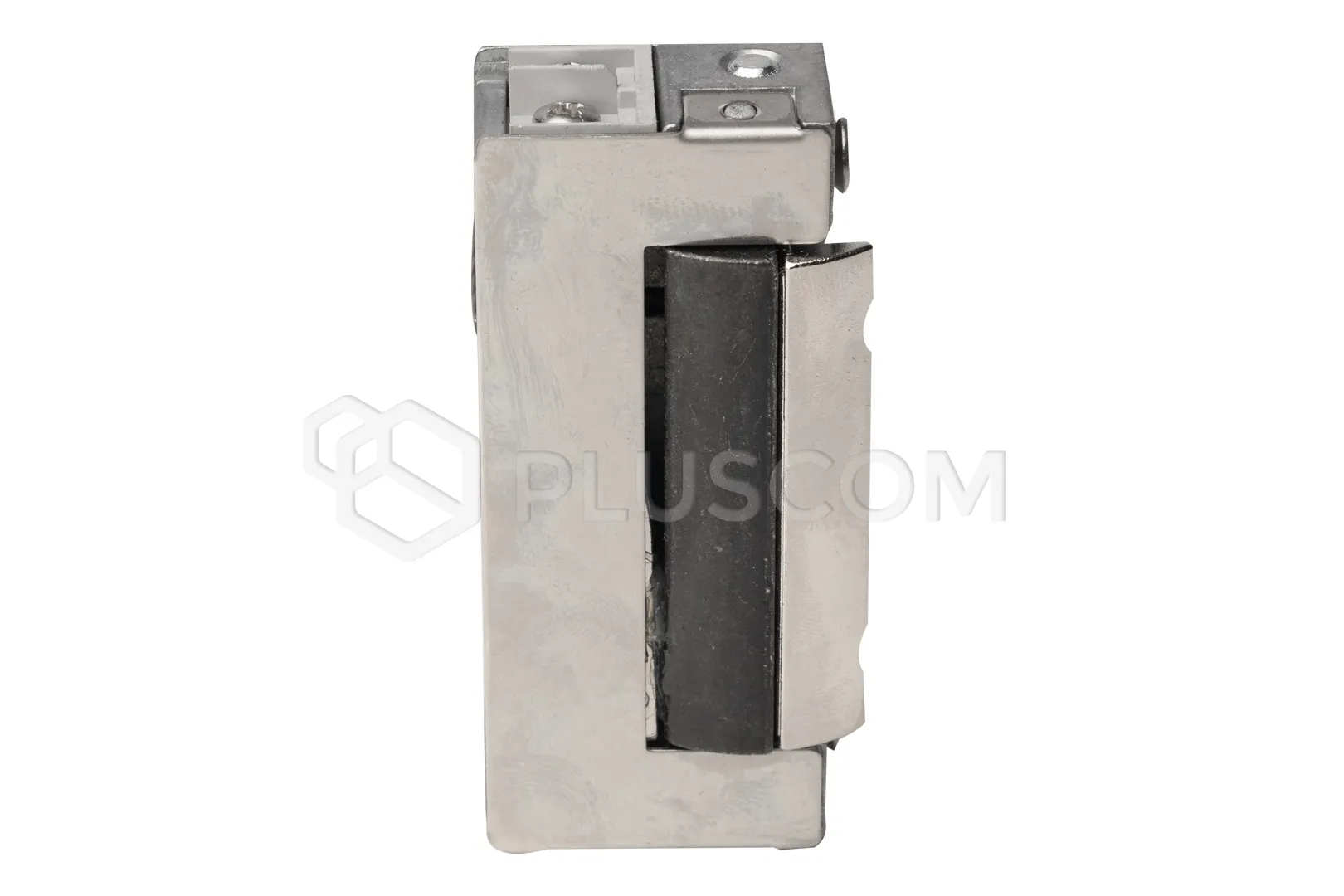

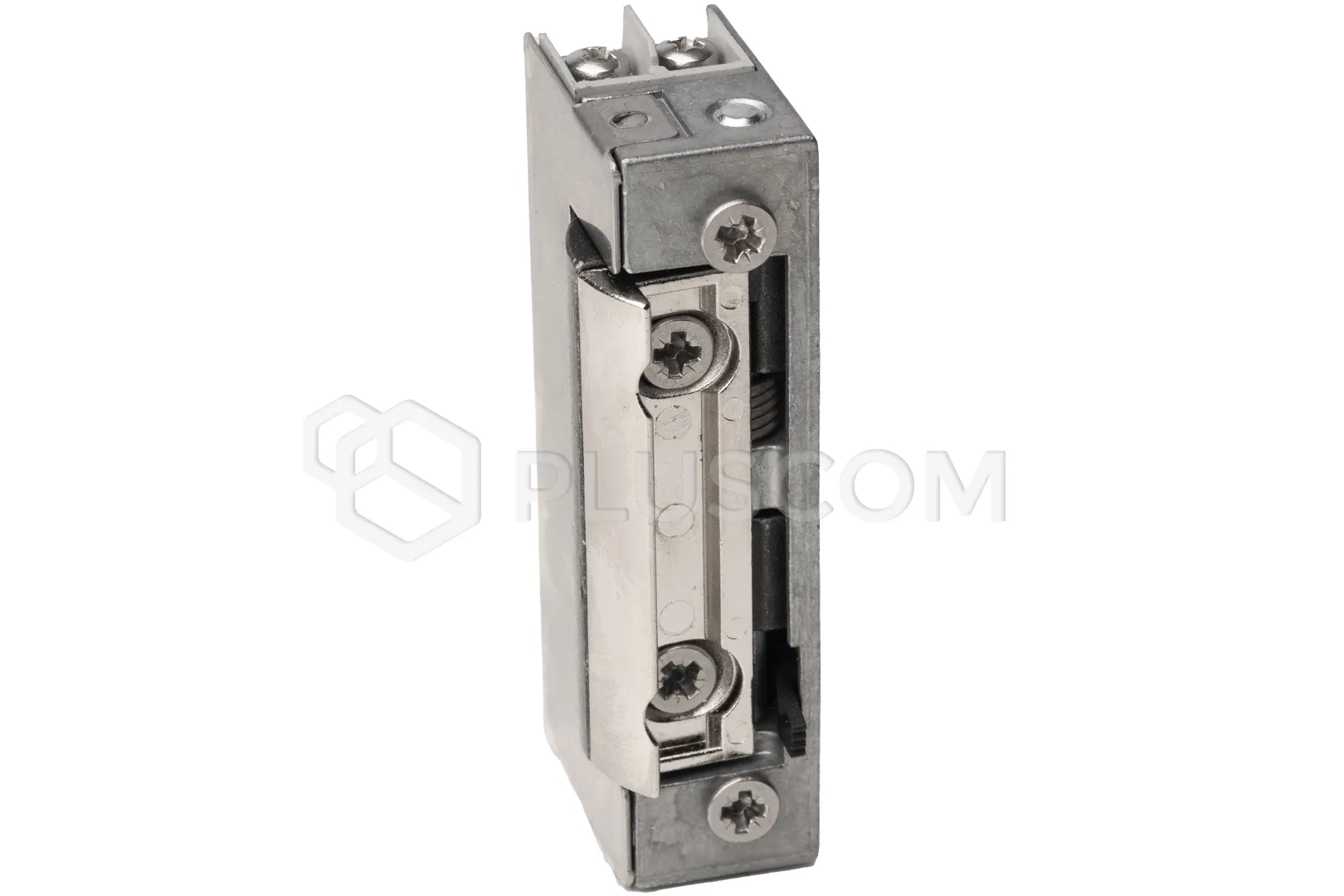

PSG 63.310 Narrow adjustable radial symmetrical electric strike with lock and memory 1443rf 12-24V AC/DC
The radial electric strike is a modern solution that provides
a high level of security and reliability in access control systems.
Designed for installation in doors with narrow profiles, it works perfectly
in public buildings where durability and precise operation are required.
Thanks to its universal design, the electric strike can be used
in both left and right doors, making it an exceptionally
versatile solution.
FEATURES:
- Universality: The electric strike can be used in both
left and right doors. This makes it the perfect choice for
a variety of projects and installations, eliminating the need to have different
models for different types of doors

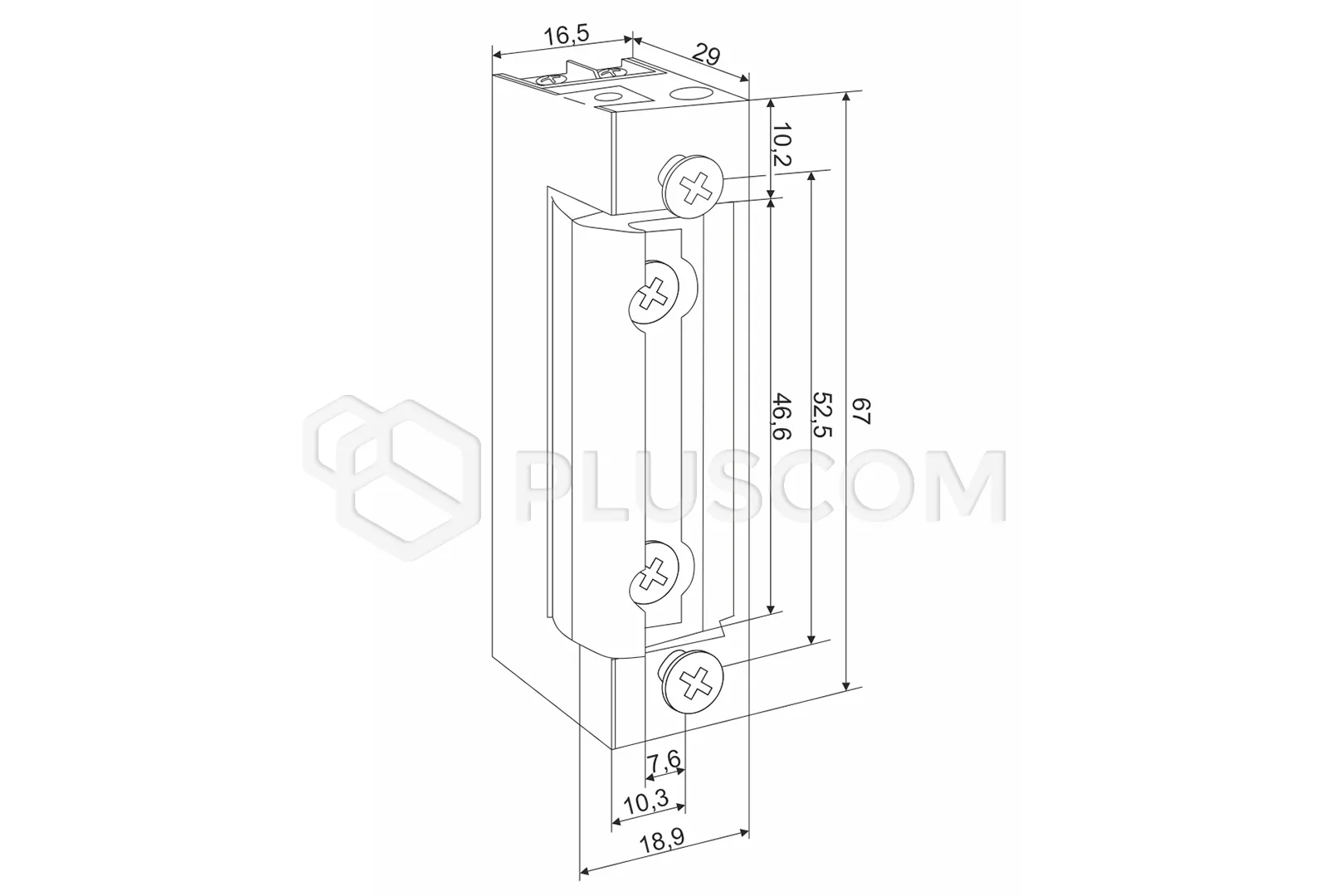

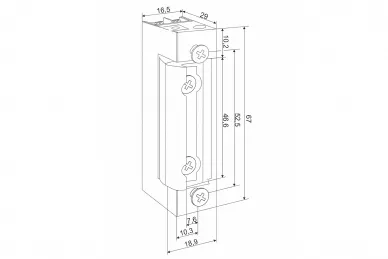

- Symmetrical and narrow design: The 16.5 mm wide lock is
designed for installation in narrow profiles. This allows for discreet
installation, preserving the aesthetics of the door while ensuring its full
functionality
- Tab tongue adjustment: The electric strike is equipped with a 2 mm
tongue adjustment. This feature allows for precise adjustment of the lock to the door
mechanism, eliminating play and minimizing the pressure on the latch, which
increases the durability of the entire system
- Suitable for continuous operation: The electric strike is designed
for continuous operation, making it a reliable element of the access control system. It is ideal for places with high traffic, such as offices,
schools or public utility buildings
- Low power consumption: Thanks to its low power consumption, the electric strike is
energy-efficient, which contributes to reducing the operating costs of the access control
system
- High durability: The electric strike has been designed for
long-term use. Designed for 2,000,000 cycles, which guarantees
longevity and reliability of operation even in demanding conditions
Radial mechanism:
The special design of the radial electric strike allows
the door to be opened with minimal tongue deflection. Thanks to this, the electric strike
can be mounted with a smaller undercut of the door frame, which significantly simplifies
installation and ensures the aesthetic appearance of the door. Minimal tongue deflection allows for quick and
effective operation, which is particularly important in places with high traffic.
Switch function:
The electric strike is equipped with a practical switch in the form of a small
mechanical lever. It is this that allows the lock to be unlocked to the permanently open
position, which is particularly useful in situations where the door must remain open for a longer
time, for example during evacuation or loading. This function increases the flexibility of use and
makes the electric strike exceptionally functional.
Adjustment of the latch tongue:
The ability to adjust the latch tongue within a range of 2 mm is another advantage
of the electric strike. Thanks to this function, the user can precisely
adjust the position of the tongue, which eliminates the play between the lock elements. This
adjustment ensures smooth and trouble-free operation of the door, while minimizing
the wear of the mechanism and extending its service life. Such precision in
adjustment is a guarantee of reliability and comfort of use.
Internal memory:
The electric strike is equipped with an advanced internal memory function, which
increases the comfort and safety of use. The internal memory operates on the
principle of short-term voltage supply, which unlocks the latch
of the electric strike until the door is opened once.
After opening the door, when the latch returns to the closed position, the electric strike is automatically
locked. Thanks to this mechanism, the door remains safe and the risk of unauthorized access is minimized. The internal memory
function is particularly useful in places where temporary unlocking of doors is often required, such as offices or public institutions,
while ensuring convenience of use and a high level of security.
Technical data:
- Type: Radial with lock and memory
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 2 mm
- Mounting screw spacing: 52 mm
- Continuous operation: 1 min.
- Resistance: 15 ?
- DC current consumption: 12V - 680 mA / 24V - 1080 mA
- AC current consumption: 12V - 570 mA / 24V - 1170 mA
- Permissible initial pressure DC: 10 N
- Permissible initial load AC: 90 N
- Durability: 200,000 cycles
- Use category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
