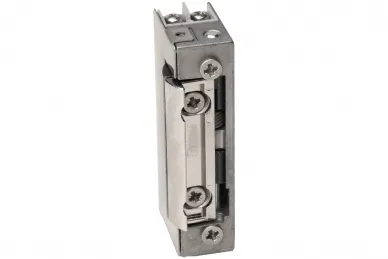

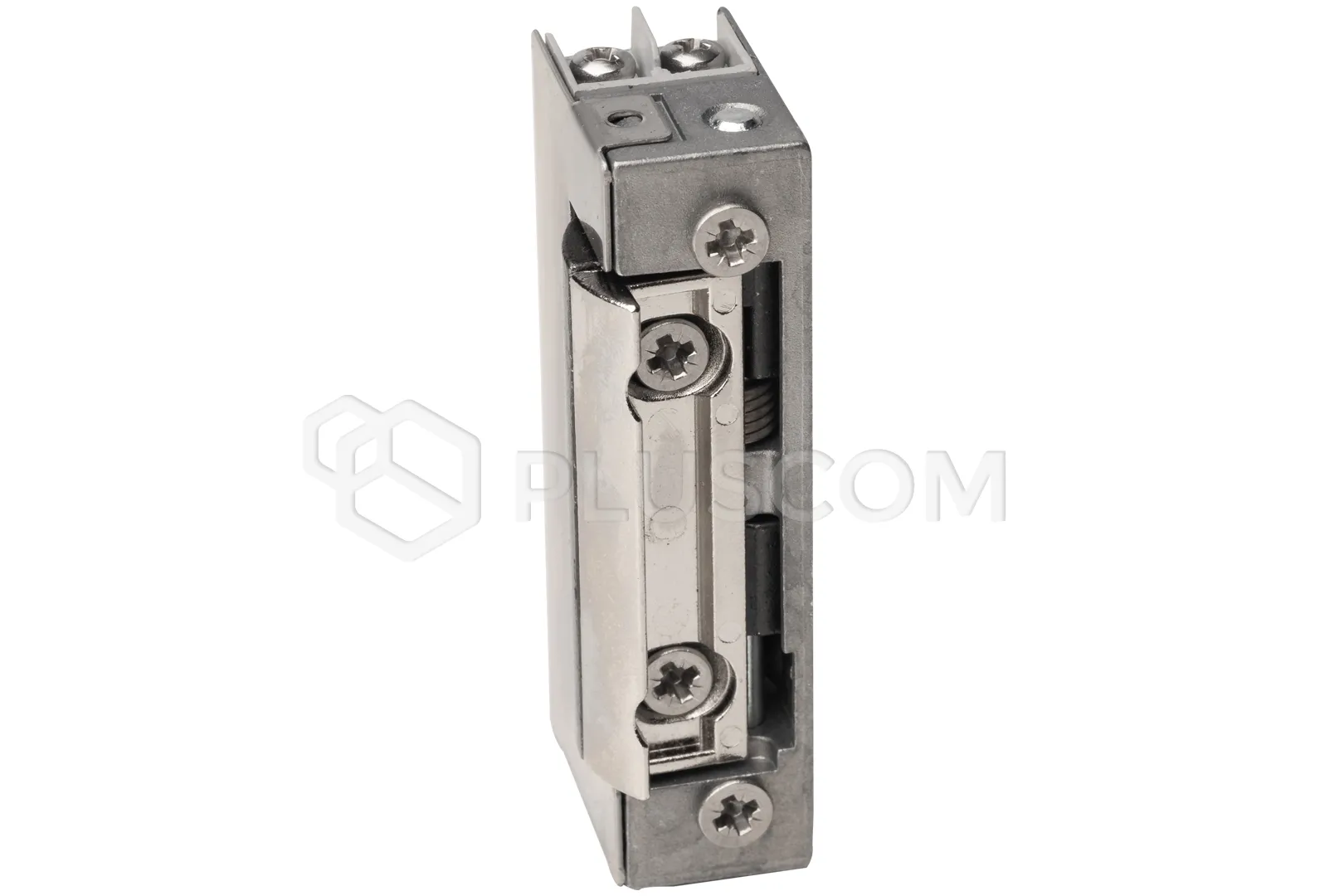

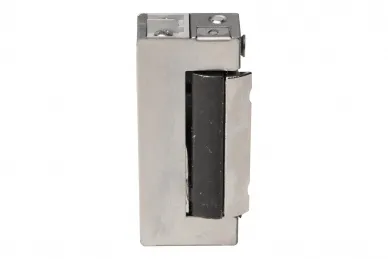

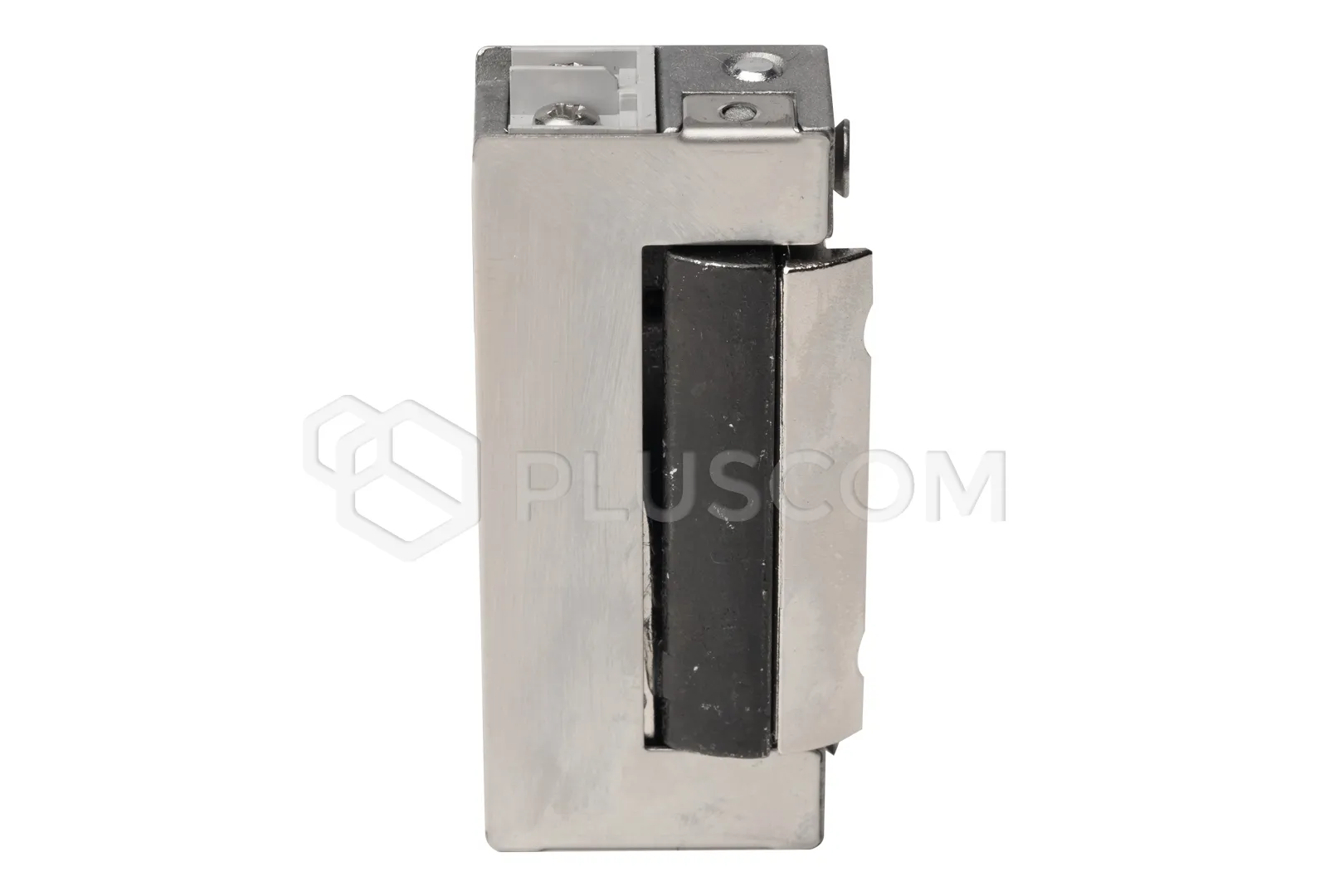

PSG 63.309 Electric strike symmetrical narrow adjustable radial with memory 1433rf 12-24V AC/DC
The symmetrical 1433RF electric strike is an advanced device for access control, which is an ideal solution for both intercom systems and advanced security installations in public buildings.
Thanks to its universal design and compact dimensions, the electric strike can be installed in various types of doors, both left and right.
Equipped with innovative functions, such as internal memory and
precise tongue adjustment, it guarantees reliability and safety at the highest level. Choosing this electric strike is an investment in peace
and comfort of use every day.
FEATURES:
- Symmetrical design: the 1433RF electric strike is designed for use in both left and right-handed doors. The symmetrical design makes it easier to install and provides greater flexibility in door selection, making it an exceptionally
versatile solution
- Radial strike: the special design of the tongue allows for opening
with minimal tilt, which reduces the need for deep milling in the door frame. This not only protects the door structure, but also streamlines the
installation process, which is crucial in tight spaces
- Internal memory: the electric strike equipped with internal memory
remains unlocked after a short electrical impulse until the door is opened once. This function is invaluable in places where
fast and convenient access control is important without the need for constant
power supply
- Tongue adjustment: adjustment of the latch tongue within 2 mm allows
for perfect adjustment of the mechanism to the lock tongue, which minimizes pressure and
eliminates play, thus ensuring smooth and quiet door operation. This
functionality increases comfort of use and extends the life of the lock

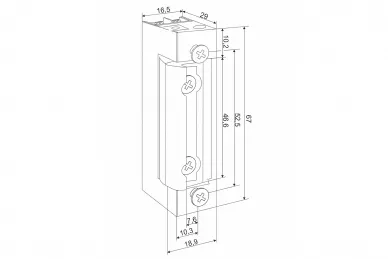

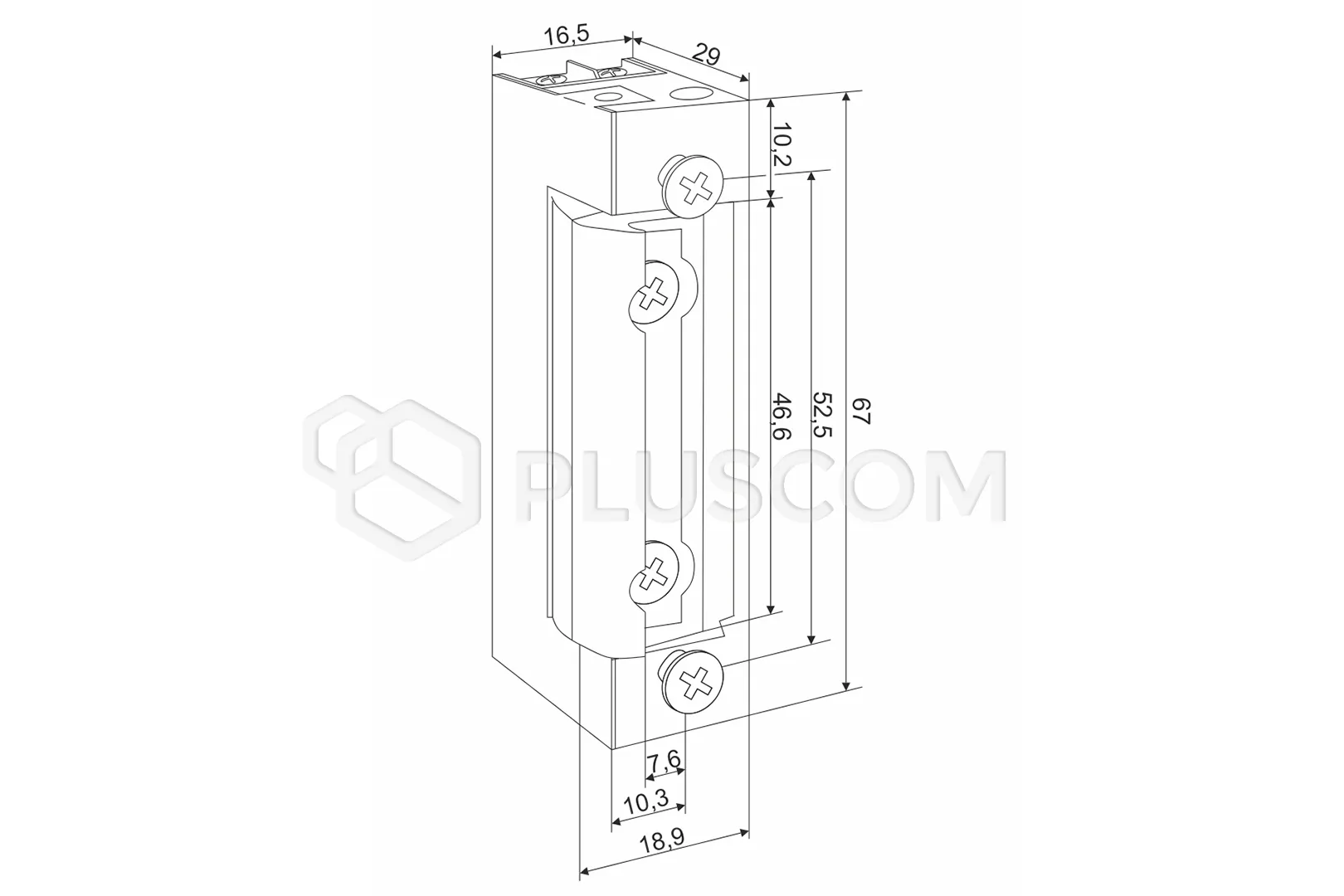

- Compact narrow profile: the electric strike with a width of only 16.5
mm is ideal for narrow door profiles, making it an excellent
choice for modern, minimalist architectural solutions
- Certified quality: the product meets the PN-EN 14846:2010
standards, which confirms its high quality and compliance with European safety
standards. By choosing the 1433RF electric strike, you are investing in a proven
solution that guarantees reliability and long-term operation
Radial strike:
The radial strike used in the 1433RF model is an advanced
technical solution that allows the door to be opened with minimal tongue deflection. This reduces the need for milling
the door frame, which not only shortens the installation time, but also protects the door from
potential damage.
The radial mechanism ensures smooth and quiet
operation, which is particularly important in places with high traffic,
such as offices or public buildings.
Internal memory:
The 1433RF model is equipped with an internal memory that allows
the door to be unlocked after a short electrical impulse. The door remains
unlocked until it is opened once, which significantly simplifies access management in public buildings. Automatic
relocking after closing the door increases the level of security,
eliminating the risk of uncontrolled access to protected premises.
Adjustment of the latch tongue:
The 1433RF electric strike offers the possibility of adjusting the latch tongue
within a range of 2 mm, which allows for precise adjustment to the lock. Thanks to this
function, you can eliminate the play between the tongue and the latch, which translates into
quieter operation of the mechanism and reduction of pressure.
This adjustment is
key to ensuring long-term and trouble-free operation of the electric strike, which
makes it an ideal choice for demanding users looking for
reliable access control solutions.
Technical data:
- Type: Radial with memory
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 2 mm
- Mounting screw spacing: 52 mm
- Continuous operation: 1 min.
- Resistance: 15
- DC current consumption: 12V - 680 mA / 24V - 1080 mA
- AC current consumption: 12V - 570 mA / 24V - 1170 mA
- Permissible DC pre-pressure: 10 N
- Permissible initial load AC: 90 N
- Durability: 200,000 cycles
- Use category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
