PSG 63.308 Electric strike symmetrical narrow adjustable radial with lock 1420rf 12-24V AC/DC
The 1420RF electric strike is a modern solution designed for remote,
wired door opening - right and left. Thanks to its universal, symmetrical design, it is ideal for
aluminium doors, especially in places where a narrow profile is required.
The electric strike has been equipped with innovative technologies that ensure
its reliability and comfort of use, as well as increase safety in the
buildings where it is used.
FEATURES:
- Universal and symmetry: The 1420RF model is characterized by
a symmetrical design, which means that it is suitable for both right and left
doors. Thanks to this, its installation is simple and flexible, and
the user can use it in various door configurations
- Day/night lock: The electric strike has a day/night lock function, which
enables temporary, permanent unlocking of the door. This is extremely practical
in places with high traffic, where frequently opened doors may
be a problem
- Power supply: The possibility of power supply with both direct current (DC) and
alternating current (AC) with a voltage of 12V or 24V makes the electric strike versatile and
adapted to various electrical installations

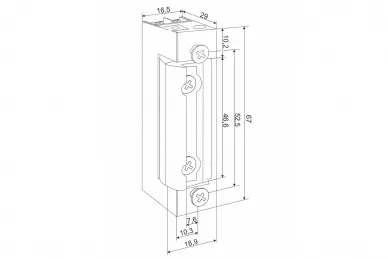

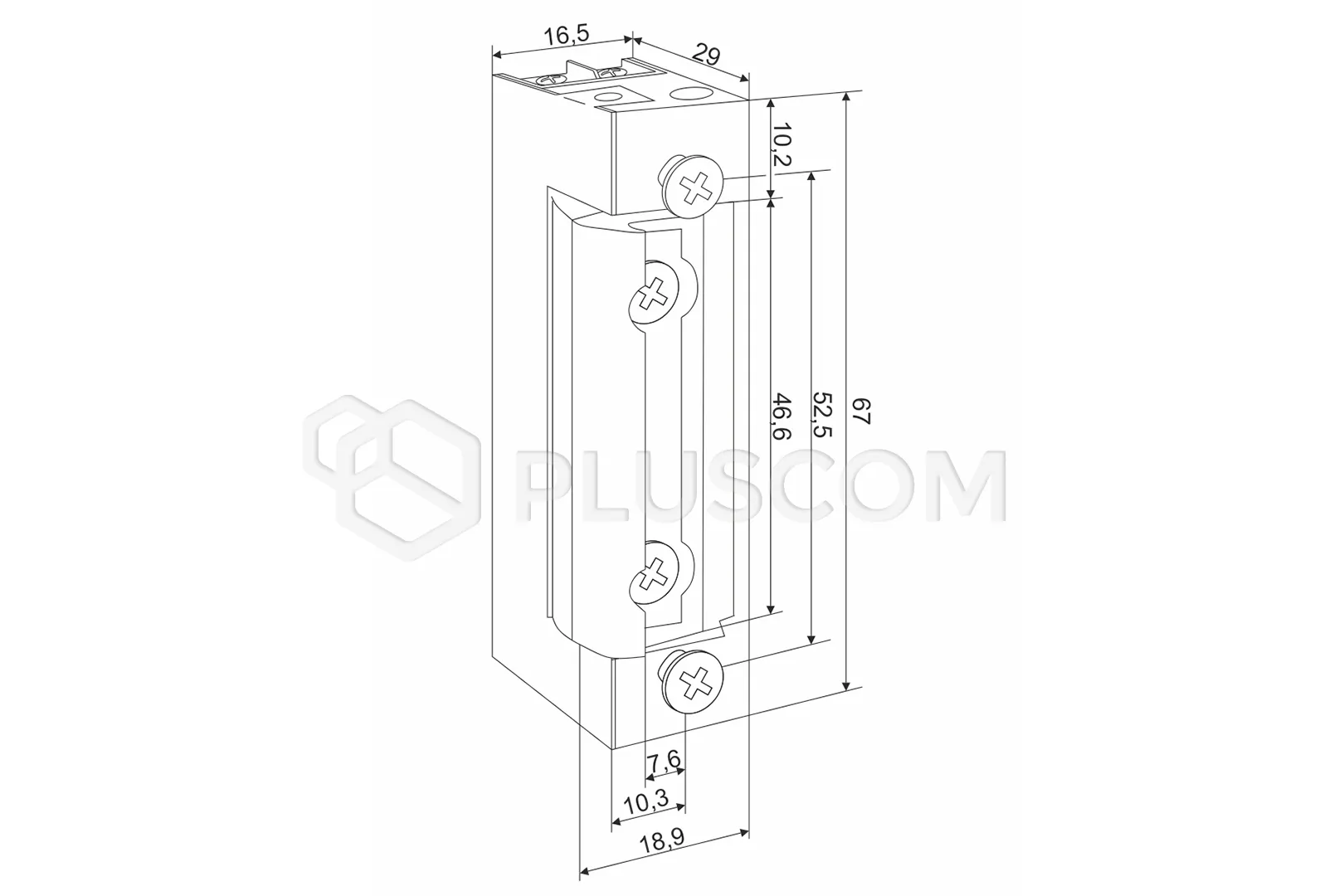

- Narrow profile: The electric strike with a width of only
16.5 mm is perfect for installation in narrow door profiles, which
minimizes the need for milling and interference in the door structure
- Durability: The product has been designed with long-term
use in mind, which is confirmed by its durability at the level of 200,000 cycles. This is
a guarantee of reliability and longevity of the device
- Certification: The 1420RF electric strike meets the standards of the PN-EN
14846:2010 certificate, which proves its high quality and compliance with European
safety and durability standards. The certification ensures that the product is not only solid, but also safe to
use
Radial electric strike:
One of the key features of the 1420RF electric strike is its
radial mechanism, which allows the door to be opened with minimal deflection.
Thanks to this, the installation of the electric strike requires a smaller undercut of the door frame, which
allows the integrity of the door structure to be maintained. This mechanism
also ensures smooth and trouble-free operation of the lock, which increases the comfort
of use.
Switch function:
The 1420RF electric strike is equipped with a practical switch, located
directly on the device housing. It is this switch that allows the mechanism to be temporarily
disabled, which is particularly useful in situations where the door must remain open for a longer
time, for example when moving larger items. After work is finished, the switch can be easily
switched, restoring the normal functioning of the electric strike.
Adjustment of the latch tongue:
Adjustment of the latch tongue in the range from 0 to 2 mm is another
significant advantage of the 1420RF model. This function allows for precise
adjustment of the position of the electric lock tongue, which eliminates play
between the tongue and the door lock. Thanks to this, the door closes smoothly and tightly,
which increases their functionality and safety of use.
Technical data:
- Type: Radial with lock
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 2 mm
- Mounting screw spacing: 52 mm
- Continuous operation: 1 min.
- Resistance: 15
- DC current consumption: 12V - 680 mA / 24V - 1080 mA
- AC current consumption: 12V - 570 mA / 24V - 1170 mA
- Permissible DC pre-pressure: 10 N
- Permissible initial load AC: 90 N
- Durability: 200,000 cycles
- Use category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
