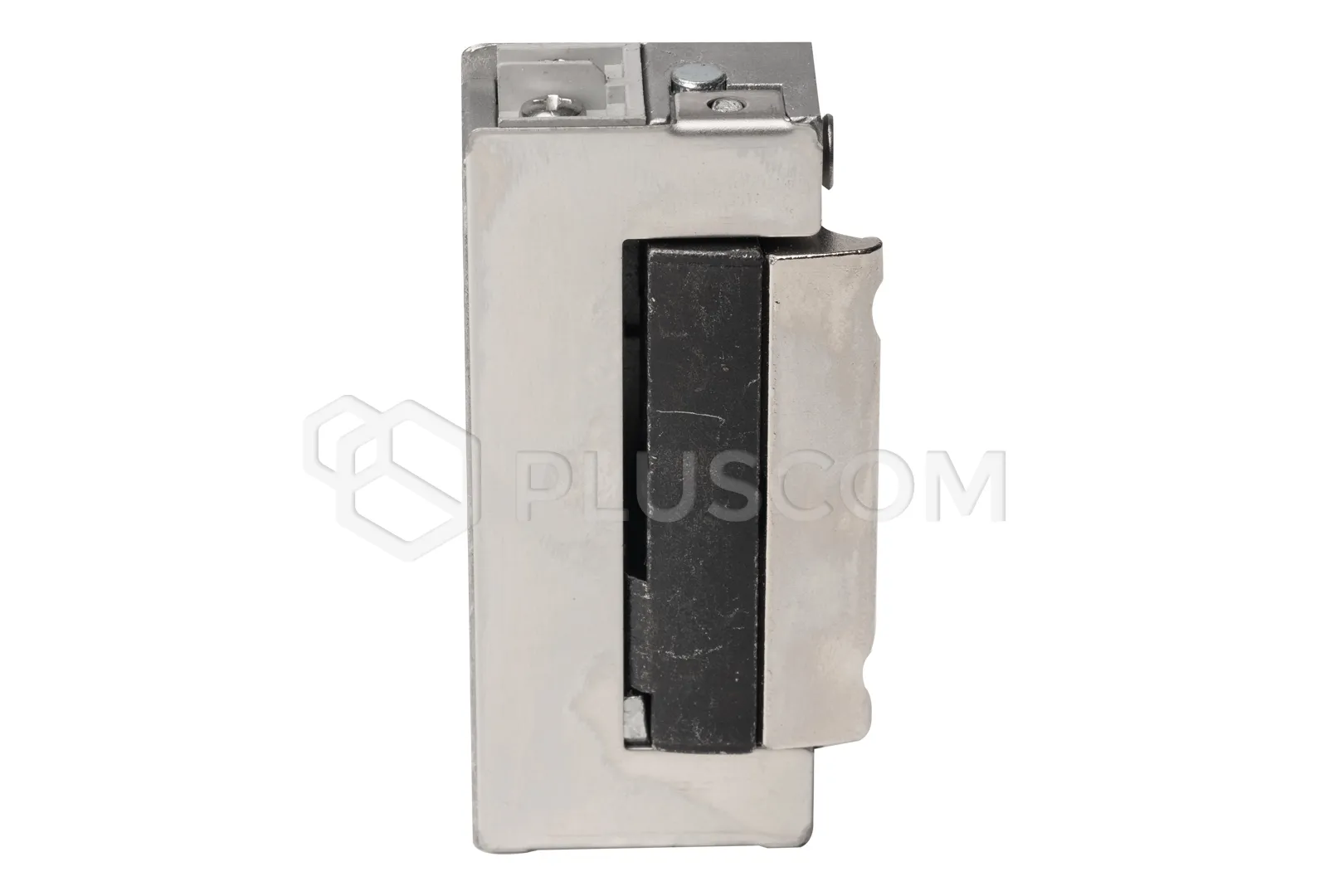

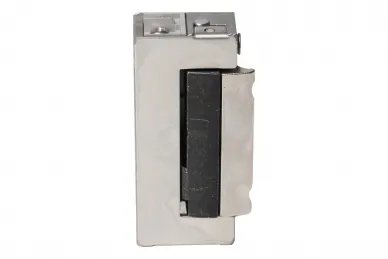

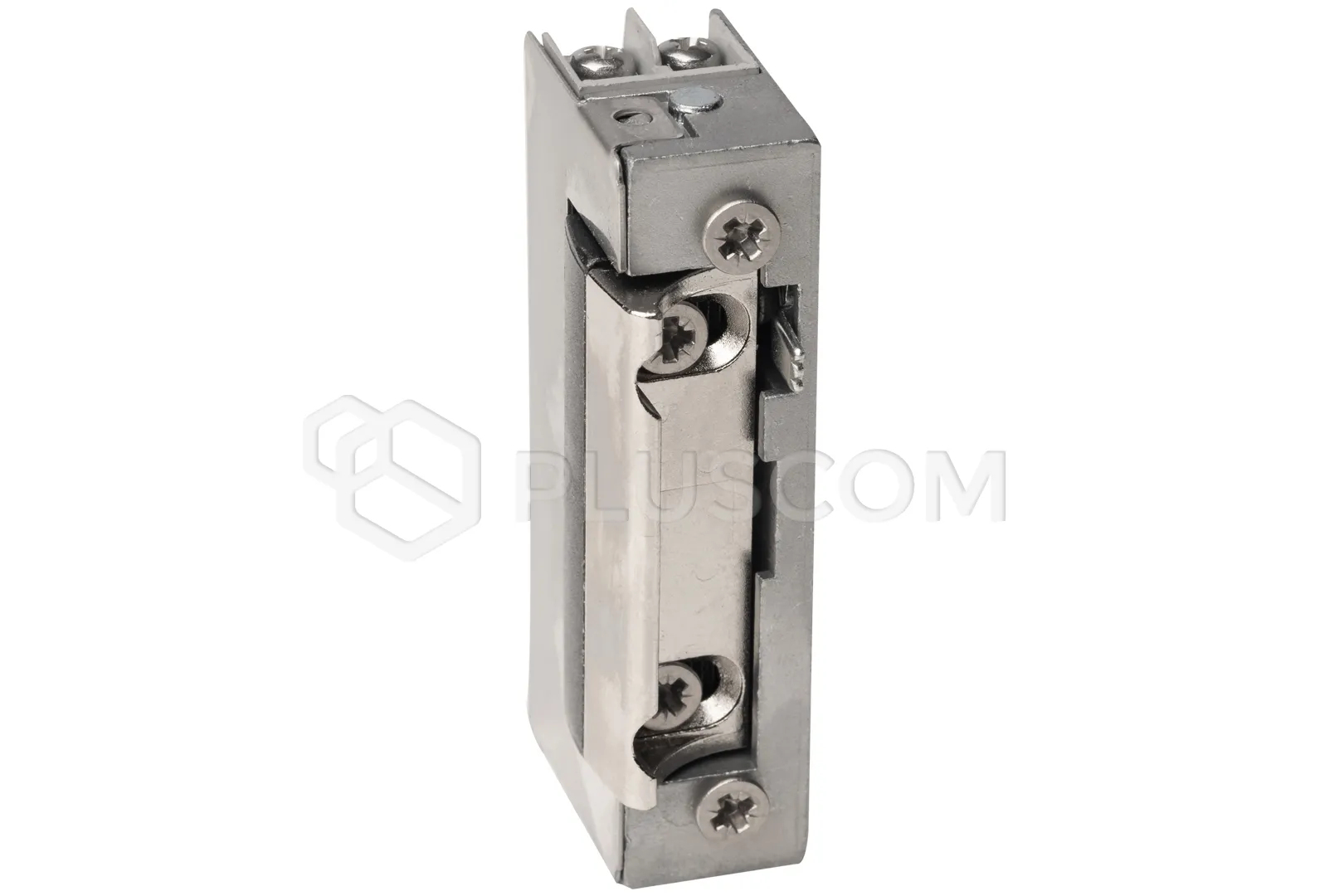

PSG 63.307 Narrow symmetrical electric strike with lock and memory 1443 12-24V AC/DC
The symmetrical electric strike 1443 is a versatile and reliable device
designed for remote, wired opening of right or left doors. Thanks to advanced technology and solid construction,
the electric strike works perfectly in various access control systems,
ensuring safety and comfort of use.
The compact size of the electric strike allows it to be installed in narrow
door profiles, making it an ideal solution even in the most demanding spatial conditions.
FEATURES:
- Internal memory: The electric strike equipped with an internal memory function
remains unlocked after an electric impulse is applied, until the door is physically opened. This is an ideal solution in
situations where the door is out of sight or when a longer route is required to
overcome it
- Universal installation: the symmetrical design allows the electric strike to be
installed in both left-handed and right-handed doors, which significantly
increases its versatility and flexibility of use, regardless of the
architectural layout
- Compact design: the 16.5 mm wide lock is
ideal for installation in narrow profiles, making it an excellent
choice for modern buildings and gates
- Adjustment of the latch tongue: the possibility of
adjusting the latch tongue within a range of 4 mm allows for
precise adjustment of the mechanism, which eliminates play and ensures
smooth and quiet door operation
- Durability and reliability: the electric strike is designed for
intensive use, with an estimated durability of 200,000 cycles, which
guarantees longevity and minimizes maintenance costs
- Low energy consumption: the lock is powered by 12-24 V AC/DC, and
its low energy demand makes it economical to use, even in continuous mode
Internal memory:
The built-in internal memory allows the electric strike to be kept in the
unlocked position after receiving an electric impulse, until the door is
physically opened.
This solution provides maximum convenience, especially in
situations where the process of leaving the room may be longer or when
the door is out of sight, eliminating the need to re-apply the impulse.
Adjustment of the latch tongue:
Adjustment of the latch tongue in the range of 0-4 mm allows for
perfect adjustment of the electric strike to the lock mechanism, which eliminates play and
ensures smooth, quiet door closing. This functionality increases the comfort
of use and protects the mechanism from premature wear, extending its
lifespan.
Lock function:
The 1443 electric strike is equipped with a lock function, which
enables permanent unlocking of the device thanks to a small, mechanical lever on
the housing. This practical solution is particularly useful in situations where it is necessary to temporarily disable access control, for example
during renovations, events or other circumstances requiring the free flow of people.
The lock function significantly increases the functionality of the device,
offering users greater flexibility in managing access.
Technical data:
- Type: With lock and memory
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 4 mm

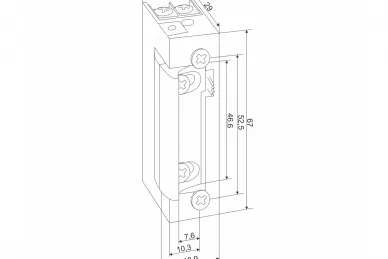

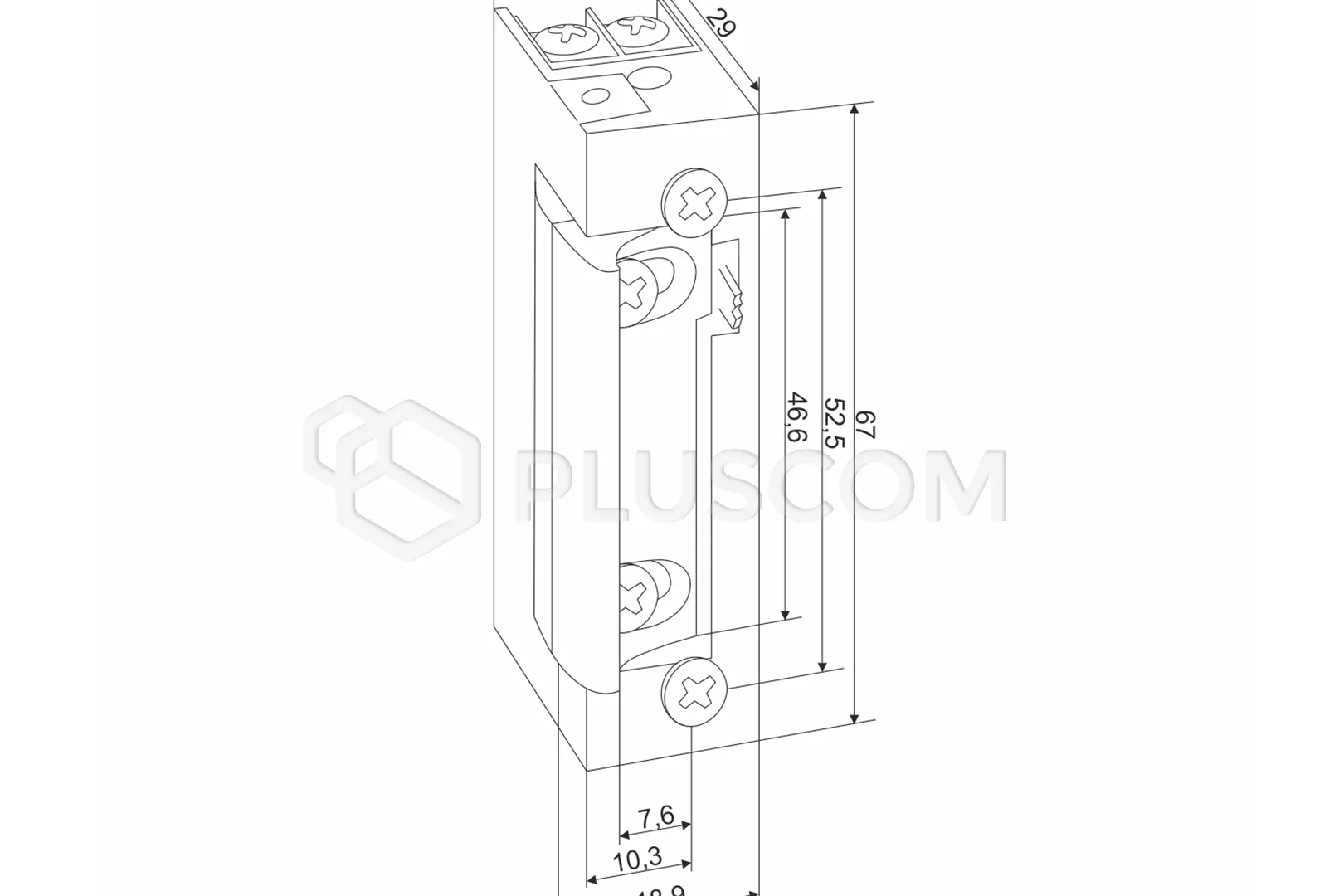

- Mounting screw spacing: 52 mm
- Continuous operation: 1 min.
- Resistance: 20
- DC current consumption: 12V - 600 mA / 24V - 1100 mA
- AC current consumption: 12V - 500 mA / 24V - 1000 mA
- Permissible DC pre-pressure: 10 N
- Acceptable initial load AC: 90 N
- Durability: 200,000 cycles
- Use category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
