PSG 63.306 Electric strike, symmetrical, narrow, adjustable, with memory 1433 12-24V AC/DC

31,82 EUR including 19.00% VAT
Product code: #42074
  • Universal (symmetrical): For left and right doors
  • Power supply: 12-24V AC/DC
  • Ratchet adjustment: 4 mm
  • Durability: 200,000 cycles
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

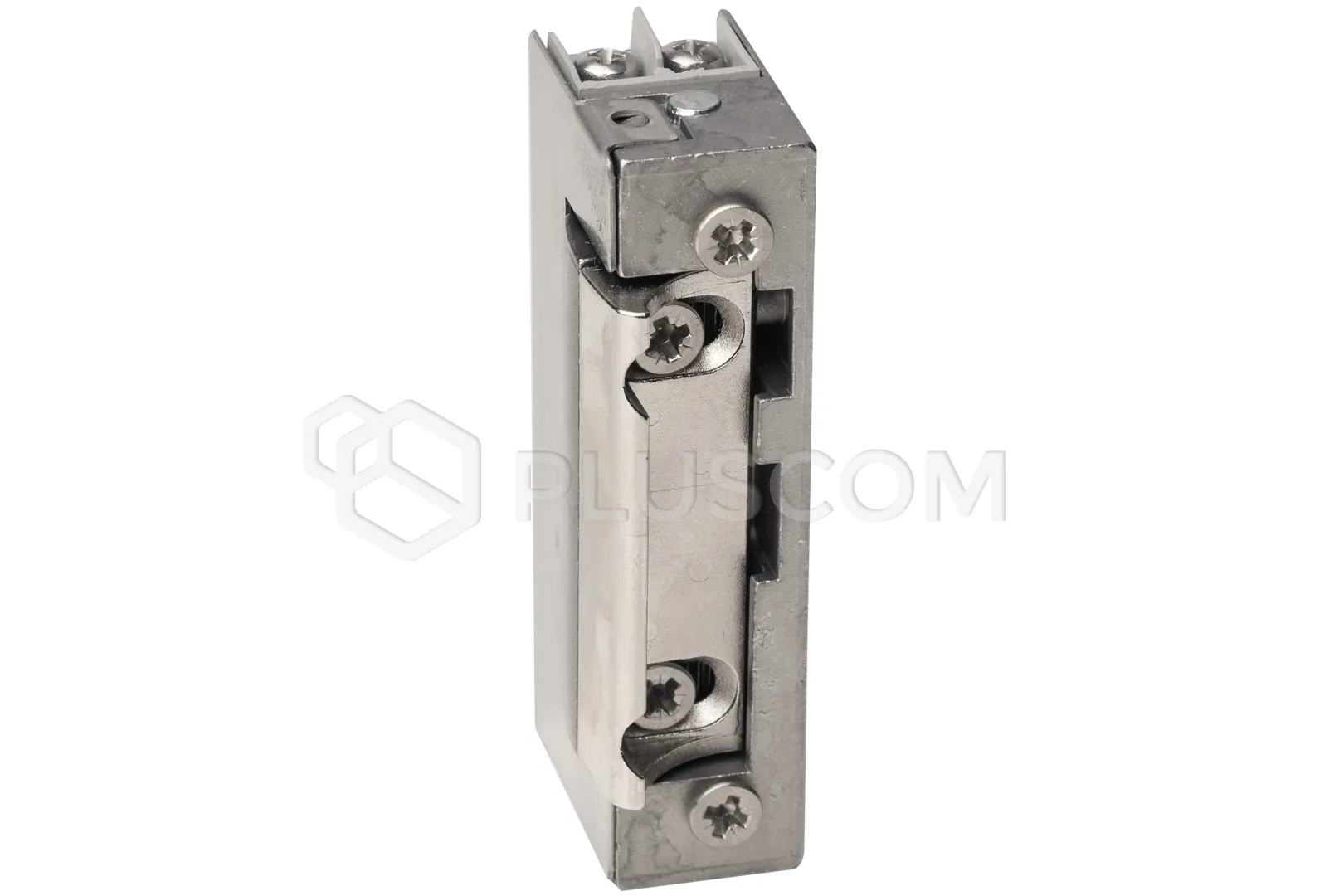

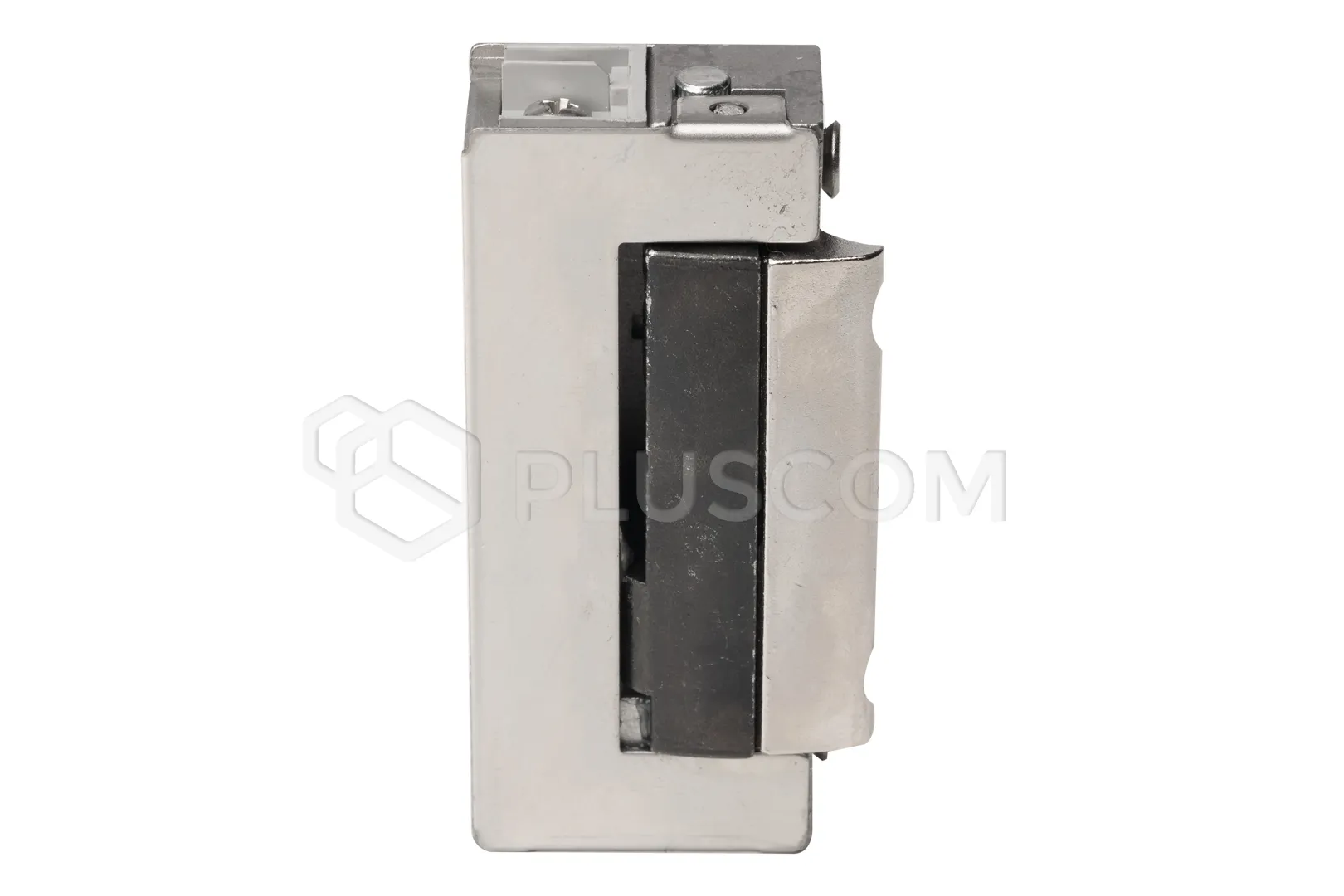

PSG 63.306 Narrow symmetrical adjustable electric strike with memory 1433 12-24V AC/DC


The electromagnetic electric strike with internal memory is an advanced solution that combines safety with ease of use. Designed for installation in both left and right doors, it works perfectly in various access control systems.

The compact size and solid construction make the electric strike a perfect choice for use in places with limited space, while ensuring reliability and durability in everyday use.

FEATURES:

  • Internal memory: The electric strike equipped with an internal memory function remains unlocked after receiving an electric impulse until the door is physically opened. This functionality is particularly useful in situations where it is necessary to cover a certain distance to the door or when the door is out of sight
  • Universal installation: the symmetrical design of the electric strike allows it to be installed in left and right doors, which increases versatility and flexibility of use, regardless of the architectural layout
  • Compact design: the 16.5 mm wide electric strike is ideally suited for installation in narrow door profiles, making it an excellent solution for modern buildings with limited installation space
  • Adjustment of the latch tongue: the possibility of adjusting the latch tongue within 4 mm allows for precise adjustment of the electric strike to the lock mechanism, eliminating play and ensuring smooth door operation
  • Structural robustness: designed for intensive use, the electric strike meets the requirements of the class 3 usage category, making it an ideal choice for public buildings, guaranteeing durability and reliability
  • Use of modern materials: high-quality materials used in the production of the electric strike ensure long life and resistance to damage, which translates into lower operating and maintenance costs

Internal memory:


The built-in internal memory is an innovative function that allows the electric strike to be kept in the unlocked position after an electric impulse is applied, until the door is physically opened.

This solution ensures comfort and safety, especially in places where the process of leaving the room is time-consuming or when the door is out of sight, eliminating the risk of accidental closing.

Adjustment of the latch tongue:


Adjustment of the latch tongue in the range of 0-4 mm is a function that allows for perfect adjustment of the electric strike to the lock mechanism. Thanks to this, it is possible to eliminate the play between the electric lock tongue and the door lock, which results in quiet and smooth door closing. This significantly increases the comfort of use and extends the life of both the electric strike and the entire lock mechanism, reducing maintenance costs.

Technical data:

  • Type: With internal memory
  • Universal (symmetrical): For left and right doors
  • Application: Access control
  • Power supply: 12-24 V AC/DC
  • Latch adjustment: 4 mm

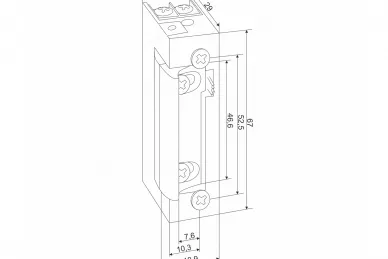

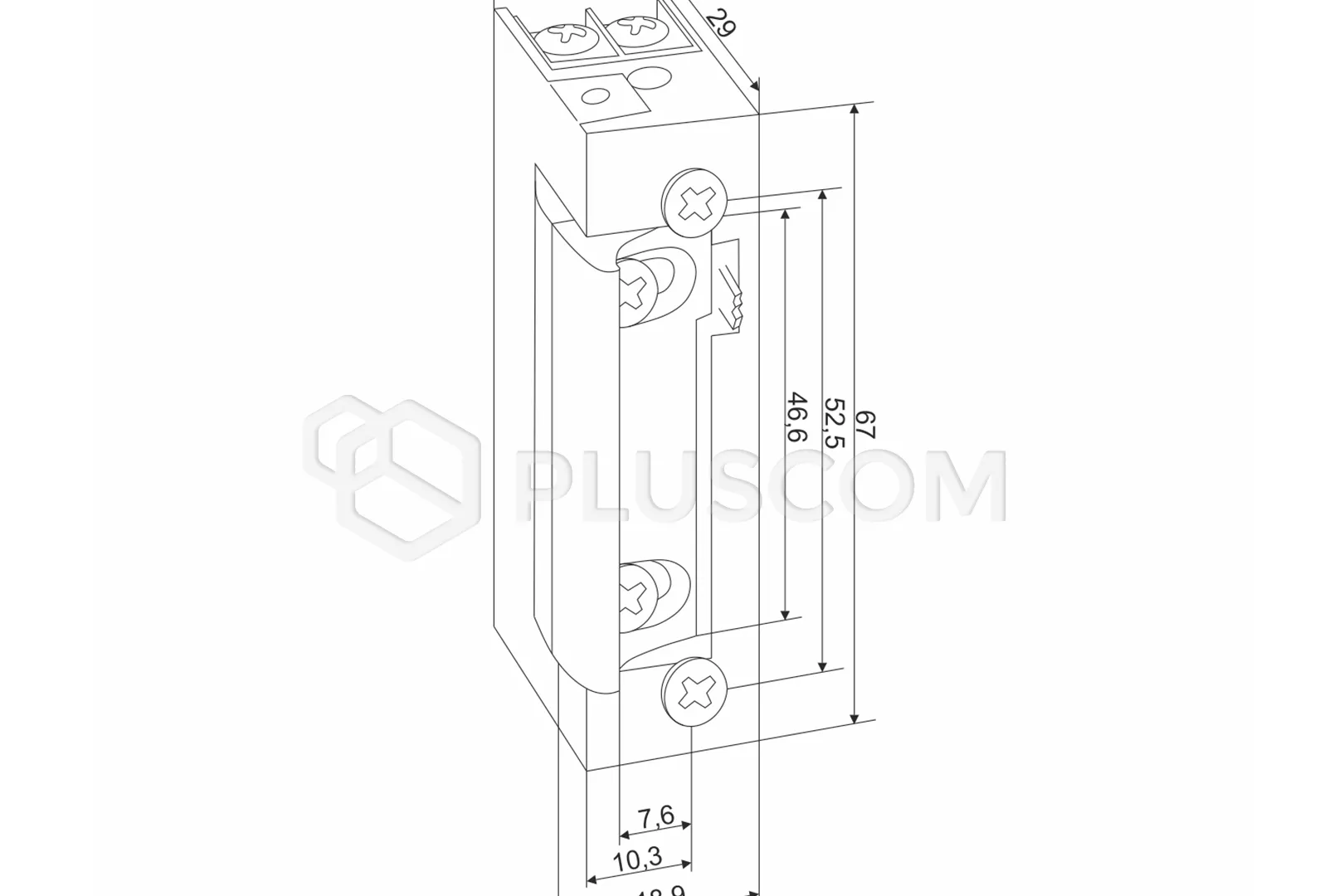

  • Mounting screw spacing: 52 mm
  • Continuous operation: 1 min.
  • Resistance: 20
  • DC current consumption: 12V - 600 mA / 24V - 1100 mA
  • AC current consumption: 12V - 500 mA / 24V - 1000 mA
  • Permissible DC pre-pressure: 10 N
  • Permissible initial load AC: 90 N
  • Durability: 200,000 cycles
  • Use category: Class 3 - suitable for public buildings
  • Certificate: PN-EN 14846:2010
