PSG 63.305 Electric strike, symmetrical, narrow, adjustable, with lock 1420 12-24V AC/DC

31,44 EUR including 20.00% VAT
Product code: #42072
  • Universal (symmetrical): For left and right doors
  • Power supply: 12-24V AC/DC
  • Ratchet adjustment: 4 mm
  • Durability: 200,000 cycles
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

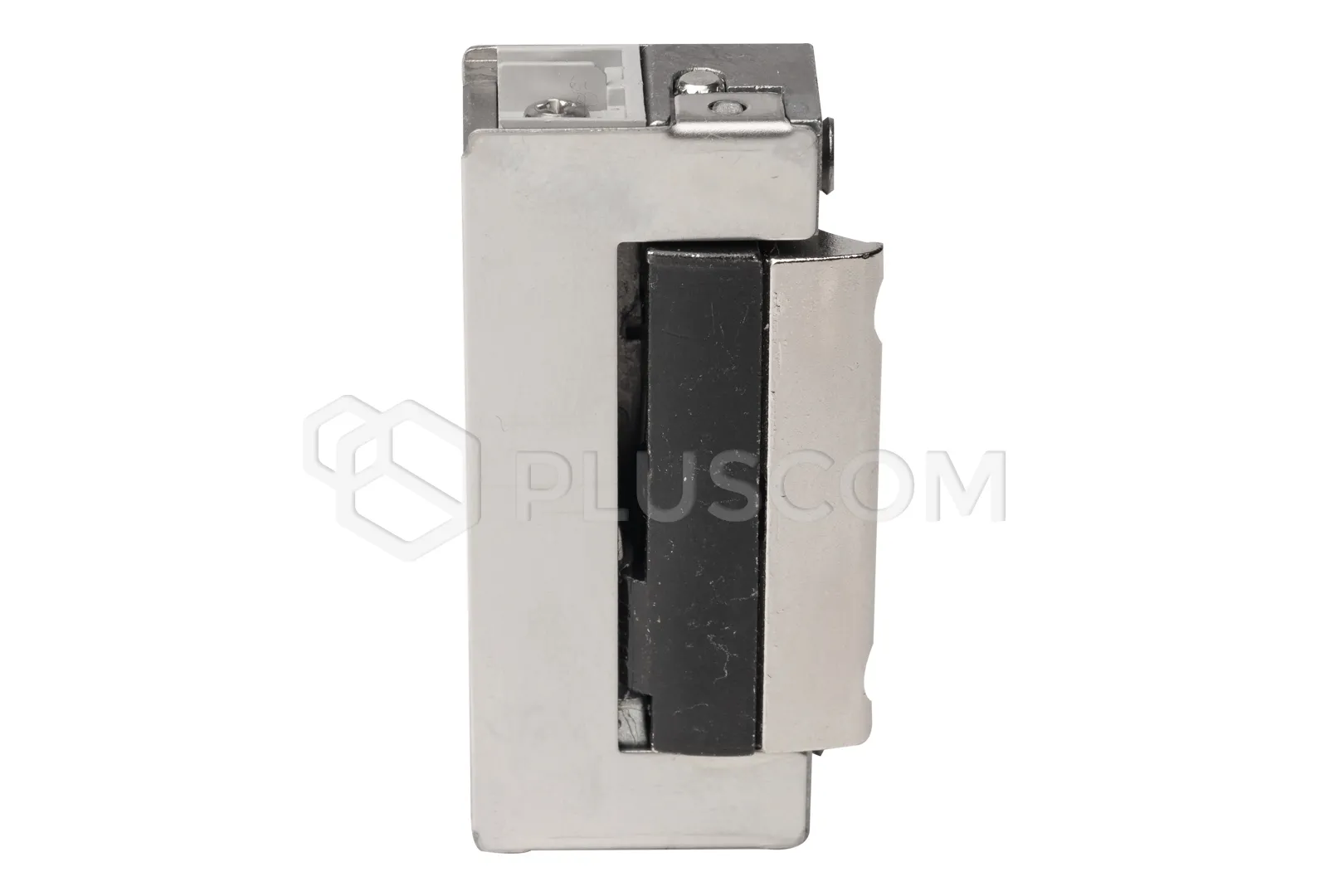

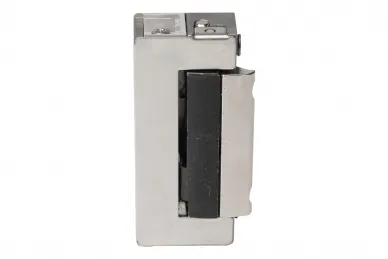

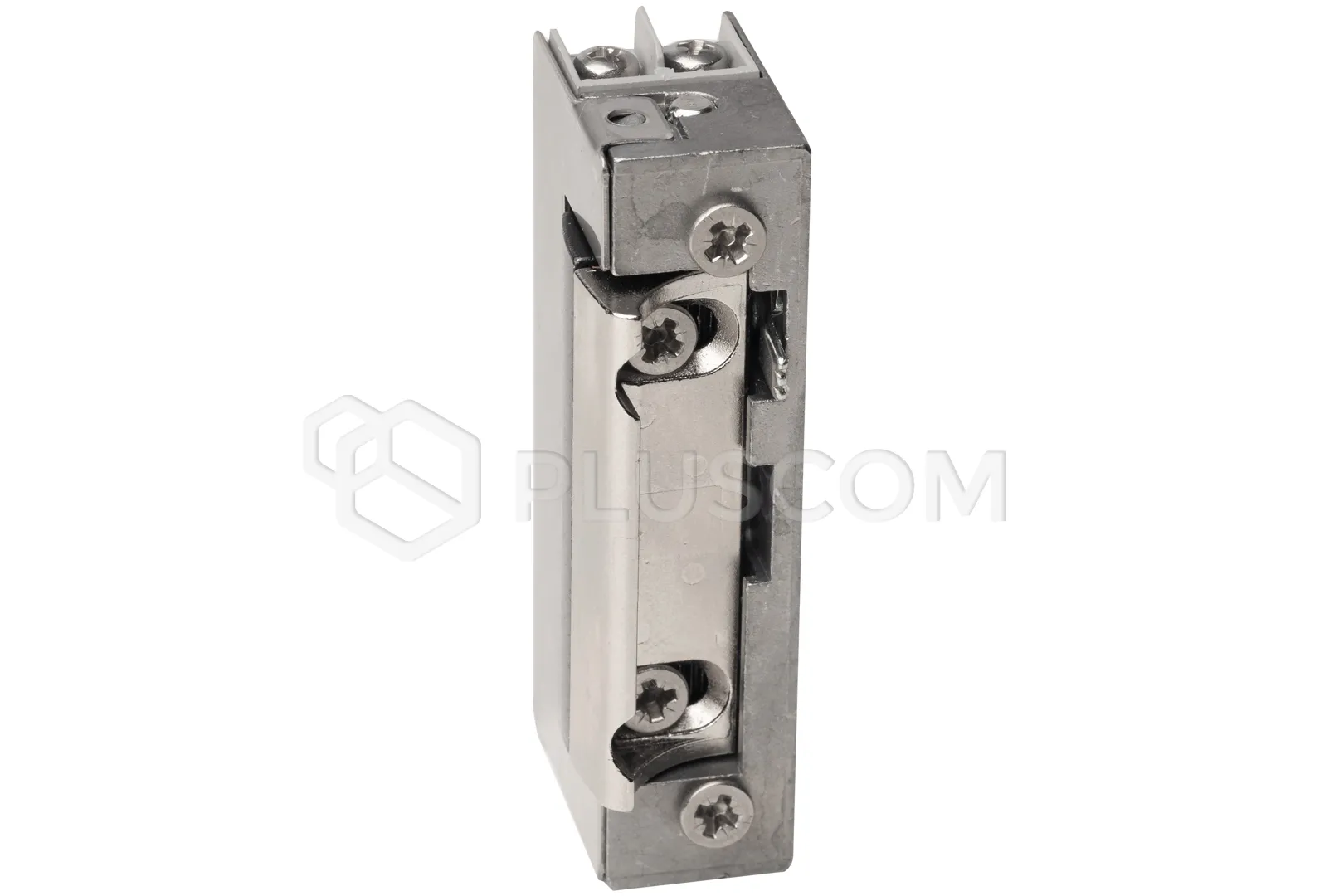

PSG 63.305 Narrow symmetrical adjustable electric strike with lock 1420 12-24V AC/DC


The electromagnetic electric strike with lock is a reliable solution for access control, designed for both left and right doors. Thanks to its universal design, it will work perfectly in various systems - intercoms as well as in more advanced access control configurations.

This electric strike provides a high level of security, while allowing comfortable and effective management of access to rooms.

FEATURES:

  • Universal installation: the symmetrical design allows the electric strike to be installed in both left-handed and right-handed doors, which increases its versatility and flexibility of use
  • Slim design: the electric strike with a width of only 16.5 mm is ideal for installation in narrow door profiles, making it an excellent choice for doors with limited installation space
  • Tongue adjustment: the ability to adjust the tongue within a range of 4 mm allows precise adjustment of the electric strike to the lock mechanism, which minimizes the pressure on the latch and prevents premature wear of the door elements
  • Lock function: the built-in lever allows permanent unlocking of the electric strike, which is particularly useful in situations where it is necessary to temporarily disable access control, for example during major events or renovations
  • Solid construction: The electric strike is intended for use in public buildings, meeting the requirements of the class 3 usage category, which guarantees its durability and reliability in intensive use.

    Precise fit:

    Adjusting the electric strike tongue is a key function that allows precise adjustment of the mechanism to the door, eliminating the play between the electric strike tongue and the lock. Thanks to this, the door closes smoothly and quietly, which increases the comfort of use and the durability of the electric strike itself and the door mechanism.

    Installation in narrow door profiles:

    The narrow design with a width of 16.5 mm makes the electric strike ideally suitable for use in doors with narrow profiles, which are often found in modern buildings. Thanks to this, this product is extremely versatile and can be used in various architectural projects, while offering high functionality and aesthetic appearance.

    Technical data:

    • Type: With lock
    • Universal (symmetrical): For left and right doors
    • Application: Access control
    • Power supply: 12-24 V AC/DC
    • Latch adjustment: 4 mm

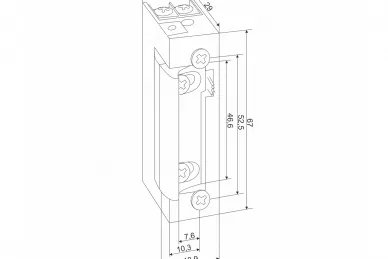

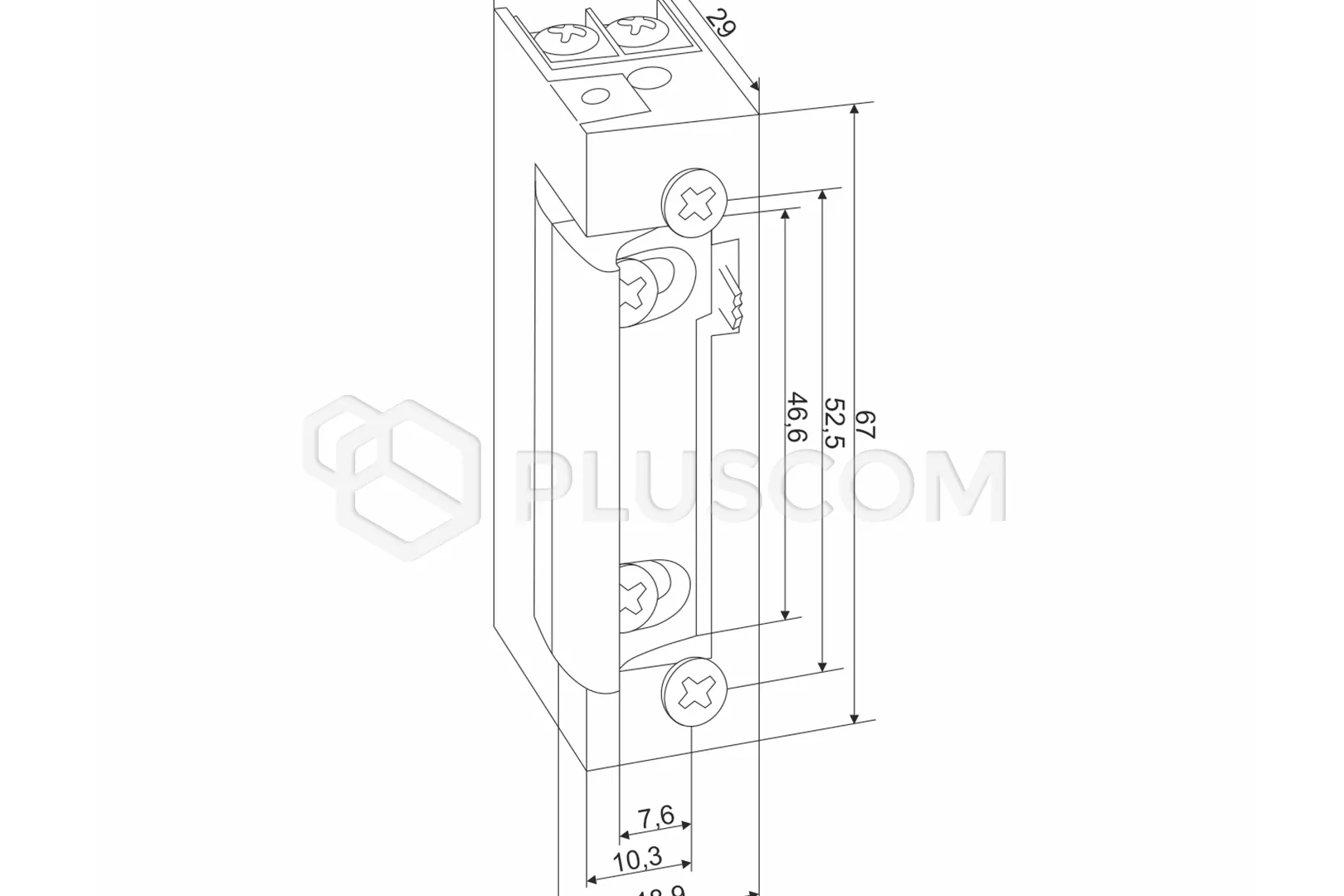

    • Mounting screw spacing: 52 mm
    • Continuous operation: 1 min.
    • Resistance: 20
    • DC current consumption: 12V - 600 mA / 24V - 1100 mA
    • AC current consumption: 12V - 500 mA / 24V - 1000 mA
    • Permissible DC pre-pressure: 10 N
    • Permissible initial load AC: 90 N
    • Durability: 200,000 cycles
    • Use category: Class 3 - suitable for public buildings
    • Certificate: PN-EN 14846:2010
