PSG 63.304 Electric strike symmetrical narrow adjustable basic 1410 12-24V AC/DC

PSG 63.304 Electric strike symmetrical narrow adjustable basic 1410 12-24V AC/DC

The symmetrical electric strike is a modern and reliable solution that works perfectly in access control systems. It provides effective restriction of access to specific zones, making it an ideal choice for use in public buildings, companies and private homes.

Thanks to its universal design, the electric strike can be used in both left and right door wings, which increases its functionality and versatility.

FEATURES:

• Universal use: The electric strike can be used in both left and right doors, which allows for flexible adjustment to various needs and installation conditions
• Tongue adjustment: The ability to adjust the tongue within 4 mm allows for precise adjustment of the electric strike to a specific door model, which guarantees safe and secure closing
• Low power consumption: The electric strike is characterized by low energy consumption, which translates into lower operating costs and longer device life
• Durability: Designed for continuous operation, it can withstand up to 200 000 cycles, which ensures long-term, reliable operation in the most demanding conditions
• Compliance with standards: The product is certified to PN-EN 14846:2010, which confirms its high quality and compliance with European standards safety

One of the most important features of this electric strike is its high durability. It has been designed to withstand up to 200,000 cycles of opening and closing the door/gate, making it a reliable element of access control systems in buildings with high traffic. Thanks to this, investing in this model is a guarantee of long-term and trouble-free operation.

Tongue adjustment:

Equally important is the ability to adjust the tongue within 4 mm. Thanks to this function, you can precisely adjust the electric strike to individual needs, which increases the comfort of use and the security of the system. Precise adjustment of the electric strike to the door structure minimizes the risk of incorrect operation, which is crucial in places where the reliability of the access control system is of great importance.

Technical data:

• Type: Basic
• Universal (symmetrical): For left and right doors
• Application: Access control
• Power supply: 12-24 V AC/DC
• Latch adjustment: 4 mm

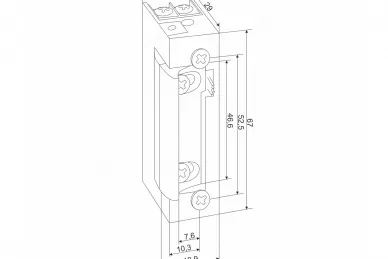

• Mounting screw spacing: 52 mm
• Continuous operation: 1 min.
• Resistance: 20
• DC current consumption: 12V - 600 mA / 24V - 1100 mA
• AC current consumption: 12V - 500 mA / 24V - 1000 mA
• Permissible DC pre-pressure: 10 N
• Acceptable initial load AC: 90 N
• Durability: 200,000 cycles
• Use category: Class 3 - suitable for public buildings
• Certificate: PN-EN 14846:2010
