PSG hook lock for 40 profile

The PSG hook lock is a solution designed for 40 mm profiles used in, among others, wicket gates, doors and light gate structures. The hook mechanism provides a secure connection between the leaf and a suitably selected catch, limiting the possibility of it opening on its own.

The design of the lock allows it to be used both when making new fence elements and when replacing hardware in existing wicket gates or steel doors.

Check the lock specification:

• brand: PSG
• intended use: for 40 mm profile
• lock type: hook

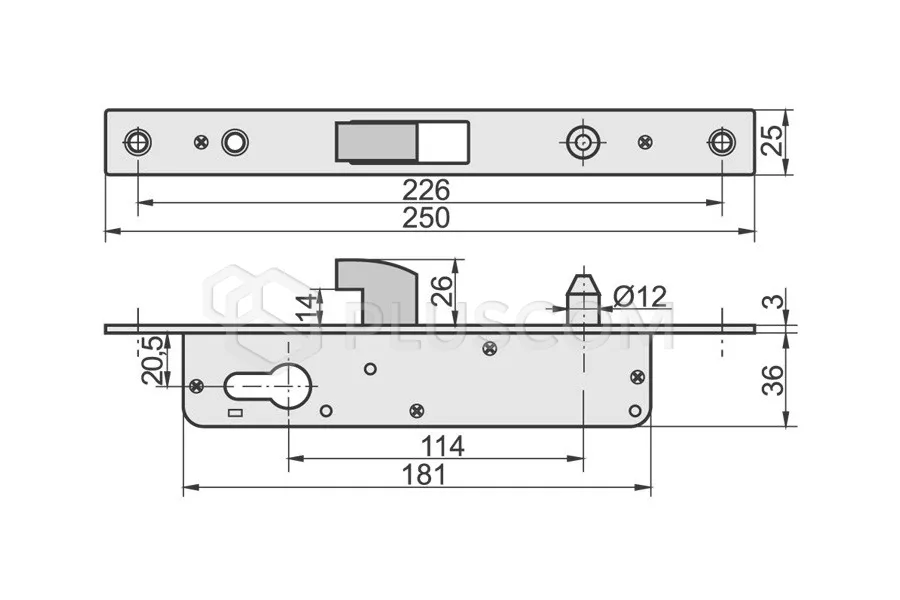

• faceplate length: 250 mm
• faceplate width: 25 mm
• faceplate thickness: 3 mm
• body height: 181 mm
• body depth: 36 mm
• application: wicket gates, doors and light gate structures

The PSG lock works well as equipment for steel wicket gates and doors that require a hook lock with a compact body matched to a 40 mm profile.
