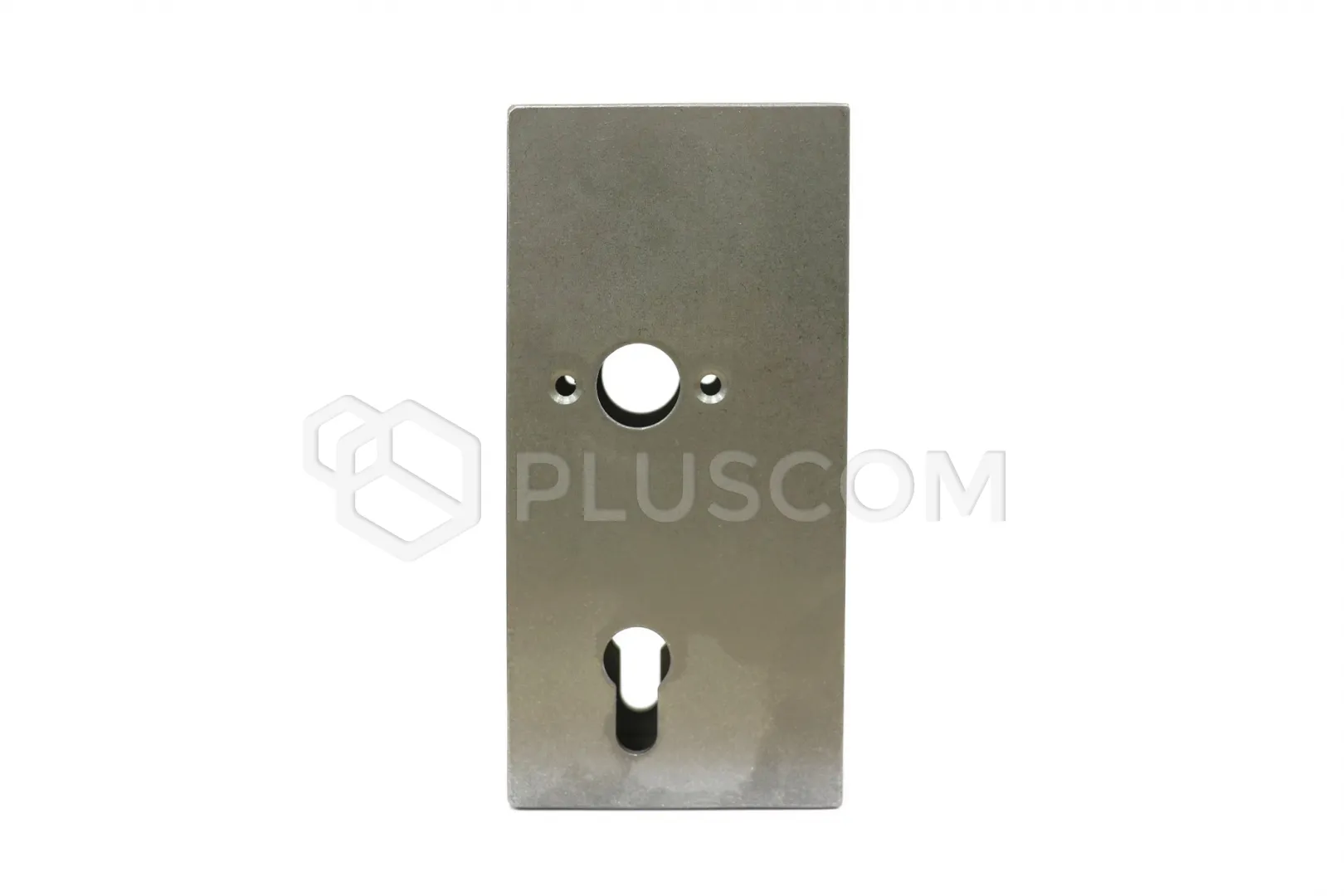

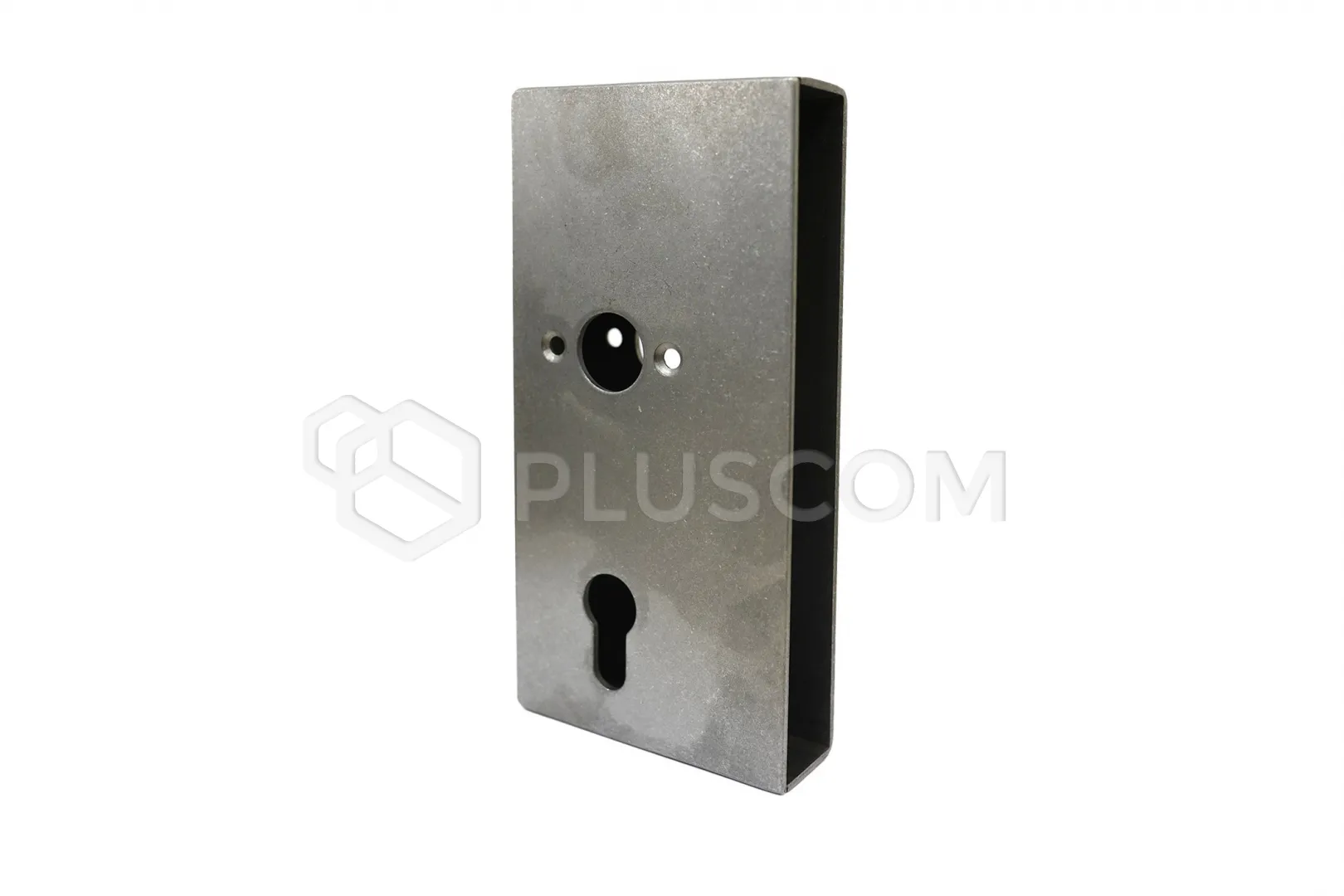

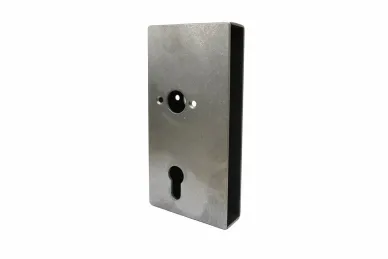

Lock housing 63.237 L30 mm – weld-in box

A steel lock housing (box) designed to seat and protect the lock mechanism in gates, wicket gates and doors with a steel frame. It conceals the lock body and protects it from the weather while stiffening the structure of the leaf.

• Strong steel sheet resistant to mechanical damage.
• Unpainted and ungalvanized product - with proper corrosion protection it will keep its appearance and function for years.
• Box welded with end caps on both sides - a stable and tight base for mounting the lock.
• Installed by welding into the frame of a gate, wicket gate or door, which ensures a neat finish and a rigid seating of the lock.
• The lock is fixed by welding the elements together – a secure connection without play.
• Dedicated to the 63.237 slide bolt lock with a 72-55/30 spacing.

APPLICATION

Entrance gates, fence wicket gates, steel doors in private and industrial facilities where durability, appearance and protection of the lock mechanism matter.

INSTALLATION TIPS

• Before installation, adjust the position of the box in the frame.
• After welding and cooling, clean the welds, degrease the surface and apply corrosion protection according to the operating conditions.
• Insert the 63.237 lock and weld the elements according to the manufacturer's guidelines.

TECHNICAL DATA:

• H (mm): 186
