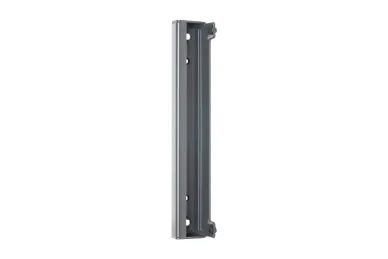

PSG 63.229.7016 Screw-on box strike H=298 L=44.5, anthracite 7016

PSG 63.229.7016 Screw-on box strike H=298 L=44.5, anthracite 7016

Screw-on box strike H 298 mm - anthracite

The screw-on box strike is a reliable solution for wicket gates with the narrowest locks, 35 mm wide (e.g. 63.210).

It provides a stable and secure closure while increasing comfort of use thanks to quiet operation. Thanks to its universal design it can be mounted on both flat surfaces and round posts.

MAIN FEATURES:

• matched to locks 35 mm wide (e.g. model 63.210),
• universal mounting: for flat surfaces and round posts,
• bent underside of the strike making stable seating easier,
• mounting holes 4x Ø6 mm for secure fixing,
• stop points that clear escutcheons with handles 63.180.90.00 or shorter,
• one-way mechanism: cannot be opened in the opposite direction,
• rubber buffers absorbing impacts and reducing noise,
• elegant anthracite finish.

FITS THE NARROWEST LOCKS

The strike was designed for wicket gates equipped with locks 35 mm wide, such as the popular model 63.210. Thanks to this it works in narrow structures where other strikes would not be usable.

INSTALLATION ON VARIOUS SURFACES

The strike can be easily fixed to flat surfaces as well as round posts. The bend on the underside of the element guarantees a stable fit regardless of the type of structure. Four mounting holes 6 mm in diameter allow quick and lasting installation.

SAFETY AND COMFORT OF USE

The strike design prevents the wicket gate from opening in the opposite direction, which increases safety of use. Built-in rubber buffers effectively absorb energy when closing, reducing noise and protecting the wicket gate from damage caused by abrupt closing.

TECHNICAL DATA:

• H (mm): 298
