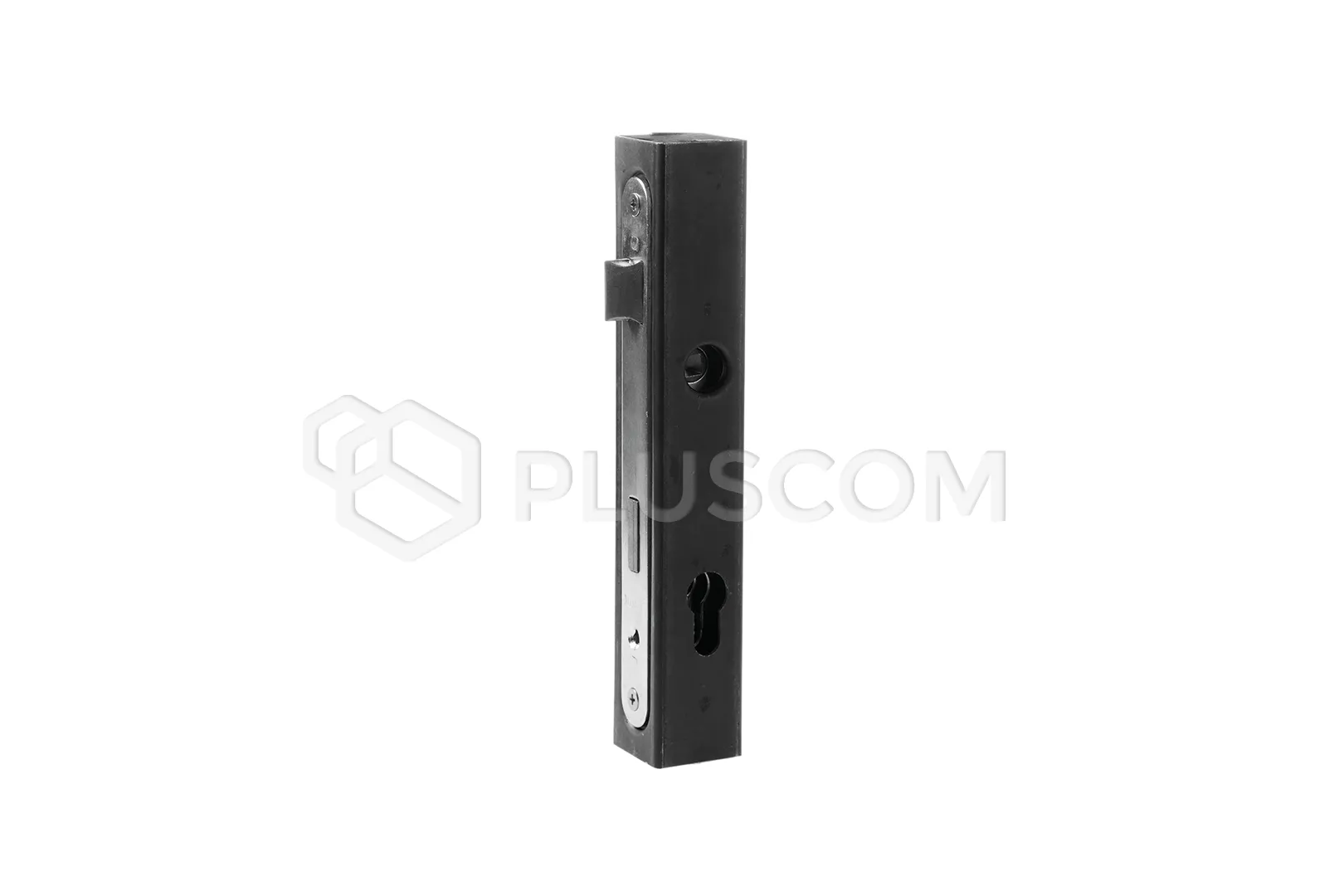

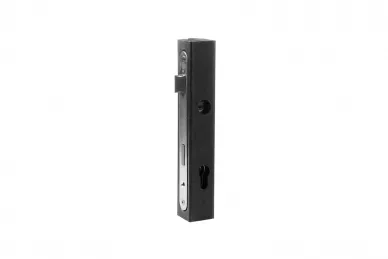

PSG 63.228 Cassette with lock 90/22 for profile 40x40

25,44 EUR including 23.00% VAT
Product code: #42106
  • Lock cassette, for 40x40 mm profile
  • Designed to be welded into a gate frame or a steel door frame.
  • The lock is attached to the housing by screwing the elements together with a set of M5 screws.
  • The holes for the handle are pressed and allow for its bearing.
  • The cassette is welded with bottoms on both sides
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 63.228 Lock cassette 90/22 for 40x40 profile


Lock cassette, for 40x40 mm profile.

Steel element - lock housing (cassette). It is used to mount the lock, masks it and protects it from the effects of atmospheric conditions. The cassette is made of sheet metal resistant to mechanical damage. The product is unpainted, not galvanized, after appropriate protection it will remain in an unchanged condition for many years.

FEATURES:

  • Designed for welding into the gate frame or steel door frame
  • The lock is attached to the housing by screwing the elements together with a set of M5 screws
  • The holes for the handle are overpressed and allow it to bear
  • The cassette is welded with bottoms on both sides

90/22 latch-bolt lock.

A mortise latch-bolt lock with a lever, for doors and gates. The lock is universal because it can be mounted to right or left doors. The latch is replaced without disassembling the lock, by unscrewing the latch head.
  • Non-detachable lock, based on riveted connections
  • For use in aluminum, metal, plastic joinery and for gates
  • Version for an insert and a standard handle with an 8mm pin
  • It has a durable mechanism, is solidly made

The set includes:

  • 90/22 latch-bolt lock
  • Lock cassette, for a 40x40 mm profile
