PSG 63.224 Cassette with double-latch lock h260 for 80x4 profile

27,18 EUR including 23.00% VAT
Product code: #42105
Manufacturer: Postal Steep Group
  • Lock case, for 80x40 mm profile
  • Designed to be welded into a gate frame or a steel door frame.
  • The lock is attached to the housing by screwing the elements together with a set of M5 screws.
  • The holes for the handle are pressed and allow for its bearing.
  • The cassette is welded with bottoms on both sides
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

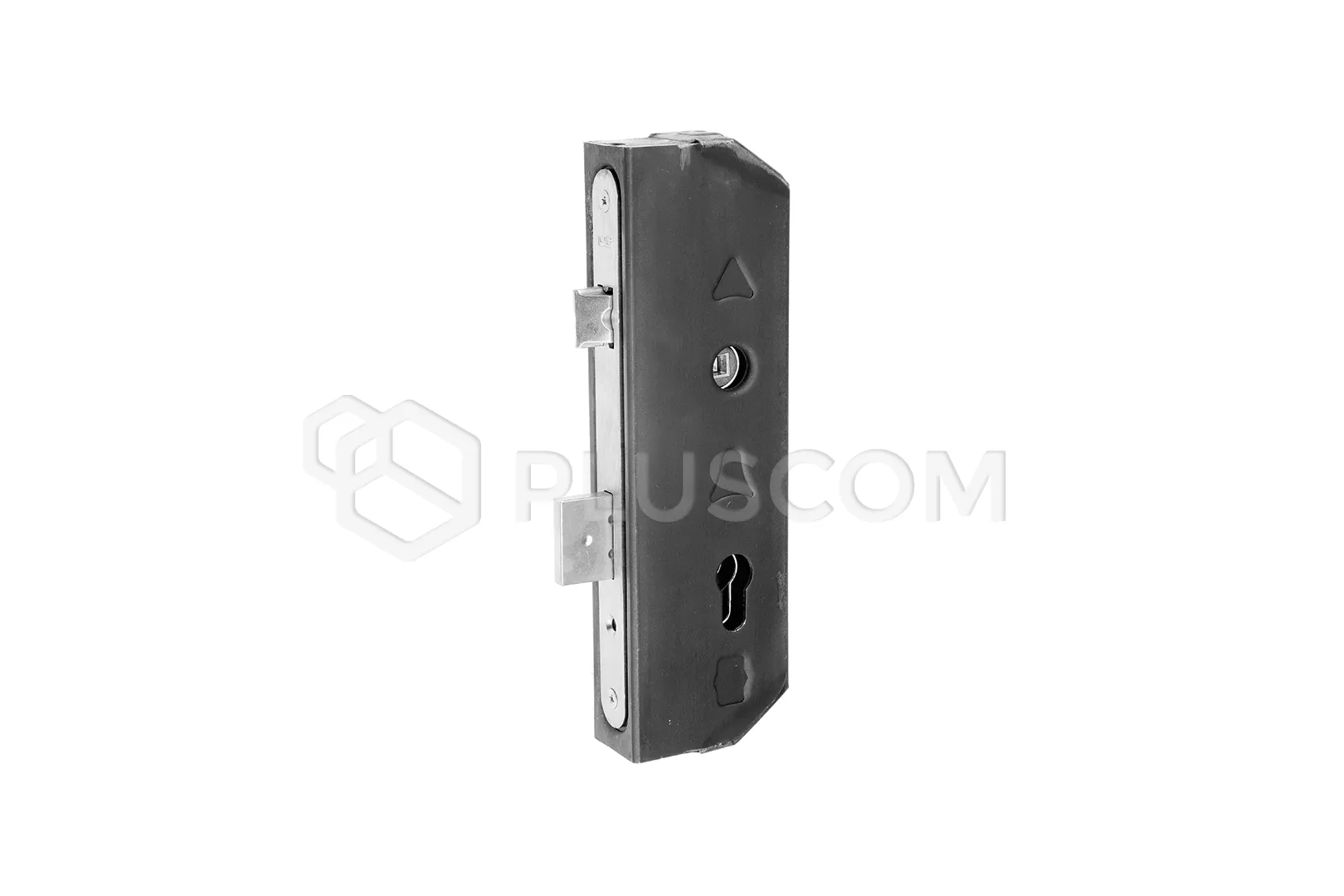

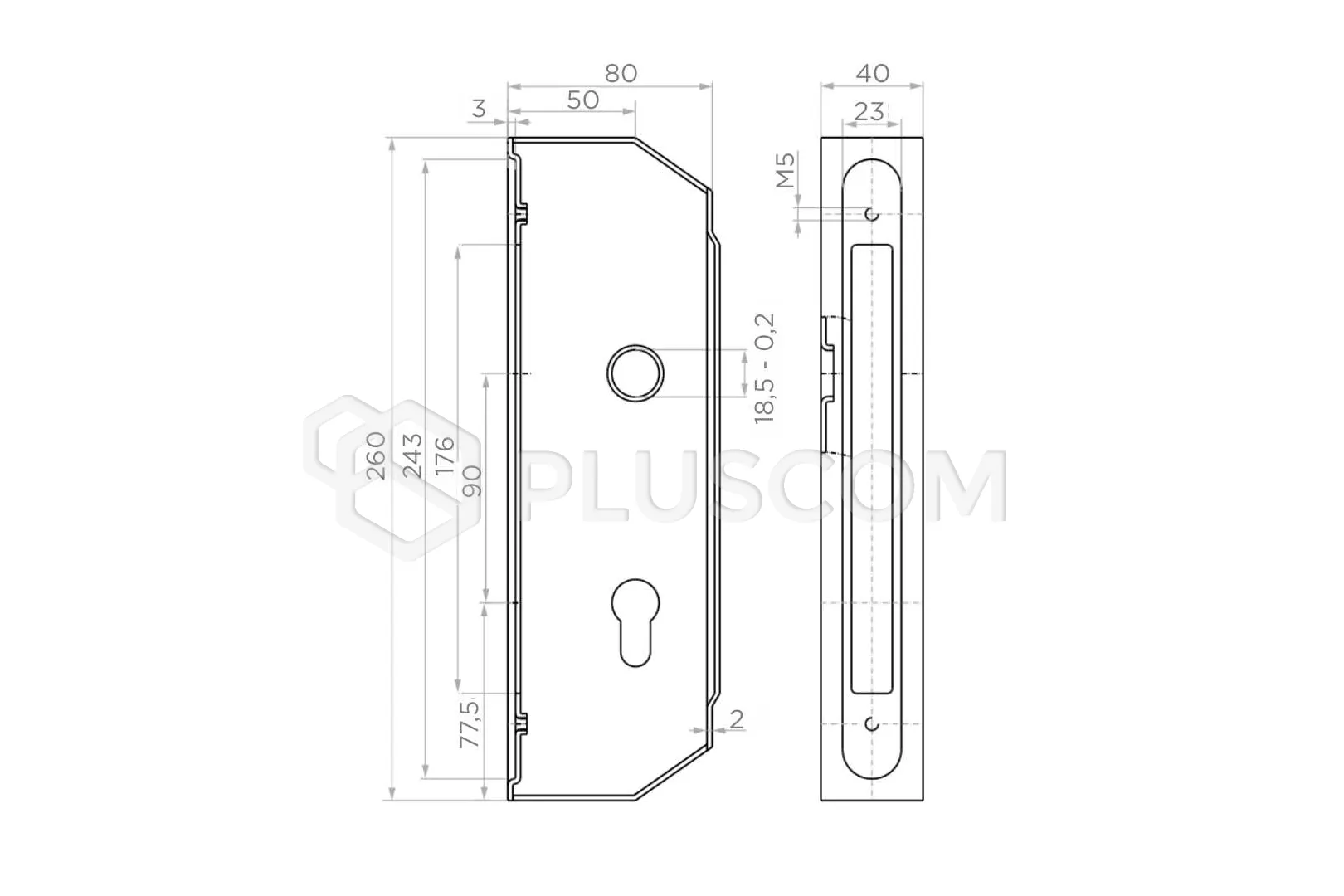

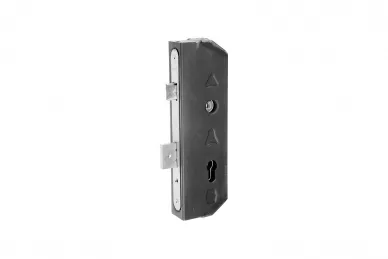

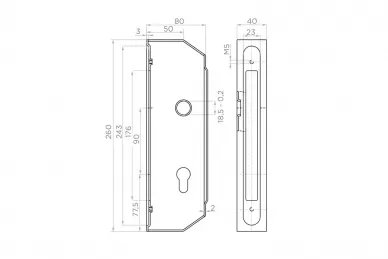

PSG 63.224 Cassette with double-latch lock h260 for 80x40 profile


Lock cassette, for 80x40 mm profile.
Steel element - lock housing (cassette). It is used to mount the lock, masks it and protects it from the effects of atmospheric conditions. The cassette is made of sheet metal resistant to mechanical damage. The product is unpainted, not galvanized, after appropriate protection it will remain in an unchanged condition for many years.

FEATURES:

  • Designed for welding into the gate frame or steel door frame
  • The lock is attached to the housing by screwing the elements together with a set of M5 screws
  • The holes for the handle are embossed and allow it to bear
  • The cassette is welded with bottoms on both sides
  • The cassette has decorative embossing on the sides as well as on the welded bottoms at the top and bottom. It also has embossing on the rear surface of the cassette

Double-latch lock 50x90 mm.

A mortise latch-bolt lock with a lever, for doors and gates. The lock is universal because it can be mounted to right or left doors. The latch is changed without disassembling the lock, by unscrewing the latch head.

  • Non-disassemblable lock, based on riveted connections
  • For use in aluminum, metal, plastic joinery and for gates
  • Version for an insert and a standard handle with an 8mm pin
  • It has a durable mechanism, is solidly made

The set includes:

  • Double-latch lock 50x90 mm
  • Lock cassette H=260 mm, for a 80x40 mm profile
