PSG 63.222.11 Set of cassette 63.222 with lock 63.211 H=245 mm, for profile 60x40 mm

28,85 EUR including 20.00% VAT
Product code: #42113
  • Lock case H=245 mm, for profile 60x40 mm
  • The lock is attached to the housing by screwing the elements together with a set of M5 screws.
  • The holes for the handle are pressed and allow for its bearing
  • The cassette is welded with bottoms on both sides
  • Version for insert and standard handle with 8mm pin
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,75 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 63.222.11 Set of 63.222 cassette with 63.211 lock H=245 mm, for 60x40 mm profile

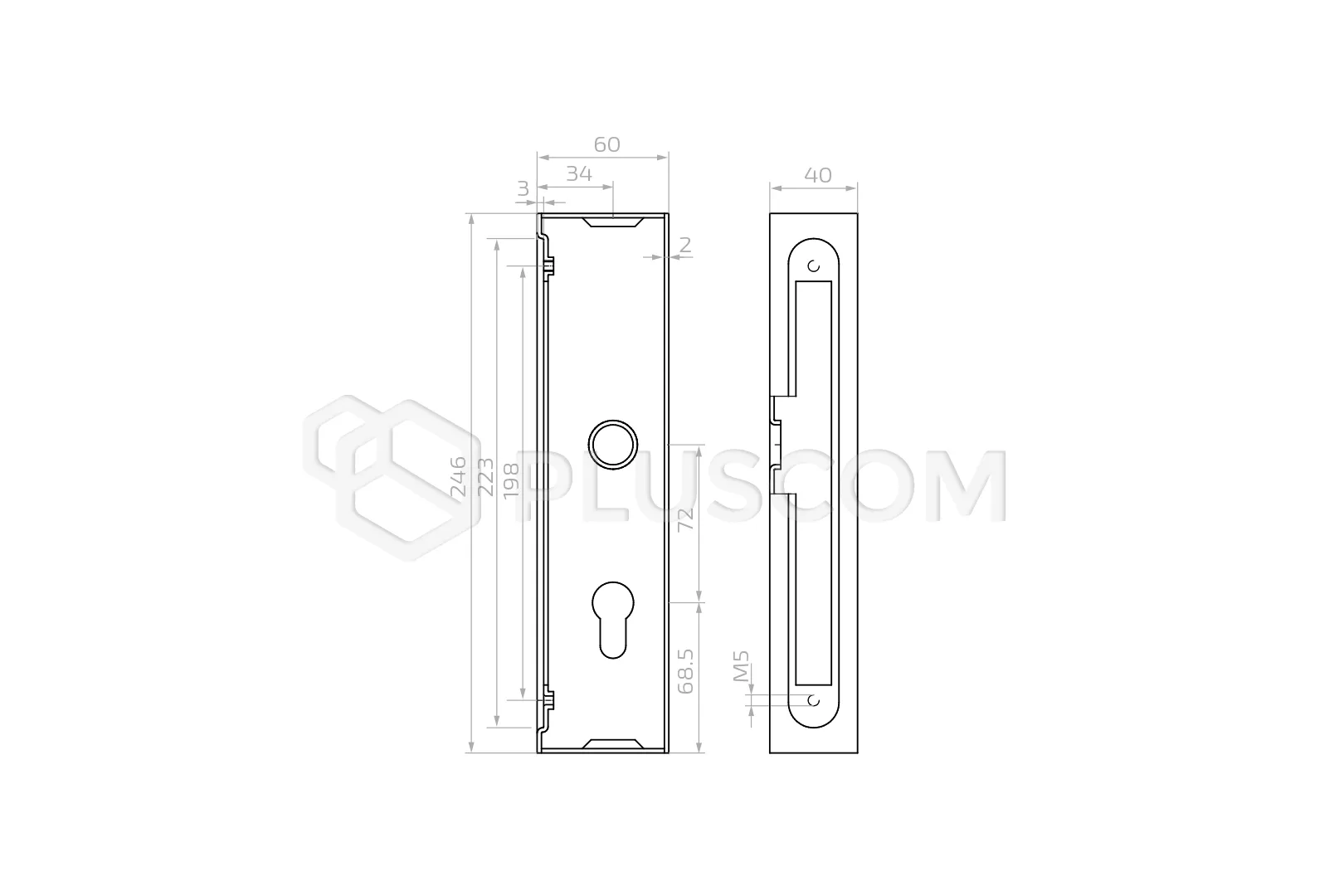

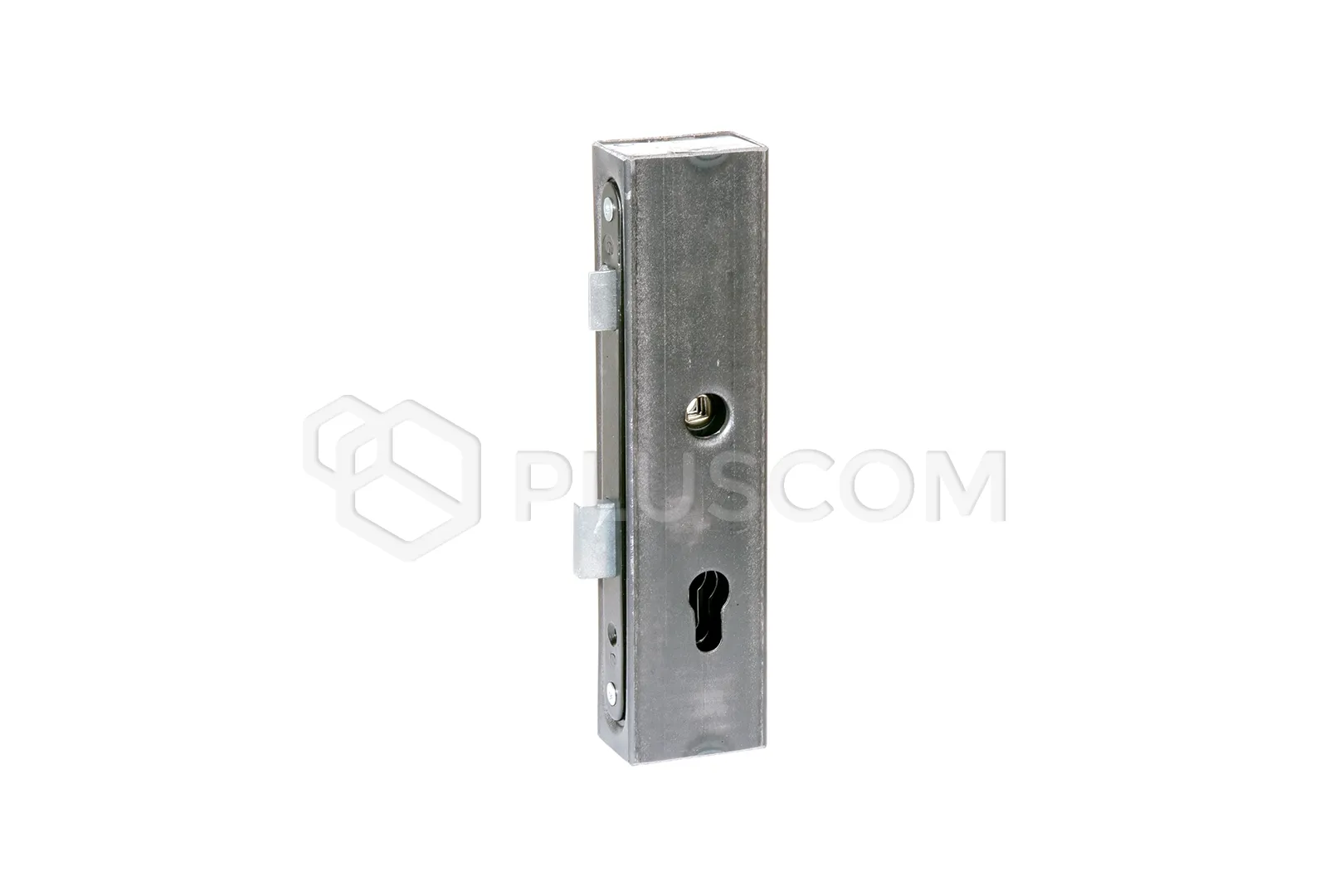

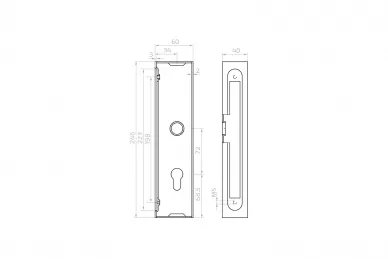

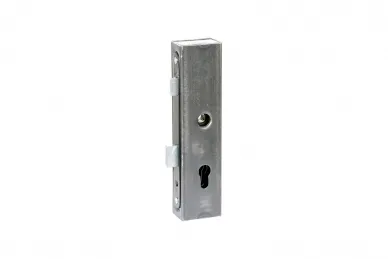

Lock cassette H=245 mm, for 60x40 mm profile.

Steel element - lock housing (cassette). It is used to mount the lock, masks it and protects it from the effects of atmospheric conditions. The cassette is made of sheet metal resistant to mechanical damage. The product is unpainted, not galvanized, after appropriate protection it will remain in an unchanged condition for many years.

FEATURES:

  • Designed for welding into the gate frame or steel door frame
  • The lock is attached to the housing by screwing the elements with a set of M5 screws
  • The holes for the handle are overpressed and allow it to bear
  • The cassette is welded with bottoms on both sides

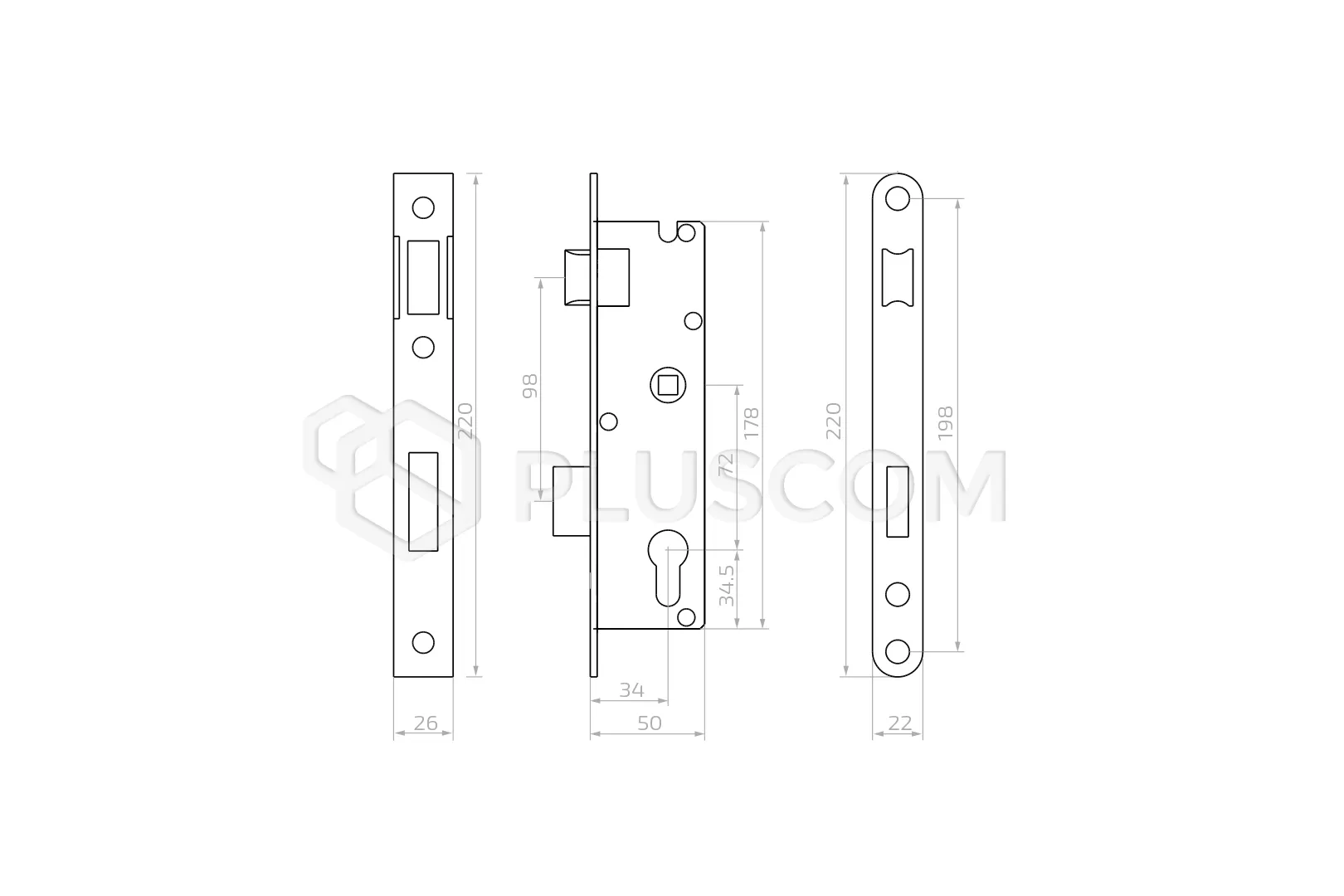

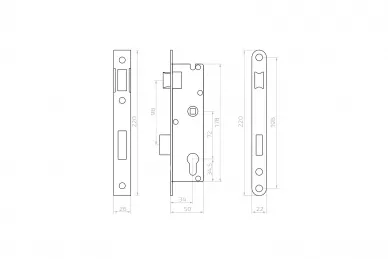

H220/75 mm latch-bolt lock.

A mortise latch-bolt lock with a lever, for doors and gates. The lock is universal because it can be mounted to right or left doors. The latch is replaced without disassembling the lock, by unscrewing the latch head.

  • It is made entirely of galvanized sheets
  • Non-detachable lock, based on riveted connections
  • For use in aluminum, metal, plastic joinery and for gates
  • Version for an insert and a standard handle with an 8mm pin
  • It has a durable mechanism, is solidly made

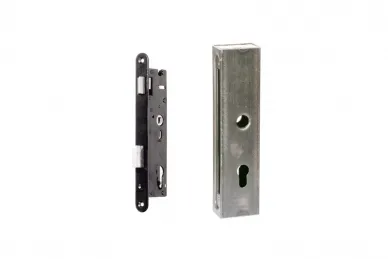

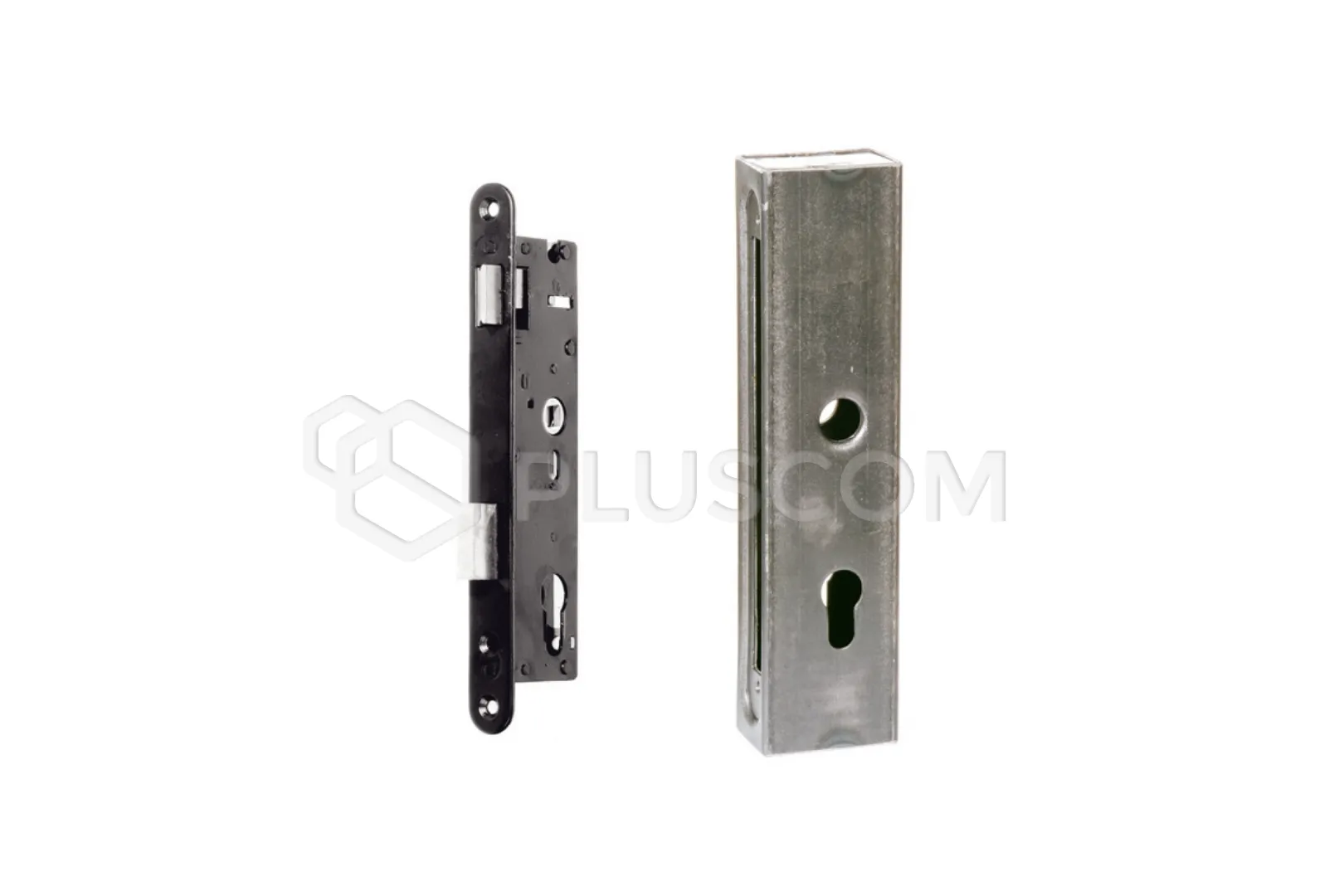

The set includes:

  • Latch and bolt lock H220/75 mm 63.211
  • Lock cassette H=245 mm, for a 60x40 mm profile 63.222
