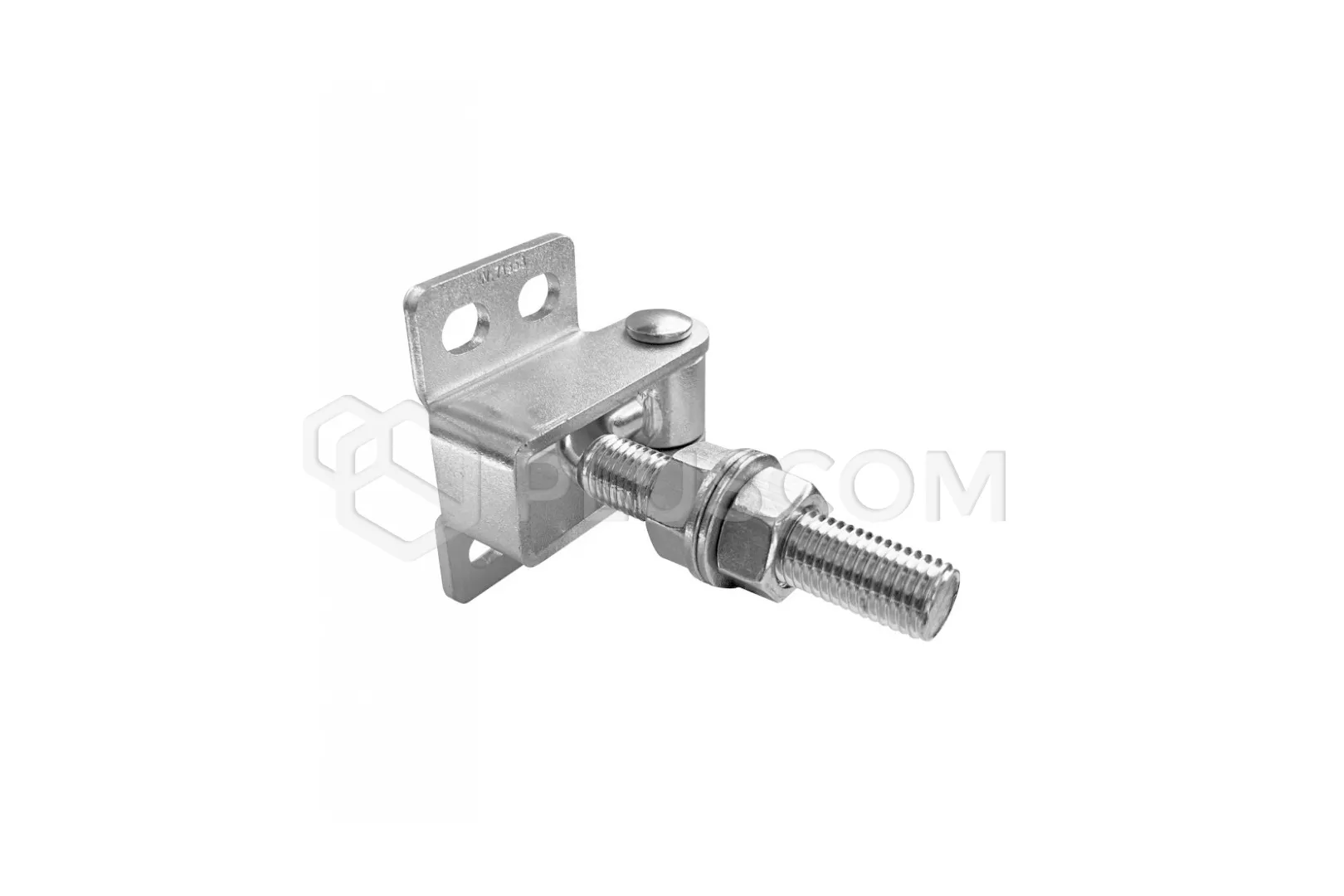

PSG 61.327 Adjustable hinge M16 bent 180° length 125 mm

PSG 61.327 Adjustable hinge M16 bent 180°, 125 mm long

The adjustable hinge bent 180o M16 is an exceptionally solid and functional solution, designed for use in gates, gates and doors.

Its massive construction and advanced technical features guarantee reliability and long-term use.

Thanks to the special bent construction, the hinge allows for opening to the full range up to 180 degrees, which increases comfort of use and accessibility.

FEATURES:

• Thread: M16, provides a strong and stable connection, ideal for applications requiring high strength
• Arm length: 125 mm, allows for effective and comfortable use, even in the case of heavier gates or wickets

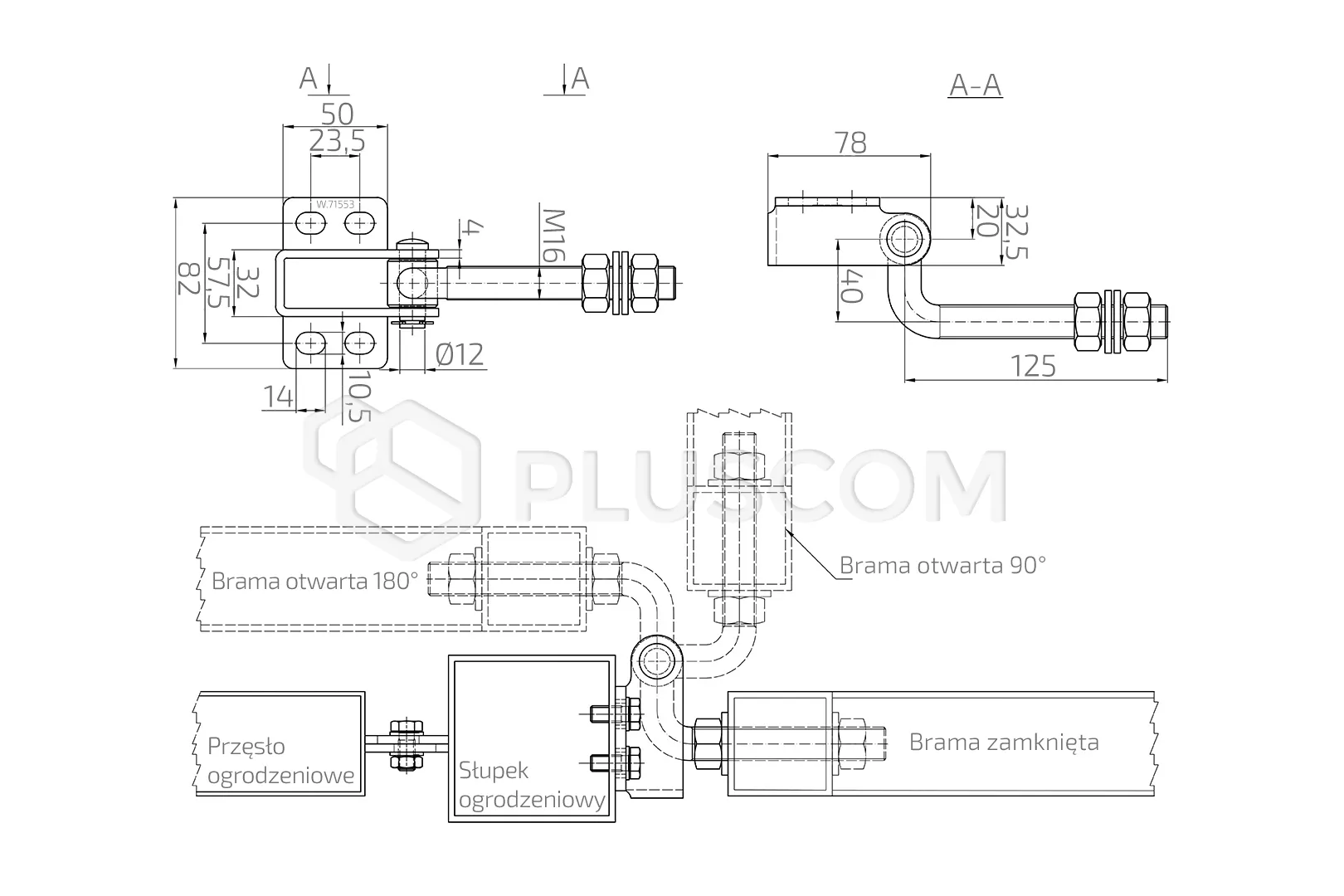

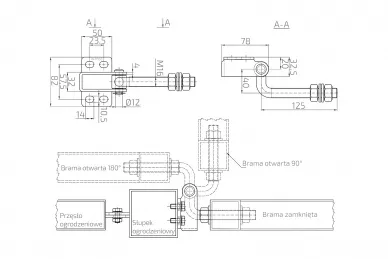

• Fixing hole spacing: 57.5 x 23.5 mm, allows for precise and safe attachment of the hinge to various surfaces
• Zinc coating: Offers excellent protection against corrosion, changing weather conditions and moisture, which significantly extends the life of the product
• Special bent construction: allows the wicket or gate to be opened at an angle of 180 degrees, which is particularly useful in places requiring full opening
• 4 mounting holes: Enable solid and durable attachment, ensuring safety and stability on years

Galvanic coating

Thanks to it, the hinge is exceptionally resistant to corrosion, which significantly extends its life, even in difficult weather conditions. Galvanic galvanizing not only protects the metal from rusting, but also improves the aesthetics of the product, giving it an attractive, uniform appearance.

Technical data:

• Material: S235JR steel
• Coating: Galvanic zinc
• Arm length: 125 mm
• Adjustable distance between the post and the sash
• Thread: M16
• Color: White zinc
• Number of holes: 4
