PSG 61.223.02 Decorative angle hinge with pin 400x650 set for one door leaf

67,73 EUR including 22.00% VAT
Product code: #41642
  • Length: 400mm
  • Width: 650mm
  • Flat bar dimensions: 50x5 mm
  • Shank diameter: 16 mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,27 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

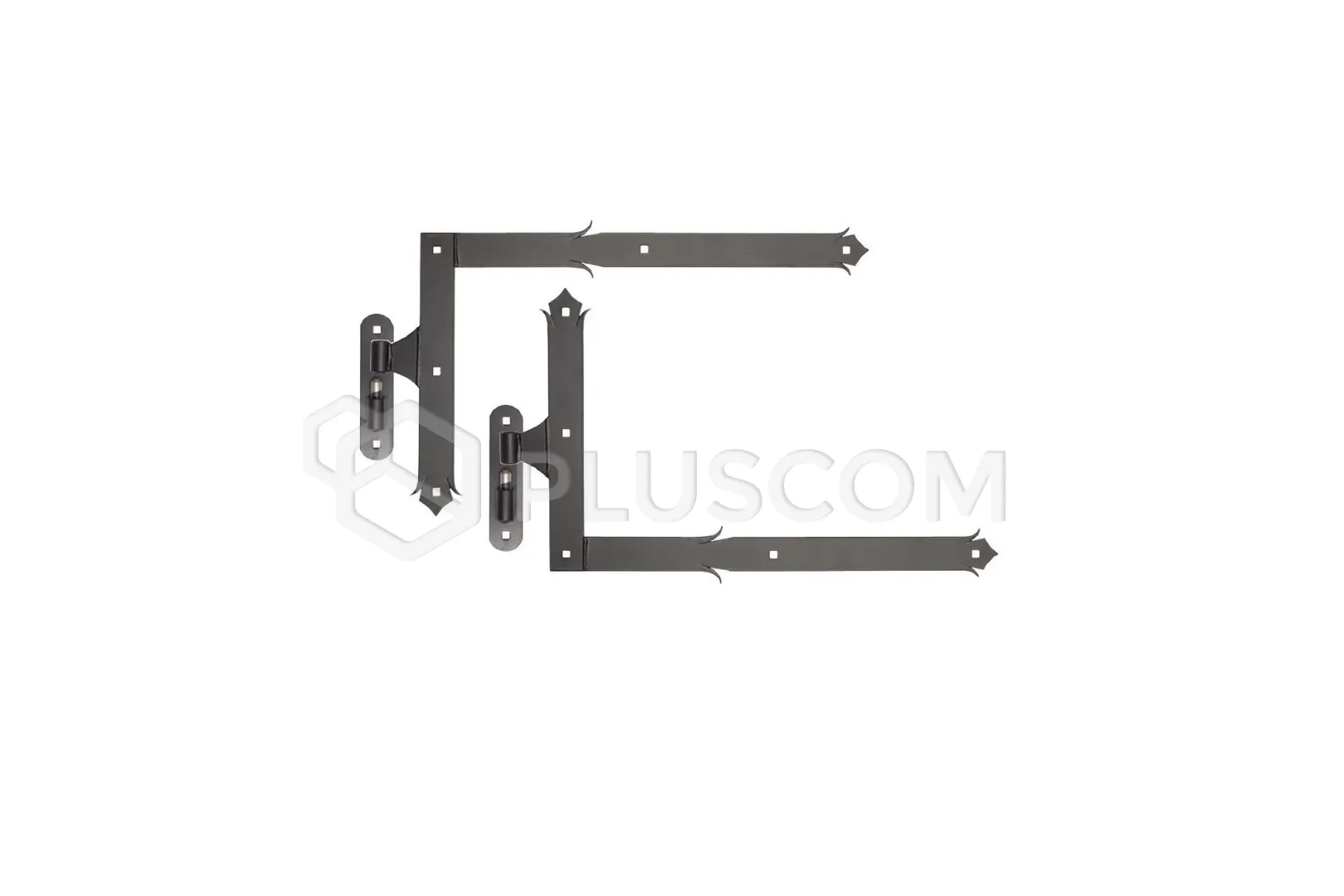

PSG 61.223.02 Decorative angle hinge with pin 400x650 set for one door leaf


A set of aesthetically made decorative angle hinges, designed for mounting large doors (especially in farm buildings), wickets and gates. The hinge is 400x650 mm in size with a 16 mm diameter pin. The width of the flat bar is 50 mm, and the thickness of the sheet metal is 5 mm.

COATING:

The hinges are covered with a very strong and durable primer used in the automotive industry. They are covered with a paint coating applied using the cataphoresis method - BASF technology. After applying the paint, the elements were fired at a temperature of 200 degrees Celsius.
Before painting, the products were thoroughly cleaned to ensure the greatest possible adhesion and the highest quality of anti-corrosion protection - HENKEL technology was used.

FEATURES:

  • Powder coated - protected against corrosion
  • Aesthetic appearance - smooth black surface
  • Durability - does not bend under the weight of e.g. doors
  • Resistance to mechanical damage

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Painting
  • Color: Black
  • Length: 400 mm
  • Width: 650 mm
  • Stem diameter: 16 mm
  • Flat bar dimensions: 50x5 mm
