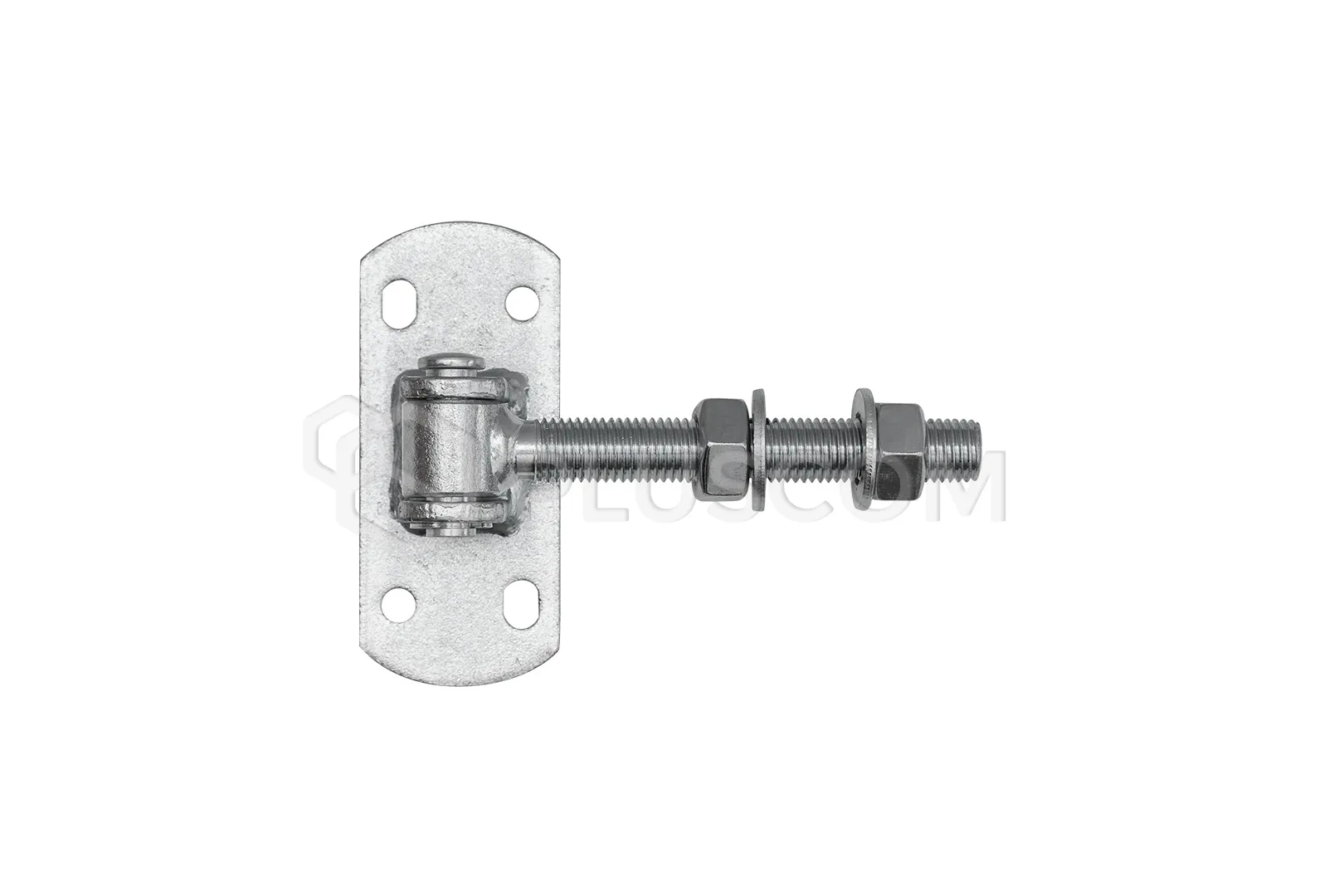

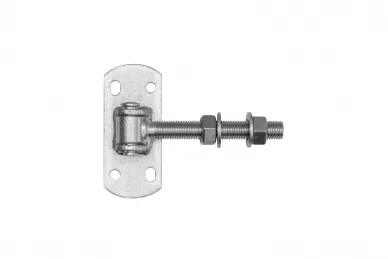

PSG 61.068 Adjustable hinge M16 with plate 115x50 mm

9,53 EUR including 23.00% VAT
Product code: #41691
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Screw length: 130 mm
  • Sign size: 115x50 mm
  • Thread: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.068 Adjustable hinge M16 with 115x50 mm plate


Adjustable hinge with M16 thread, designed for mounting swing gates and wickets. Equipped with a 115x50 mm plate with four holes for screwing it on.

Galvanized product - suitable for outdoor use, provides high resistance to corrosion. Using this hinge, using an adjustment nut, will help to easily and quickly adjust swing gates after installation.

Using the nut, the hinge can be adjusted at any time, e.g. when the structure is hung or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2mb long door leaf: 65 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

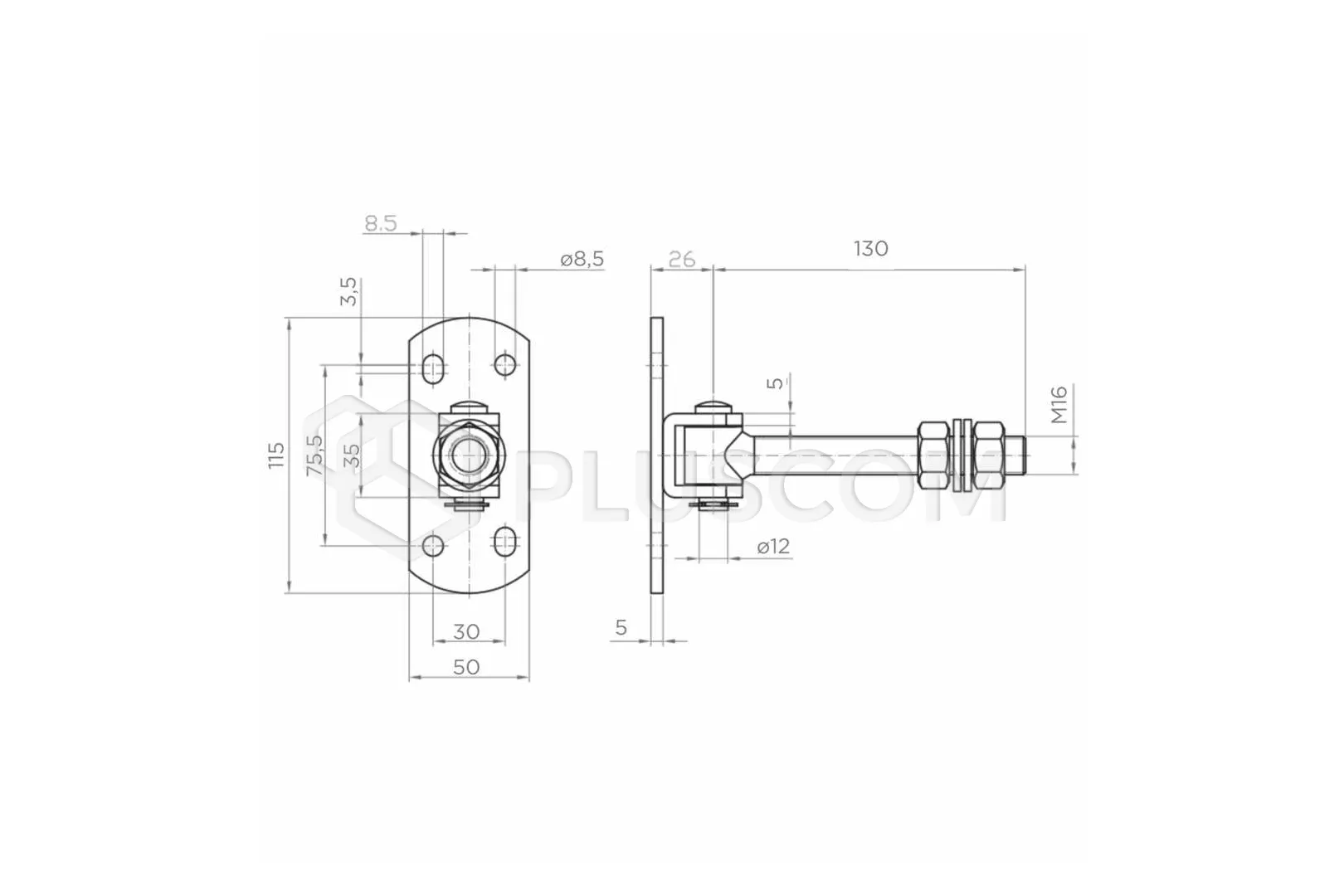

    • Technical data:

    • Material: Steel
    • Anti-corrosion protection: Galvanization
    • Thread: M16
    • Screw length: 130 mm
    • Signature size: 115x50 mm
