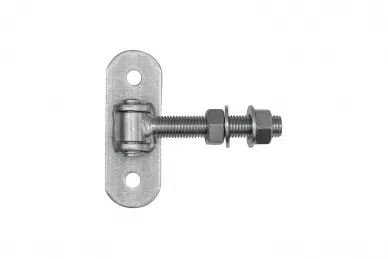

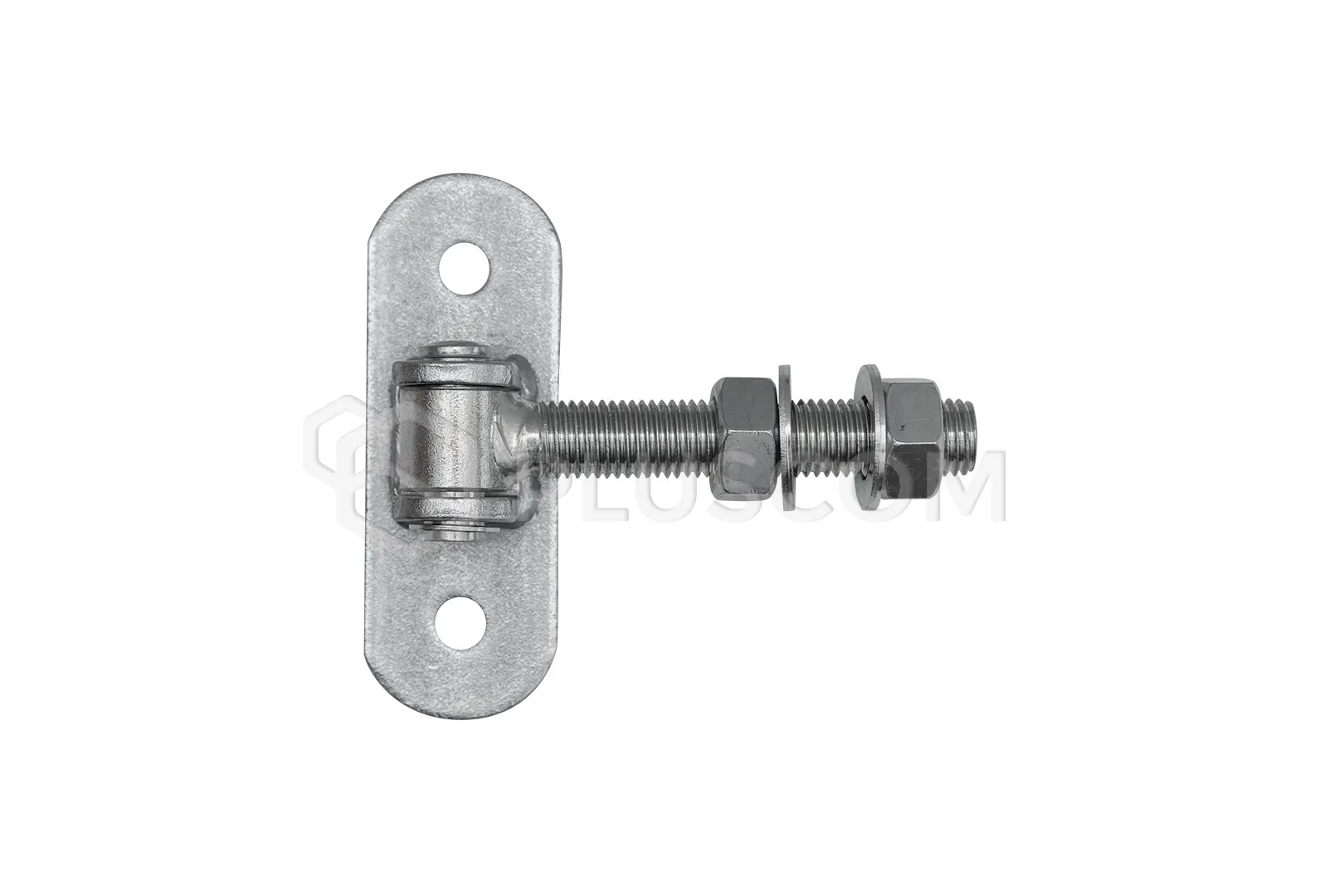

PSG 61.068.20 Adjustable hinge M20 with plate 140x50 mm

12,85 EUR including 23.00% VAT
Product code: #41696
  • The maximum load of a pair of hinges on a 2m long door leaf is 105 kg
  • Screw length: 130 mm
  • Sign size: 140x50 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.068.20 Adjustable hinge M20 with a 140x50 mm backplate


Adjustable hinge with a backplate in size M20, designed for mounting swing gates and wickets. Equipped with a 140x50 mm backplate with two holes for screwing it on. Galvanized product - suitable for outdoor use, provides high resistance to corrosion.

Using a nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long wing: 105 kg.

FEATURES:

  • Galvanization provides high protection against corrosion for many years
  • Simple, quick assembly
  • Possibility of adjustment after completed assembly
  • High quality of workmanship affects resistance against mechanical damage and load

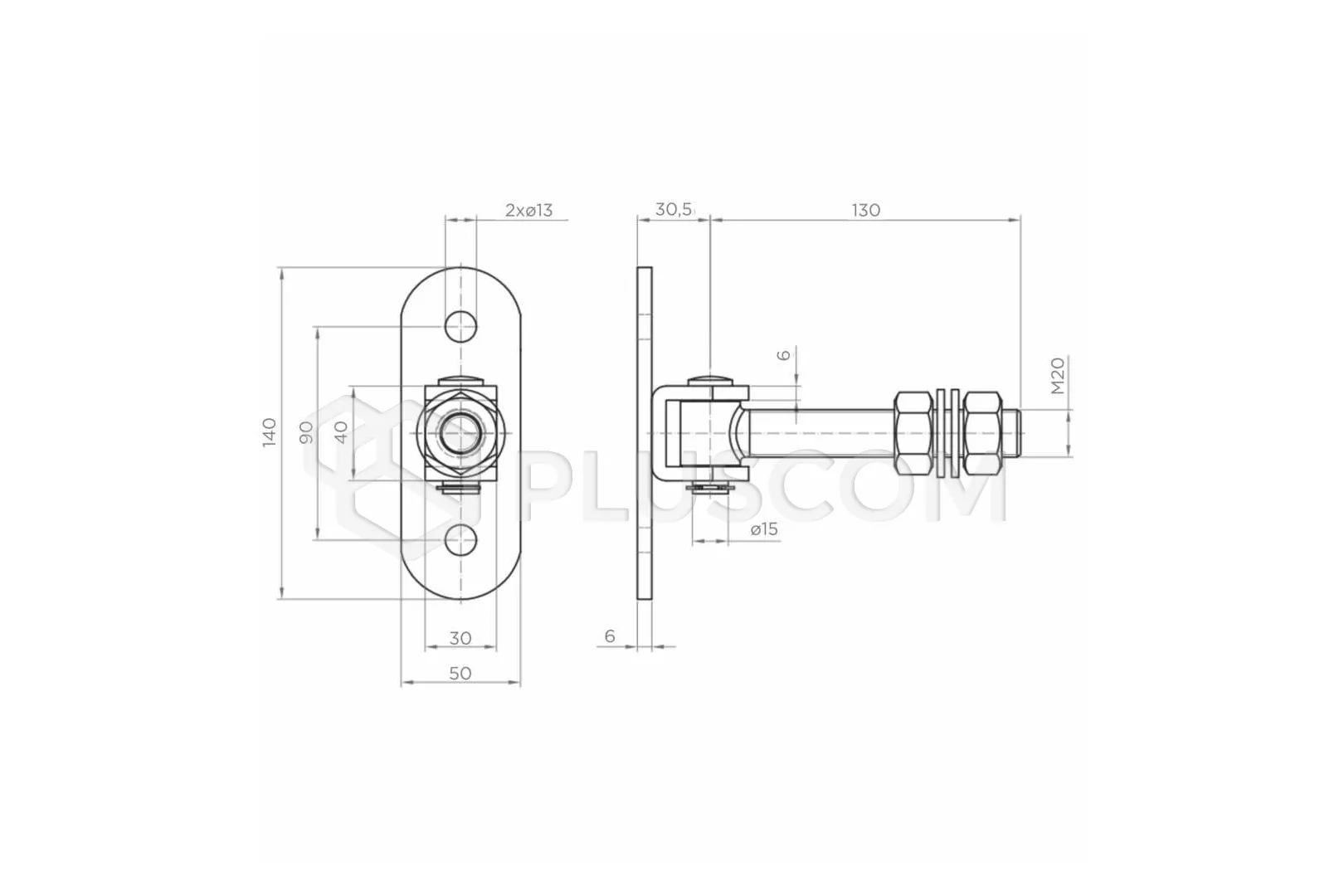

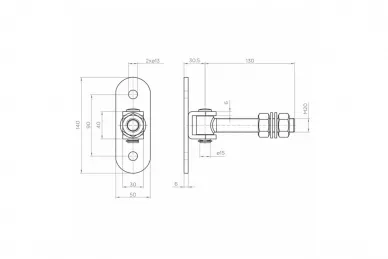

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Thread: M20
  • Screw length: 130 mm
  • Signature size: 140x50 mm
