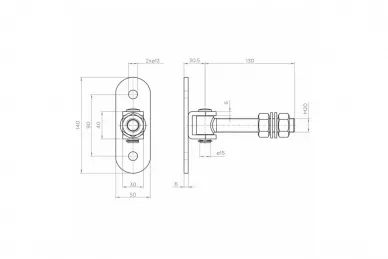

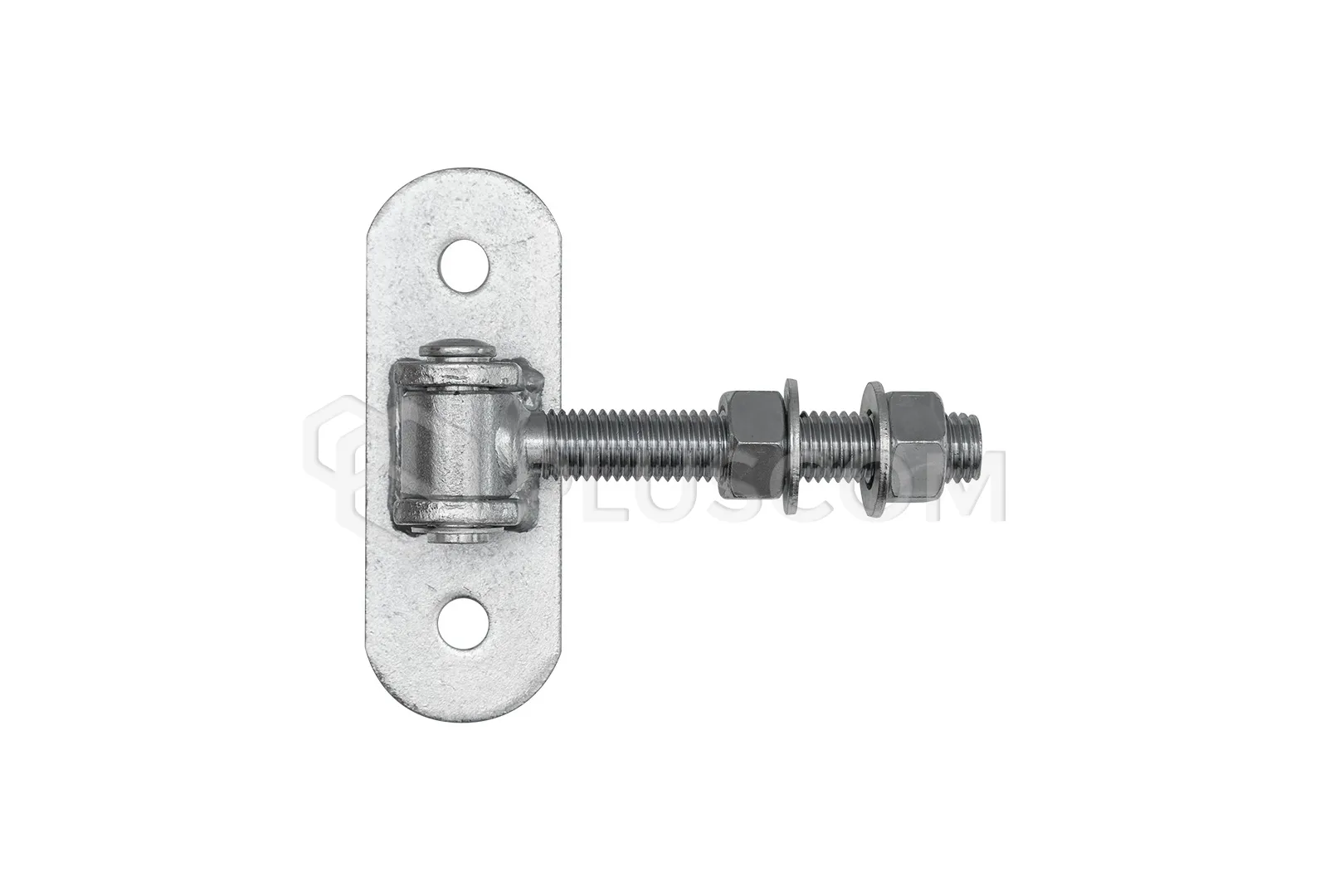

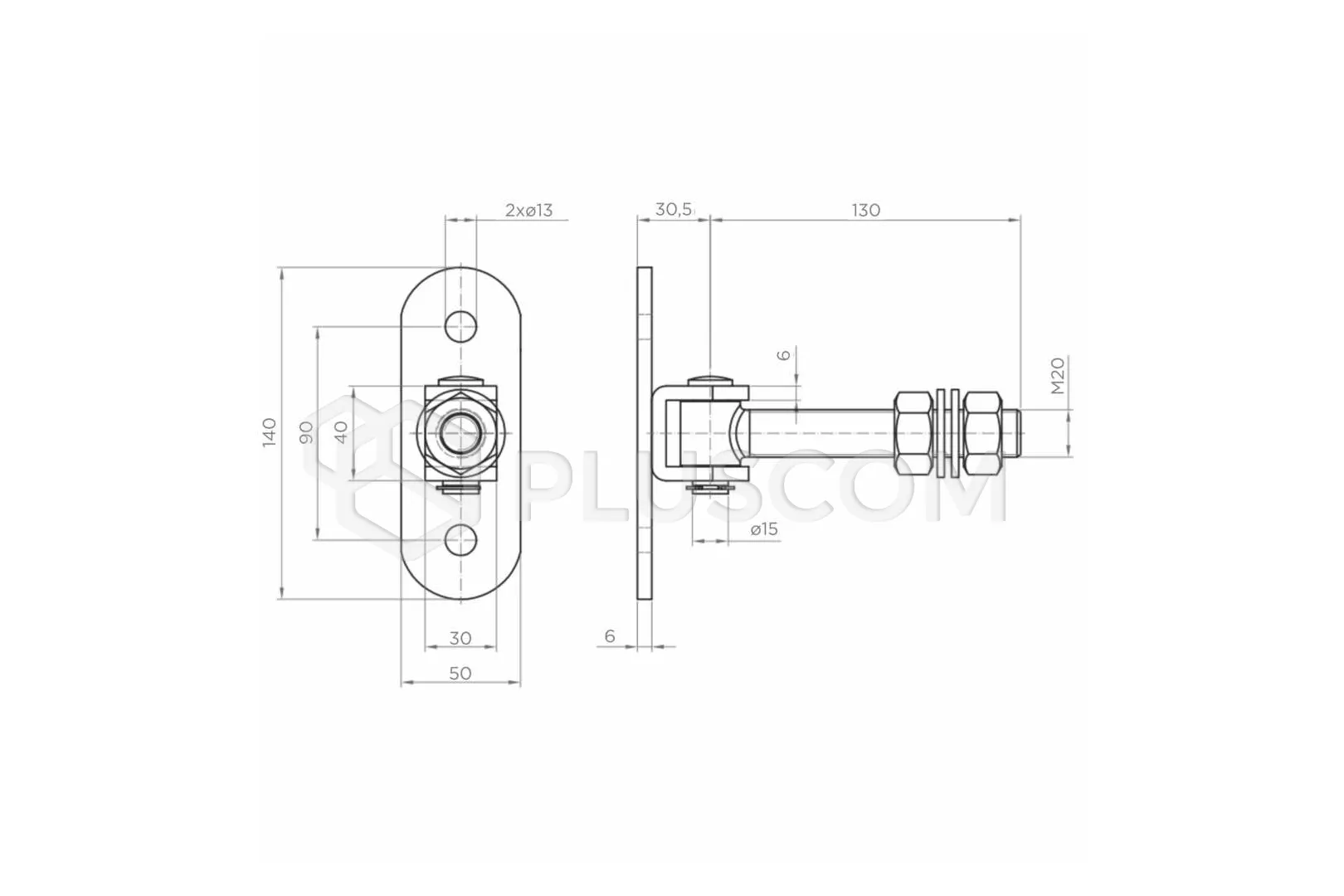

PSG 61.068.18 Adjustable hinge M18 with plate 140x50 mm

12,14 EUR including 23.00% VAT
Product code: #41693
  • The maximum load of a pair of hinges on a 2m long door leaf is 80 kg
  • Screw: 130mm
  • Sign size: 140x50 mm
  • Thread: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.068.18 Adjustable hinge M18 with 140x50 mm plate


Adjustable hinge with M18 thread designed for mounting swing gates and wickets. Equipped with a 140x50 mm plate, with two holes for screwing. Galvanized product - suitable for outdoor use, provides high resistance to corrosion.

Using a nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2mb long leaf: 80 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly is complete
  • High quality workmanship affects resistance to mechanical damage and load

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Thread: M16
  • Screw: 130 mm
  • Signature size: 140x50 mm
