PSG 61.067 Adjustable hinge M12

9,98 EUR including 23.00% VAT
Product code: #41717
  • The maximum load of a pair of hinges on a 2 m long door leaf is 40 kg

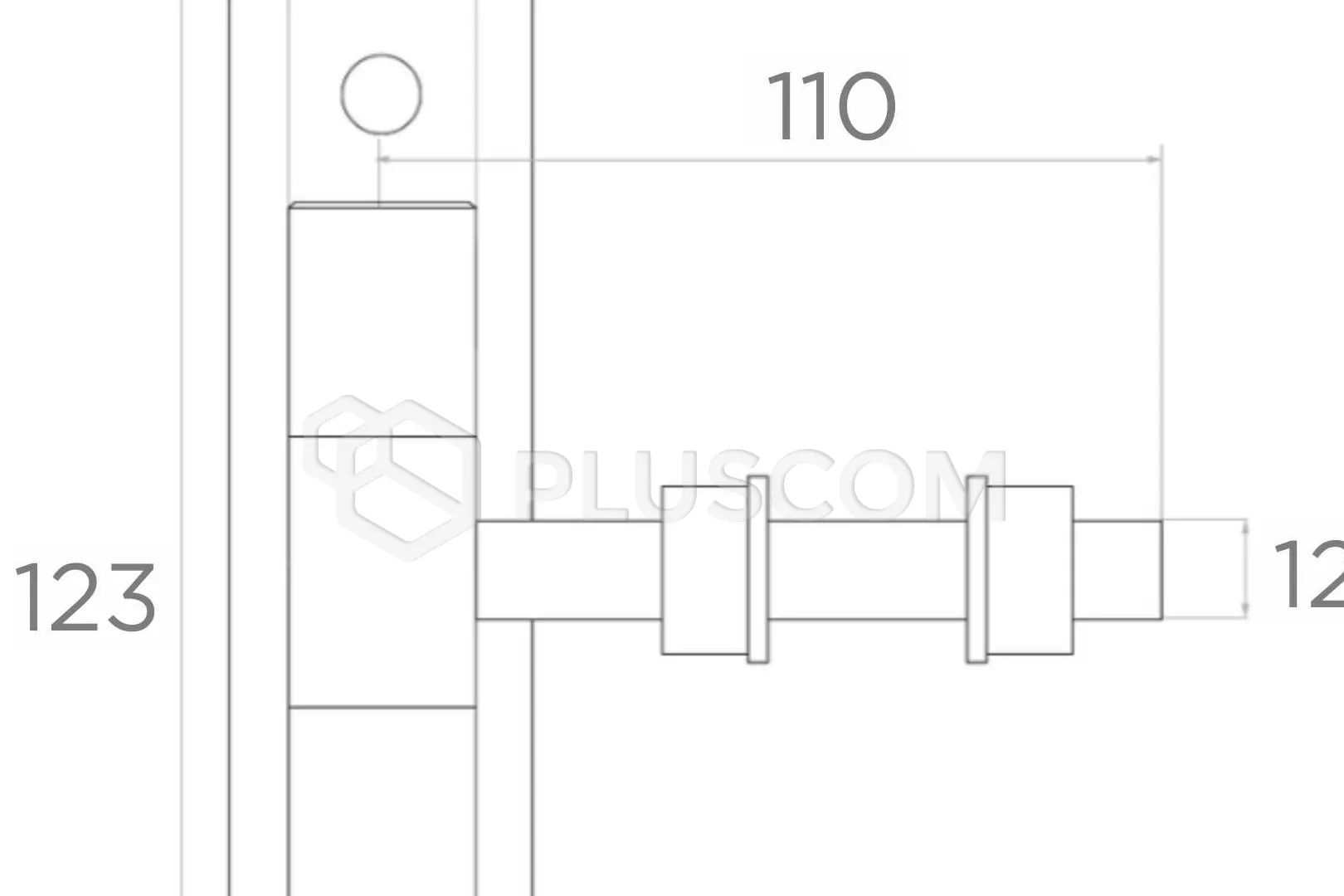

  • Sign size: 123 x 30 mm
  • Screw length: 110 mm
  • Thread: M12
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.067 Adjustable hinge M12

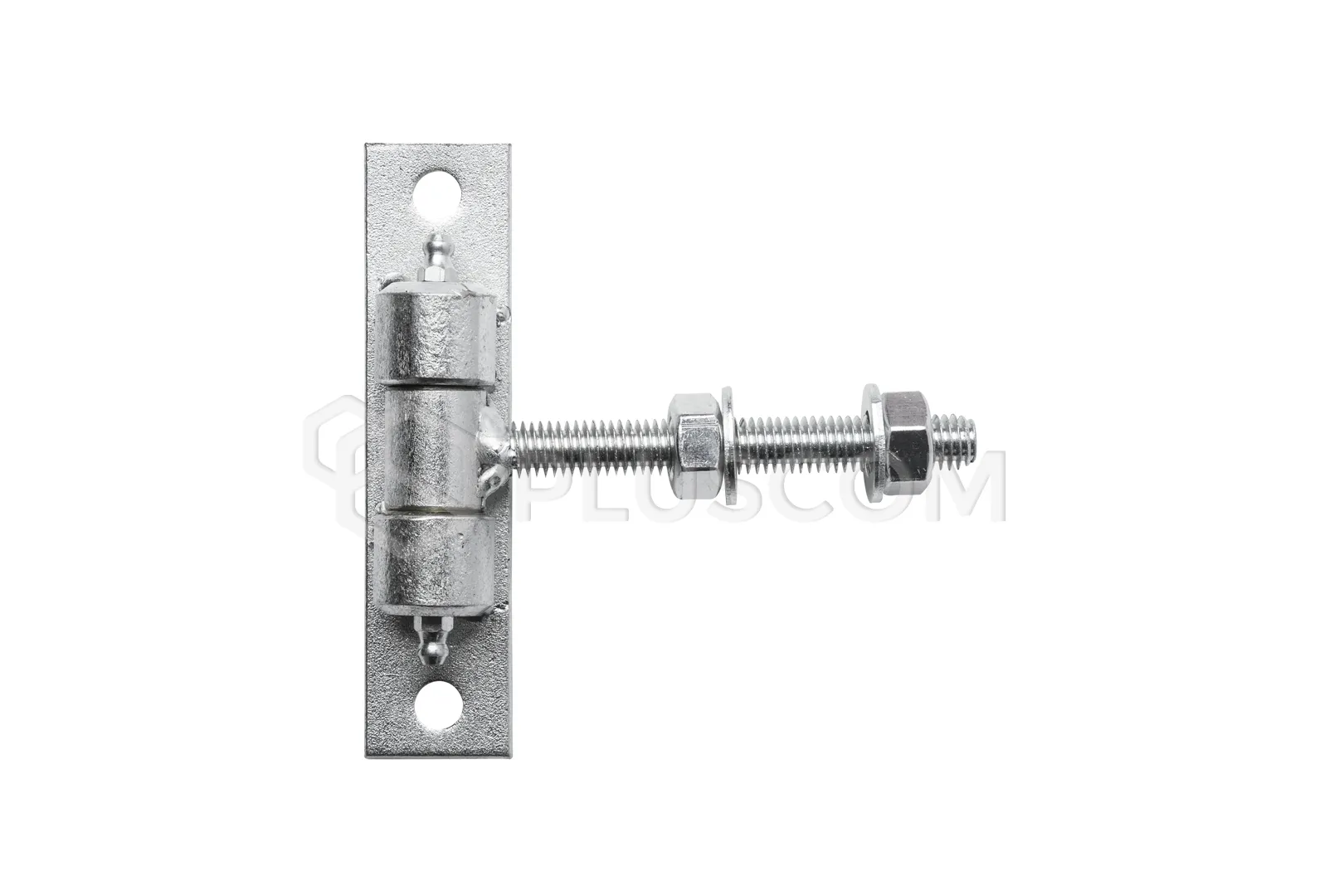

Adjustable hinge with M12 thread designed for mounting swing gates and wickets. It has a rectangular plate measuring 123x30 mm with two holes for screwing. Galvanized product - intended for external use, provides high corrosion resistance.

Using this hinge will help with simple and quick adjustment after the assembly is complete, using an adjustment nut. The hinge can be adjusted at any time, e.g. in the case of hanging the structure or when extreme temperatures occur. The metal will become tense under the influence of, e.g. a sudden drop in temperature in winter. In such situations, the adjustable hinge can be loosened or tightened as needed.

The permissible load of a pair of hinges on a 2m long wing is 40 kg.

FEATURES:

  • Galvanization - Provides high protection against corrosion for many years
  • Simple, quick assembly
  • Possibility of adjustment after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Diameter: 26 mm
  • Thread: M12
  • Screw length: 110 mm
  • Signature size: 123 x 30 mm
