PSG 61.066 Adjustable turned hinge ø 30 M18 with plate 160x85 mm with ball

15,92 EUR including 23.00% VAT
Product code: #41698
  • The maximum load of a pair of hinges on a 2m long door leaf is 90 kg
  • Screw length: 110 mm
  • Sign size: 160x85 mm
  • Thread: M18
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

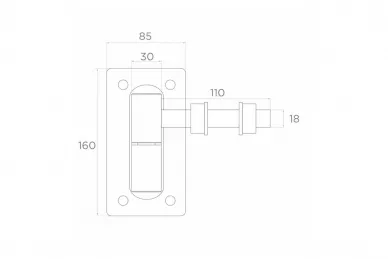

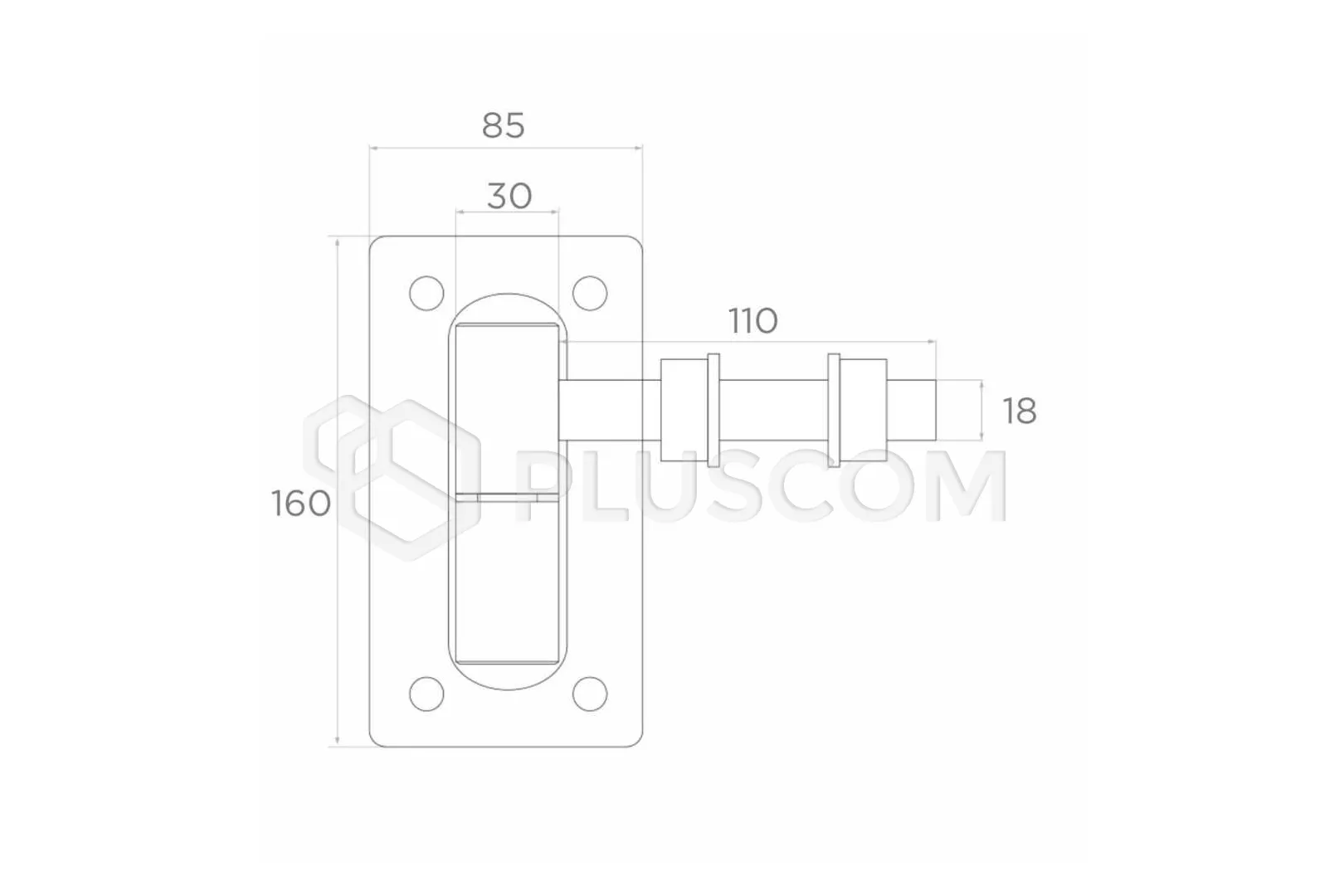

PSG 61.066 Adjustable turned hinge ø 30 M18 with a 160x85 mm backplate with a ball

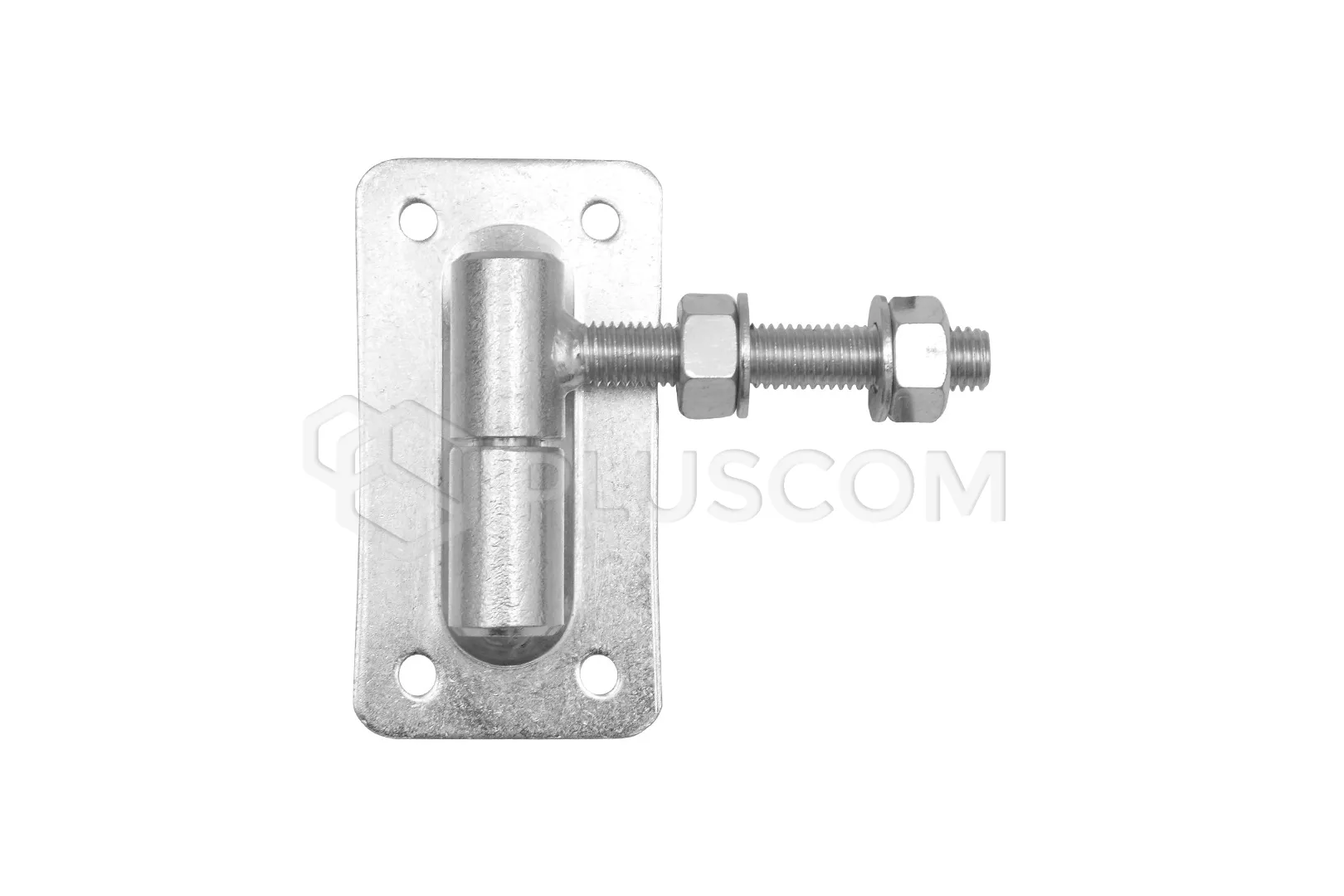

Steel adjustable turned hinge with a backplate with a ball, intended for mounting swing gates or wickets. Hinge diameter 30 mm, M18 thread, rectangular backplate 160x85 mm with four holes enabling its screwing. Galvanized product - intended for external use, ensures high corrosion resistance.

Using a nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2mb long door leaf: 90 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Diameter: 30 mm
  • Thread: M18
  • Signature size: 160x85 mm
  • Screw length: 110 mm
