PSG 61.065 Adjustable turned hinge ø 27 M16 with plate 180x50 with ball

9,51 EUR including 23.00% VAT
Product code: #41085
  • Max. load per pair of hinges: 350 kg
  • Diameter: 27mm
  • Sign size: 180x50 mm
  • Screw length: 100 mm
  • Thread: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

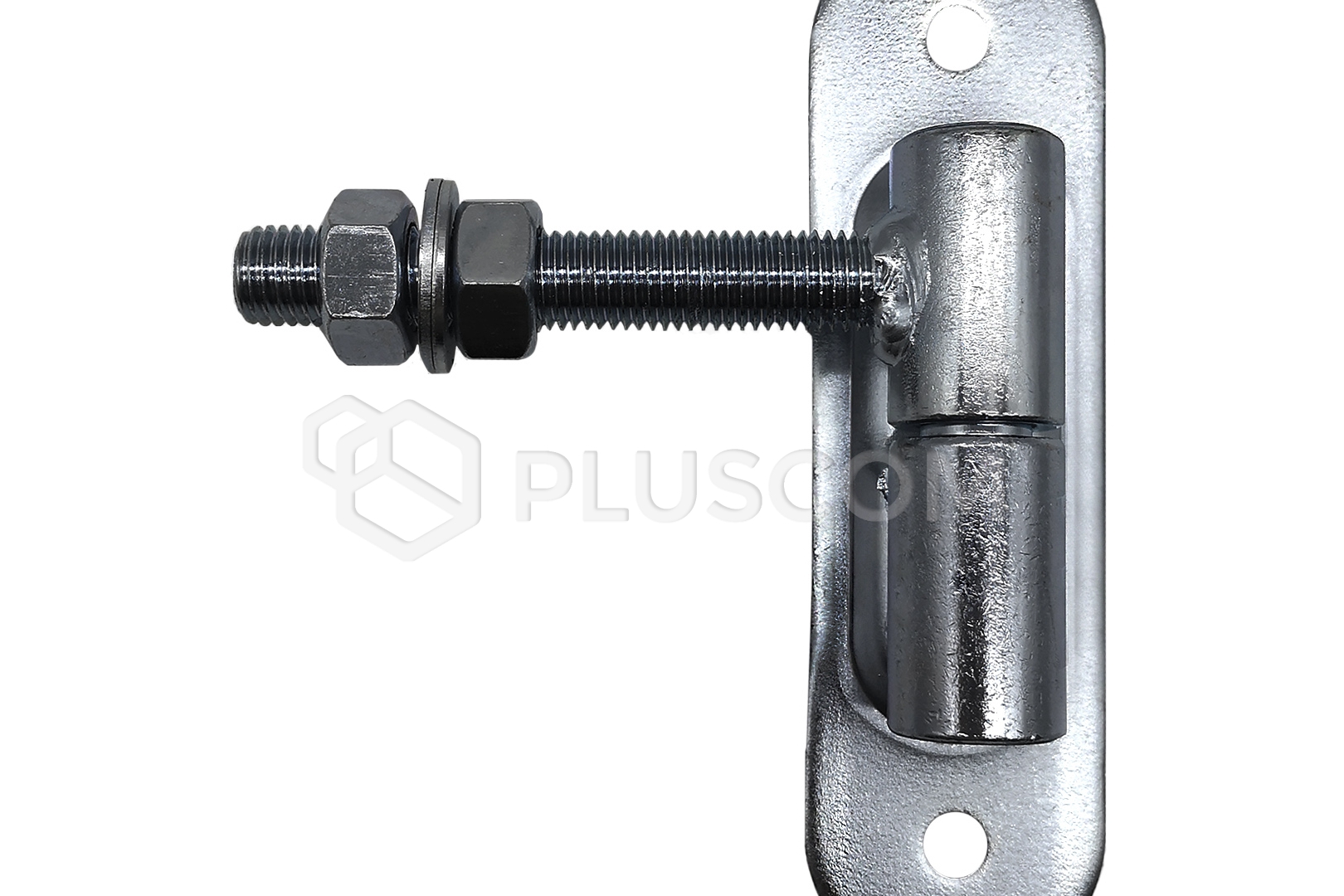

PSG 61.065 Adjustable turned hinge ø 27 M16 with a 180x50 plate with a ball


Steel adjustable turned hinge with a plate and a ball, intended for gate assembly. The hinge diameter is 27 mm, thread M16.

The product is equipped with a 180x50 mm plate with two holes, which allow it to be screwed on. The hinge is galvanized - suitable for external use, provides high corrosion resistance.

The hinge can be adjusted at any time using a nut, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges: 350 kg.

FEATURES:

  • Galvanized, protected against corrosion
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality workmanship ensures resistance to mechanical damage and load

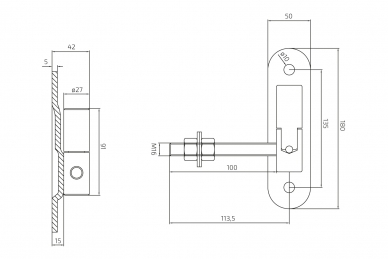

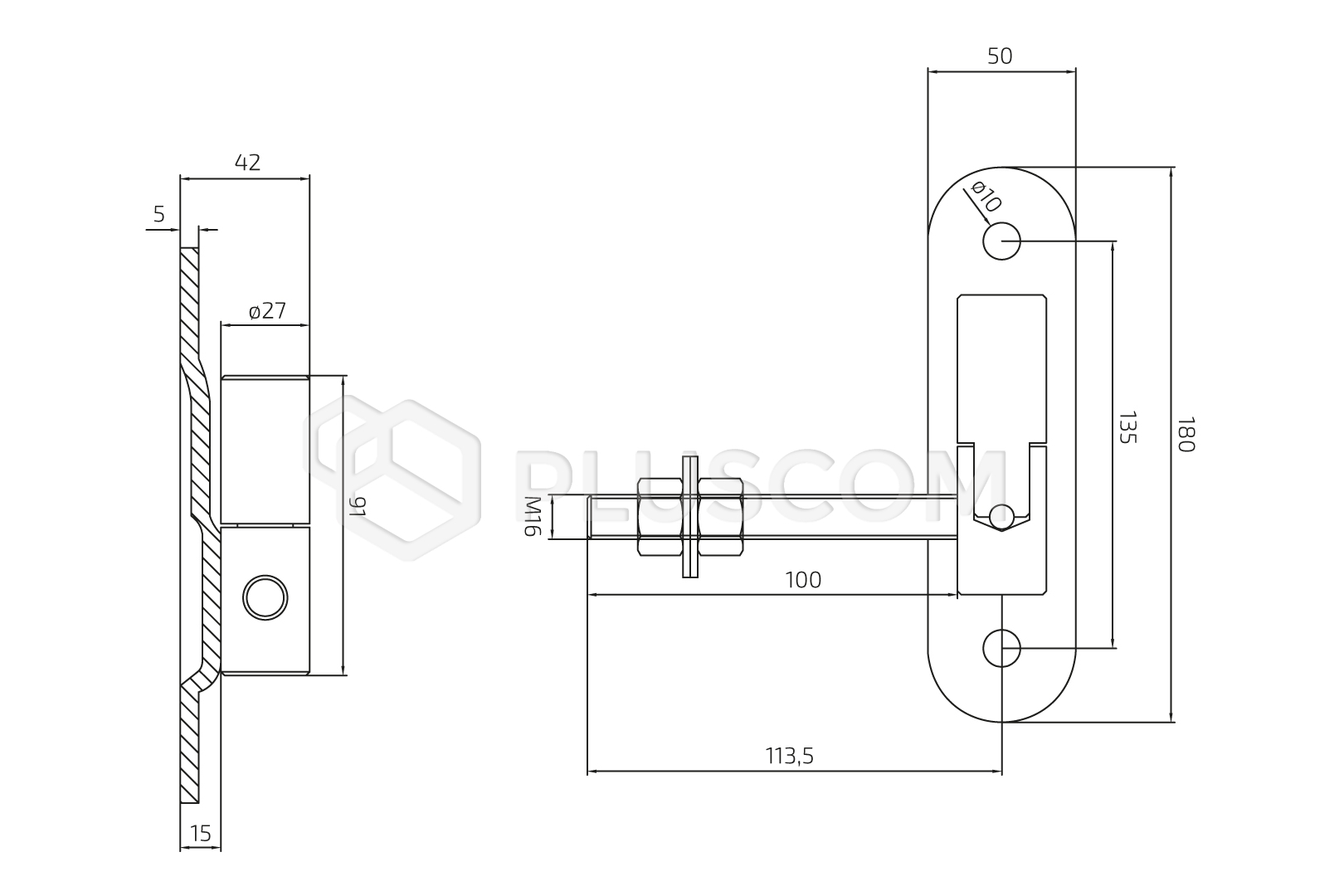

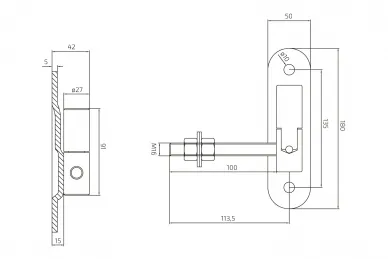

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized
  • Diameter: 27 mm
  • Thread: M16
  • Signature size: 180x50 mm
  • Screw length: 100 mm
