PSG 61.064 Adjustable turned hinge ø 24 M12 with plate 150x40 with ball

7,34 EUR including 23.00% VAT
Product code: #41084
  • Max. load per pair of hinges: 250 kg
  • Sign size: 150x40 mm
  • Screw length: 100 mm
  • Diameter: 24 mm
  • Thread: M12
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.064 Adjustable turned hinge ø 24 M12 with a 150x40 plate with a ball

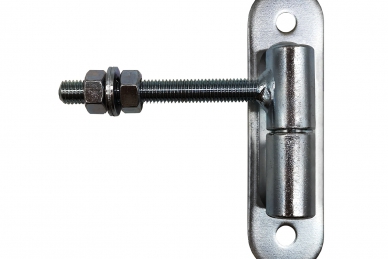

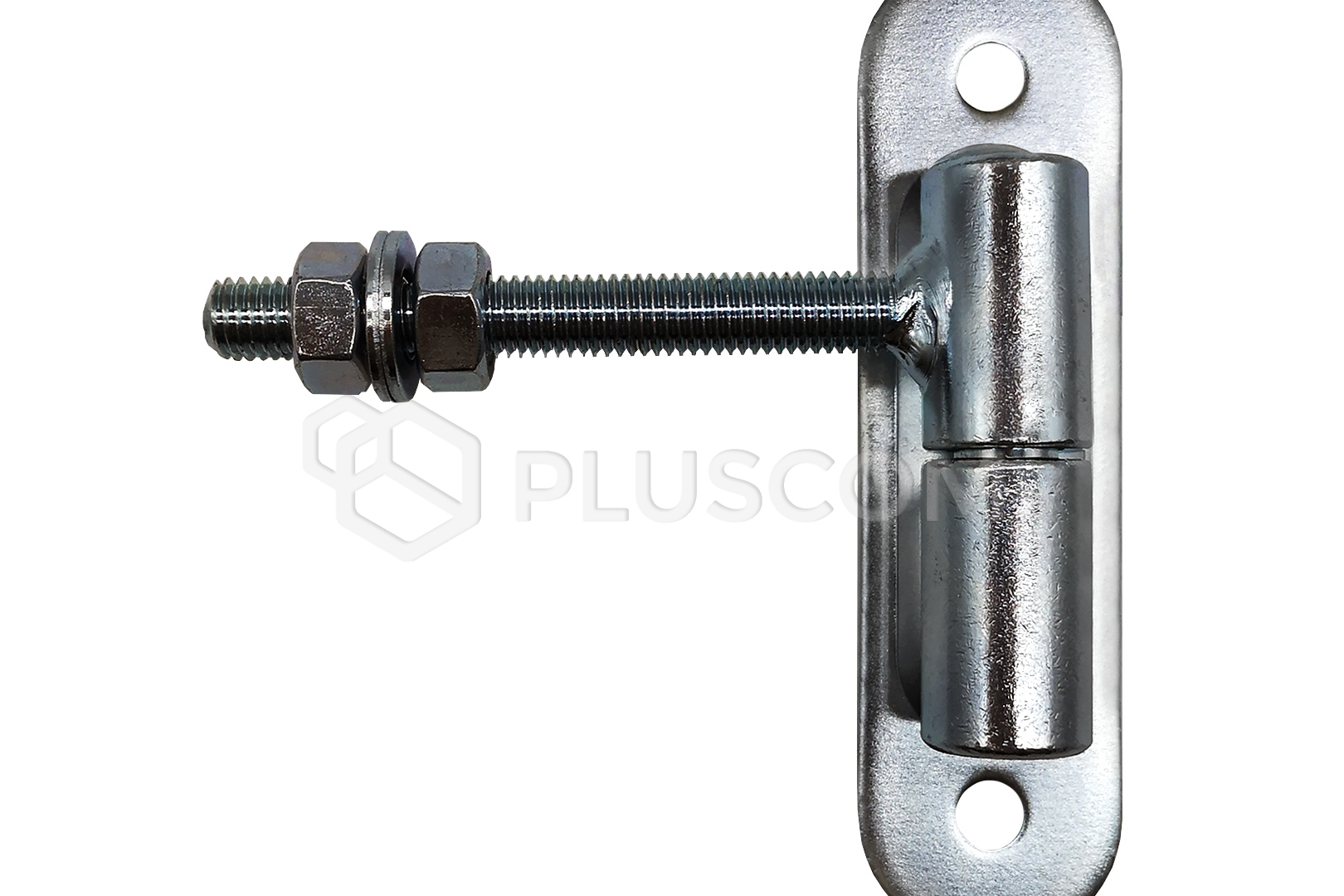

Steel adjustable turned hinge with a plate with a ball, designed for mounting gates. Hinge with a diameter of 24 mm, with M12 thread. Equipped with a 150x40 mm plate with two holes for screwing it on.

Galvanized product - suitable for outdoor use, provides high corrosion resistance. Using this hinge will help with simple and quick adjustment after the assembly is complete, using an adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. when the structure is hung or during extreme temperatures - under the influence of a sudden drop in temperature in winter, the metal shrinks. In such cases, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load per pair of hinges: 250 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality workmanship ensures resistance to mechanical damage and load

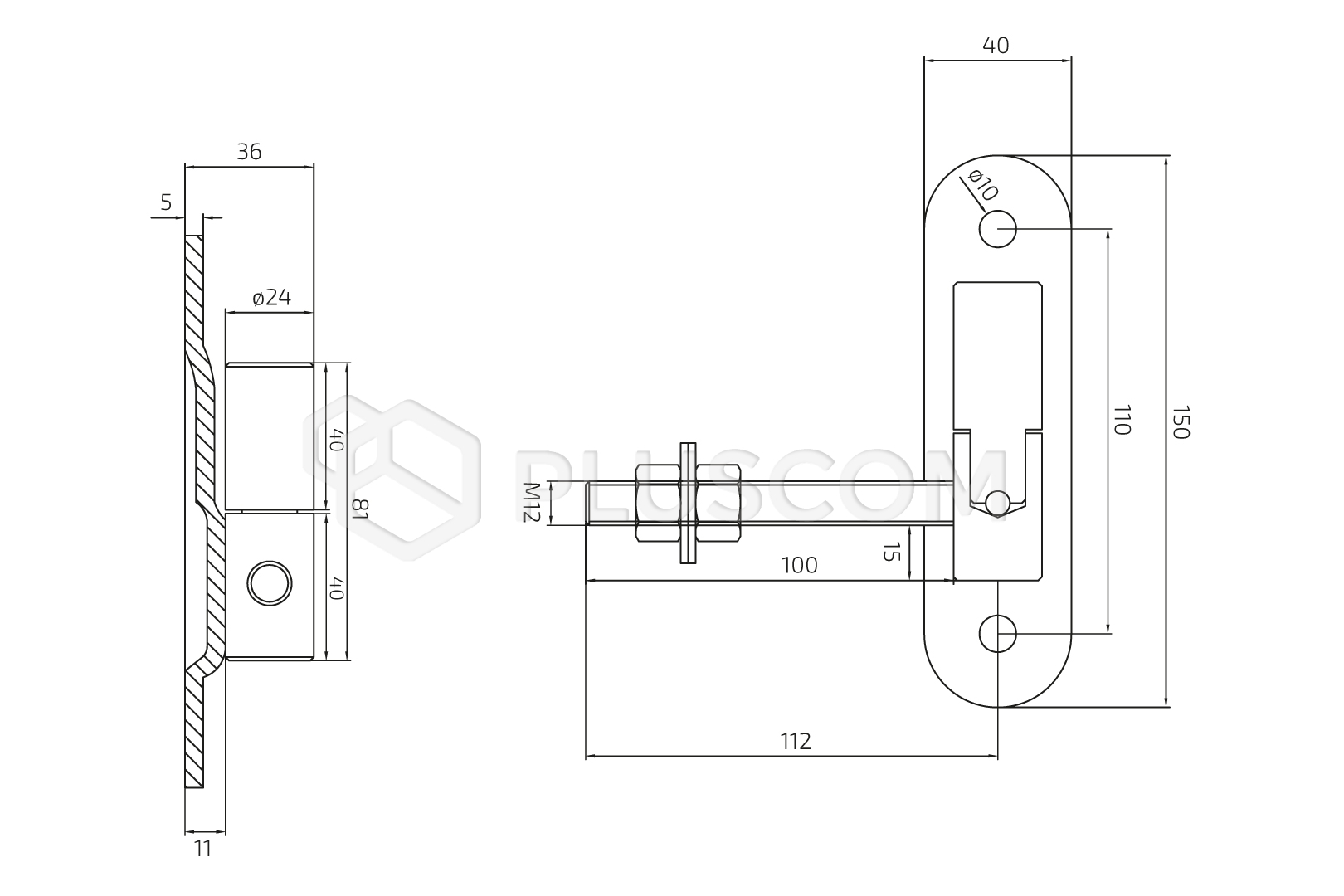

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Diameter: 24 mm
  • Thread: M12
  • Signature size: 150x40 mm
  • Screw length: 100 mm
