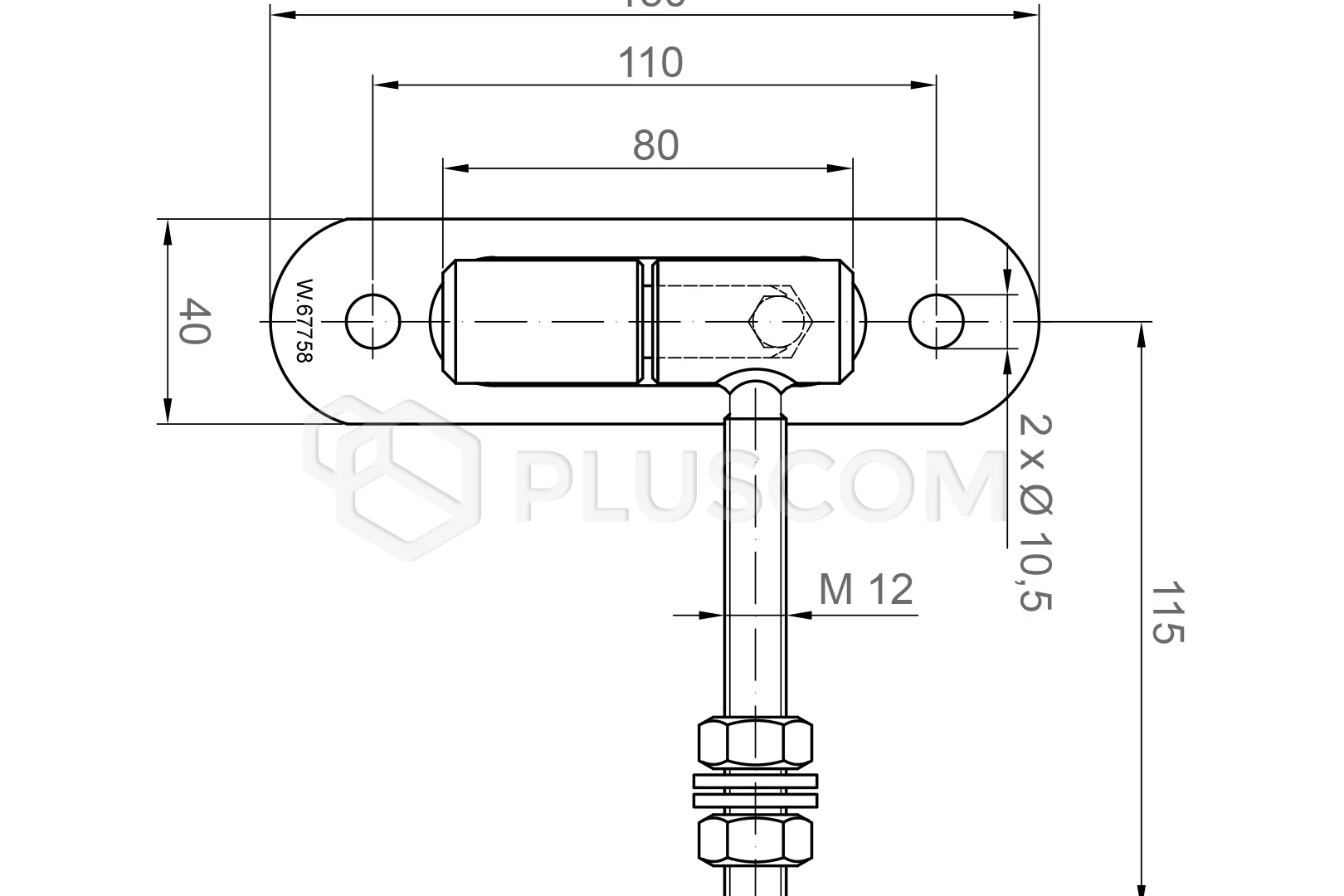

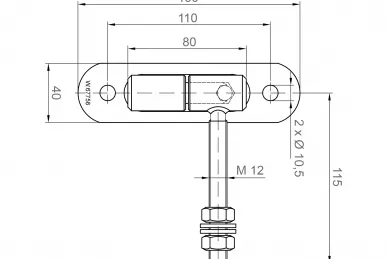

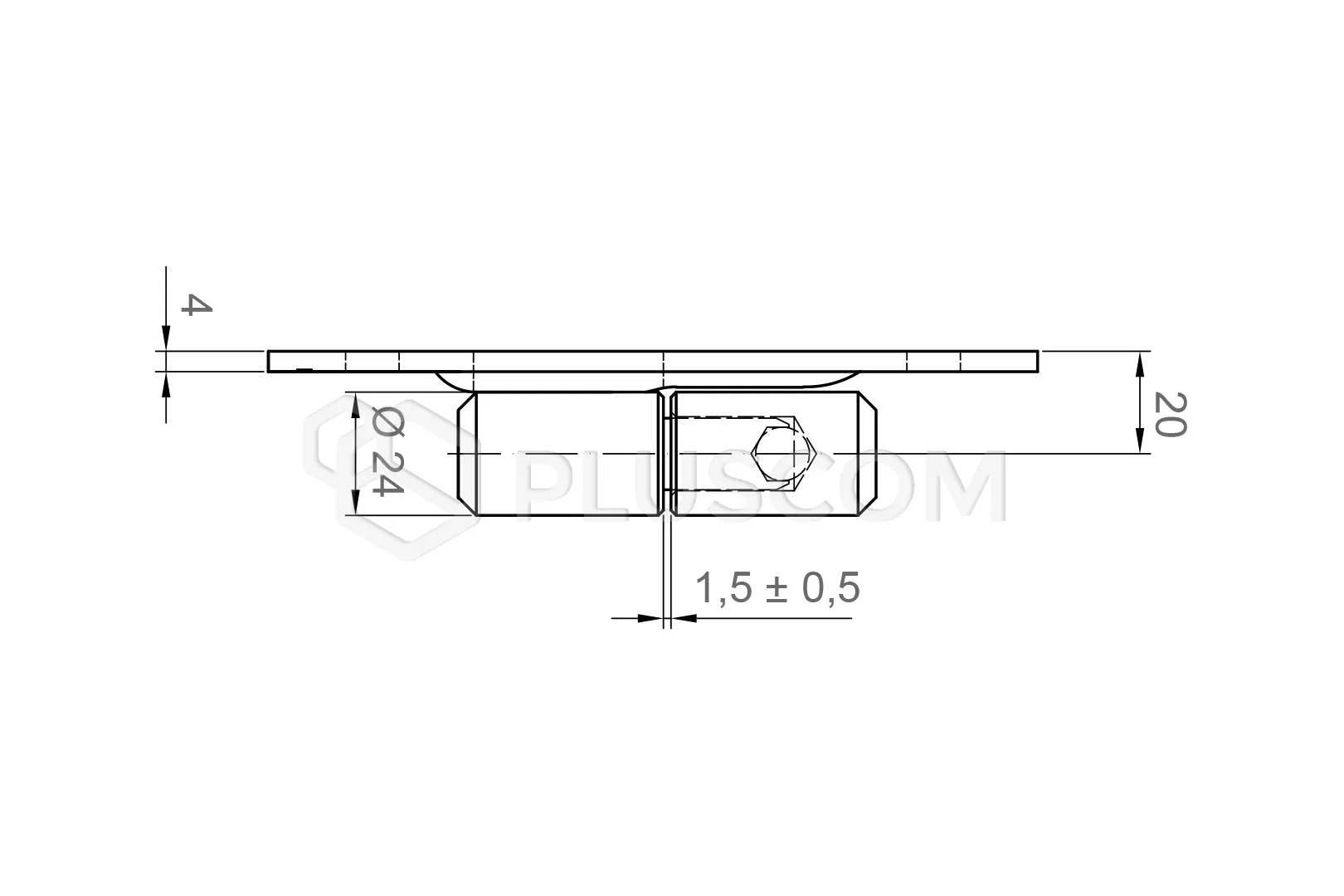

PSG 61.064.01 Adjustable turned hinge ø 24 M12 with ball and plate 150 x 40 mm

9,52 EUR including 23.00% VAT
Product code: #41333
  • Sign size: 150 x 40 mm
  • Screw length: 100 mm
  • Diameter: 24 mm
  • Thread: M12
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.064.01 Adjustable turned hinge ø 24 M12 with ball and escutcheon 150 x 40 mm

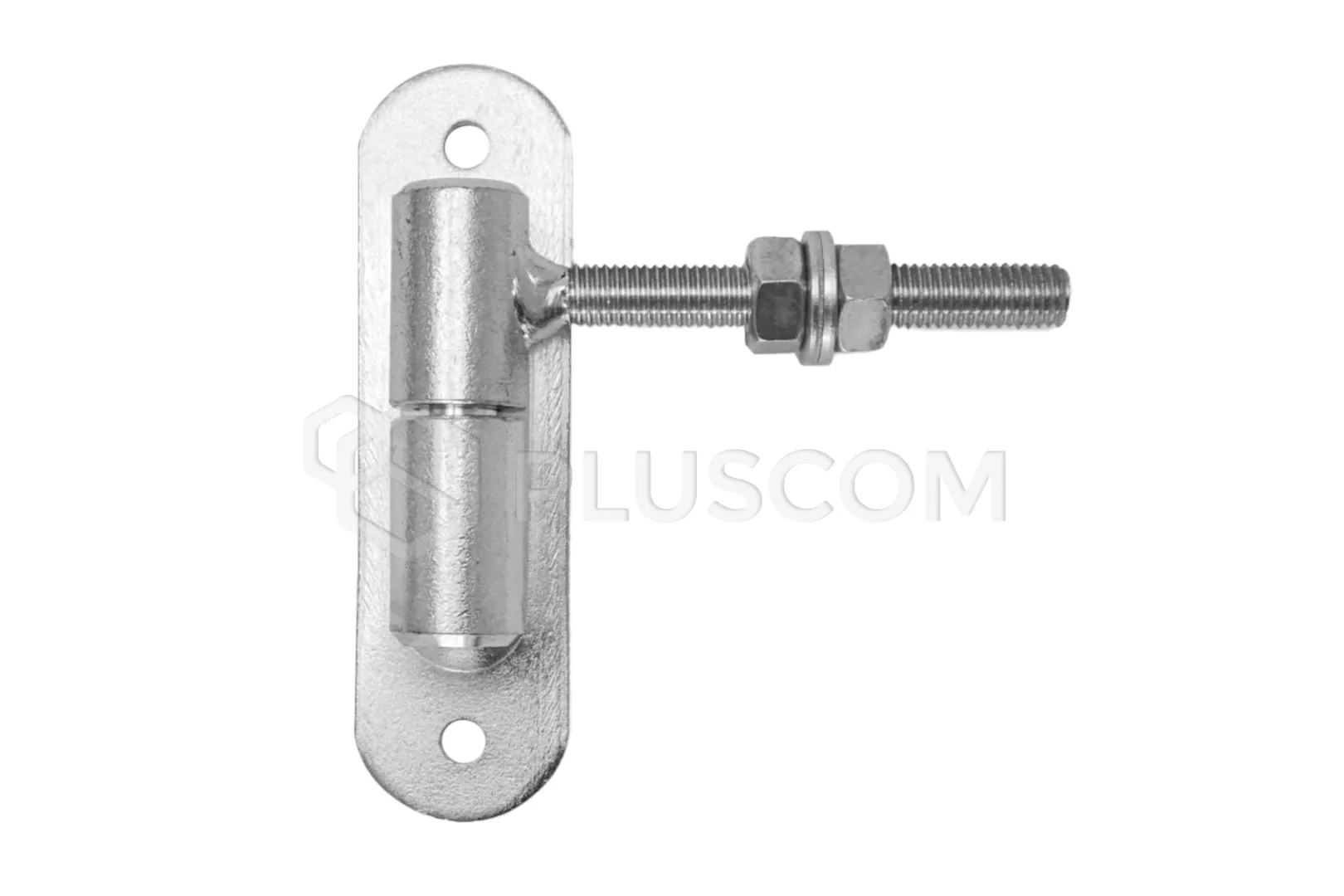

Steel adjustable turned hinge with a ball escutcheon, designed for gate assembly. Hinge with a diameter of 24 mm, with M12 thread. Equipped with a escutcheon measuring 150x40 mm with two holes enabling its screwing.

Galvanized product - suitable for outdoor use, provides high corrosion resistance. Using this hinge will help in simple and quick adjustment after the assembly is completed, using an adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - under the influence of a sudden drop in temperature in winter, the metal shrinks.
In such situations, the adjustable hinge can be tightened or, as needed, loosened.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality workmanship ensures resistance to mechanical damage and load

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization
  • Diameter: 24 mm
  • Thread: M12
  • Signature size: 150 x 40 mm
  • Screw length: 100 mm
