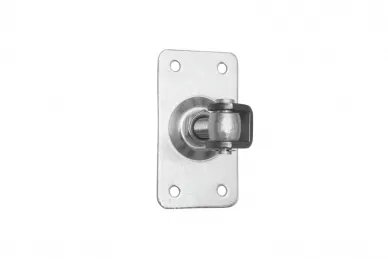

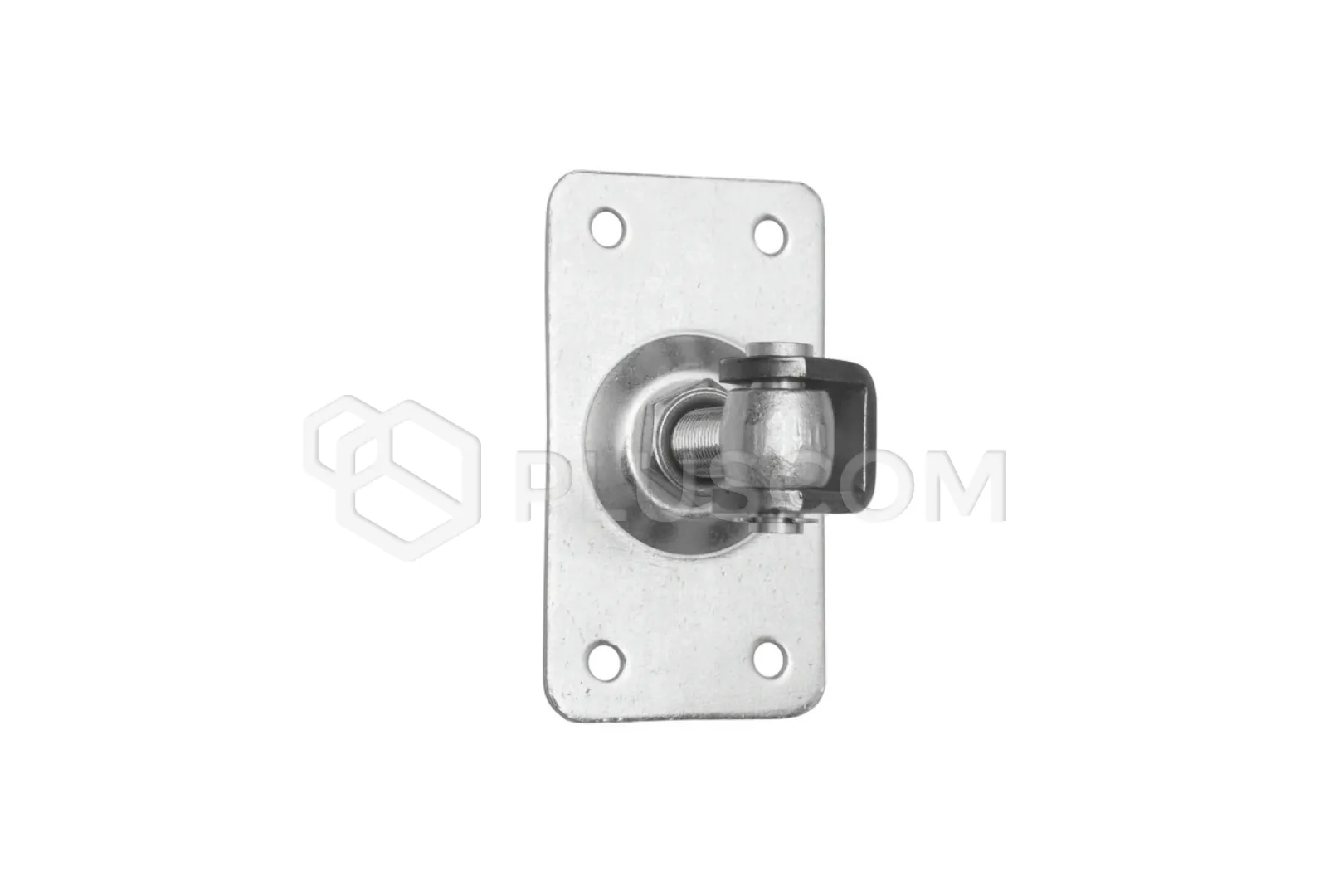

PSG 61.062 Adjustable hinge with rectangular plate M20 160x85 mm

7,92 EUR including 22.00% VAT
Product code: #41711
  • The maximum load of a pair of hinges on a 2 m long door leaf is 105 kg
  • Total length: 92 mm
  • Screw length: 48 mm
  • Sign size: 160x85 mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,29 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.062 Adjustable hinge with rectangular plate M20 160x85 mm


Steel adjustable hinge with M20 screw. It has a rectangular plate measuring 160x85 mm with four holes for screwing. Designed for mounting swing gates or wickets. Galvanized product - intended for external use, provides high corrosion resistance. Using this hinge will help with simple and quick adjustment after the assembly is complete, using an adjustment nut.

You can adjust the hinge at any time, e.g. when the structure is hanging or when extreme temperatures occur. The metal will become tense under the influence of, e.g. a sudden drop in temperature in winter. In such situations, you can loosen the adjustable hinge or tighten it as needed.

Permissible load for a pair of hinges on a 2m long wing: 105 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Possibility of adjustment after assembly is completed
  • High quality of workmanship affects resistance to mechanical damage and load

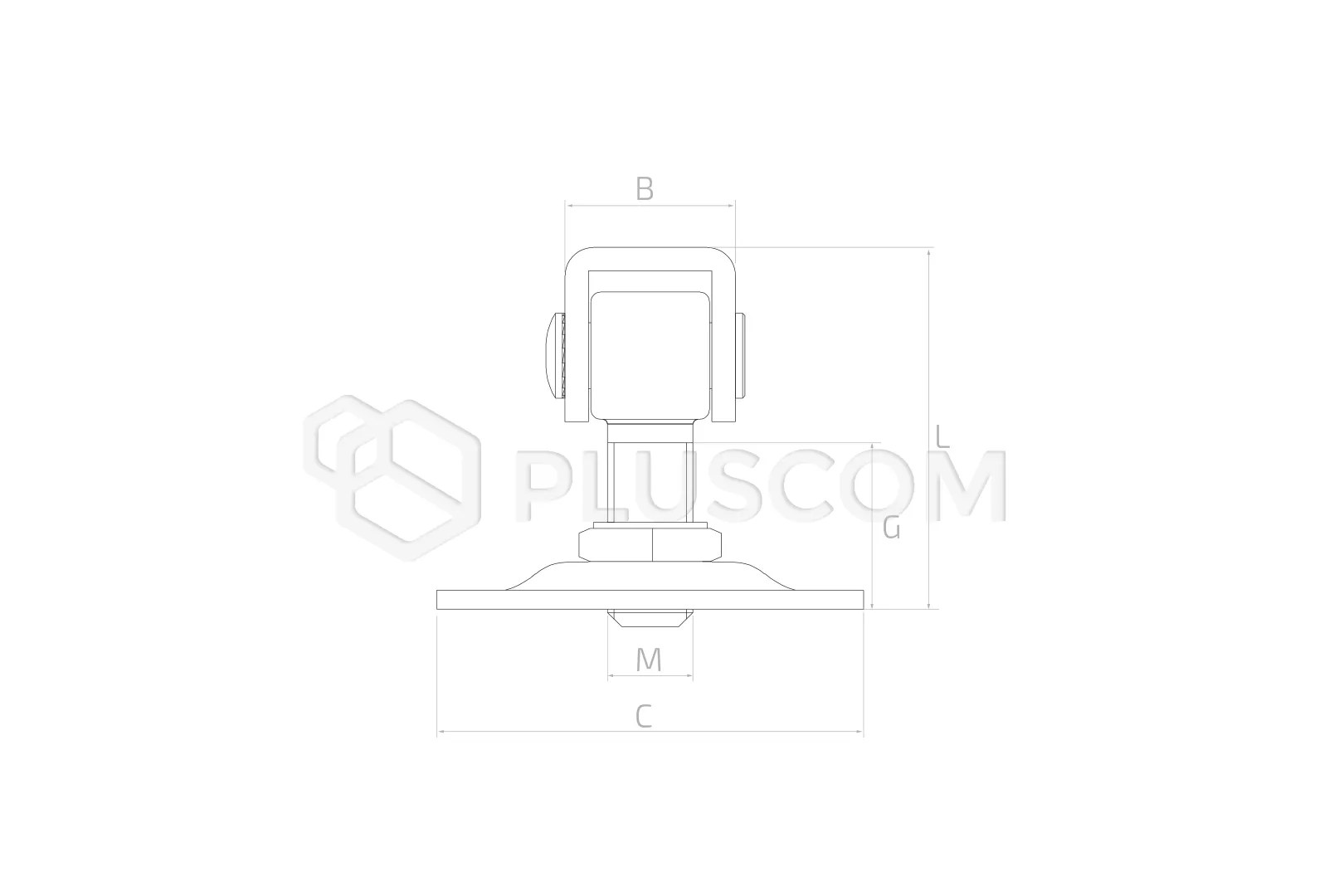

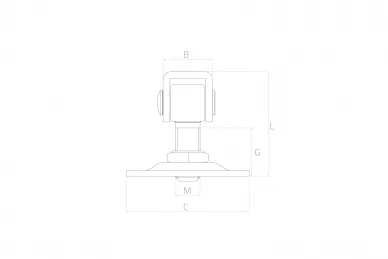

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (black ear)
  • Thread: M20
  • Ear width: 40 mm
  • Total length: 92 mm
  • Screw length: 48 mm
  • Signature dimensions: 160x85 mm
