PSG 61.061.01 Adjustable hinge with rectangular plate M16 85x55 mm

7,08 EUR including 22.00% VAT
Product code: #41709
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Total length: 72 mm
  • Screw length: 37 mm
  • Sign size: 85x55 mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,29 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.061.01 Adjustable hinge with rectangular plate M16 85x55 mm

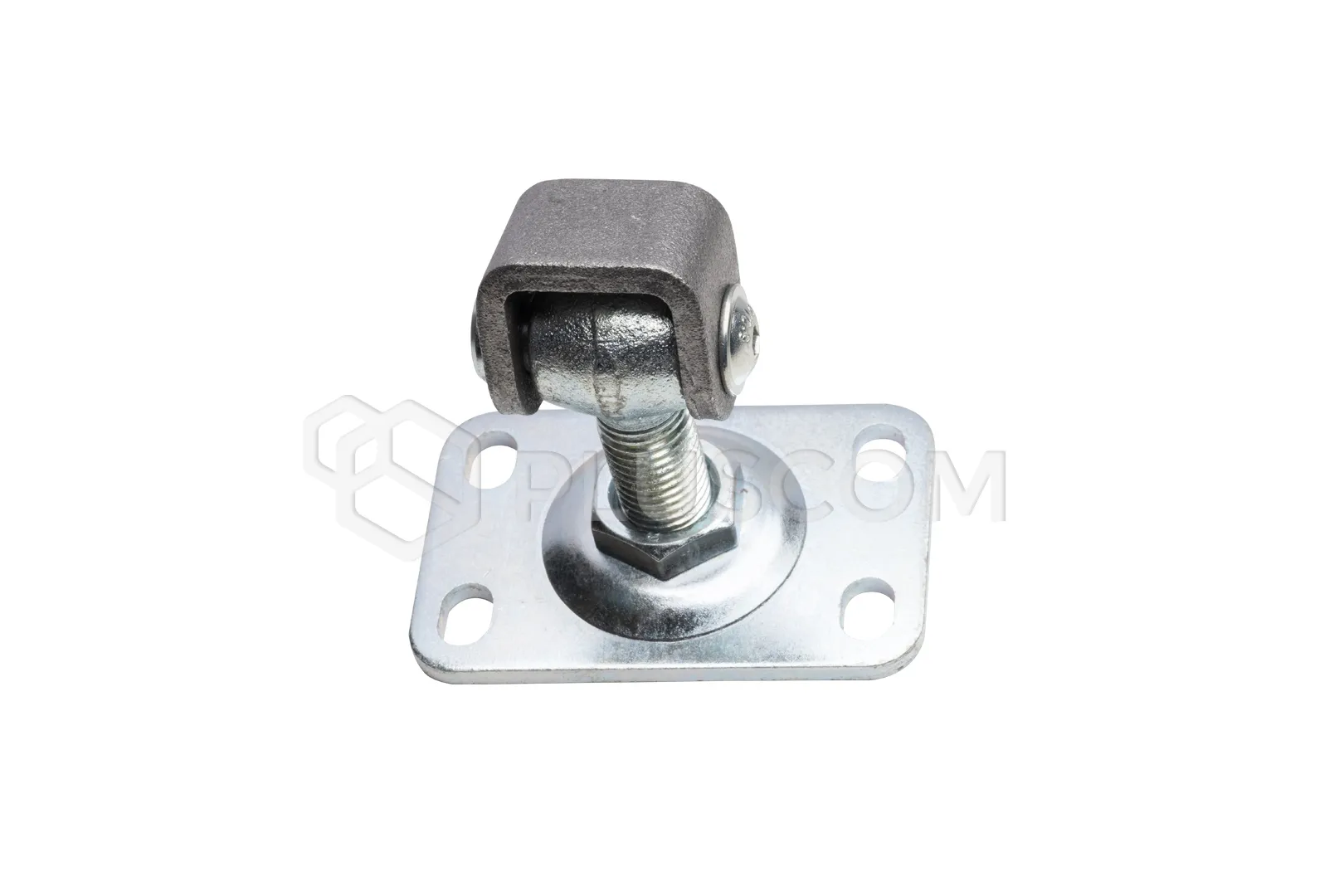

Steel adjustable hinge with M16 screw. Equipped with a rectangular plate measuring 85x55 mm with four bean-shaped holes for screwing it on. Designed for gate assembly. Galvanized product - intended for external use, provides high resistance to corrosion.

Using a nut, the hinge can be adjusted at any time, e.g. when the structure is hung or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 65 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (black ear)
  • Thread: M16
  • Ear width: 36 mm
  • Total length: 72 mm
  • Screw length: 37 mm
  • Signature dimensions: 85x55 mm
