PSG 61.055 M20 Gate Hinge

10,01 EUR including 23.00% VAT
Product code: #41104
  • Permissible load of a pair of hinges on a 2m long door leaf: 100 kg
  • Ear width: 44 mm
  • Total length: 130 mm
  • Screw length: 65 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.055 M20 Gate Hinge


Steel adjustable hinge with M20 screw, designed for welding. Used for mounting swing gates. Galvanized product - suitable for outdoor use, provides high corrosion resistance. Using this hinge will help with simple and quick adjustment after the assembly is complete, using the adjusting nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2mb long wing: 100 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

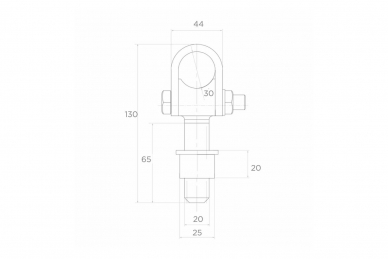

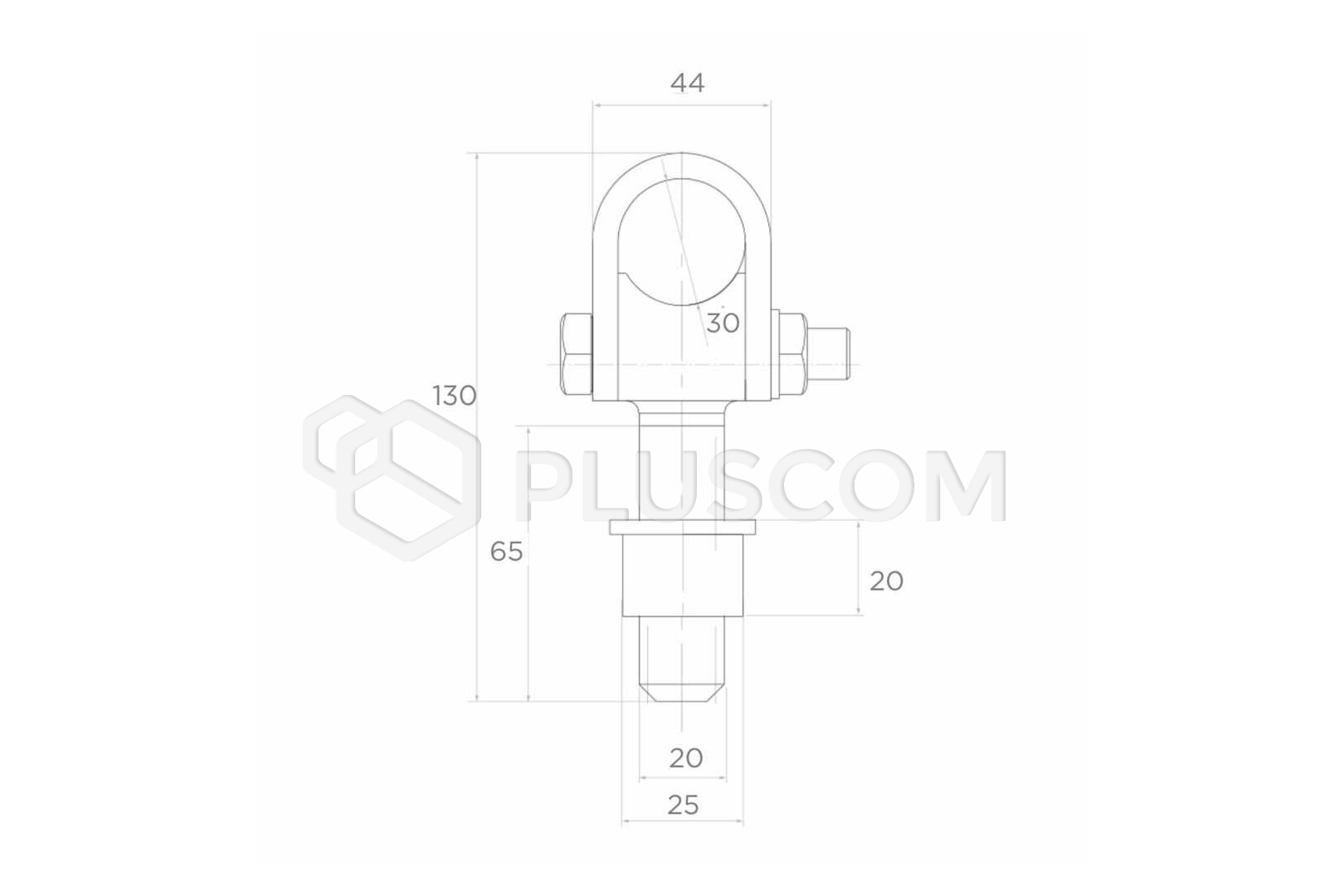

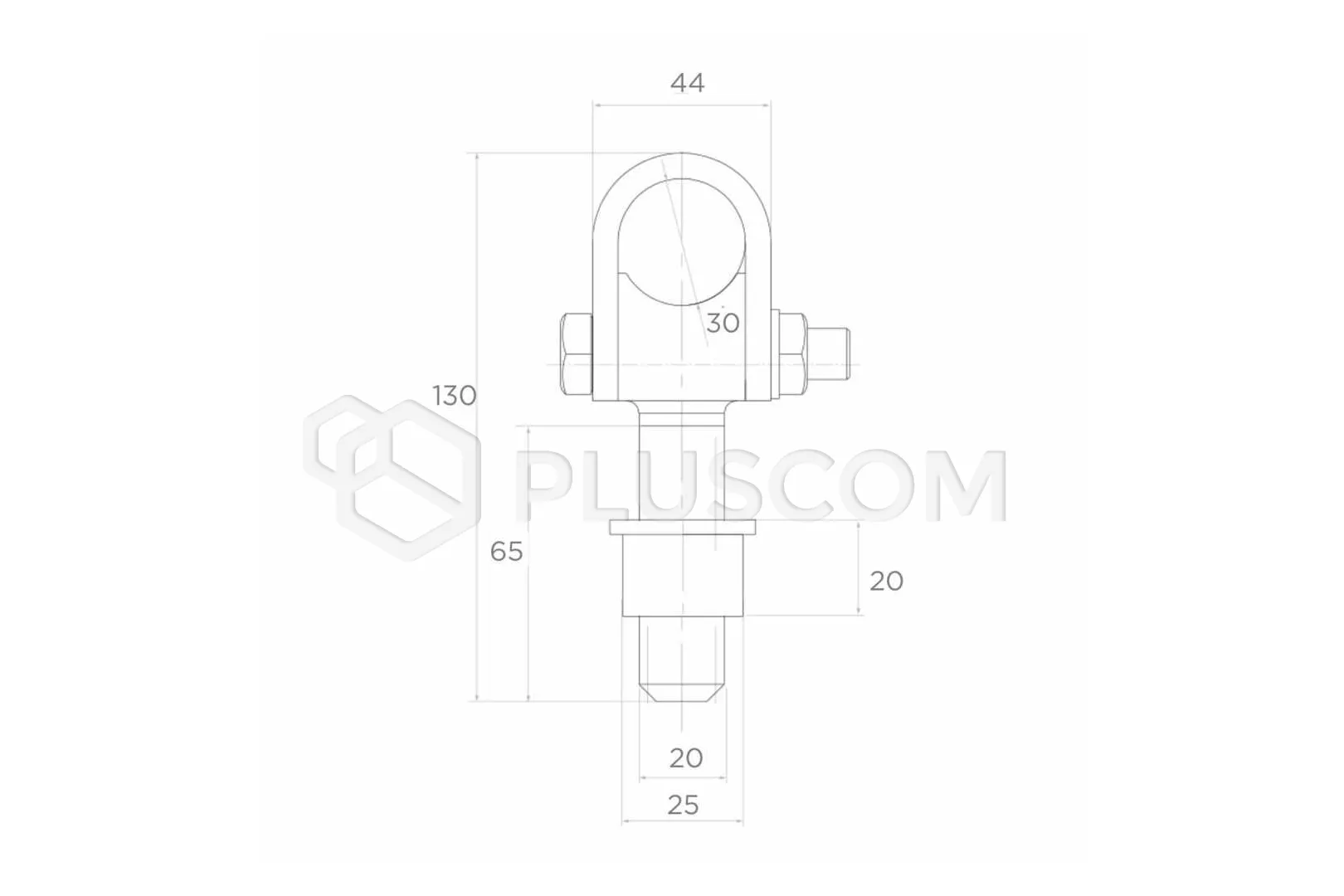

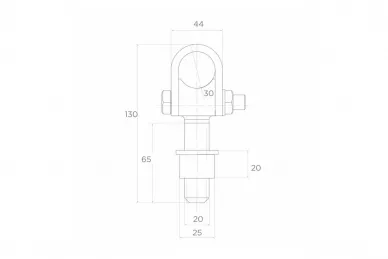

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (galvanized ear)
  • Thread: M20
  • Ear width: 44 mm
  • Total length: 130 mm
  • Screw length: 65 mm
