PSG 61.054 Adjustable gate hinge M24

4,71 EUR including 23.00% VAT
Product code: #41714
  • Maximum load of a pair of hinges on a 2m long door leaf is 150 kg
  • Total length: 150 mm
  • Screw length: 75 mm
  • Thread: M24
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.054 Adjustable gate hinge M24


Steel adjustable hinge with M24 screw, designed for welding. Designed for the installation of swing gates or wickets. Galvanized product - designed for external use, provides high resistance to corrosion. Using this hinge will help with simple and quick adjustment after completed assembly, using an adjustment nut.

At any time, you can adjust the hinge, e.g. in the case of hanging the structure or when extreme temperatures occur. The metal will become tense under the influence of, e.g. a sudden drop in temperature in winter. In such situations, you can loosen the adjustable hinge or tighten it as needed.

Permissible load of a pair of hinges on a 2mb long leaf: 150 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Possibility of adjustment after assembly is completed
  • High quality of workmanship affects resistance to mechanical damage and load

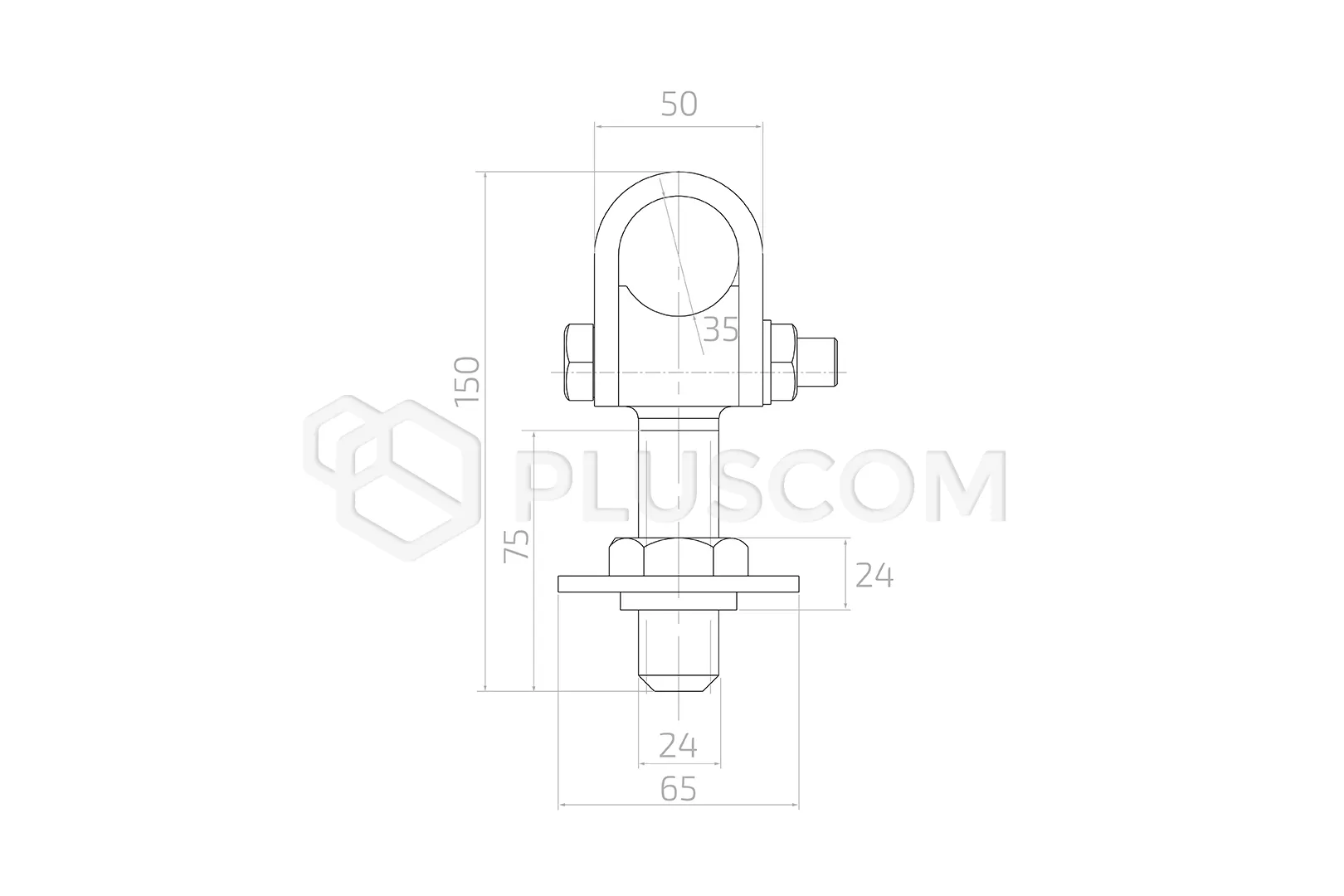

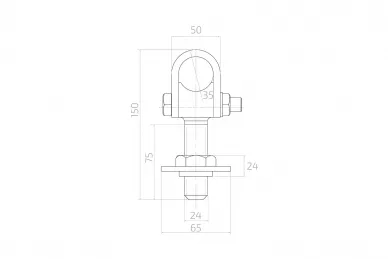

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (galvanized ear)
  • Thread: M24
  • Ear width: 50 mm
  • Total length: 150 mm
  • Screw length: 75 mm
