PSG 61.053 Adjustable gate hinge M20

3,71 EUR including 23.00% VAT
Product code: #41713
  • Maximum load of a pair of hinges on a 2m long door leaf is 100 kg
  • Total length: 130 mm
  • Screw length: 65 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.053 Adjustable gate hinge M20


Steel adjustable hinge with M20 screw, designed for welding. Used for mounting swing gates or wickets. Galvanized product - designed for external use, provides high resistance to corrosion. Using this hinge will help with simple and quick adjustment after completed assembly, using an adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 100 kg.

FEATURES:

  • Galvanization - provides durable protection against corrosion for many years
  • Simple, quick assembly
  • Adjustable after assembly
  • High quality of workmanship increases resistance against mechanical damage and loads

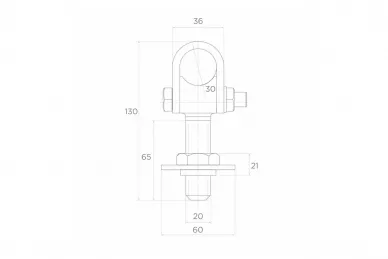

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (galvanized ear)
  • Thread: M20
  • Ear width: 44 mm
  • Total length: 130 mm
  • Screw length: 65 mm
