PSG 61.021.20 Adjustable hinge M20

6,24 EUR including 23.00% VAT
Product code: #41150
  • The maximum load of a pair of hinges on a 2 m long door leaf is 105 kg
  • Ear width: 43 mm
  • Total length: 88 mm
  • Screw length: 40 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.021.20 Adjustable hinge M20

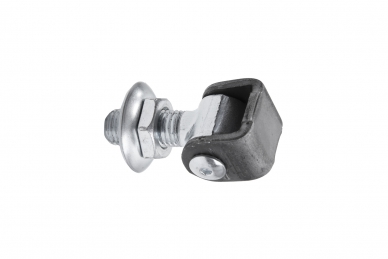

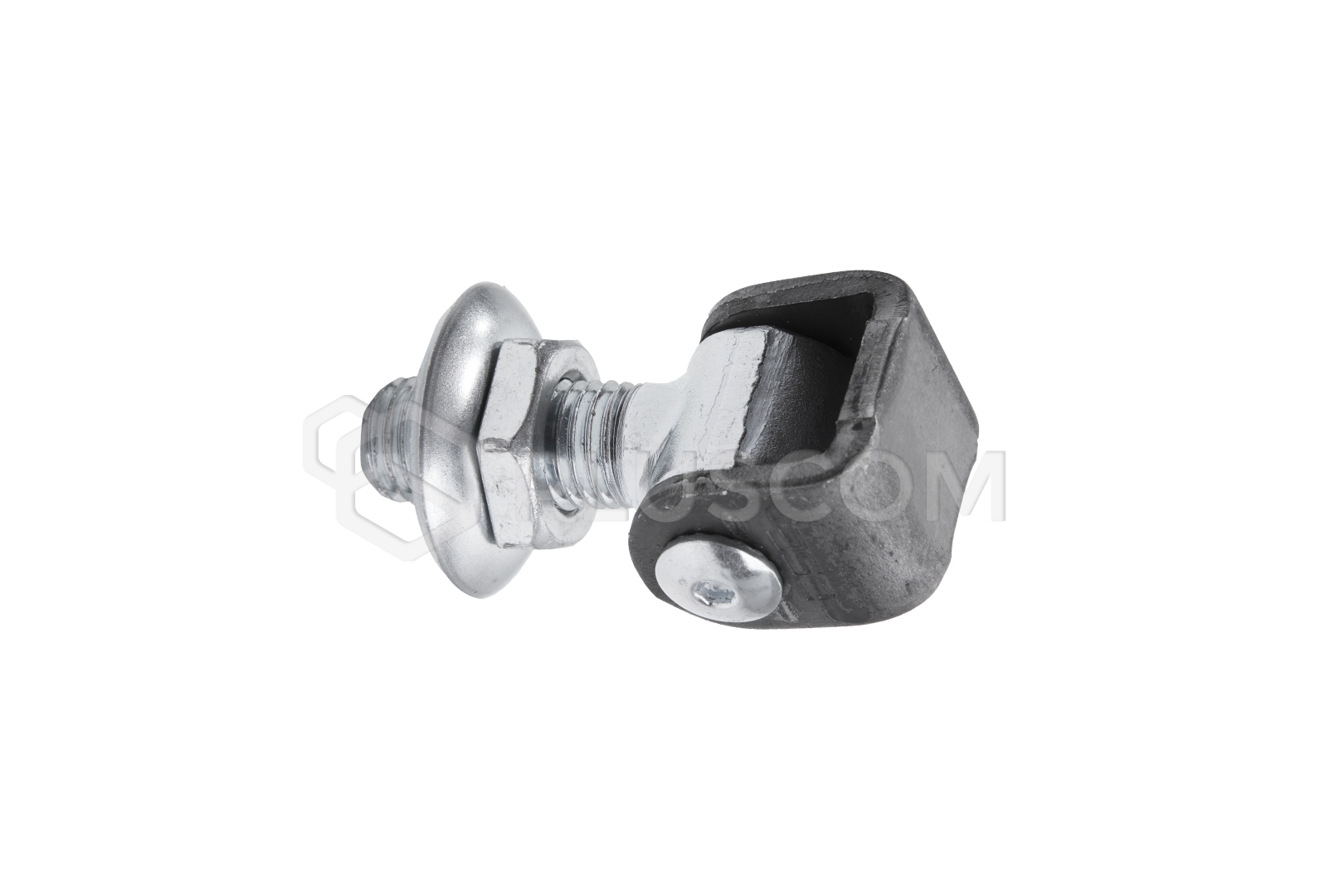

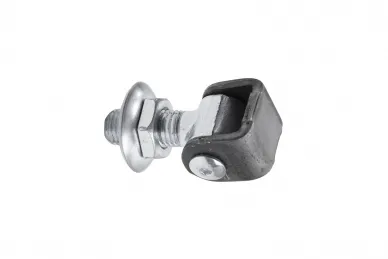

Steel adjustable hinge with M20 screw. Designed for the installation of swing gates or wickets. Galvanized product - intended for external use, provides high corrosion resistance.

Using this hinge will help with simple and quick adjustment after the installation is complete, using an adjusting nut. At any time, you can adjust the hinge, e.g. when the structure is hanging or when extreme temperatures occur.
The metal will become tense under the influence of, for example, a sudden drop in temperature in winter. In such situations, you can loosen the adjustable hinge or tighten it as needed.

Permissible load of a pair of hinges on a 2m long leaf: 105 kg.

FEATURES:

  • Galvanization - provides high protection against corrosion for many years
  • Simple, quick assembly
  • Possibility of adjustment after assembly
  • High quality of workmanship affects resistance to mechanical damage and load

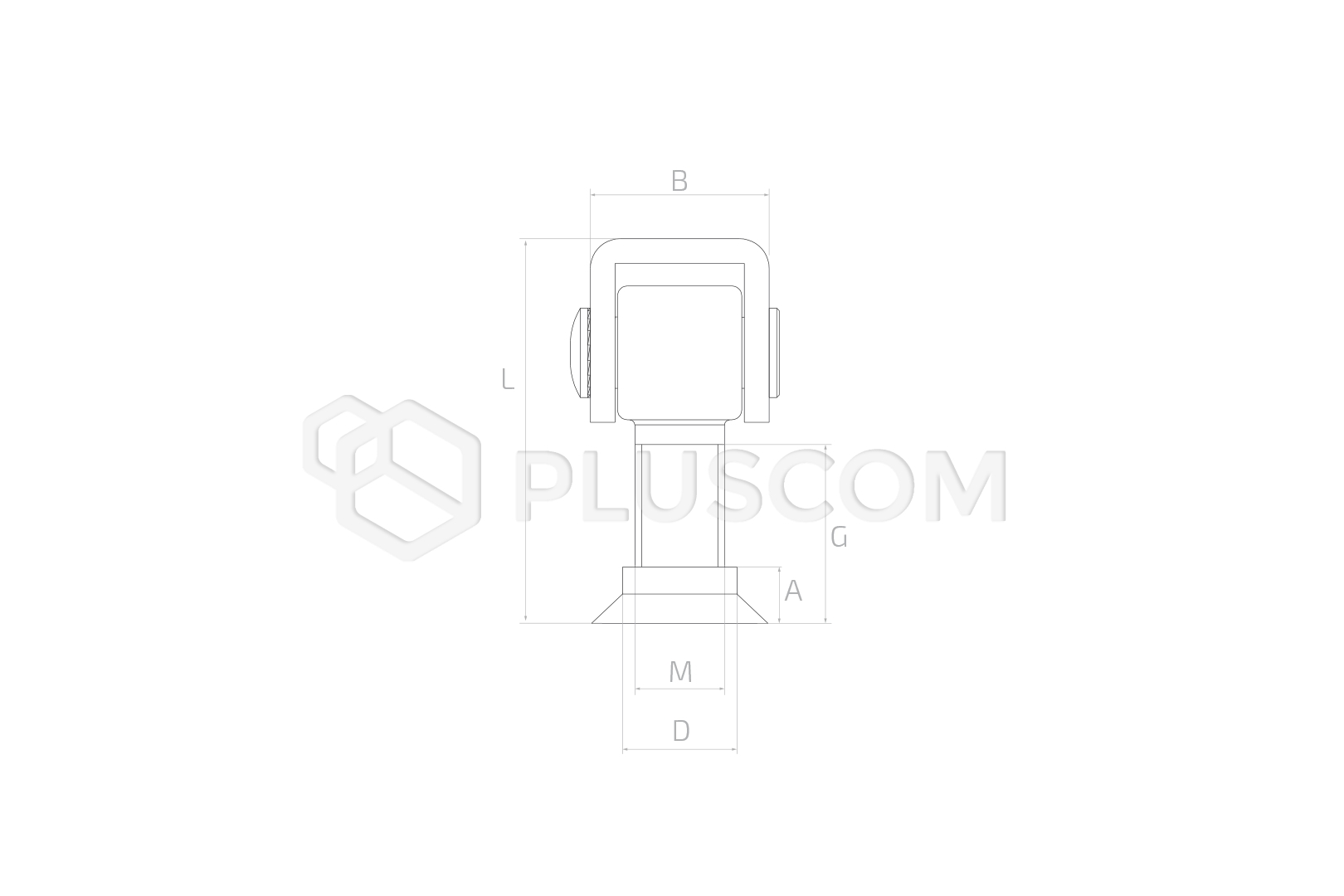

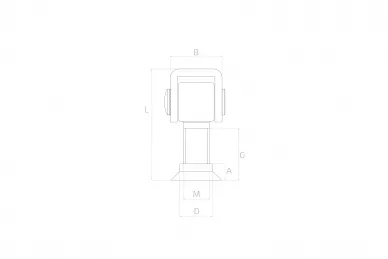

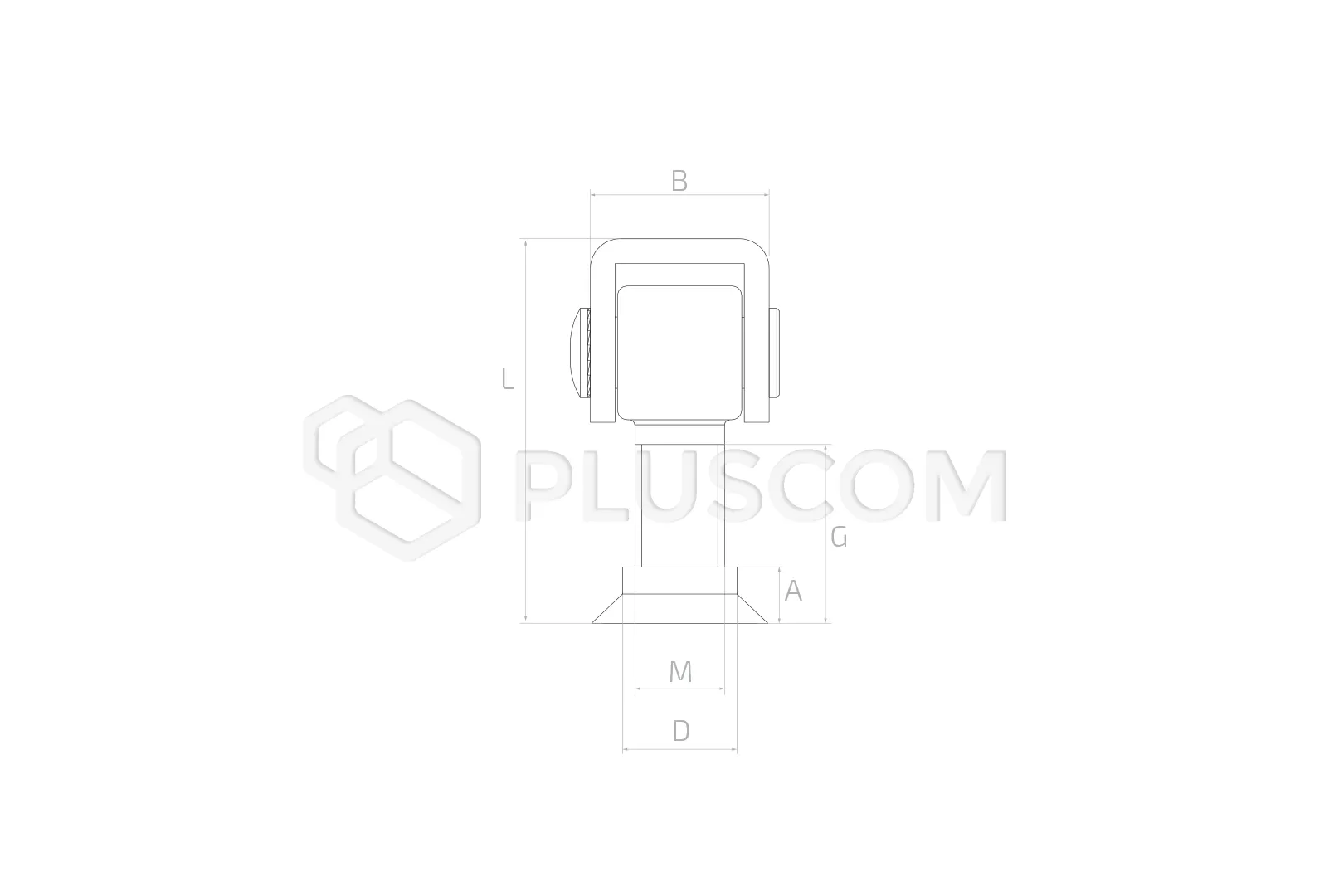

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanization (black ear)
  • Thread: M20
  • Ear width: 43 mm
  • Total length: 88 mm
  • Screw length: 40 mm
