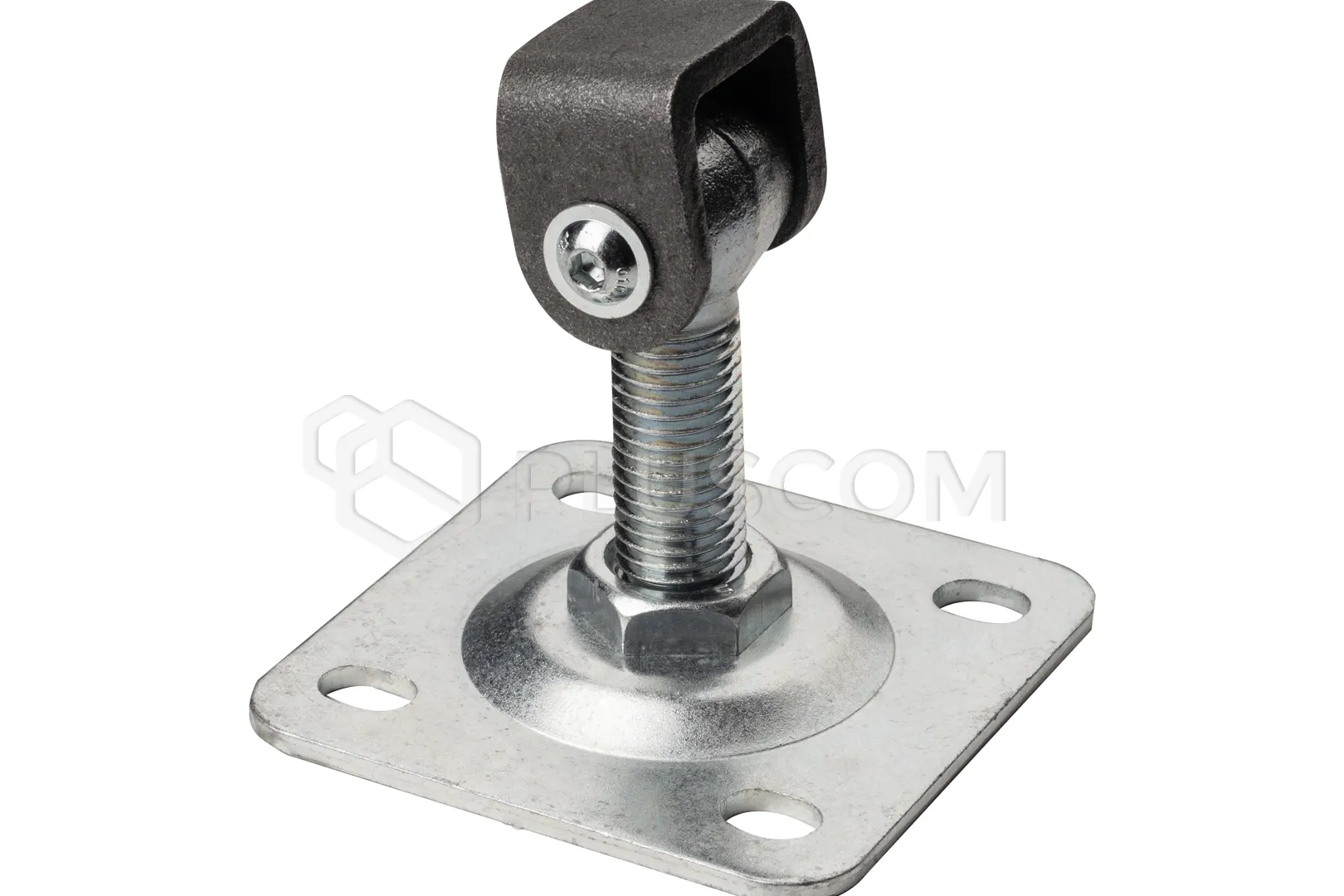

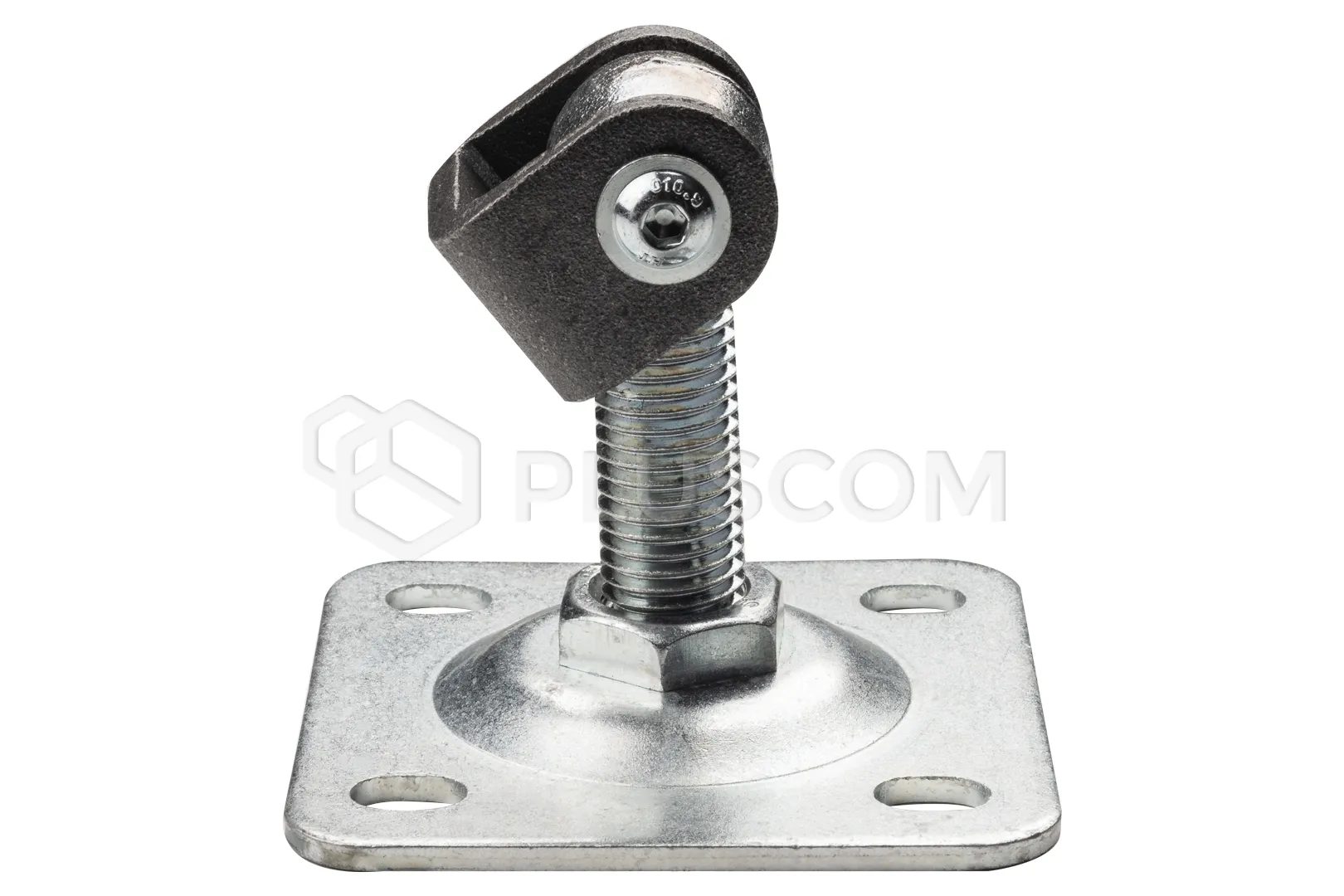

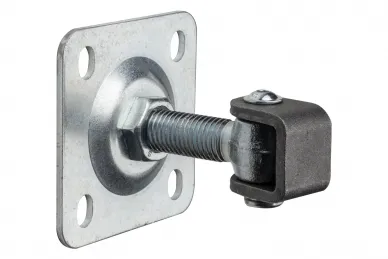

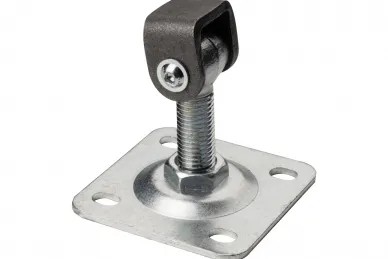

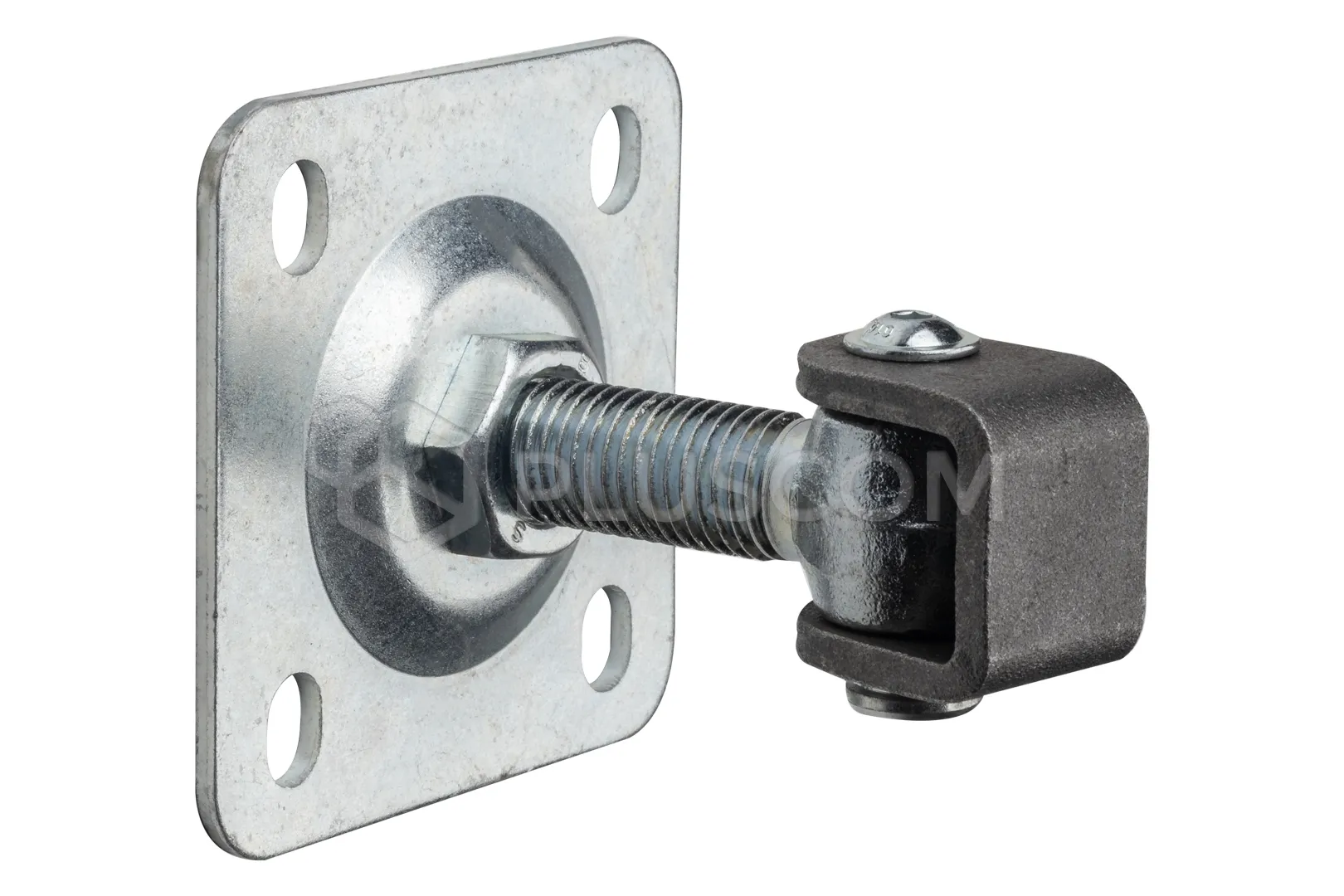

PSG 61.019.2 Adjustable hinge with plate 100 x 100 mm - M20 galvanized (with black eye)

7,82 EUR including 23.00% VAT
Product code: #41739
  • Ear width: 40 mm
  • Sign dimensions: 100 x 100 mm
  • Thickness of the plate: 4 mm
  • Mounting hole spacing: 70 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.019.2 Adjustable hinge with 100 x 100 mm plate - M20 galvanized (with black eye)


The solid M20 adjustable hinge with a 100x100x4 mm plate is a reliable solution for mounting swing gates.

Made of steel and galvanized with a black eye, it guarantees long-term durability, corrosion protection and aesthetic appearance.

This hinge allows for convenient and quick adjustment during use, which makes it suitable for both intensively used structures and places exposed to changing atmospheric conditions.

FEATURES:

  • The 100x100 mm and 4 mm thick plate ensures a solid attachment of the hinge to the gate, which increases its stability and durability
  • Corrosion-resistant galvanizing: This hinge copes perfectly in difficult weather conditions, providing long-term protection against corrosion
  • High durability: The hinge construction is exceptionally solid and resistant to mechanical damage, making it a highly durable product
  • Mounting hole spacing 70 mm
  • Abrasion resistance: The hinge material is resistant to abrasion, which translates into longer life and minimizes the need for maintenance
  • Possibility of adjustment after assembly: The hinge can be easily adjusted even after assembly, thanks to a special adjusting nut, which allows for quick adjustment of the gate setting in various conditions

ADJUSTABILITY

The most important feature of the hinge is the possibility of adjustment even after the assembly is completed. Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Additionally, the possibility of adjustment allows for quick restoration of the original settings without the need for disassembly, which is a significant facilitation for users and saves time and costs related to maintenance.

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Thread: M20

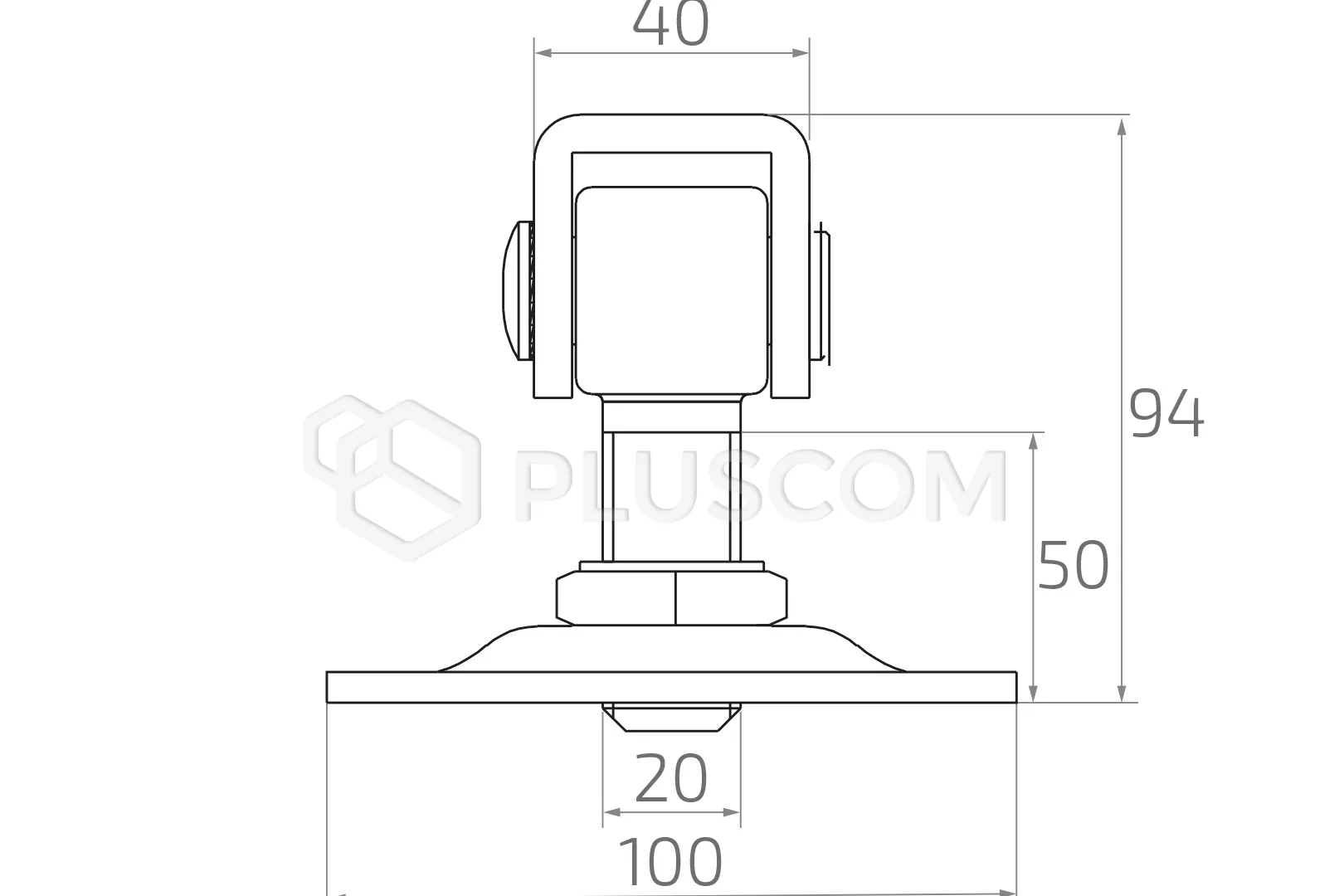

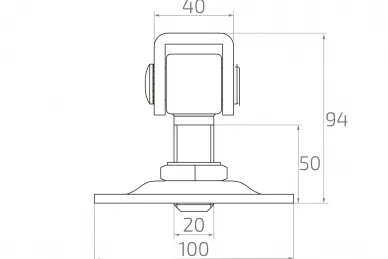

  • Ear width: 40 mm

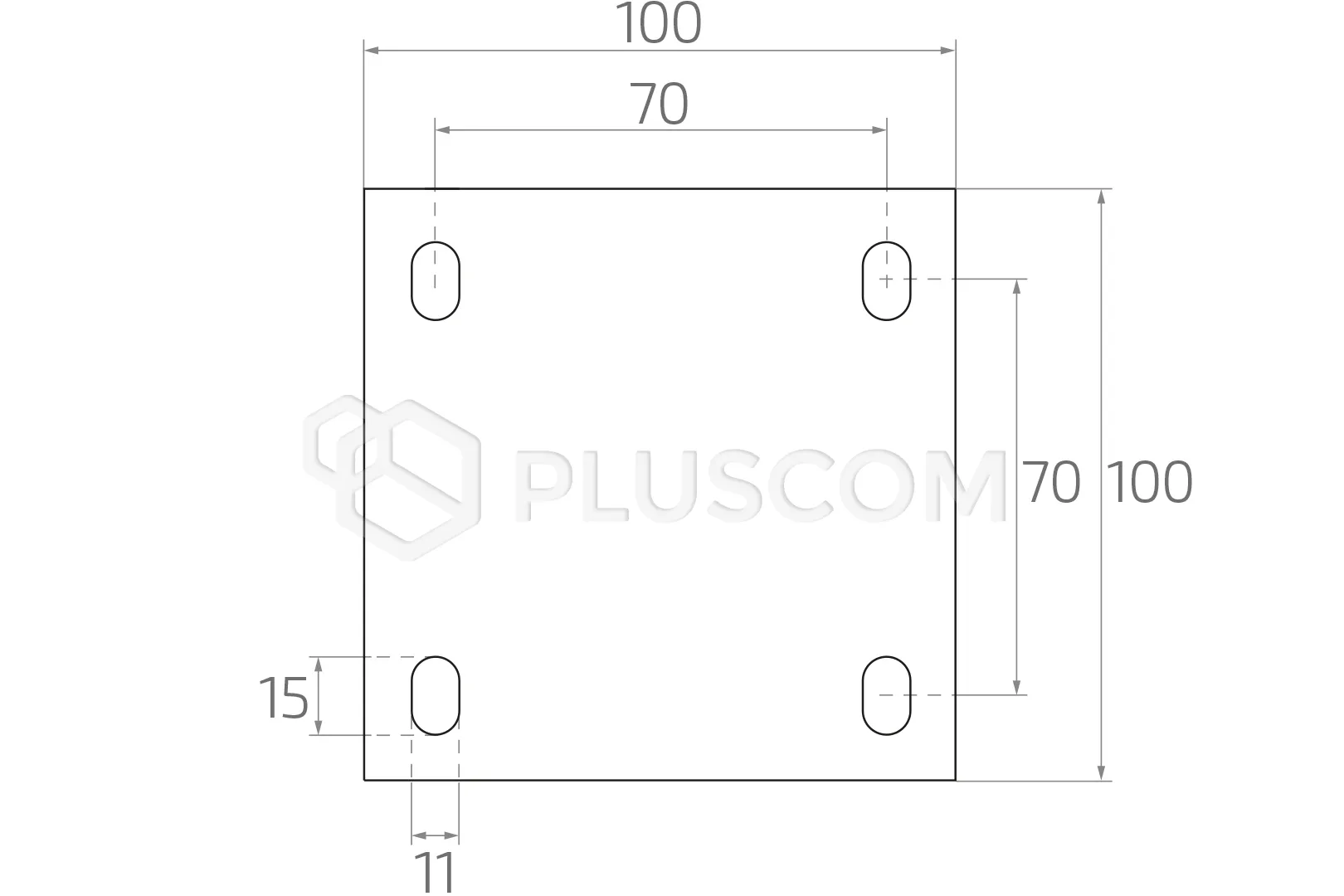

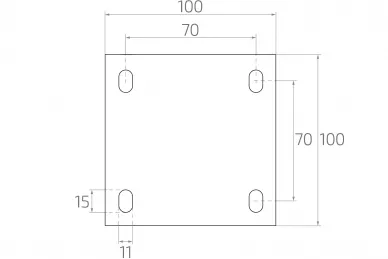

  • Sign dimensions: 100 x 100 mm
  • Sign sheet thickness: 4 mm
  • Mounting hole spacing: 70 mm
  • Mounting hole dimensions: 15 x 11 mm
