PSG 61.018 Adjustable hinge with plate M16 80x80x3

5,13 EUR including 23.00% VAT
Product code: #41517
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Sign dimensions: 80x80 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

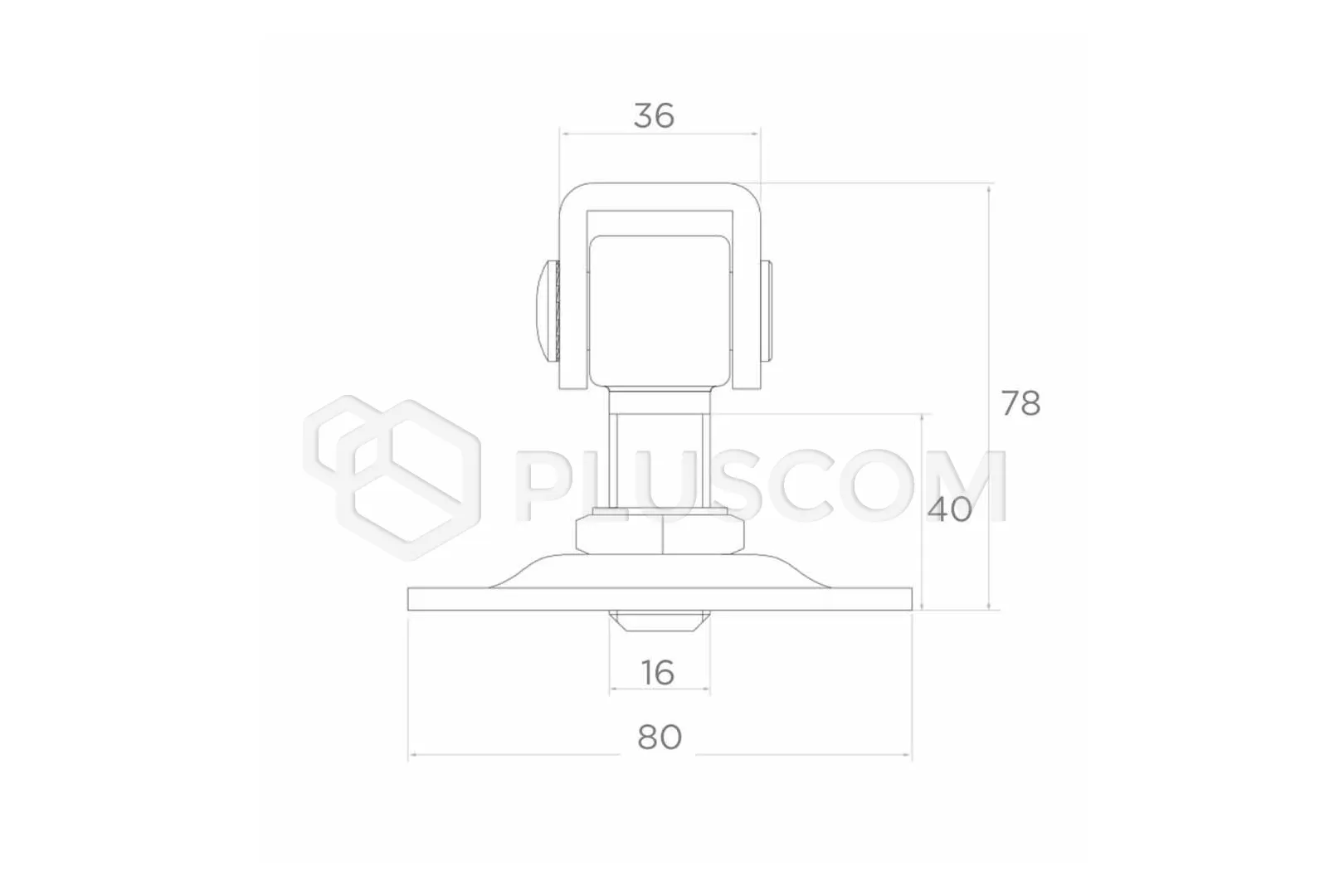

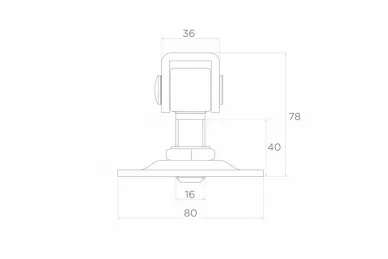

PSG 61.018 Adjustable hinge with M16 80x80x3 plate


Steel adjustable hinge with M16 screw. Equipped with an 80x80 mm plate, with holes for screwing it on. Used for mounting swing gates or wickets.

Galvanized product - intended for external use, provides high corrosion resistance. Using this hinge will help with simple and quick adjustment after the assembly is complete, using an adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks.
In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2mb long leaf: 65 kg.

FEATURES:

  • Galvanized product (black ear) - intended for external use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after installation
  • High abrasion resistance
  • Aesthetic visual effect
