PSG 61.018.2 Adjustable hinge with plate M16 75x75x3 mm

6,61 EUR including 23.00% VAT
Product code: #41699
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Sign size: 75x75 mm
  • Thickness of the sign: 3 mm
  • Thread: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

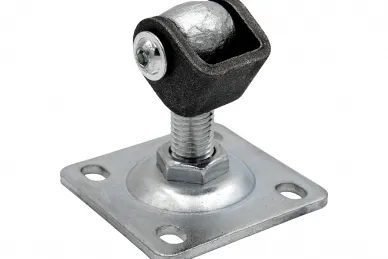

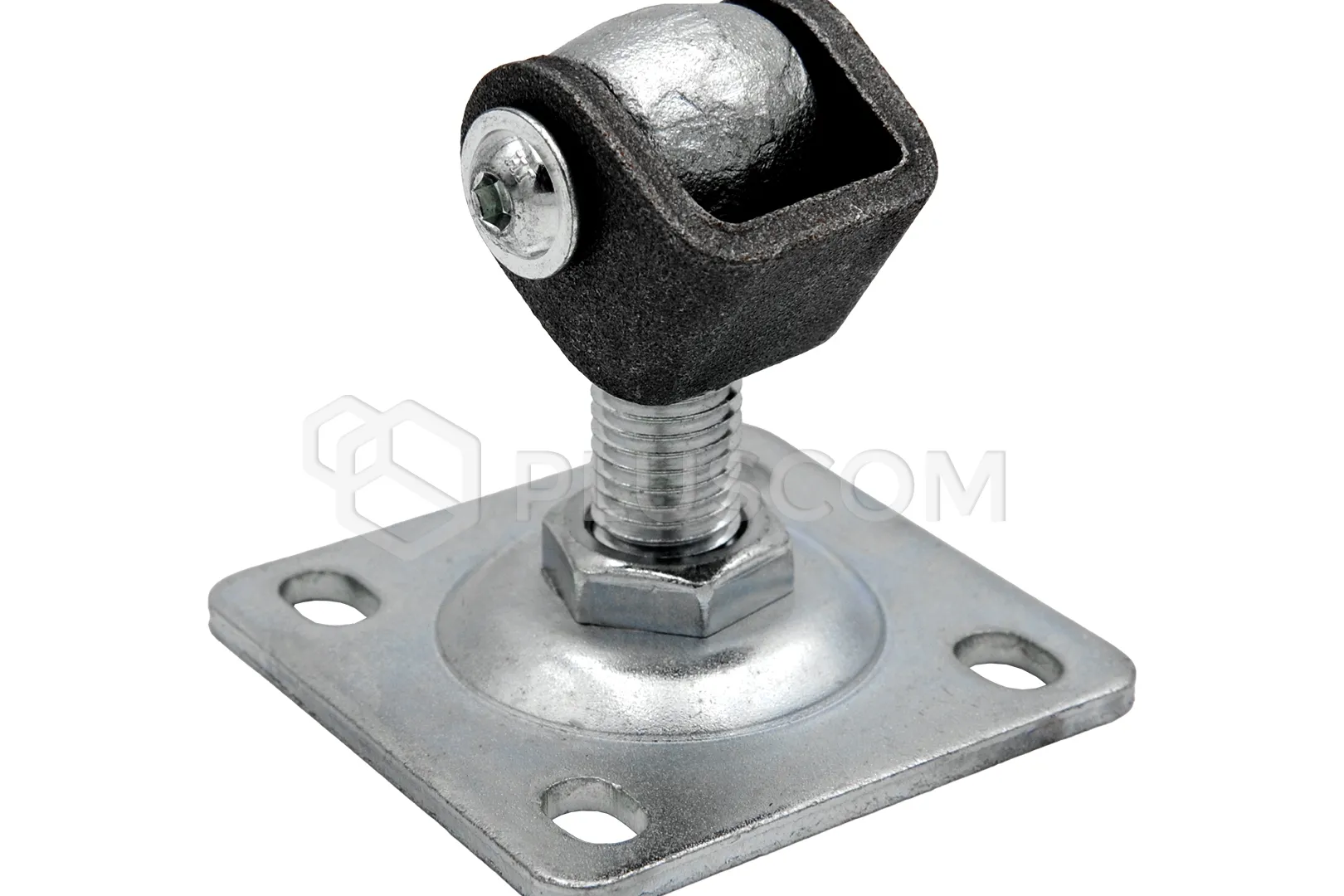

PSG 61.018.2 Adjustable hinge with M16 plate 75x75x3 mm


Adjustable hinge with M16 thread, includes a plate with holes facilitating assembly (so-called "beans") by screwing into a fence post. The hinge is designed for mounting fence gates and wickets, and the possibility of adjustment will allow for optimal adjustment to the post. Galvanized hinge with raw eye.

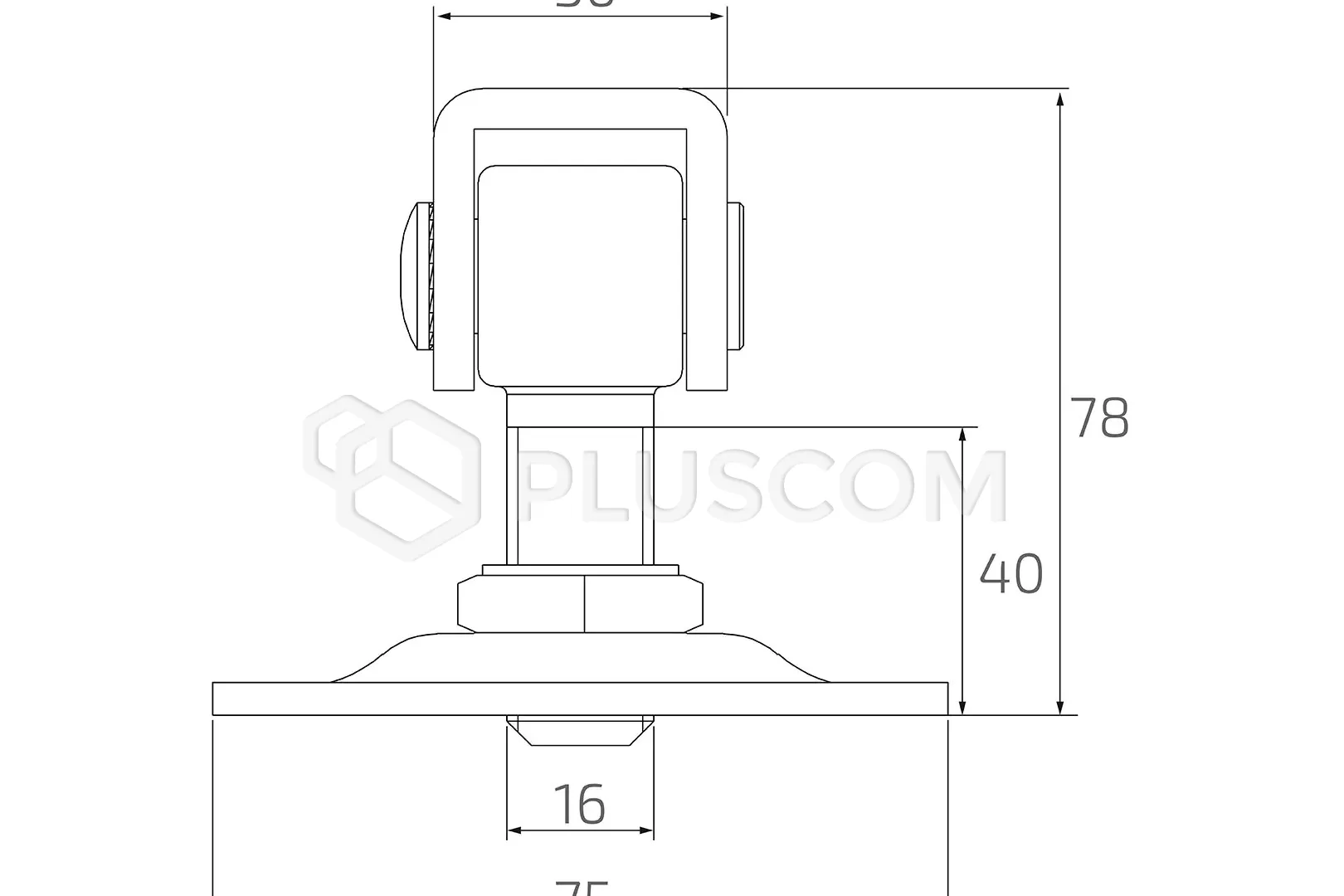

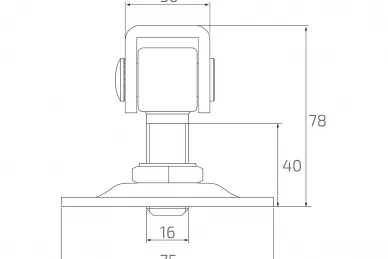

Plate dimensions: 75/75/3 mm.

Permissible load of a pair of hinges on a 2 m long wing: 65 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of adjusting the hinge after installation
  • High abrasion resistance
  • Aesthetic visual effect

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized
  • Sign size: 75x75 mm
  • Sign thickness: 3 mm
  • Thread: M16
