PSG 61.018.18 Adjustable hinge with plate M18 80x80x4 mm

5,83 EUR including 23.00% VAT
Product code: #41147
  • The maximum load of a pair of hinges on a 2m long door leaf is 80 kg
  • Ear width: 36 mm
  • Total length: 80 mm
  • Screw length: 40 mm | Thread: M18
  • Sign size: 80x80 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.018.18 Adjustable hinge with M18 plate 80x80x4 mm


Steel adjustable hinge with M18 screw. It is equipped with an 80x80 plate with four holes, enabling its screwing. Designed for mounting swing gates or wickets. Galvanized product - suitable for outdoor use, provides high corrosion resistance.

Using a nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2mb long leaf: 80 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after assembly
  • High abrasion resistance
  • Aesthetic visual effect

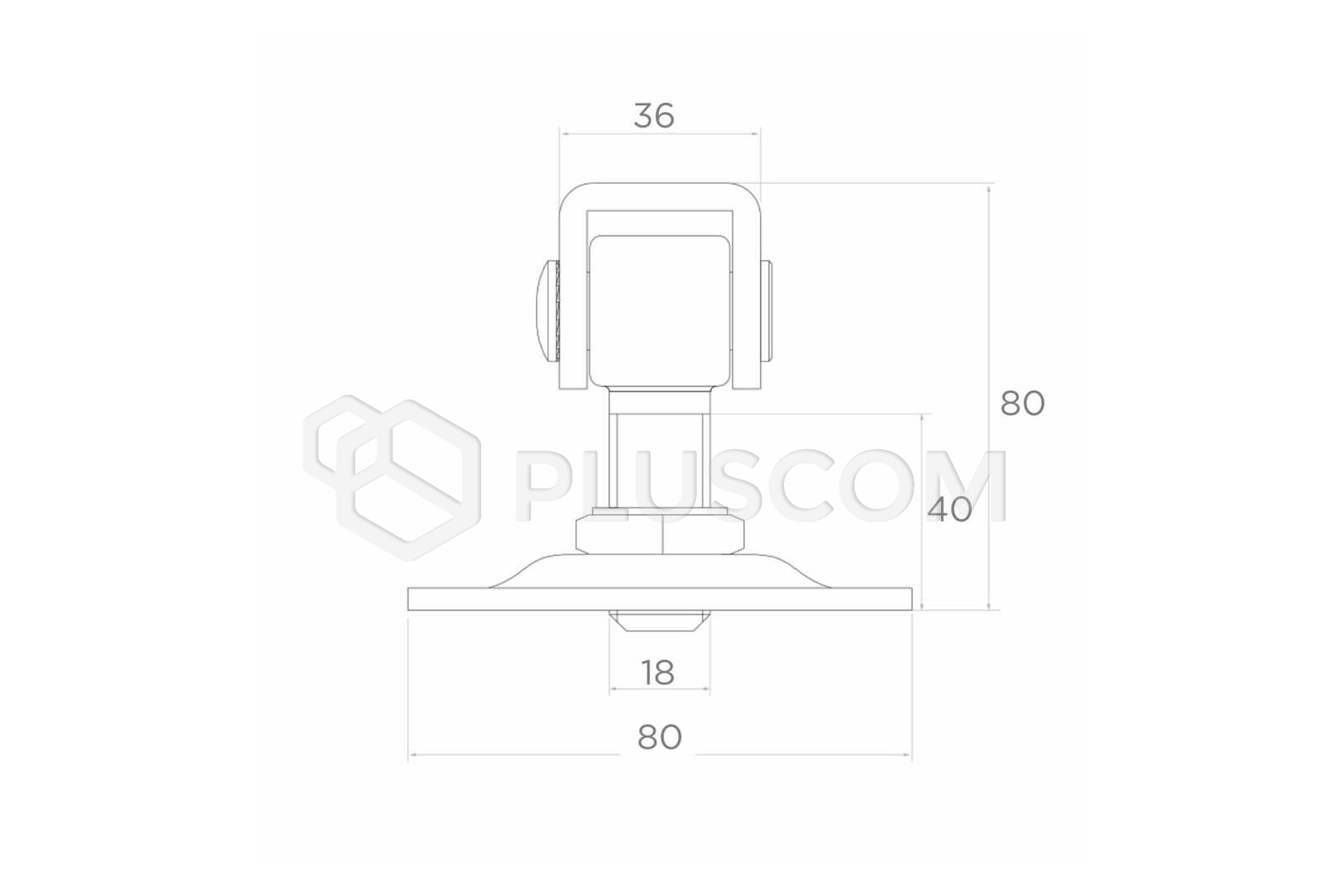

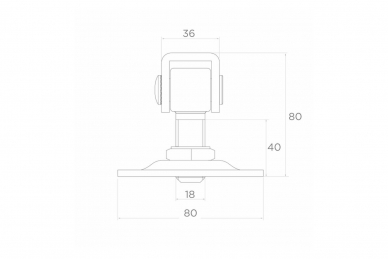

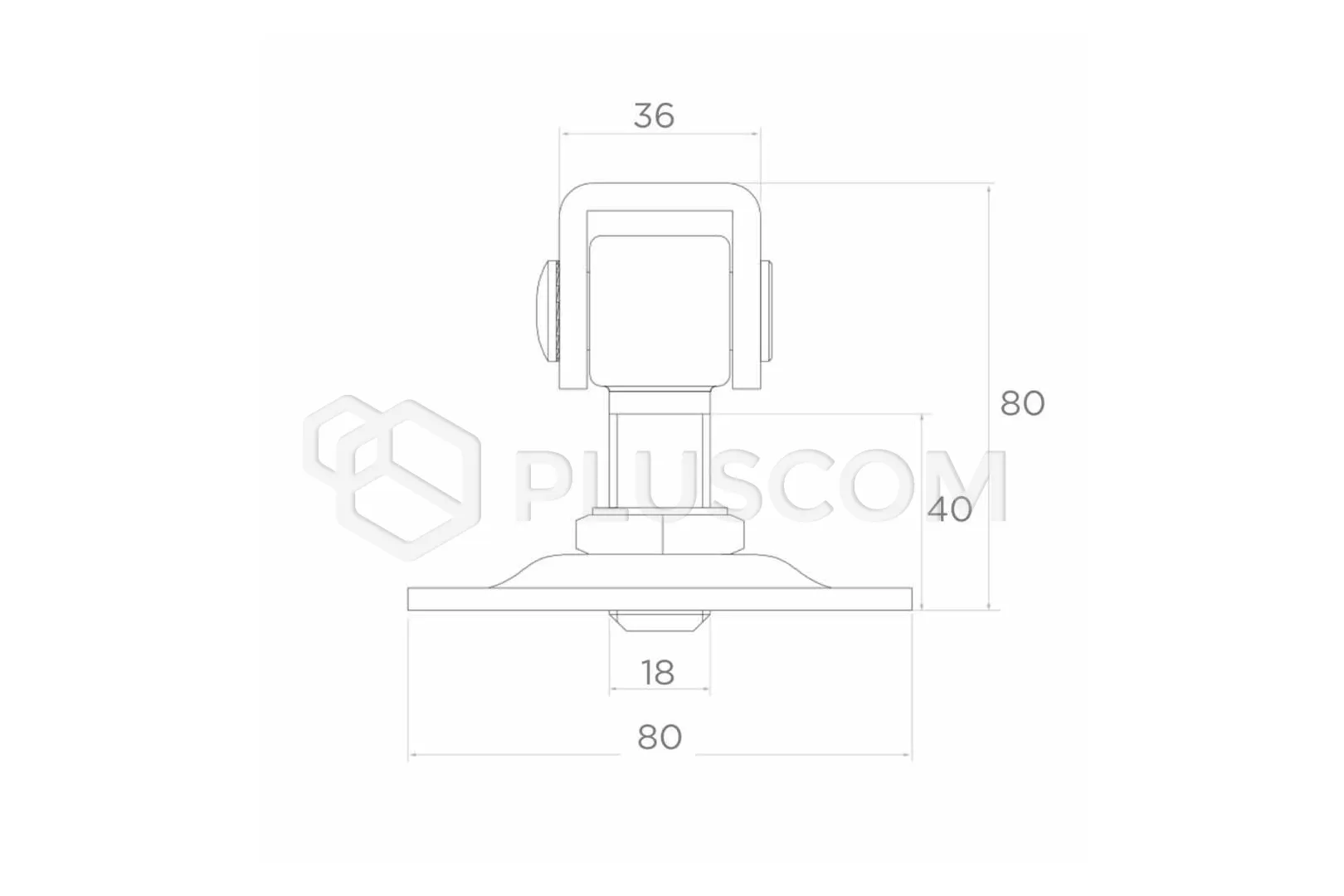

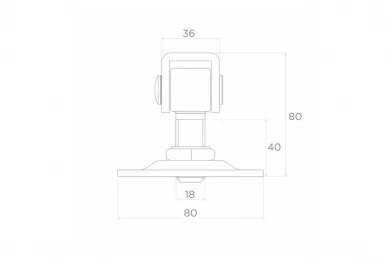

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Thread: M18
  • Ear width: 36 mm
  • Total length: 80 mm
  • Screw length: 40 mm
  • Sign size: 80x80 mm
  • Sign sheet thickness: 4 mm
