PSG 61.017 Adjustable hinge with decorative plate M20 100x100x4 mm

8,93 EUR including 23.00% VAT
Product code: #41705
  • The maximum load of a pair of hinges on a 2 m long door leaf is 105 kg
  • Total length: 88 mm
  • Thread length: 43 mm
  • Sign size: 100x100 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.017 Adjustable hinge with decorative plate M20 100x100x4 mm

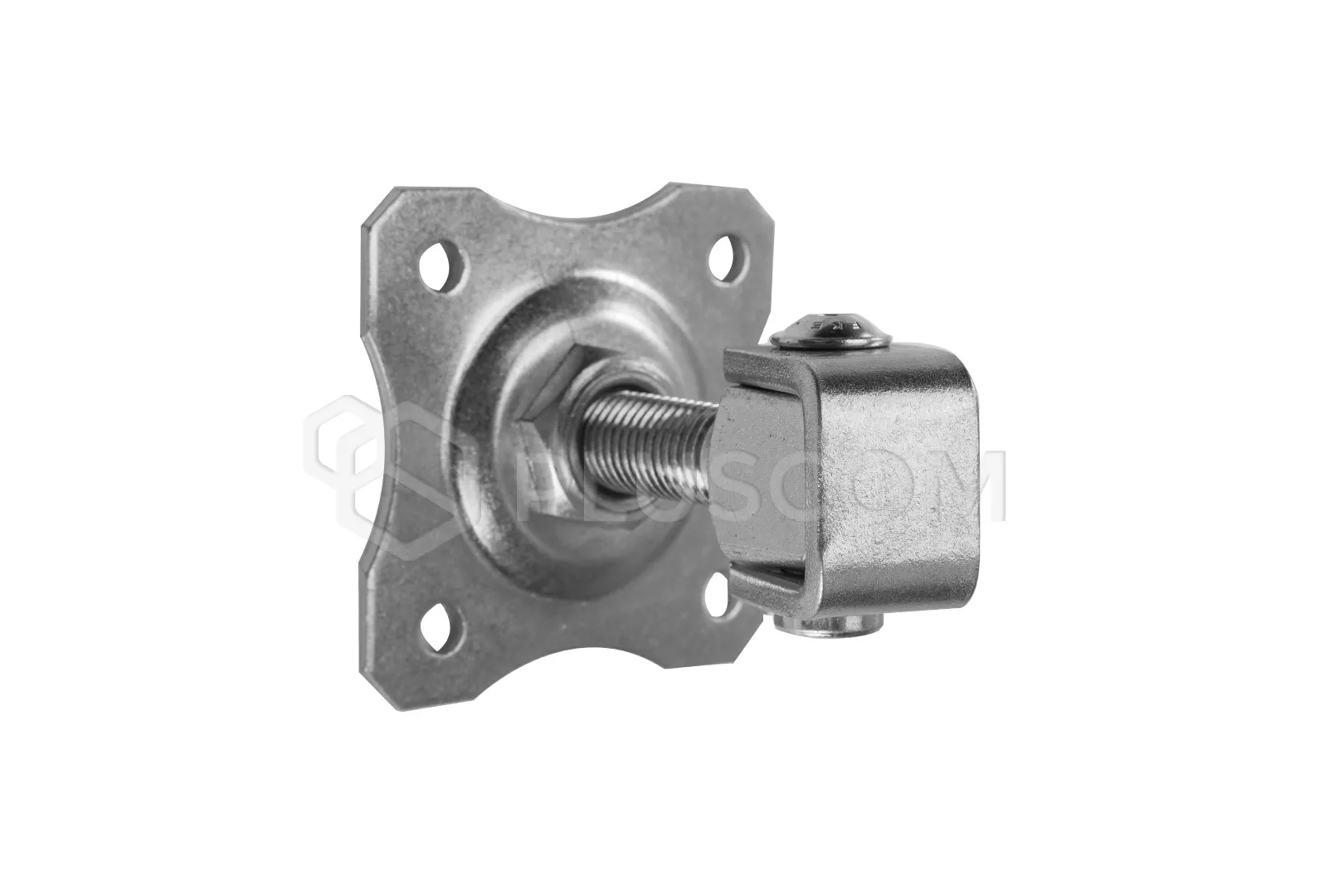

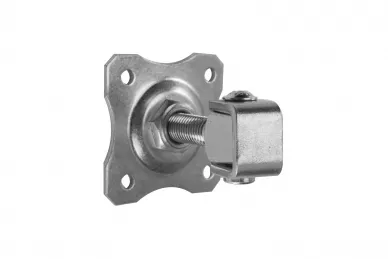

Steel adjustable hinge with M20 screw. Equipped with a plate measuring 100 x 100 mm with four holes for screwing it on. Designed for mounting swing gates or wickets. Galvanized product - intended for outdoor use, provides high corrosion resistance.

Using a nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 105 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (galvanized ear)
  • Thread: M20
  • Ear width: 36 mm
  • Total length: 88 mm
  • Thread length: 43 mm
  • Sign size: 100x100 mm
  • Sign sheet thickness: 4 mm
