PSG 61.016 Adjustable hinge with decorative plate M16 80x80x3 mm

7,87 EUR including 23.00% VAT
Product code: #41703
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Total length: 90 mm
  • Screw length: 45 mm
  • Sign size: 8x80 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.016 Adjustable hinge with decorative plate M16 80x80x3 mm

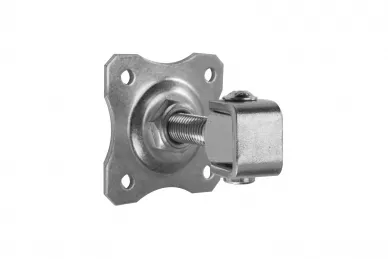

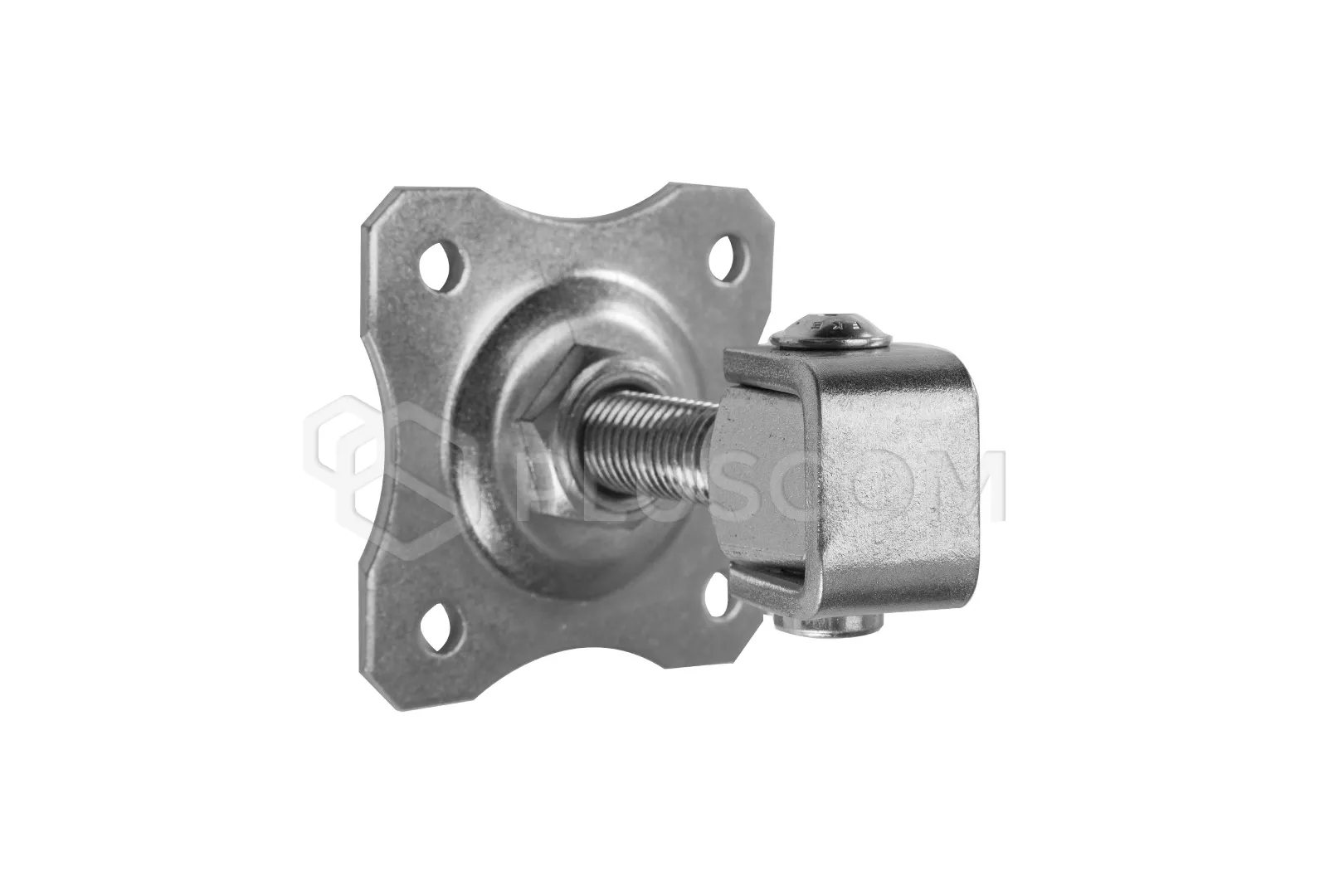

Steel adjustable hinge M16. Designed for mounting swing gates and wickets. Equipped with a plate measuring 80x80 mm and 3 mm thick sheet metal, with four holes for screwing it on. The product is galvanized - suitable for outdoor use, provides high resistance to corrosion.

The hinge can be adjusted at any time using a nut, e.g. when the structure is hung or during extreme temperatures - the metal shrinks due to a sudden drop in temperature in winter. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 65 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

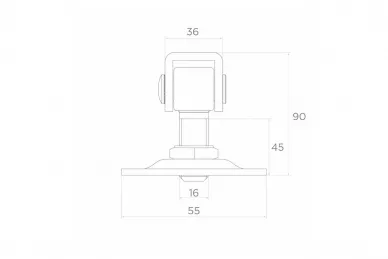

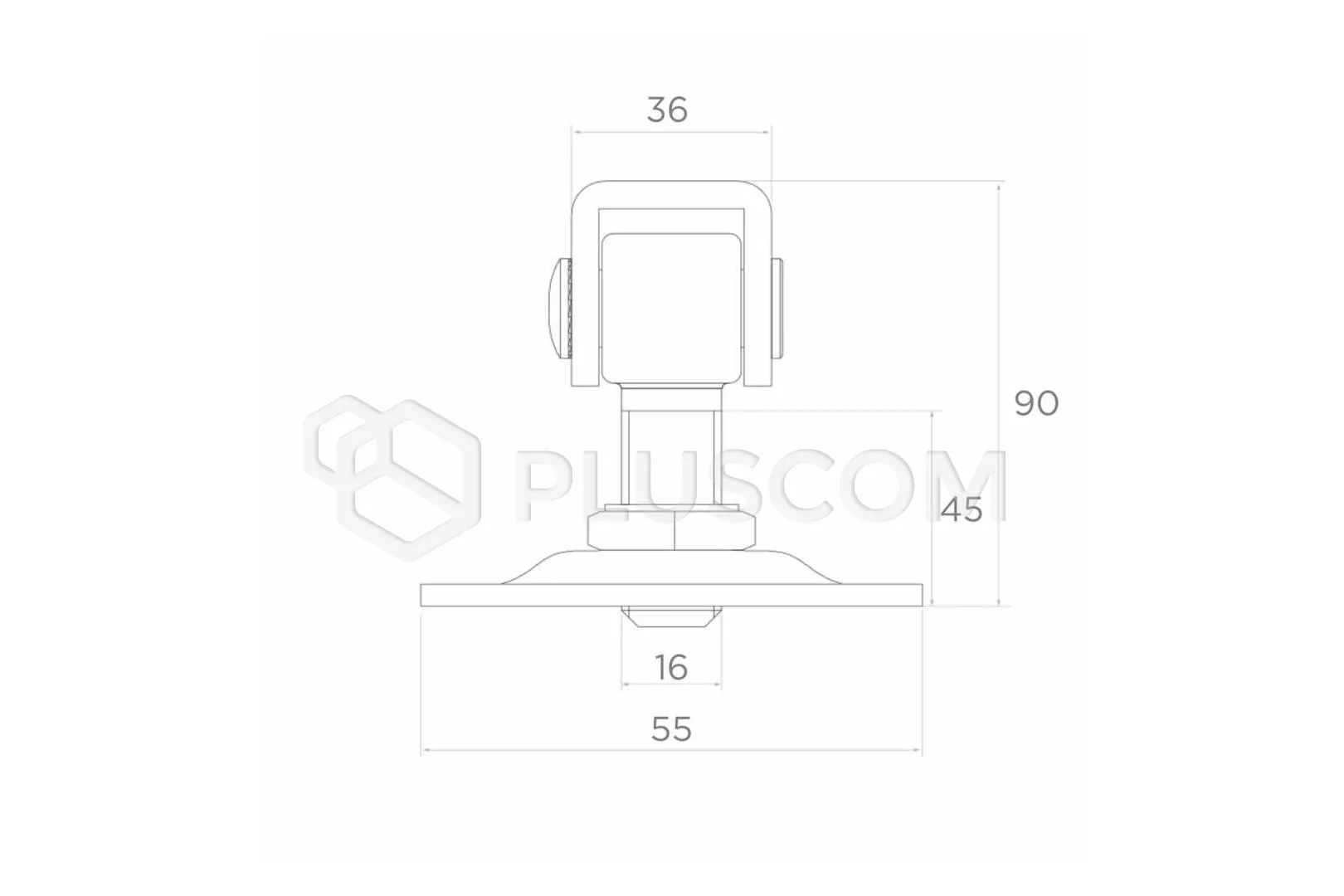

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (galvanized ear)
  • Thread: M16
  • Ear width: 36 mm
  • Total length: 90 mm
  • Screw length: 45 mm
  • Sign size: 8x80 mm
  • Sign sheet thickness: 3 mm
