PSG 61.012 Adjustable weld-in hinge M16

4,43 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #41055
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Ear width: 36 mm
  • Total length: 78 mm
  • Screw length: 36 mm
  • Thread: M16
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,75 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.012 Adjustable hinge for welding M16


Steel adjustable hinge with M16 screw, designed for welding. Used for mounting swing gates or wickets. Galvanized product: designed for outdoor use, provides high resistance to corrosion.

Using the nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks.
In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2 m long leaf: 65 kg.

FEATURES:

  • Galvanized product - galvanized screw and plate - eye made of black steel - hinge intended for outdoor use
  • High strength and resistance to mechanical damage
  • Hinge adjustment possible after completed assembly
  • Abrasion resistance
  • Aesthetic visual effect

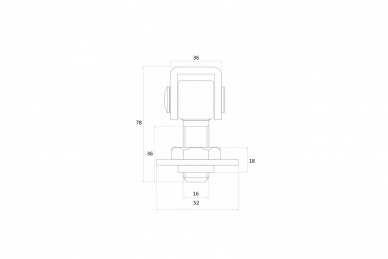

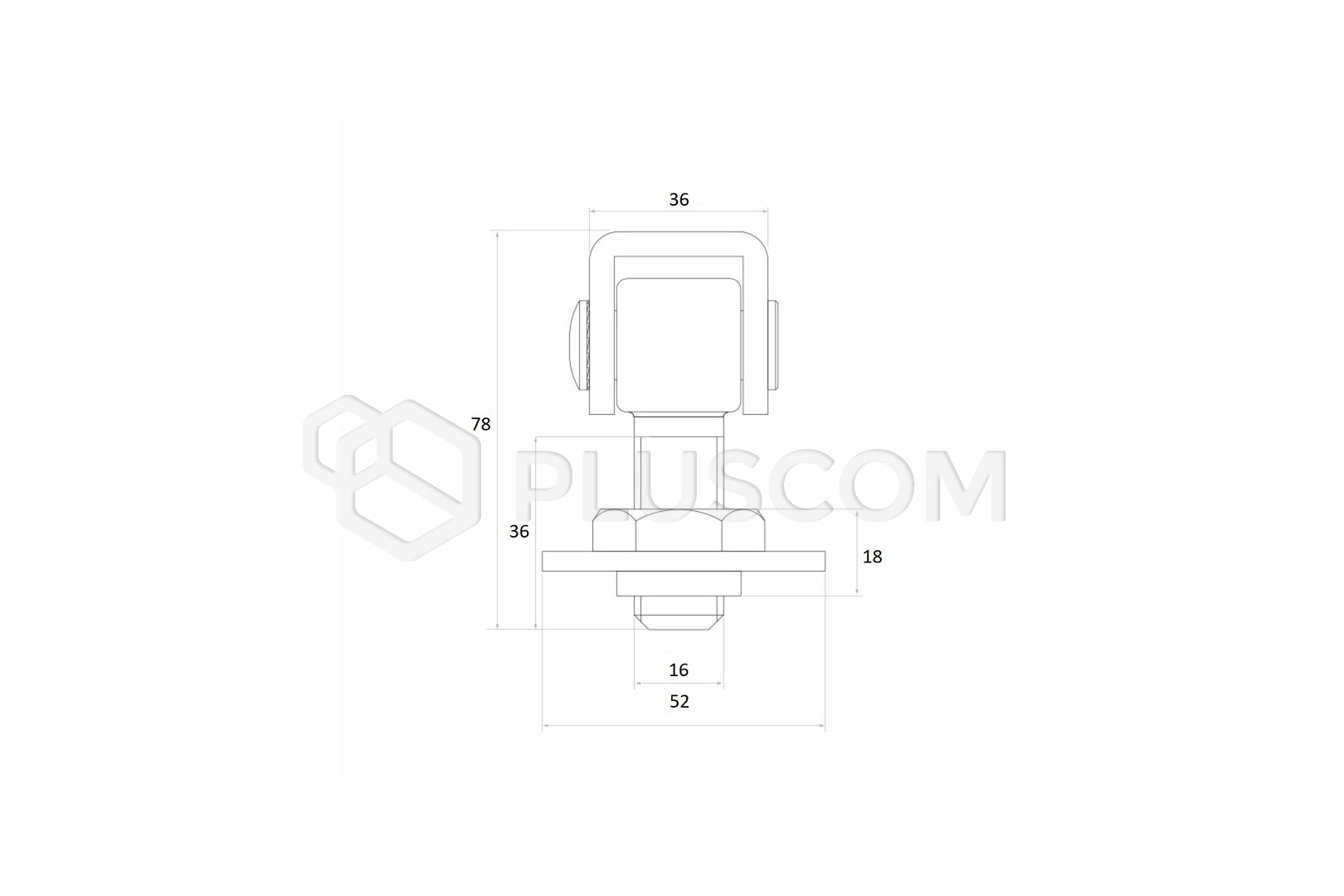

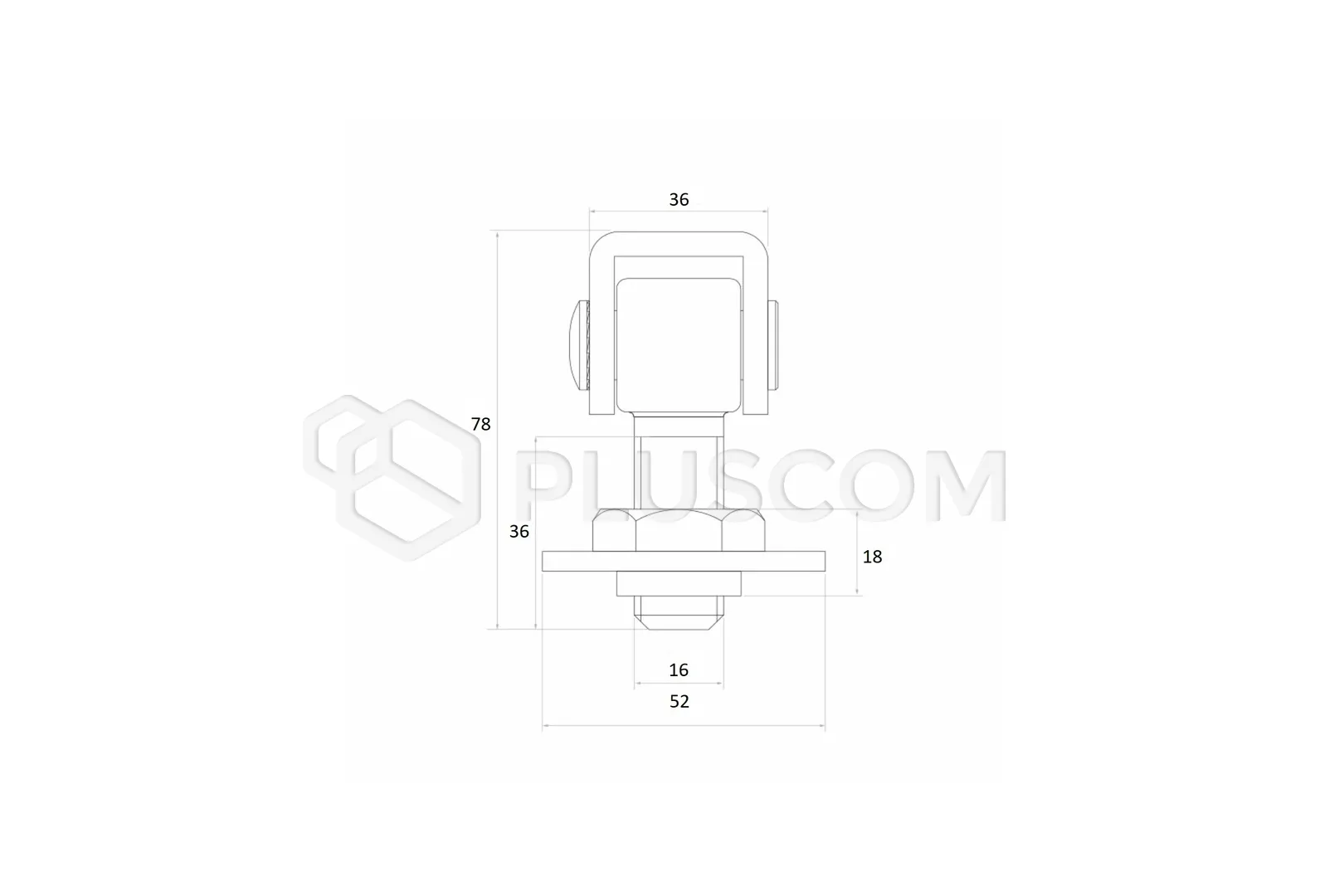

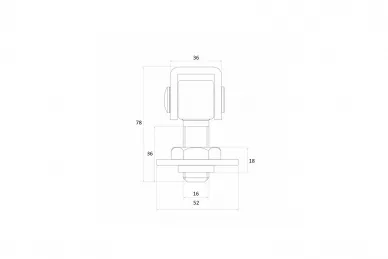

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black eye)
  • Thread: M16
  • Ear width: 36 mm
  • Total length: 78 mm
  • Screw length: 36 mm
