PSG 61.012.01 Adjustable hinge for welding M16 galvanized

5,46 EUR including 23.00% VAT
Product code: #41715
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Total length: 78 mm
  • Screw length: 36 mm
  • Type of installation: For welding
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

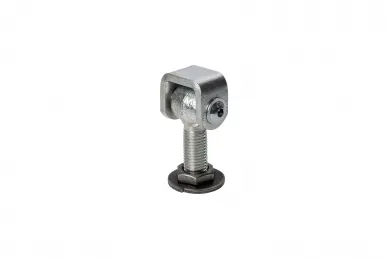

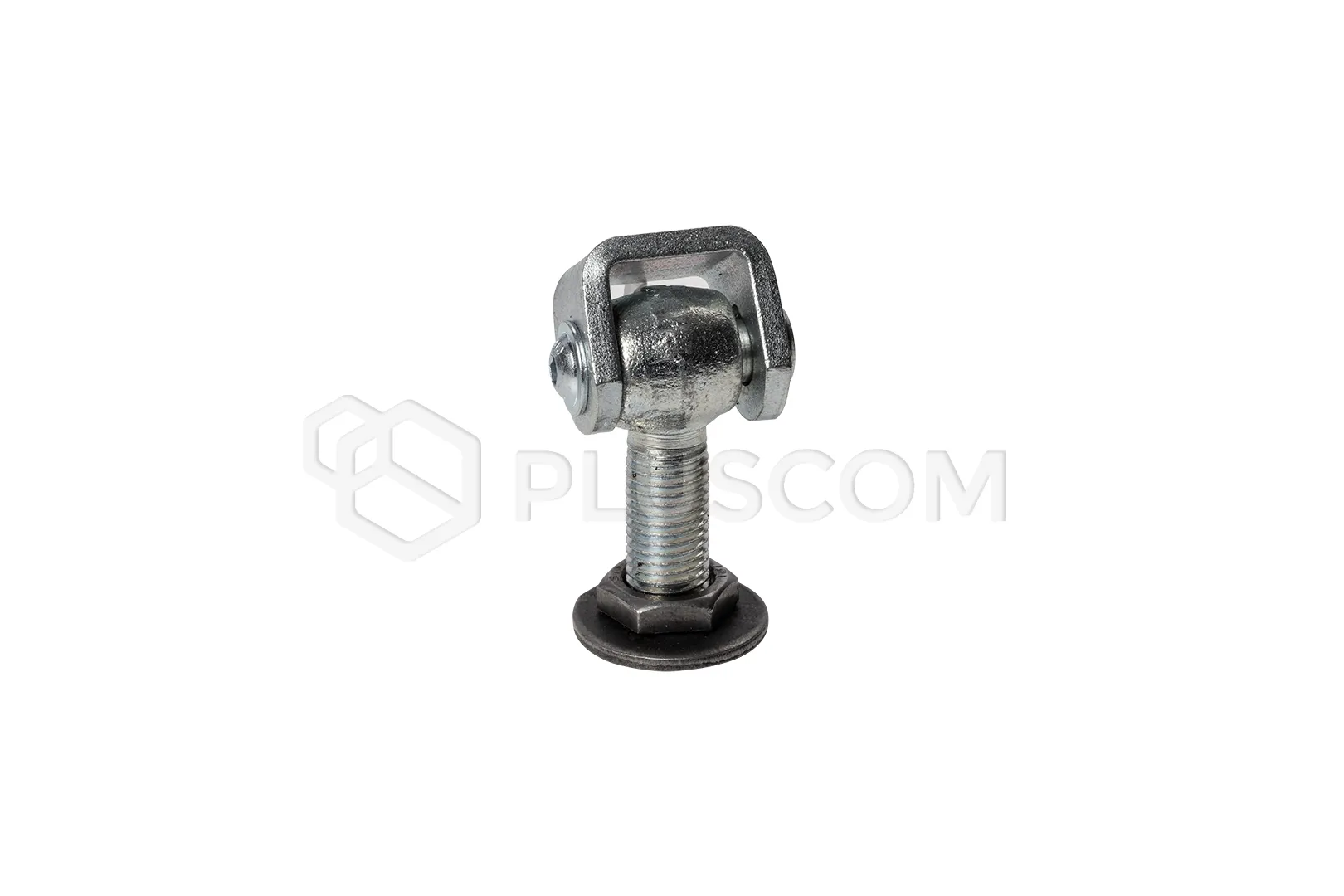

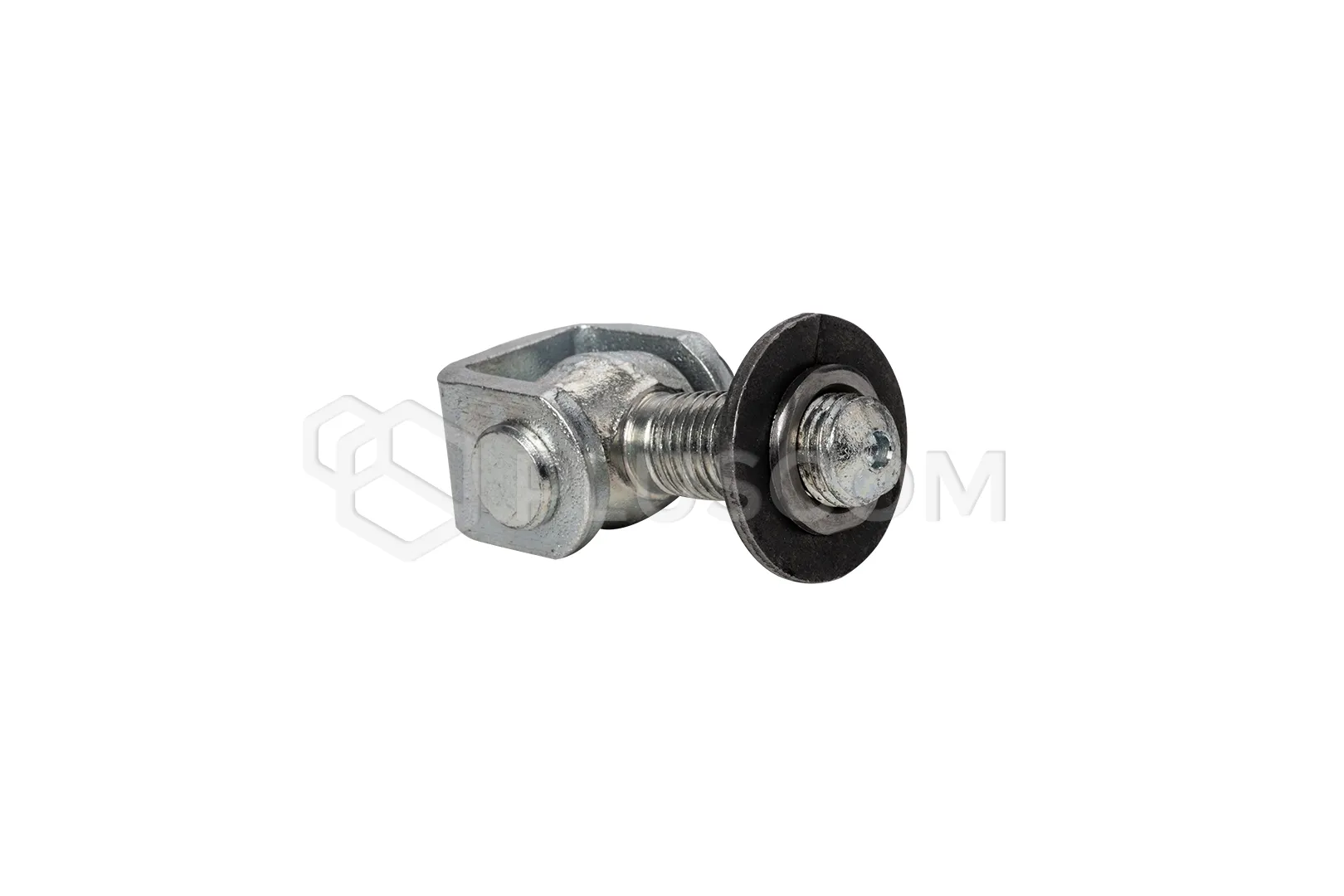

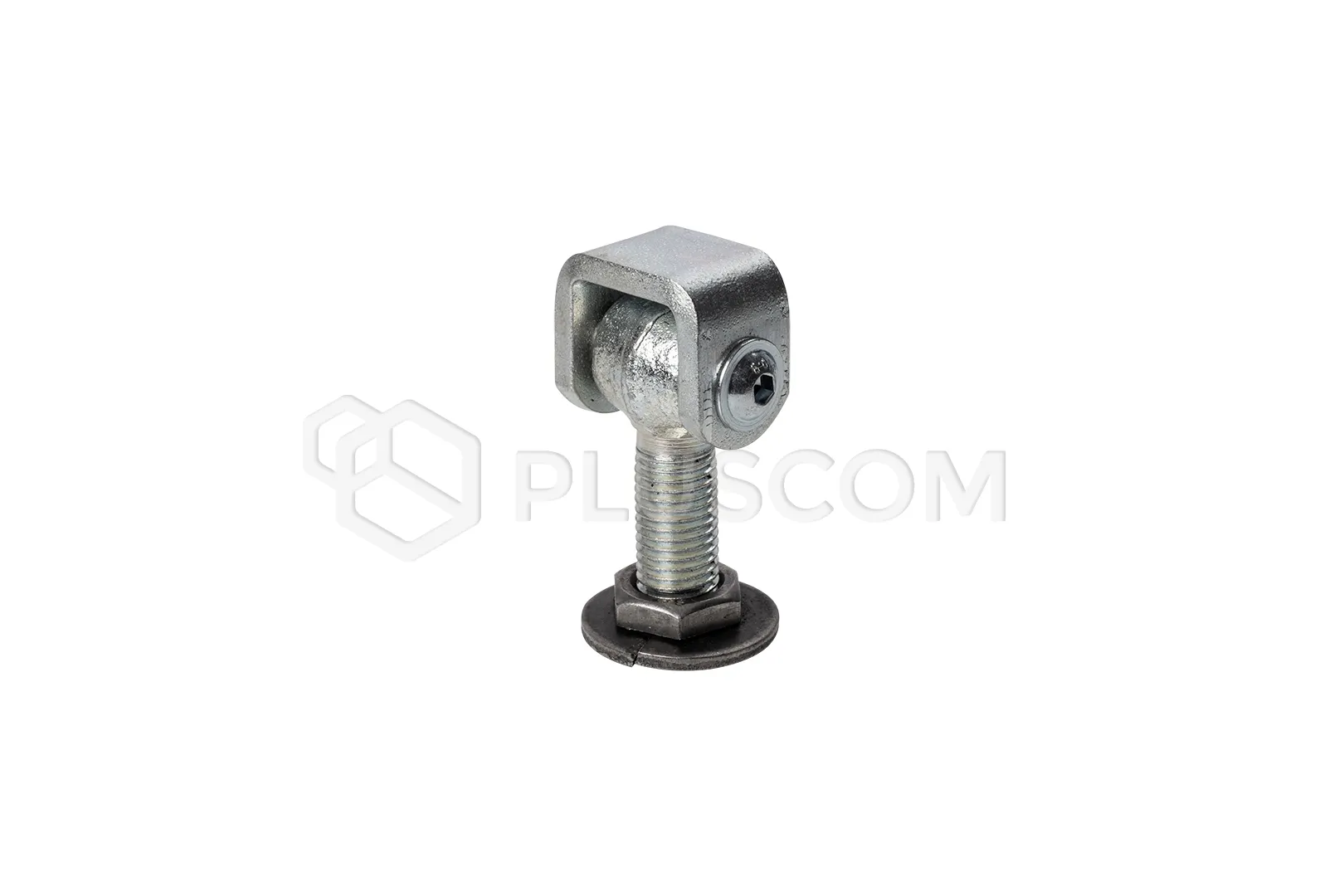

PSG 61.012.01 Adjustable weld-in hinge M16 galvanized


The adjustable weld-in hinge M16 is a solid and durable solution for the installation of swing gates and wickets.

Made of steel and galvanized, it provides excellent resistance to corrosion, making it an ideal choice for outdoor use.

This hinge is not only durable, but also functional - the possibility of adjustment after the installation allows for precise adjustment of the position of the structure, even in difficult atmospheric conditions.

FEATURES:

  • Galvanized product: The screw, plate and hinge ear are galvanized, which ensures high corrosion resistance and allows for many years of use in changing weather conditions
  • High durability: The hinge construction has been designed with solid use in mind - the permissible load of a pair of hinges is 65 kg per 2 m long leaf
  • Adjustable after assembly: The hinge can be easily adjusted using a nut, which allows you to adjust the structure even after it has been mounted
  • Resistance to mechanical damage: Thanks to high-quality materials, the hinge is resistant to abrasion and mechanical damage, which affects its durability

PRECISE ADJUSTMENT

One of the most important features of the M16 adjustable hinge is the possibility of its adjustment even after assembly. This function allows for quick and easy adjustment of the gate or wicket position in situations where the wing falls or the metal shrinks due to low temperatures.

Adjustment using a nut eliminates the need for costly and time-consuming repairs, making this hinge an extremely practical solution. Thanks to this, the user can be sure that the gate will remain fully functional for many years, regardless of the intensity of use or weather conditions.

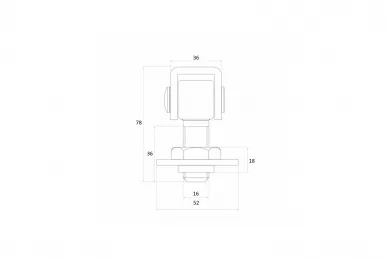

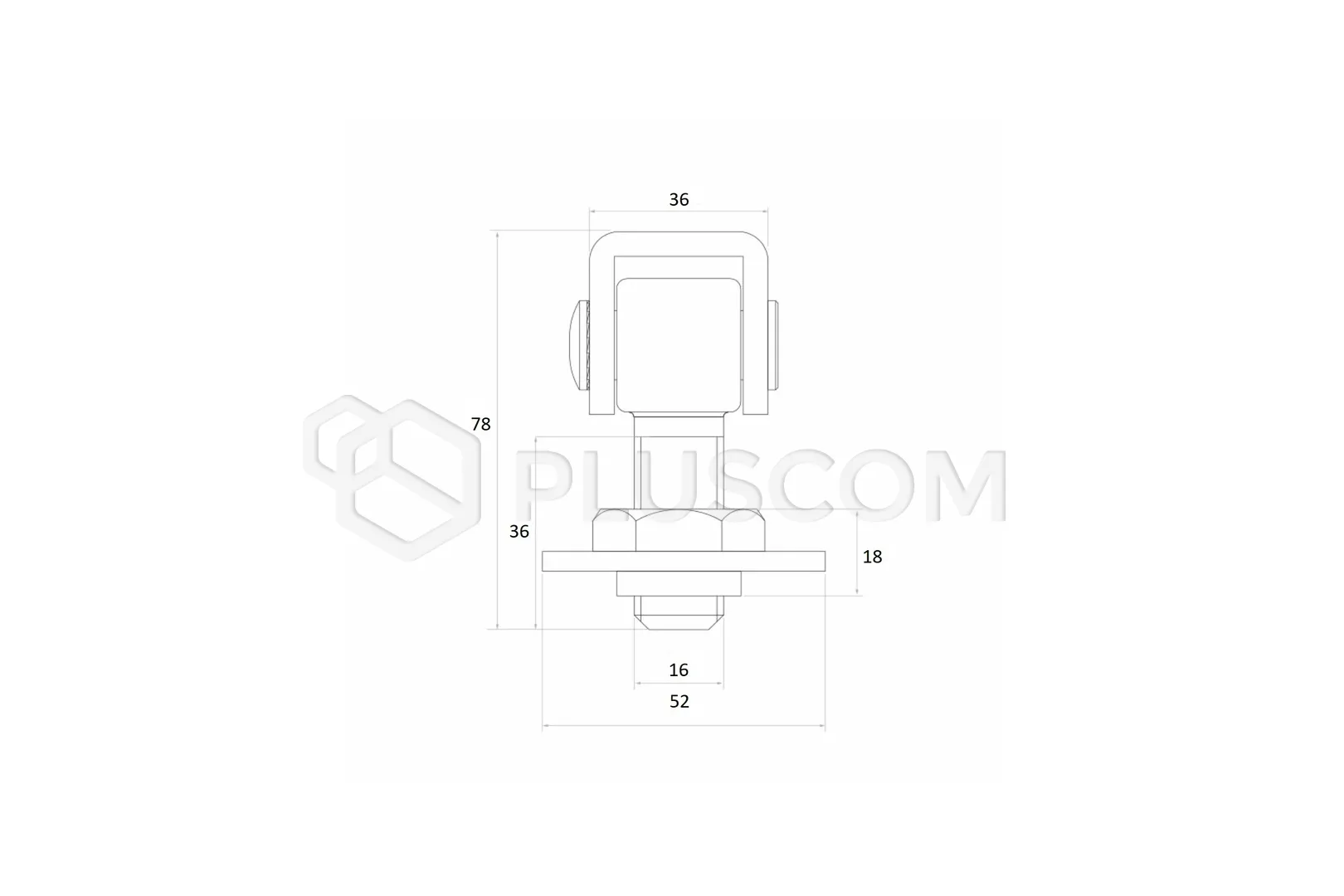

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized
  • Thread: M16
  • Ear width: 36 mm
  • Total length: 78 mm
  • Screw length: 36 mm
  • Mounting type: For welding
  • Permissible load of a pair of hinges on a 2 m long leaf: 65 kg
