PSG 61.010 Weld-on hinge M18

4,39 EUR including 23.00% VAT
Product code: #41476
  • The maximum load of a pair of hinges on a 2m long door leaf is 80 kg
  • Total length: 83 mm
  • Screw length: 38 mm
  • Thread: M18
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.010 Weld-in hinge M18


Steel adjustable hinge with M18 screw, designed for welding. Used for mounting swing gates or wickets. Galvanized product - suitable for outdoor use, provides high resistance to corrosion.

Using a nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2mb long leaf: 80 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

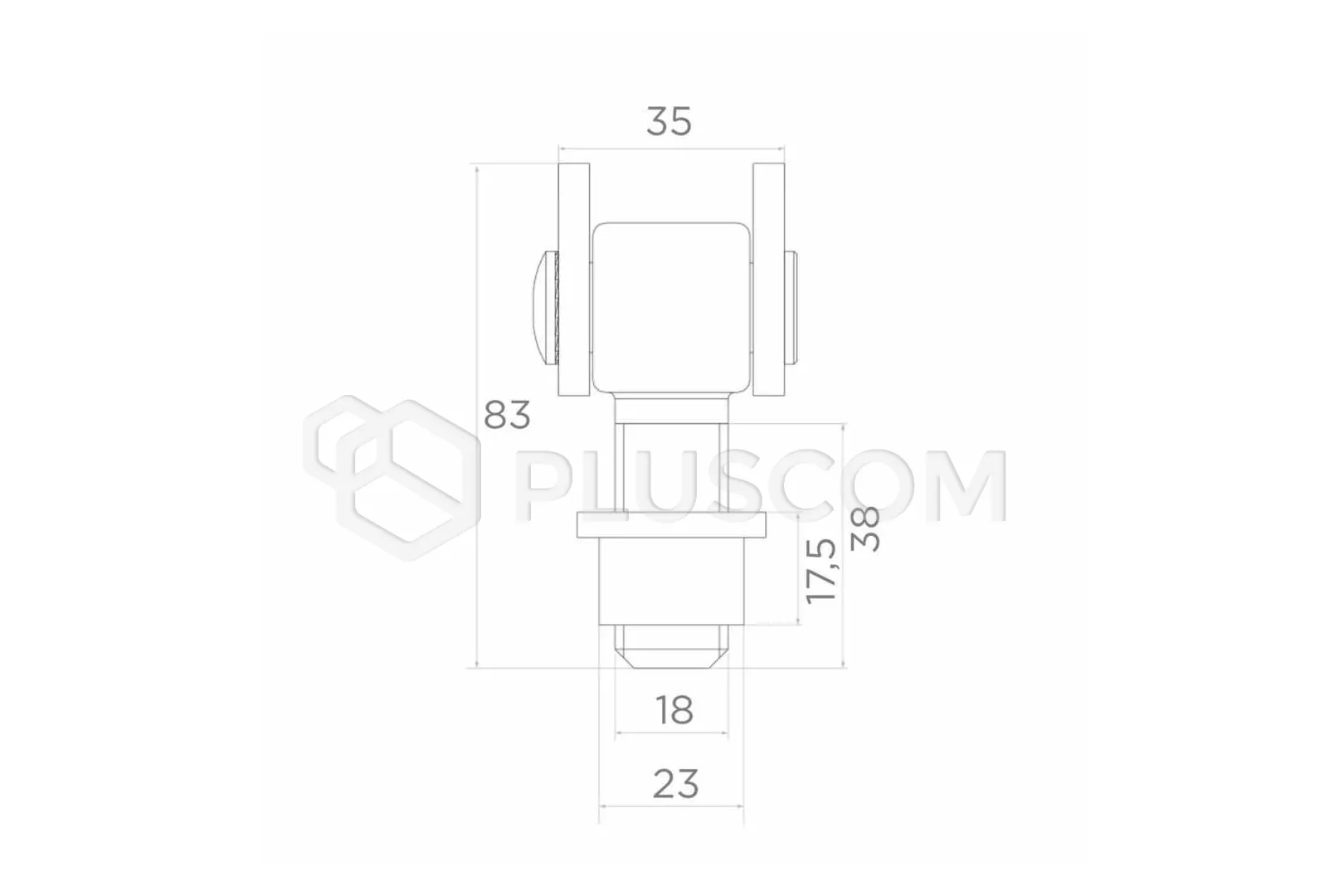

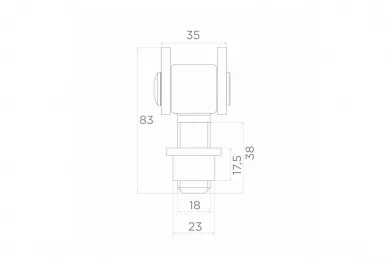

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Thread: M18
  • Ear width: 35 mm
  • Total length: 83 mm
  • Screw length: 38 mm
