PSG 61.010.16 Weld-on hinge M16

3,76 EUR including 23.00% VAT
Product code: #41146
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Ear width: 35 mm
  • Total length: 80 mm
  • Screw length: 38 mm
  • Thread: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.010.16 Weld-in hinge M16


Steel adjustable hinge with M16 screw, designed for welding. Used for mounting swing gates or wickets. Galvanized product - suitable for outdoor use, provides high resistance to corrosion. Using this hinge, using an adjustment nut, will help in simple and quick adjustment of swing gates after the assembly is completed.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 65 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of hinge adjustment after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

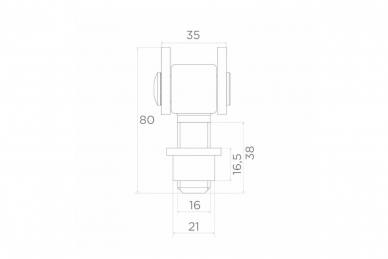

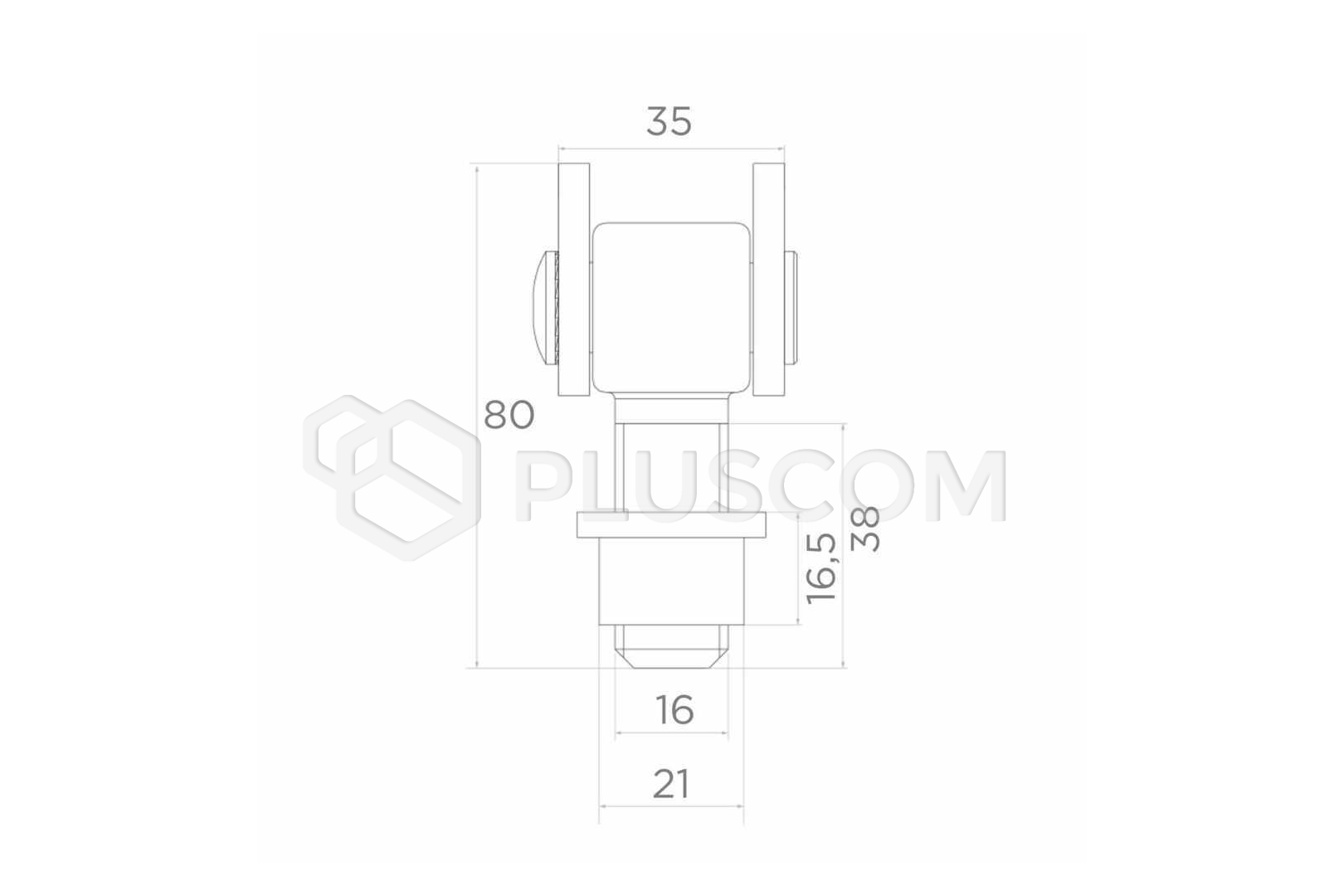

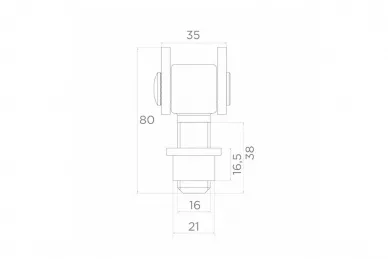

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Thread: M16
  • Ear width: 35 mm
  • Total length: 80 mm
  • Screw length: 38 mm
