PSG 61.008 Adjustable hinge with decorative plate M20 160x105x6 mm

11,80 EUR including 23.00% VAT
Product code: #41704
  • The maximum load of a pair of hinges on a 2 m long door leaf is 105 kg
  • Decorative plate: 160x105x6 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.008 Adjustable hinge with decorative plate M20 160x105x6 mm

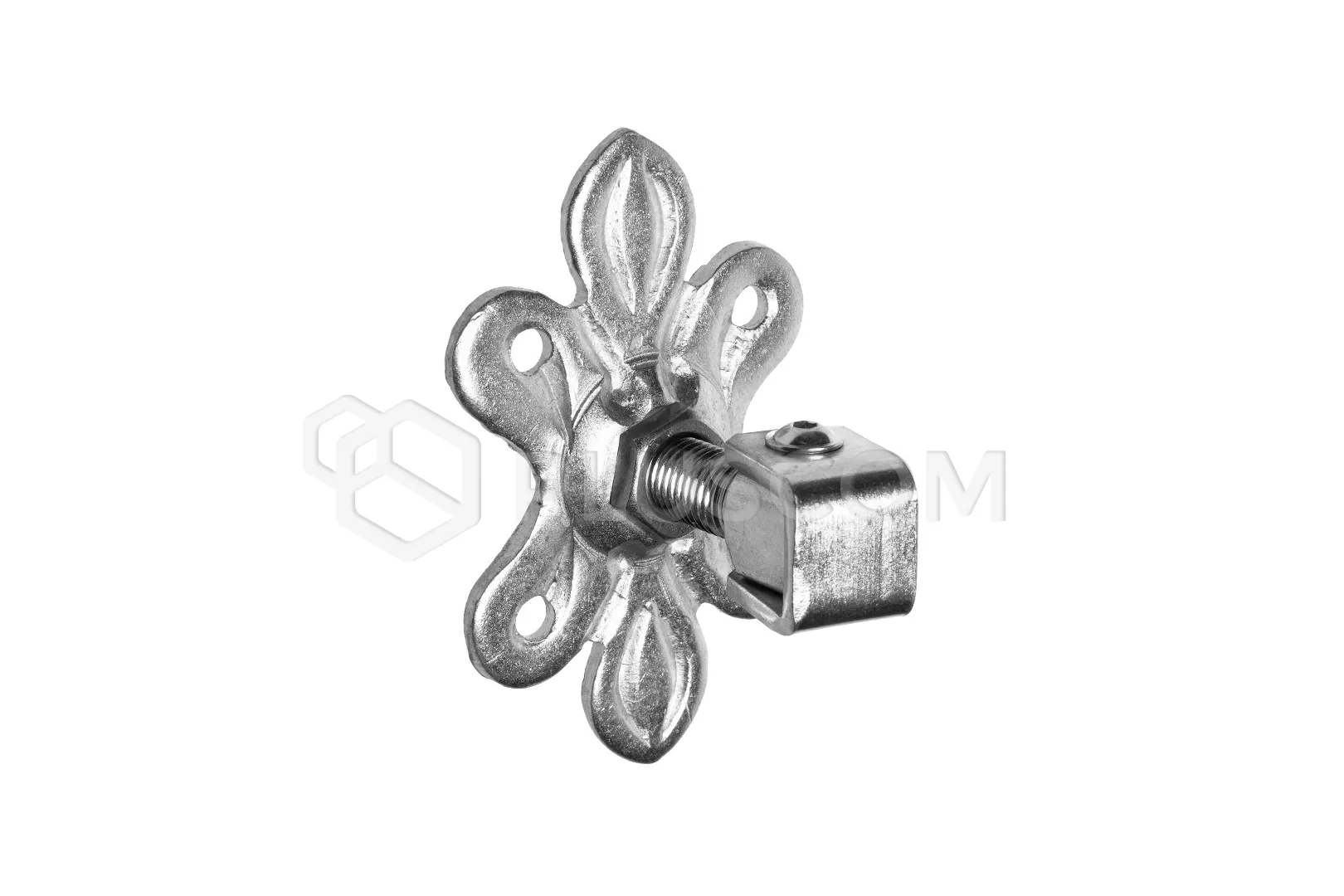

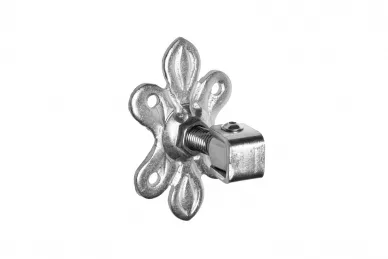

Steel adjustable hinge with M20 screw. Equipped with a decorative plate measuring 160x105x6 mm. The product is fully galvanized - intended for outdoor use, provides high resistance to corrosion. Using this hinge will help in simple and quick adjustment of gates and wickets after the assembly is completed, using an adjusting nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 105 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of adjusting the hinge after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (galvanized ear)
  • Thread: M20
  • Ear width: 36 mm
  • Decorative plate: 160x105x6 mm
