PSG 61.006 M20 brick-in hinge

7,26 EUR including 23.00% VAT
Product code: #41618
  • The maximum load of a pair of hinges on a 2 m long door leaf is 105 kg
  • Shank length: 117 mm
  • Ear width: 36 mm
  • Thread: M20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

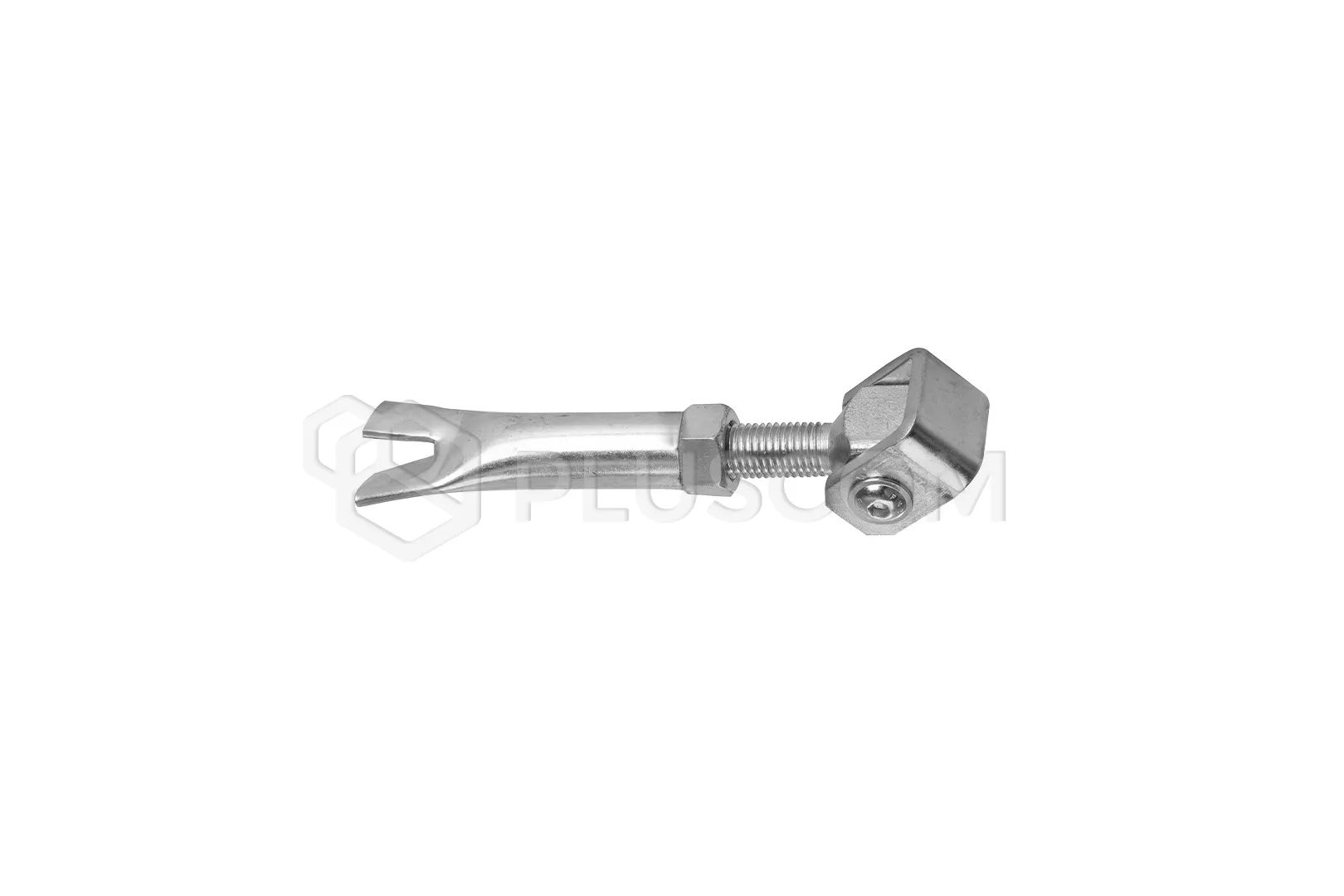

PSG 61.006 M20 brick-in hinge


Steel adjustable hinge with M20 screw. Galvanized product - intended for external use, provides high resistance to corrosion. Using this hinge will help in simple and quick adjustment of gates and wickets after the assembly is completed, using the adjustment nut.

Using the nut, the hinge can be adjusted at any time, e.g. in the case of hanging the structure or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, as needed, loosened.

Permissible load of a pair of hinges on a 2 m long leaf: 105 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides effective, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Possibility of adjusting the hinge after installation
  • High abrasion resistance
  • Aesthetic visual effect

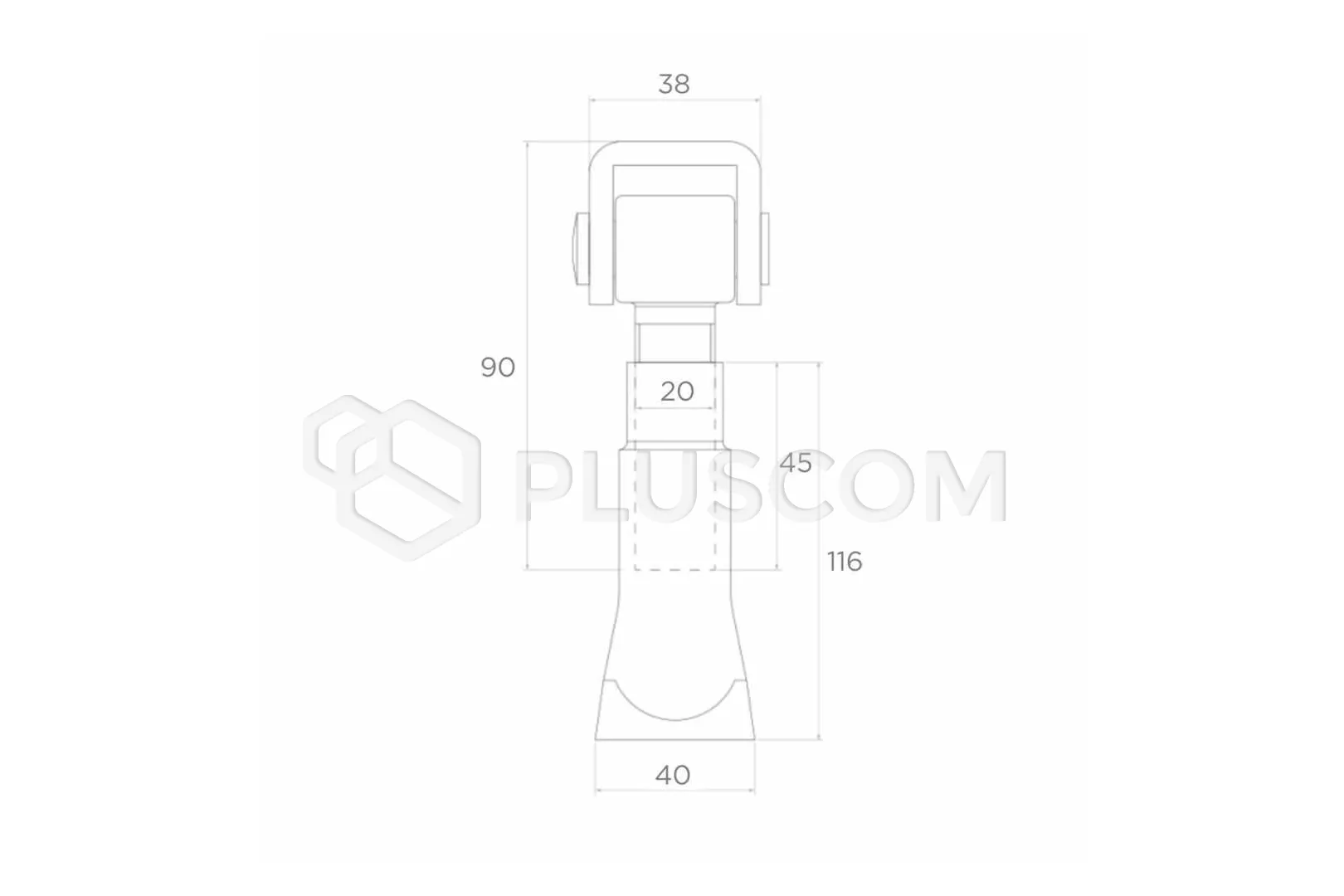

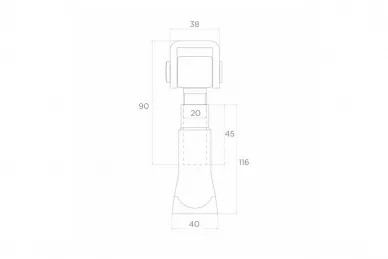

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (galvanized ear)
  • Thread: M20
  • Ear width: 36 mm
  • Stem length: 117 mm
