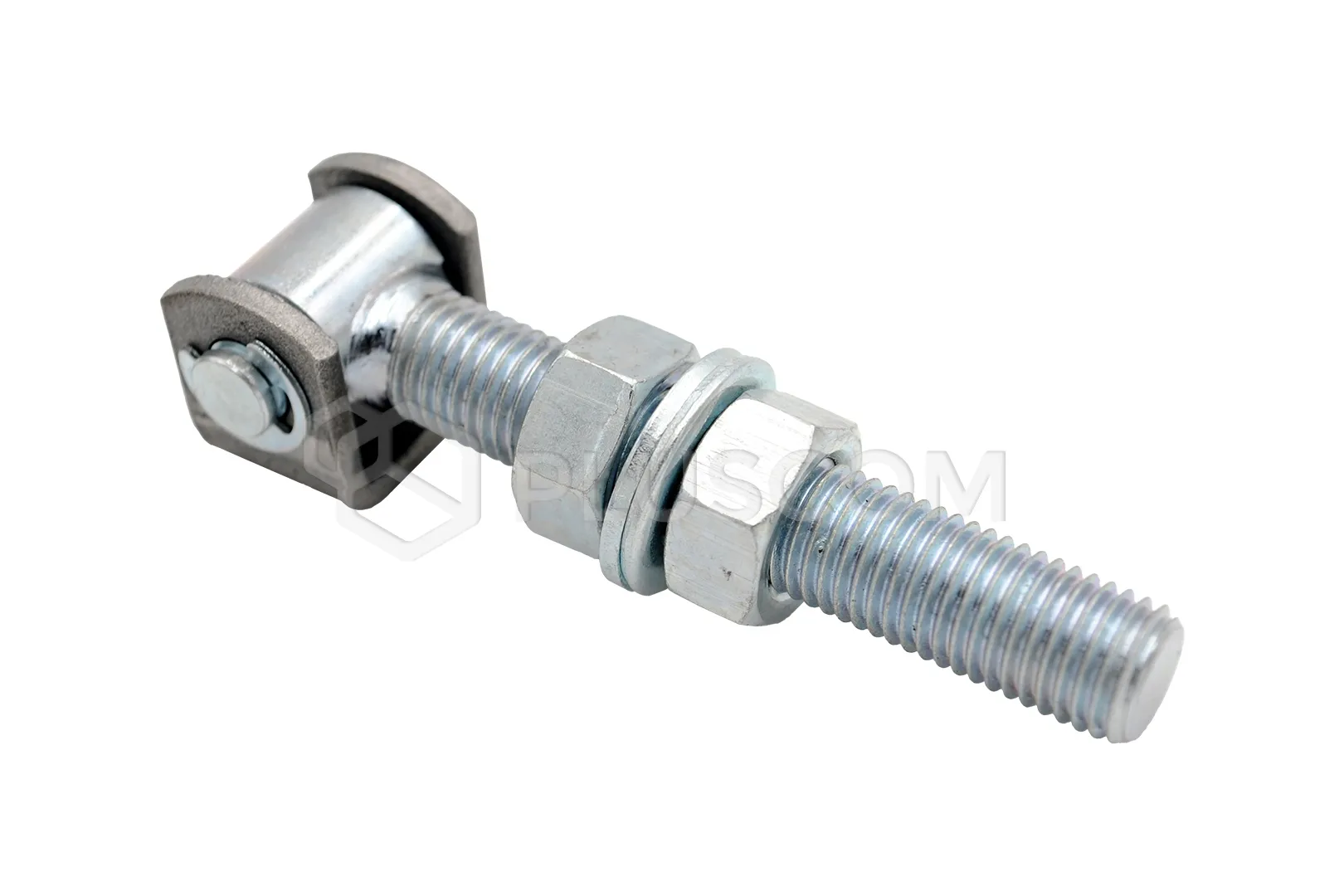

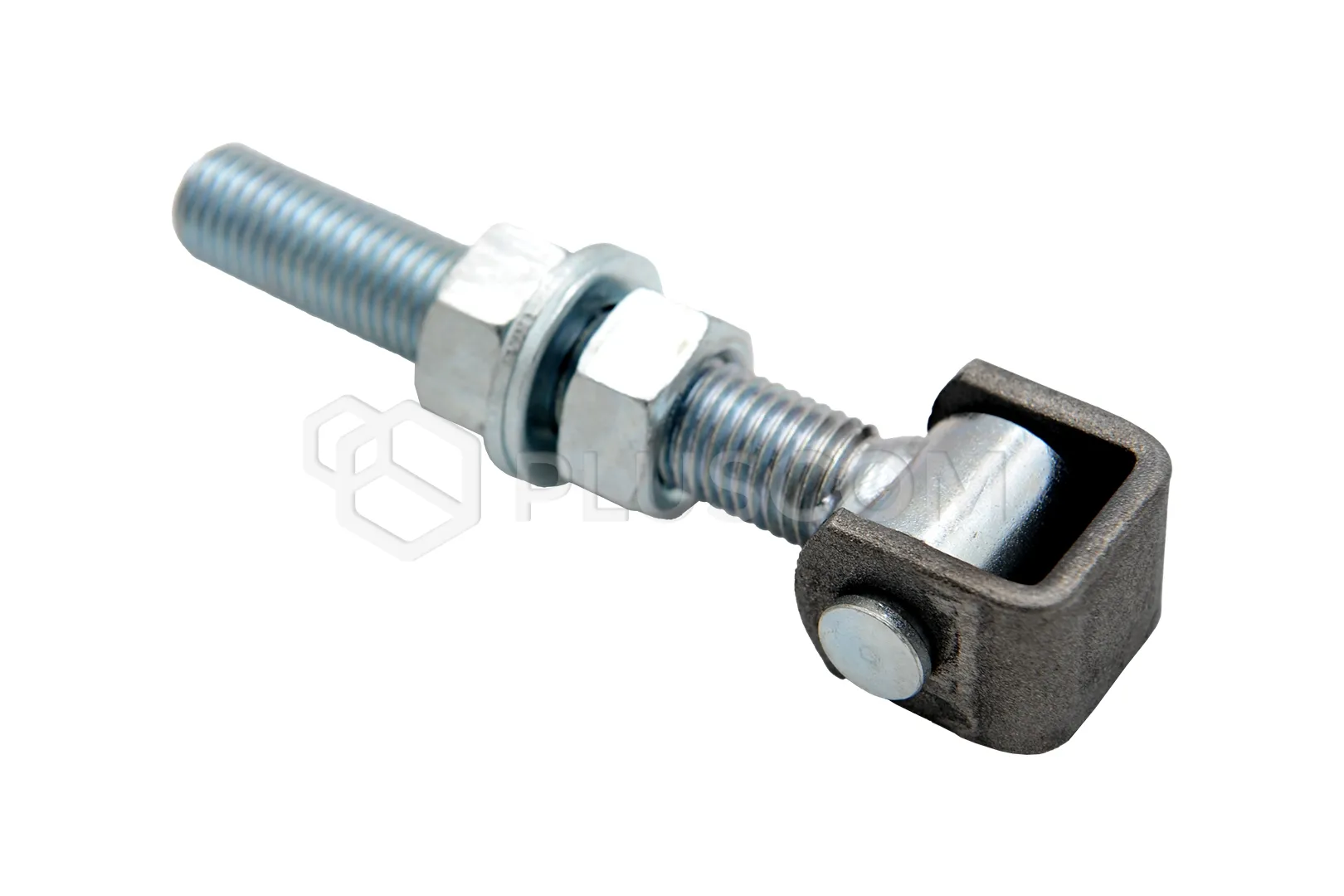

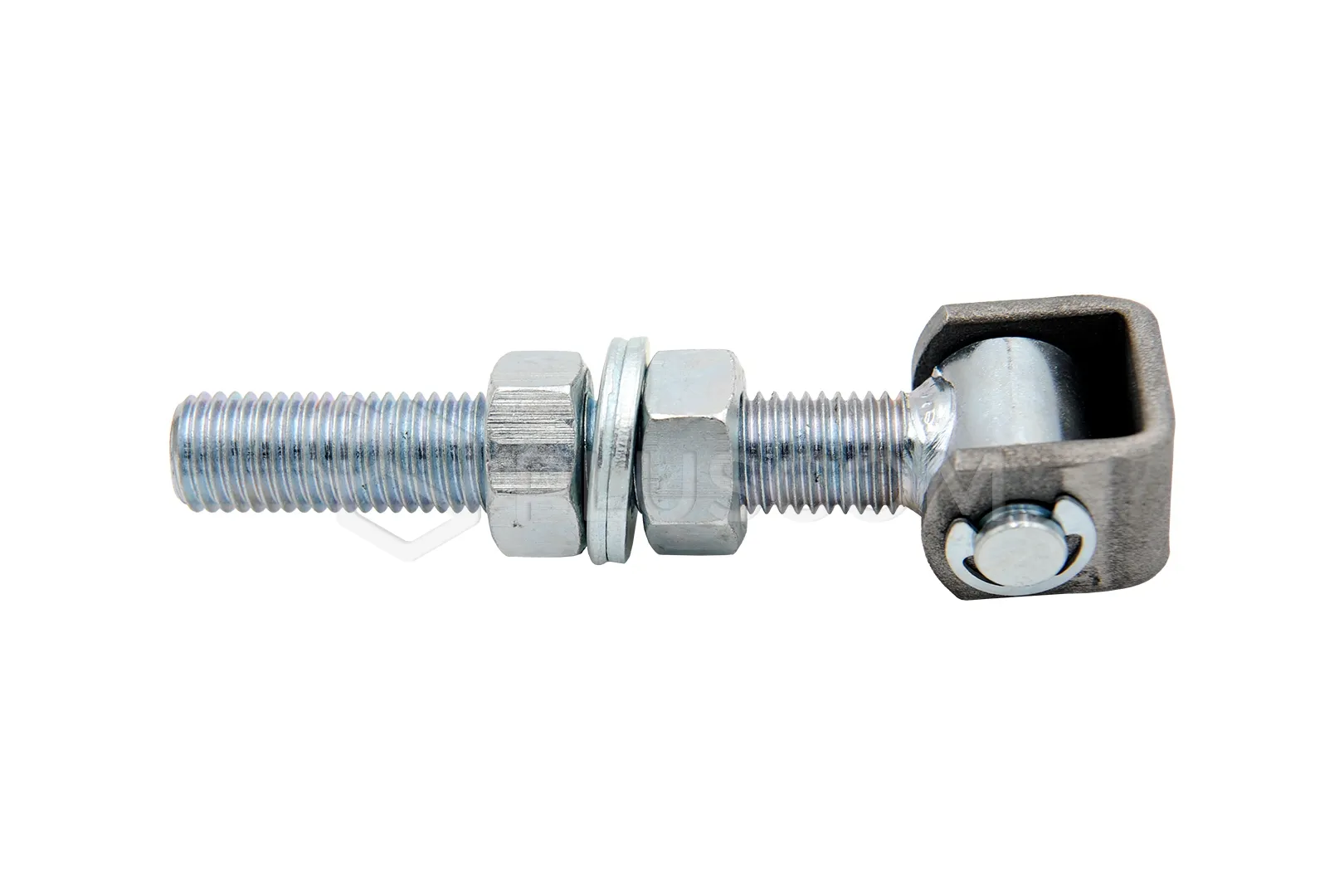

PSG 61.004.01 Steel adjustable hinge M20

PSG 61.004.01 Adjustable steel hinge M20

Long adjustable steel hinge with M20 screw. Galvanized product - intended for outdoor use, provides high corrosion resistance.

Using this hinge, using an adjustment nut, will help in simple and quick adjustment of swing gates after the installation is complete.

The permissible load of a pair of hinges on a 2m long wing is 105 kg.

FEATURES:

• Galvanized product: Thanks to this, it is characterized by high resistance to corrosion and is ideal for outdoor use
• High strength and resistance to mechanical damage: The product is characterized by solid construction, which allows for long-term use without fear of damage
• Possibility of adjusting the hinge after the assembly is complete: This functionality allows precise adjustment and customization of the product to the user's individual needs even after its installation
• High abrasion resistance: The product will retain its aesthetic appearance and functionality for a long time, even with intensive use

Possibility of adjustment after the assembly is complete.

• The ability to adjust the hinge after assembly is complete is an extremely practical feature that affects the functionality and comfort of using the product.
• The hinge can be adjusted at any time using the nut, e.g. when the structure is hung or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such cases, the adjustable hinge can be tightened or, if necessary, loosened.

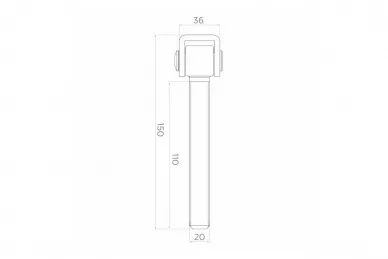

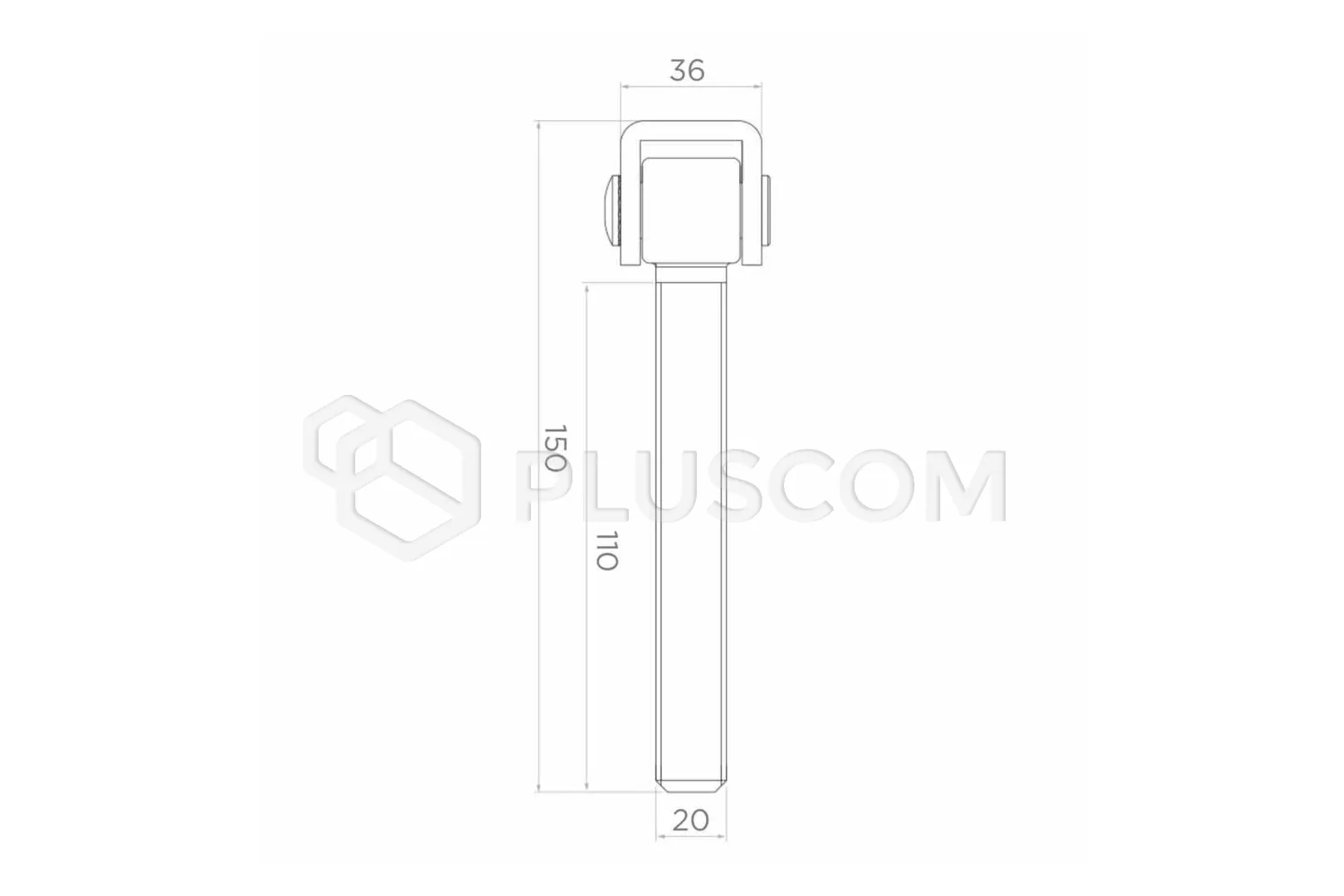

Technical data:

• Total length: 150 mm
• Screw length: 110 mm
• Thread: M20
• Material: Steel
• Anti-corrosion protection: Galvanized (black ear)
• Ear width: 36 mm
• Ear sheet thickness: 6 mm
