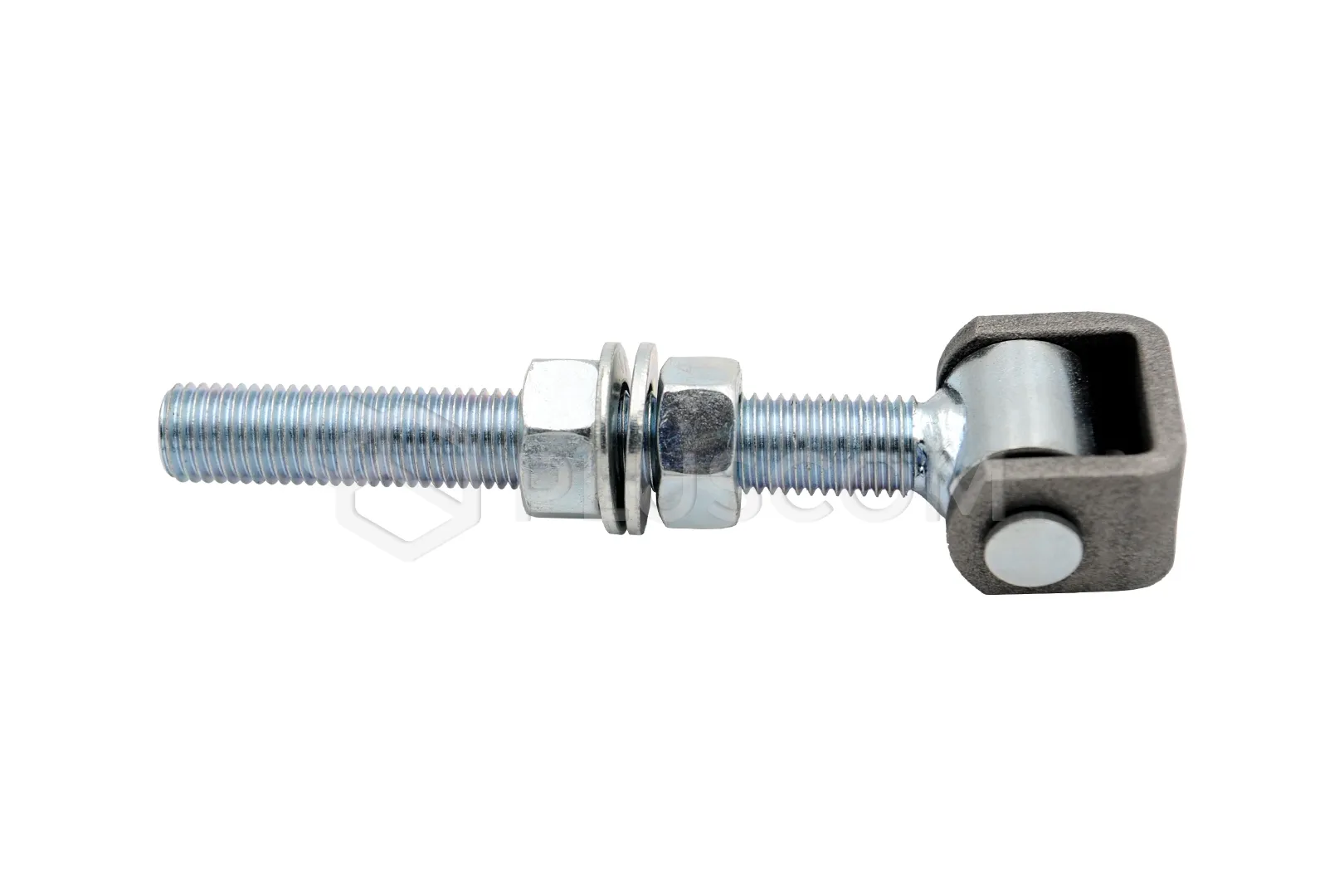

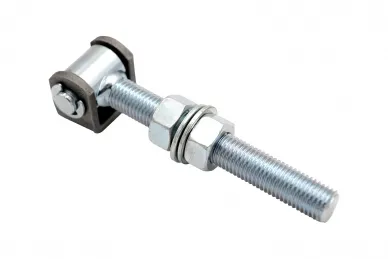

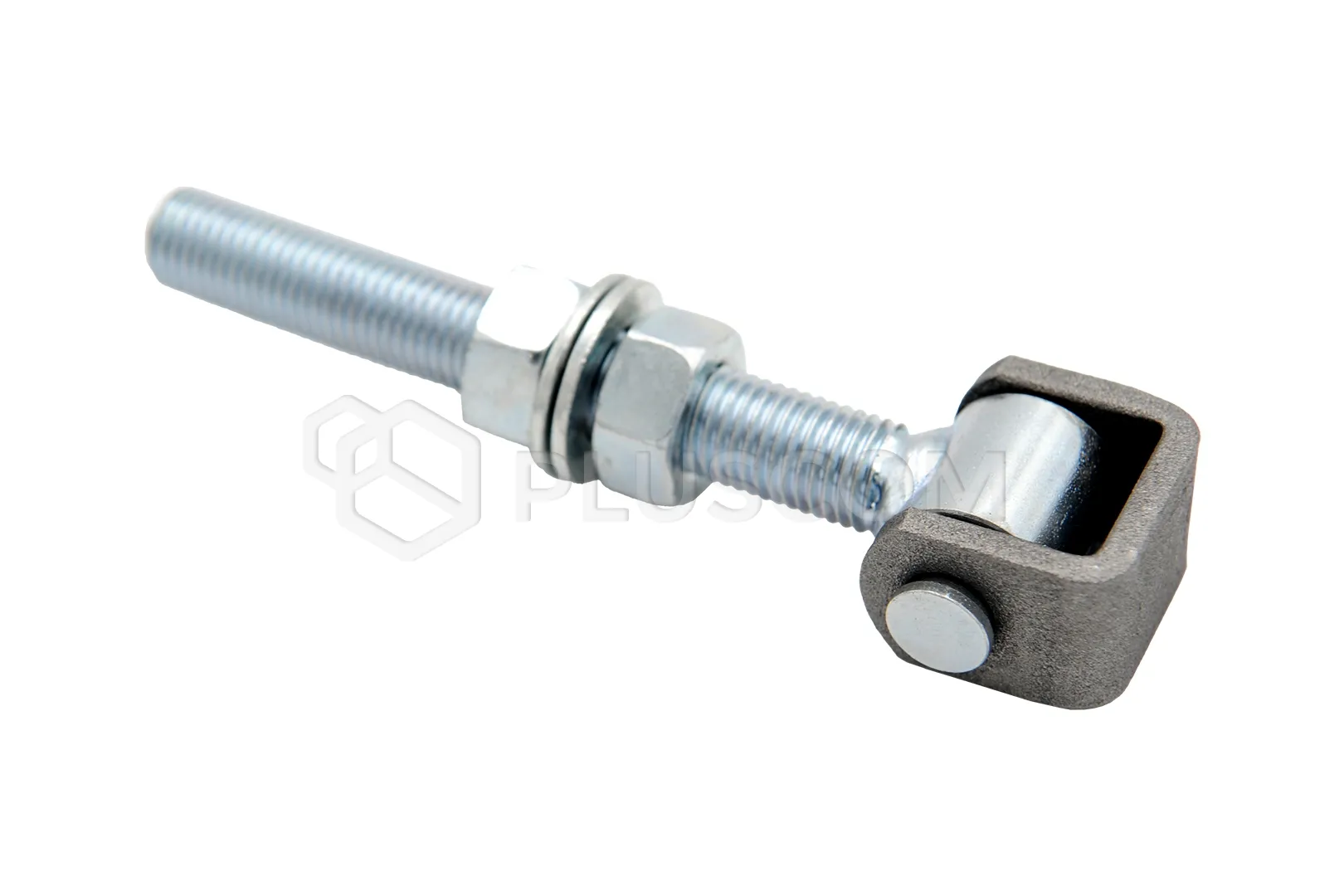

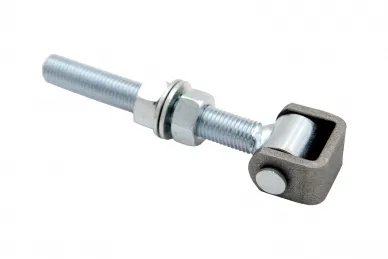

PSG 61.003.16.01 Adjustable hinge long M16 seeger
The adjustable steel hinge M16 is a reliable and versatile solution
for all structures requiring solid and durable connections.
Thanks to its adjustable design and high corrosion resistance,
it is ideal for outdoor applications.
The hinge, made of galvanized steel, guarantees long-term
protection and easy adjustment of the position of swing gates, even after
their installation.
FEATURES:
- Anti-corrosion protection in the form of galvanization (apart from the ear), which provides the product with long-term protection against external factors,
- High strength and resistance to mechanical damage, which
makes the hinge a reliable choice for heavy structures
- Possibility of adjusting the hinge after assembly, which allows
easy adjustment and maintaining proper operation of the gates
- High abrasion resistance ensures long-term aesthetics and
functionality of the product
- Permissible load of a pair of hinges on a 2 m long leaf: 65 kg
ANTICORROSION PROTECTION
Protection against corrosion is one of the most important features of the M16 steel hinge. Thanks to the galvanizing process, the hinge not only effectively resists rust, but also maintains its aesthetic appearance for many years. This
property is particularly important for outdoor applications, where
weather conditions can be harsh.
Anti-corrosion protection increases the
lifespan of the hinge, which translates into less need for replacement and
maintenance, and thus saves time and money.
ADJUSTMENT AFTER INSTALLATION
The possibility of adjustment after installation is another key advantage of this hinge.
Thanks to the use of the M16 screw and the adjusting nut, the user can
make precise corrections to the gate position without having to dismantle the entire
structure. This feature is invaluable, especially when there are changes in the
structure of the substrate or load, which can lead to the gate hanging.
Adjusting the hinge to new conditions is simple and quick, which ensures
reliability and long-term functionality of each installation.

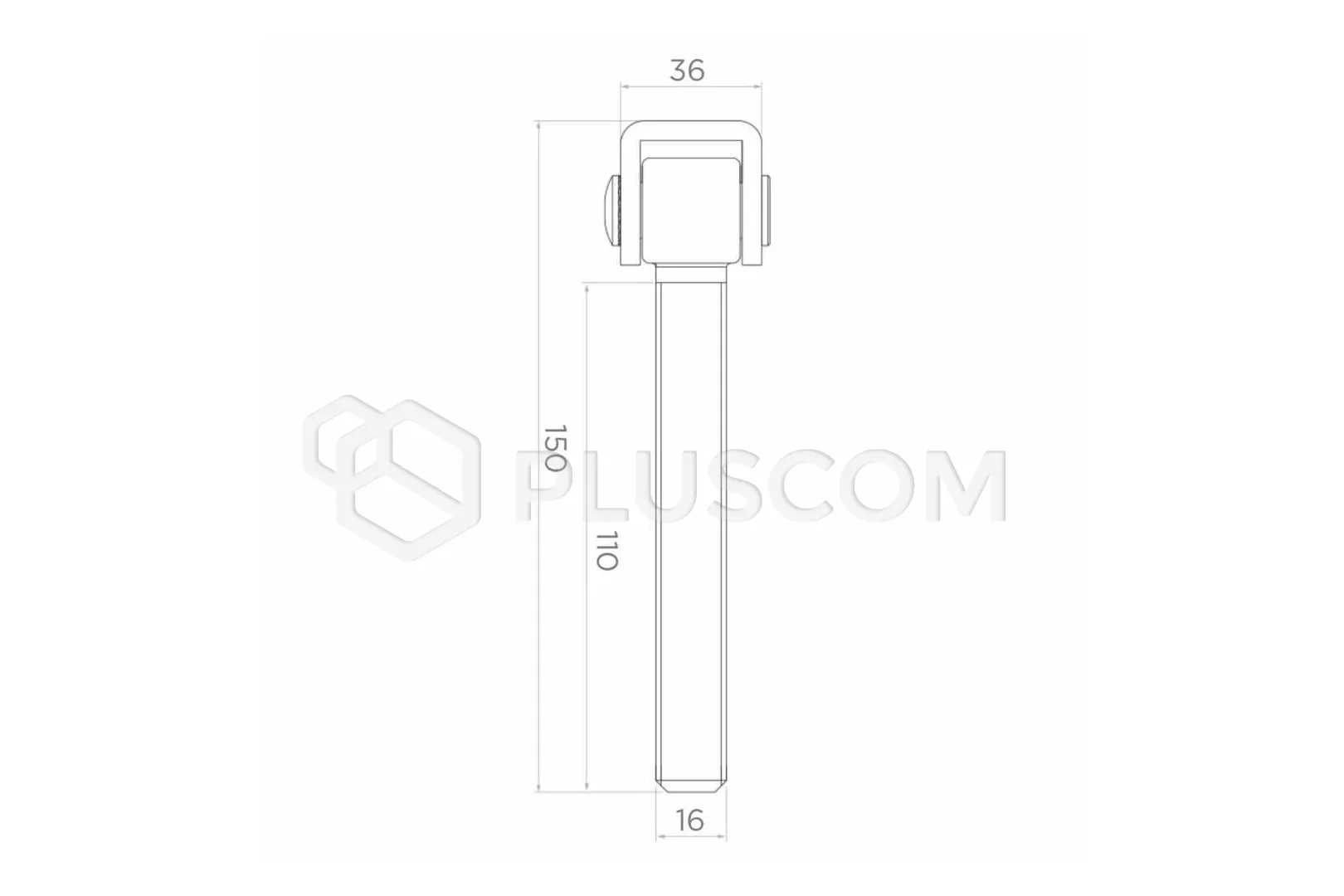

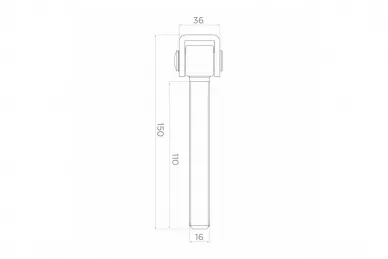

Technical data:
- Material: Steel
- Anti-corrosion protection: Galvanized (black ear)
- Thread: M16
- Ear width: 36 mm
- Total length: 150 mm
- Screw length: 110 mm
