PSG 61.003.02 Long adjustable hinge M18 length 150 mm (seger)
Discover the functionality and durability of the long steel adjustable hinge with
an M18 screw, which was designed for outdoor use.
Thanks to its galvanized construction, the hinge offers exceptional
resistance to corrosion, making it an ideal solution for swing gates.
A key feature of the hinge is the possibility of easy and quick adjustment even
after installation, which ensures reliability in all conditions.
FEATURES:
- Material: Steel, protected against corrosion by galvanizing, except for the eyelet made of black steel
- Thread: M18, enabling a solid and stable
connection
- Ear width: 36 mm, providing an appropriate
mounting surface
- Total length: 150 mm: Screw length: 110 mm, which
enables proper adjustment to various types of structures
- Permissible load: 80 kg per pair of hinges for a 2-meter-long leaf
ADJUSTMENT AFTER INSTALLATION
This hinge is distinguished by the possibility of adjustment after the assembly is complete, which
is particularly useful in the case of hanging the structure or changing weather conditions.
Thanks to the adjustment nut, the user can
quickly and easily correct the gate position, ensuring its proper
operation and appearance without the need to dismantle the entire mechanism.
This feature
significantly increases the comfort of use and long-term functionality
of the installation.
CORROSION RESISTANCE
The construction of the hinge from galvanized steel, in addition to the black steel ear,
ensures high corrosion resistance, which is crucial for products
intended for outdoor use.
Anti-corrosion protection
protects the hinge against the harmful effects of moisture and other
atmospheric factors, which translates into its long life and maintaining
its aesthetic appearance for many years.
This makes the hinge
an excellent choice for anyone looking for reliable and durable solutions for
their gate.

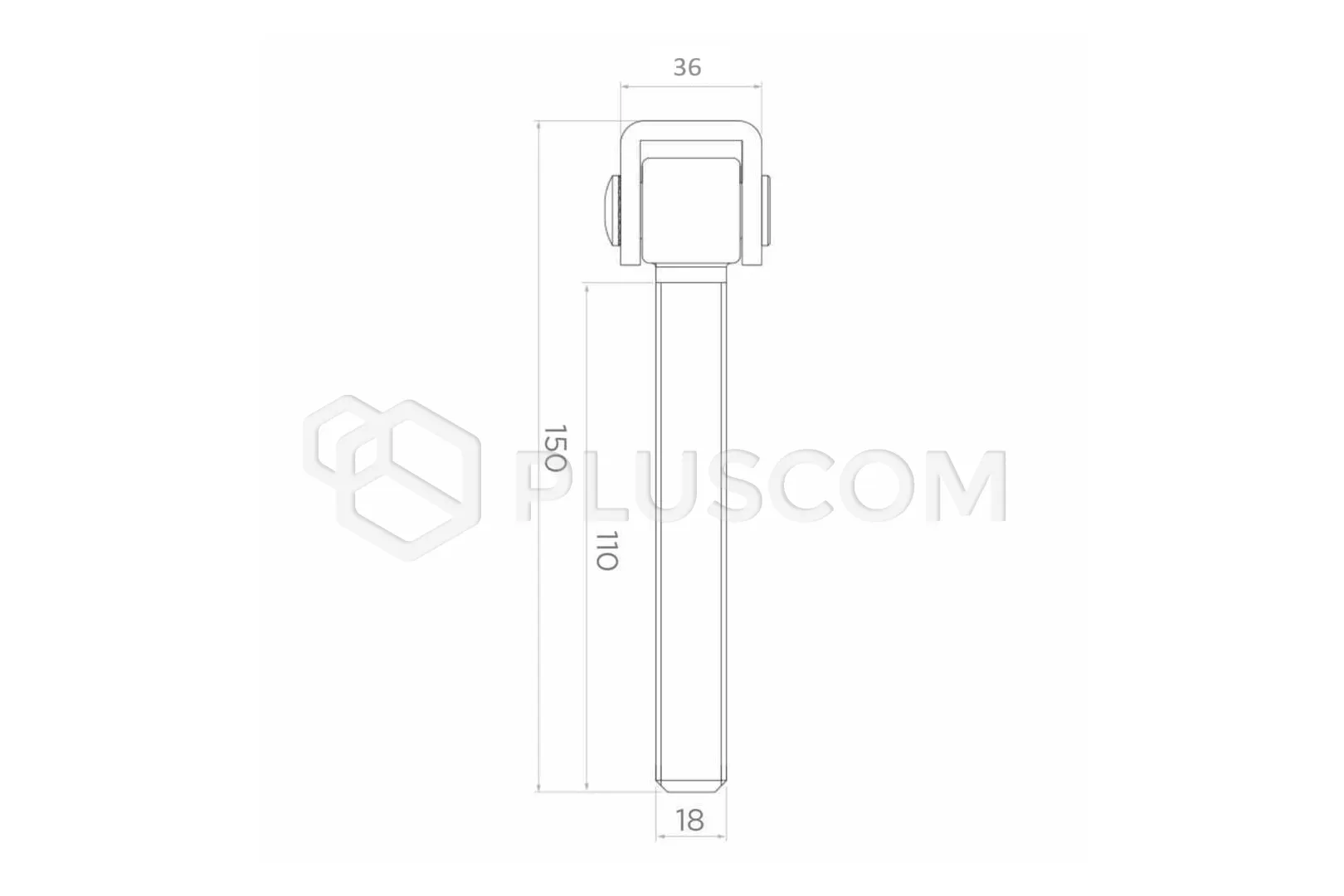

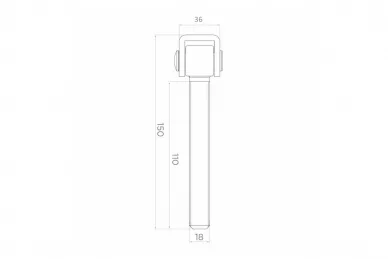

Technical data:
- Material: Steel
- Anti-corrosion protection: Galvanized (black ear)
- Thread: M18
- Ear width: 36 mm
- Total length: 150 mm
- Screw length: 110 mm
