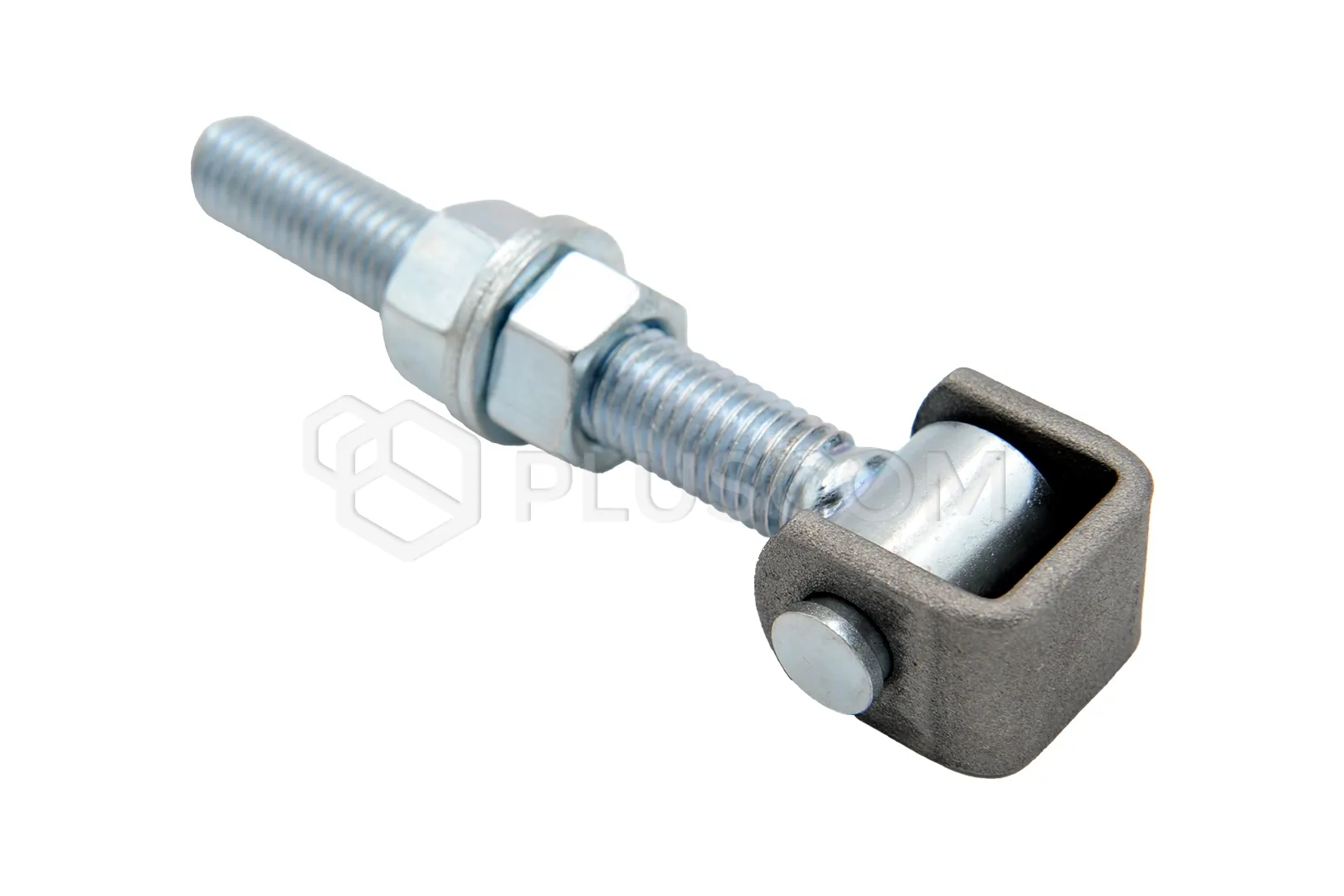

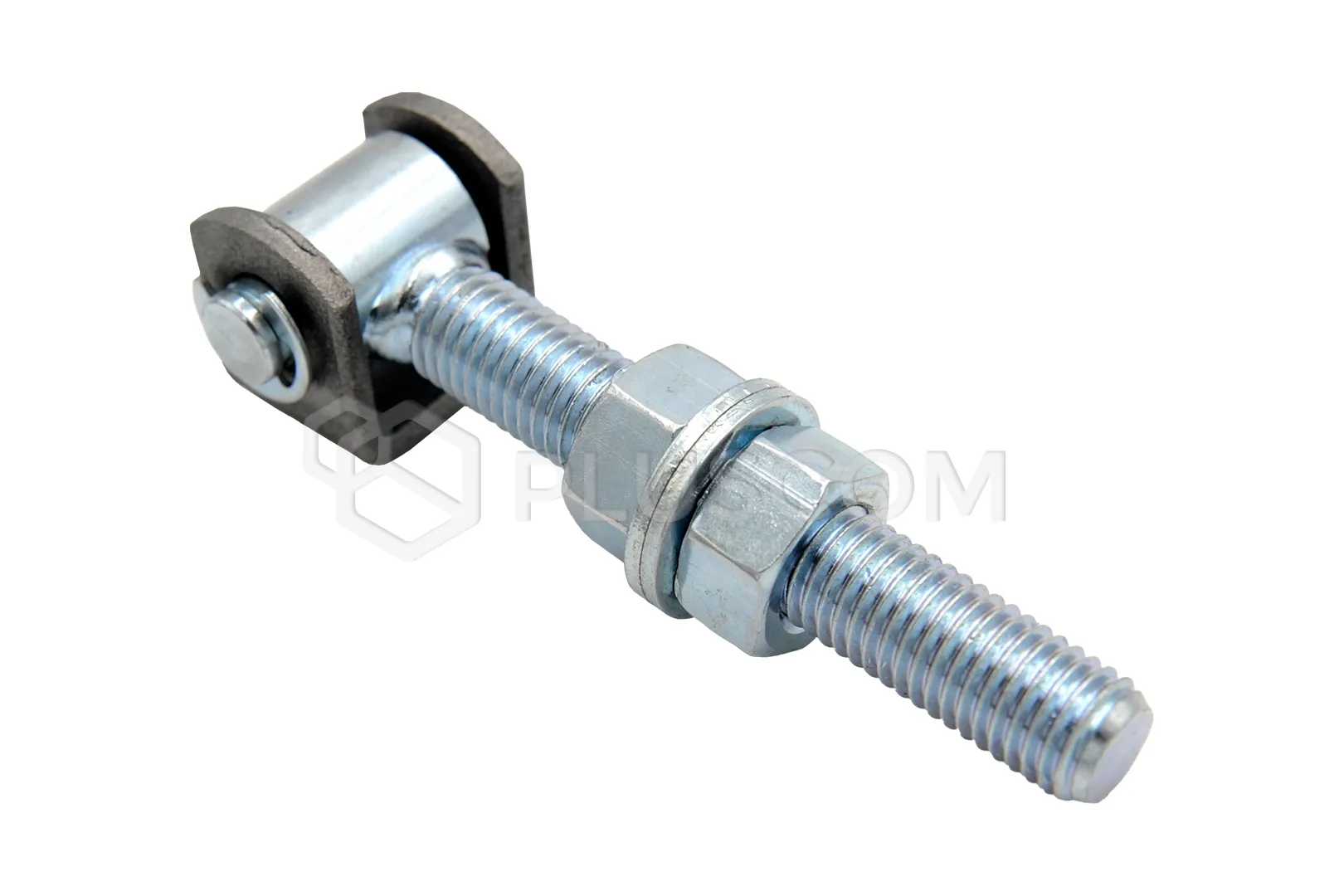

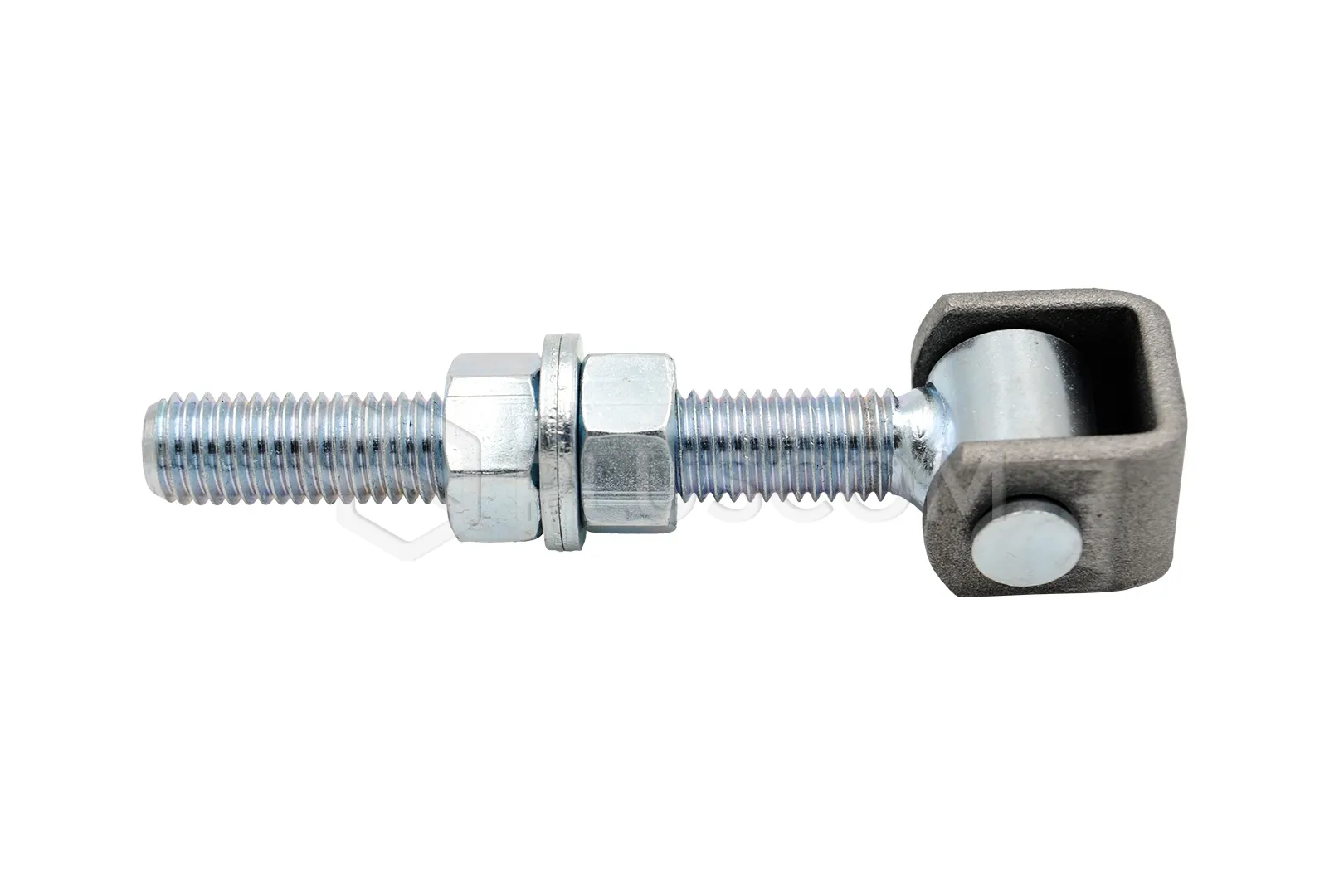

PSG 61.003.01 Adjustable hinge long M18 seeger

PSG 61.003.01 Adjustable hinge long M18 seeger

The adjustable steel hinge M18 is a highly functional mounting element that will work well in outdoor applications where durability and precise adjustment are required.

Made of steel and protected against corrosion by galvanizing, the hinge is an ideal solution for swing gates, enabling easy adjustment of their position even after assembly. Its solid construction and ease of adjustment make it an essential component in many structures.

FEATURES:

• Galvanized product (except for the eyelet), intended for outdoor use, which provides long-term protection against corrosion
• High durability and resistance to mechanical damage guarantee long-term use
• The ability to adjust the hinge after the installation makes it easier to adjust and maintain the functionality of the gates
• High abrasion resistance increases the durability of the hinge during intensive use

ADJUSTABILITY

Adjustment after installation is one of the key advantages of this hinge. Thanks to the adjustment nut, the user can easily and quickly adjust the gate setting, which is especially important in the case of hanging structure or changes in dimensions caused by extreme temperatures. This function makes it much easier to maintain the proper operation of the gates without the need to dismantle them.

ANTICORROSION PROTECTION

Anti-corrosion protection in the form of galvanization is another important feature of the M18 steel hinge. It provides long-term protection against rust, which is essential for products used outdoors. This protection guarantees that the hinge will serve for many years, maintaining its mechanical properties and aesthetic appearance despite unfavorable atmospheric conditions.

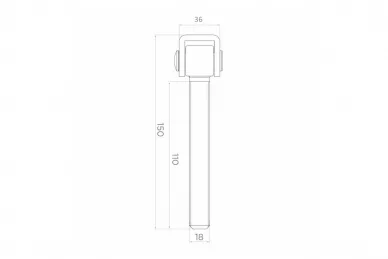

Technical data:

• Material: Steel
• Anti-corrosion protection: Galvanized (black ear)
• Thread: M18
• Ear width: 36 mm
• Total length: 150 mm
• Screw length: 110 mm
