PSG 61.002.02 Weld-in hinge M20

6,16 EUR including 22.00% VAT
Product code: #41622
  • The maximum load of a pair of hinges on a 2 m long door leaf is 120 kg
  • Hinge length: 50-85 mm
  • Screw: M20
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,27 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.002.02 Weld-in hinge M20

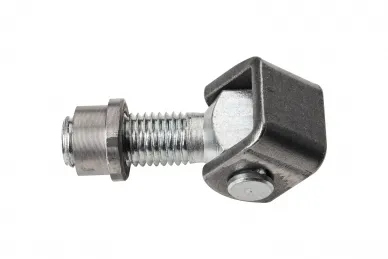

The hinge with a weld-in sleeve M20 is a reliable mounting element that is perfect for installing gates and wickets. Made of steel with high corrosion resistance, it ensures durability and longevity of use in all weather conditions.

The hinge is adjustable, which facilitates precise adjustment of the wings after assembly, and its technical parameters allow it to handle heavy loads.

FEATURES:

  • Permissible load of a pair of hinges on a 2-meter-long wing: 120 kg
  • Ideal for installing gates and wickets
  • Intended for welding
  • Adjustable
  • Corrosion-resistant, intended for outdoor use

HINGE ADJUSTMENT - COMFORT AND PRECISION

Thanks to the possibility of adjustment, the hinge allows for precise adjustment of the gate or wicket wing position after they have been installed. This is an extremely important feature, especially in situations where it is necessary to adjust to uneven terrain or slight deviations in the structure.
Adjustment not only facilitates assembly, but also ensures smooth and trouble-free operation of the wing for many years.

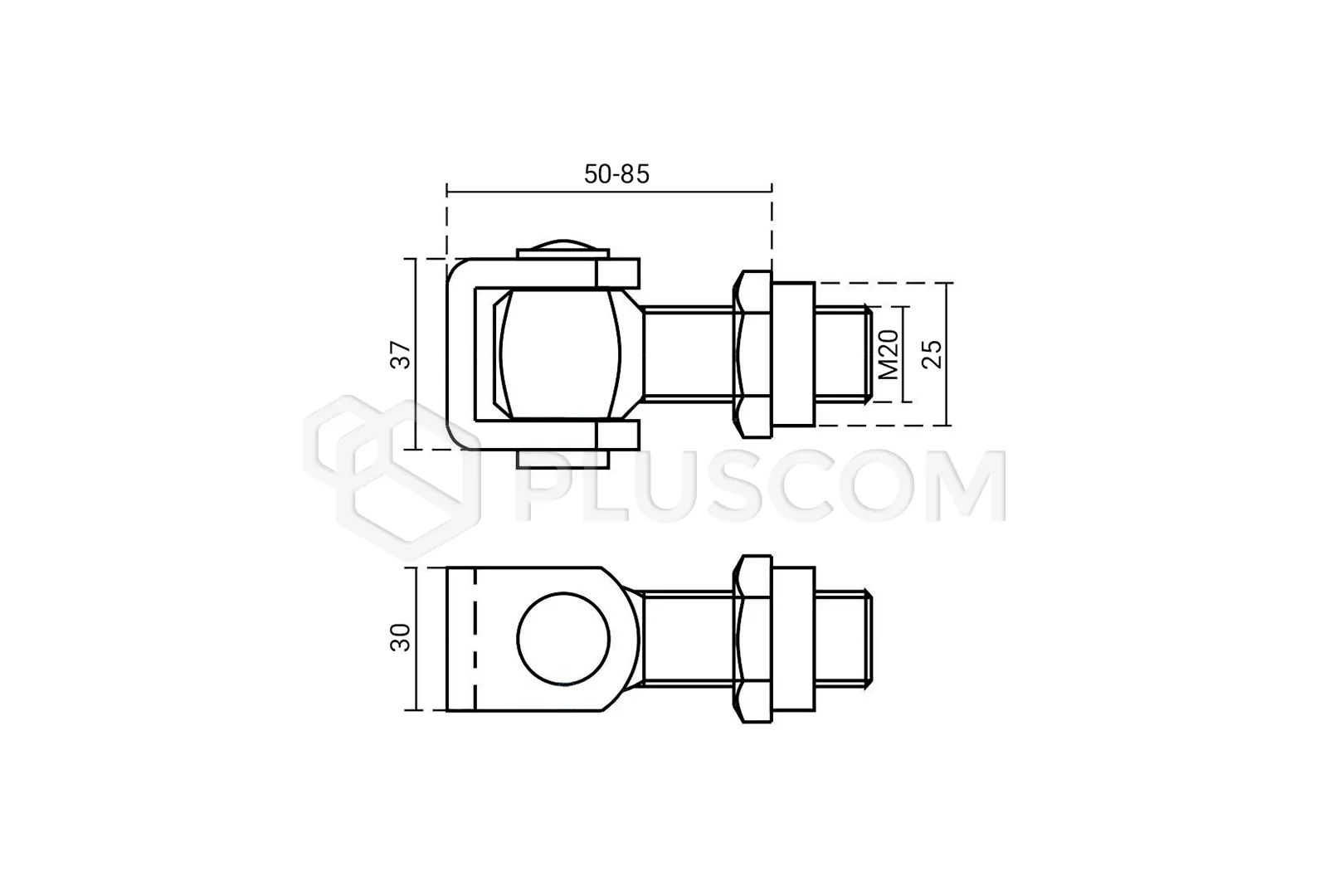

Technical data:

  • Material: Steel
  • Screw: M20
  • Hinge length: 50-85 mm
  • Ear height: 37 mm
  • Sleeve width: 25 mm
  • Ear width: 30 mm
  • Weight: 0.40 kg
