PSG 61.001 Weld-on hinge M16

3,85 EUR including 23.00% VAT
Product code: #41053
  • The maximum load of a pair of hinges on a 2 m long door leaf is 65 kg
  • Ear width: 36 mm
  • Screw length: 40 mm
  • Screw diameter: M16
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.001 Weld-in hinge M16


The M16 adjustable steel hinge is designed for swing gates - it combines functionality with precision. The product is made of high-quality steel and covered with a layer of galvanization, which provides excellent protection against corrosion.

Its ear in a black finish facilitates precise assembly, making installation more convenient and more effective. This is a hinge designed for reliability in all conditions.

FEATURES:

  • Corrosion resistance thanks to galvanization - the galvanized surface effectively protects the hinge against moisture, rain and extreme temperatures, making the product ideal for use outdoors. Long-lasting anti-corrosion protection minimizes the need for maintenance and allows for many years of trouble-free use

  • Black eye for easy installation — the black-finished hinge eye is distinguished by its practical use. Thanks to its matte surface, installation becomes more precise and less time-consuming, which will be appreciated by both professionals and those who install hinges themselves

  • Resistance to heavy loads — the M16 hinge has been designed to work in demanding conditions, which is confirmed by its ability to hold a gate leaf up to 2 meters long and weighing 65 kg. The strong construction made of high-quality steel ensures durability and reliability even with intensive use

  • Possibility of adjustment after installation — the adjustment mechanism in the form of a nut allows for easy adjustment of the hinge position at any time. Thanks to this, you can quickly eliminate problems related to the sagging of the gate leaf or the impact of extreme temperatures on the structure

PRACTICAL ADJUSTMENT FUNCTION

Adjusting the M16 hinge is an important function that increases the comfort of its use.
The precise nut allows you to quickly adjust the hinge to current needs, which is especially useful when the gate leaf begins to sag or the structure requires adjustment after sudden temperature changes.

The ability to adjust without having to dismantle the hinge saves time and avoids costly repairs, ensuring long-term reliability of the entire system.

Permissible load of a pair of hinges on a 2 m long leaf: 65 kg.

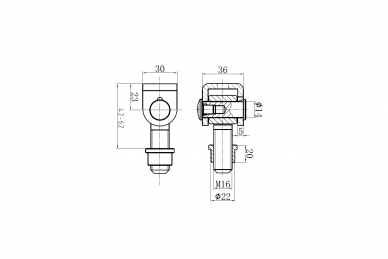

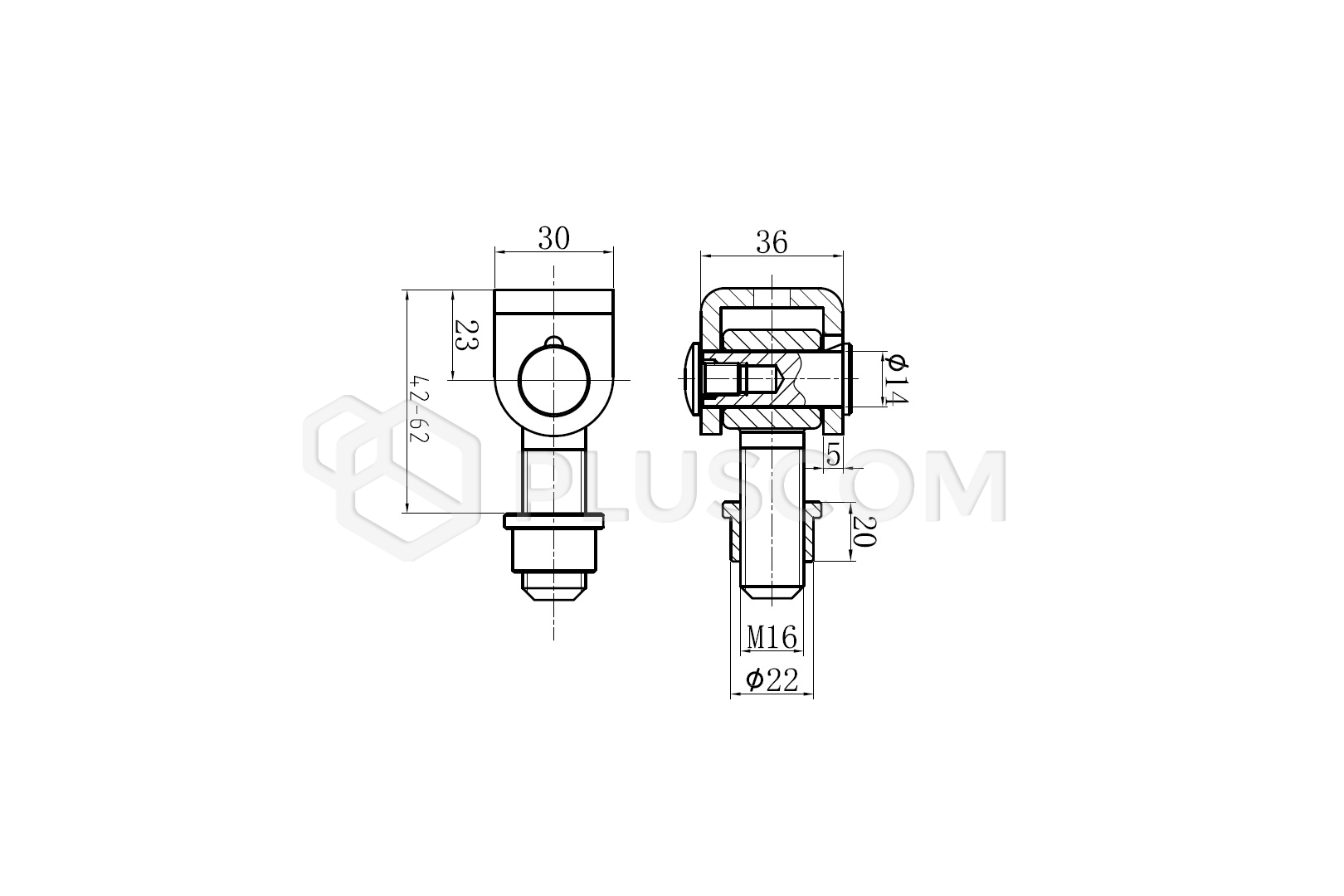

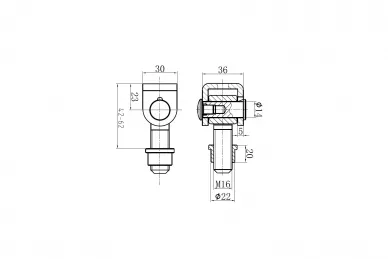

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Ear width: 36 mm
  • Screw length: 40 mm
  • Screw diameter: M16
