PSG 61.001.18 Weld-on hinge M18

4,49 EUR including 23.00% VAT
Product code: #41145
  • The maximum load of a pair of hinges on a 2m long door leaf is 80 kg
  • Ear width: 36 mm
  • Screw length: 40 mm
  • Screw thread: M18
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 61.001.18 Weld-in hinge M18


Steel adjustable hinge with M18 screw. Galvanized product (with black eye) - intended for outdoor use, provides high corrosion resistance. Using this hinge, using an adjustment nut, will help in simple and quick adjustment of swing gates after completed assembly.

Using the nut, the hinge can be adjusted at any time, e.g. when the structure is hanging or during extreme temperatures - due to a sudden drop in temperature in winter, the metal shrinks. In such situations, the adjustable hinge can be tightened or, if necessary, loosened.

Permissible load of a pair of hinges on a 2m long leaf: 80 kg.

FEATURES:

  • Galvanized product - intended for outdoor use - provides high, long-term protection against corrosion
  • High strength and resistance to mechanical damage
  • Hinge adjustment possible after assembly
  • High resistance to abrasion
  • Aesthetic visual effect

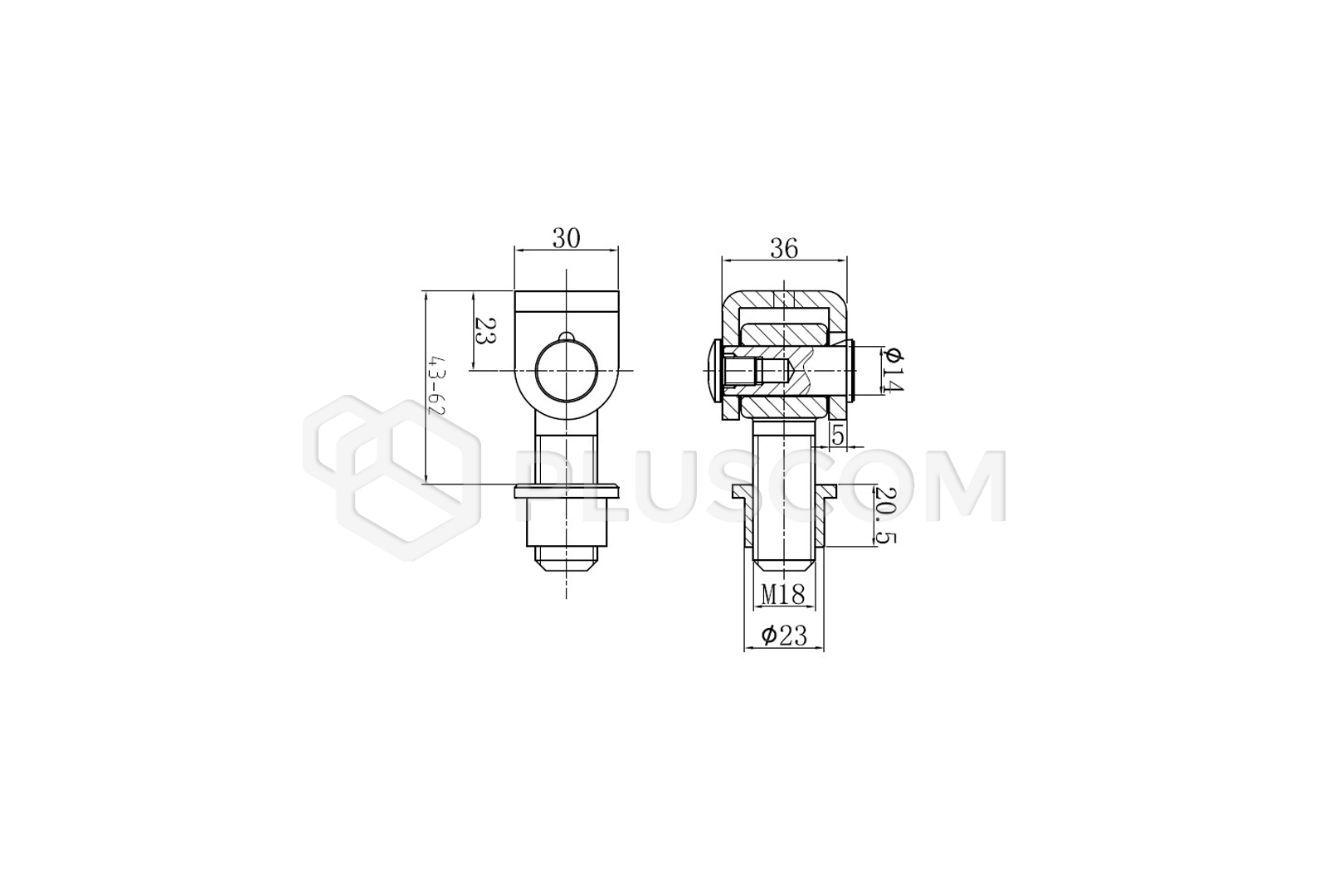

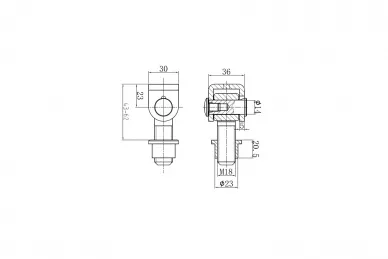

Technical data:

  • Material: Steel
  • Anti-corrosion protection: Galvanized (black ear)
  • Ear width: 36 mm
  • Screw length: 40 mm
  • Screw thread: M18
