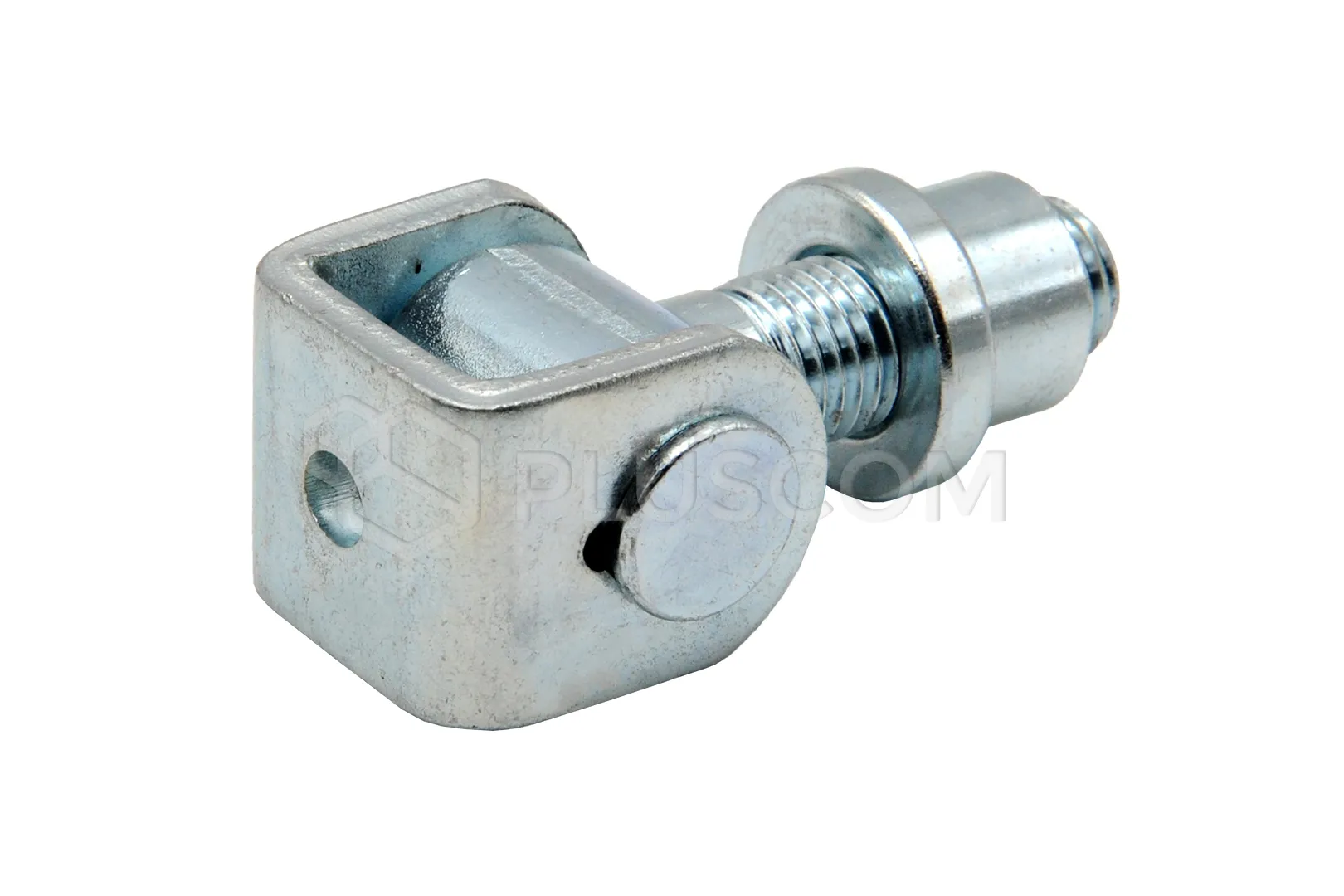

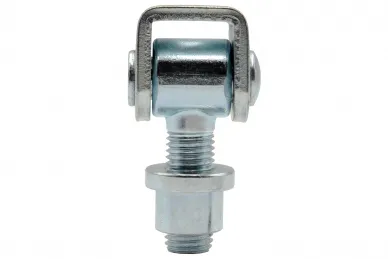

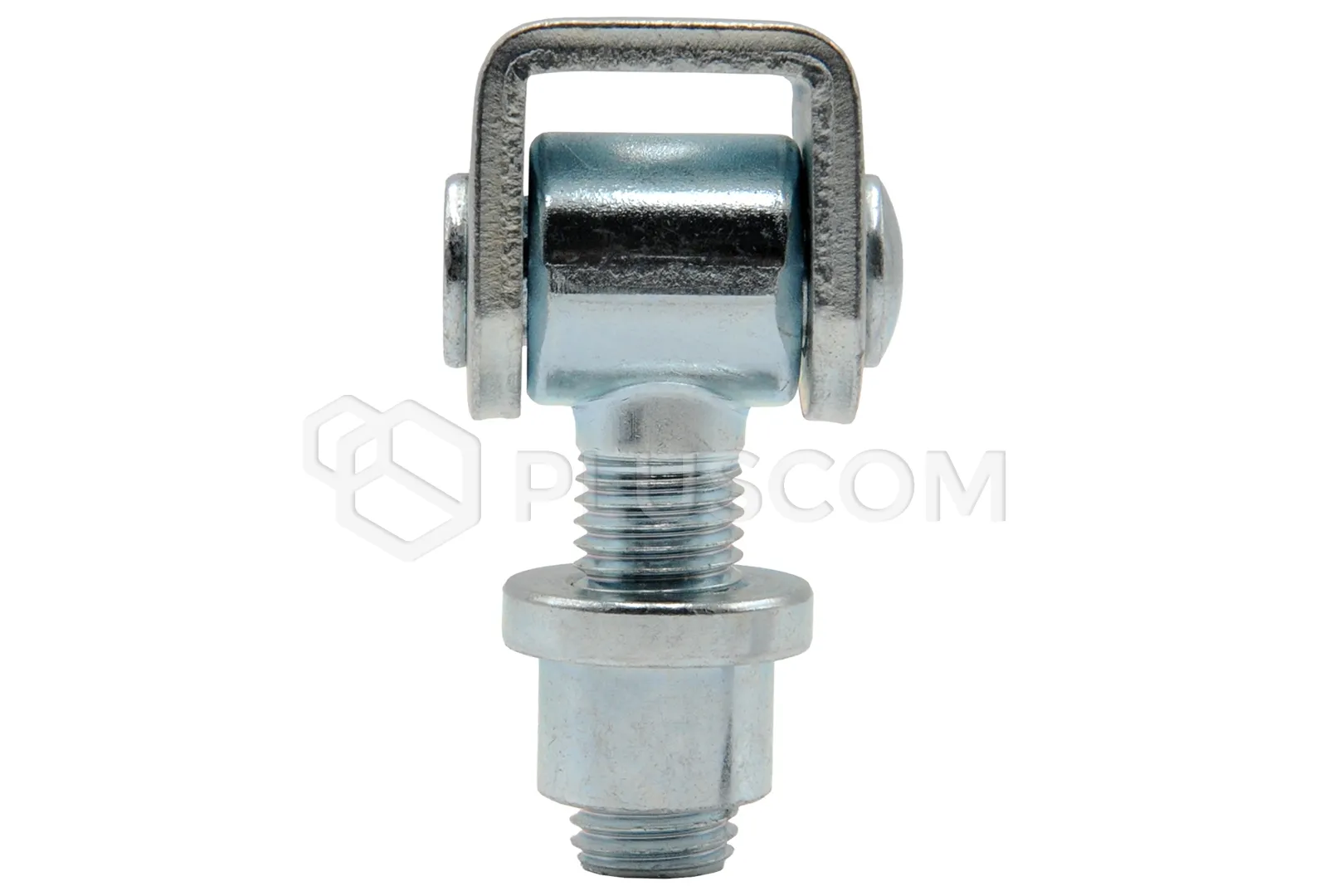

PSG 61.001.01 Weld-on hinge M16 galvanized
The M16 adjustable steel hinge is an irreplaceable solution for swing gates,
combining solidity of workmanship with precision of operation.
The galvanized product, which guarantees high corrosion resistance, is
an excellent choice for outdoor use.
Thanks to the possibility of adjustment, even after the assembly is complete, the hinge
allows for quick adjustment of the structure in the event of a hanging leaf or the
impact of extreme temperatures. It is a reliable construction element that will work in all weather conditions.
FEATURES:
- Corrosion resistance thanks to galvanization - complete zinc coating makes the hinge resistant to moisture,
variable temperatures and other external factors. High-quality
protection ensures long-term durability, eliminating the risk of corrosion even in
difficult conditions
- Durability and resistance to mechanical damage —
the solid steel construction provides unmatched durability. The hinge
is able to hold a gate leaf up to 2 meters long and weighing 65
kg, which confirms its resistance to heavy loads and intensive
use
- Possibility of adjustment after installation — thanks to the
precisely designed adjustment nut, the hinge can be adjusted at any
time. This practical solution allows for quick correction of
structure sagging or loosening resulting from sudden
temperature changes
- Aesthetics and versatility — the ear width
of 36 mm and solid workmanship ensure the aesthetic appearance of the
entire structure. The hinge fits perfectly with various types of
gates, offering not only functionality but also a visually attractive
effect
Permissible load of a pair of hinges on a 2 m long leaf: 65 kg.
ADJUSTABLE
One of the key advantages of this hinge is its adjustable ability.
Thanks to the nut, its position can be adjusted at any time -
both during installation and during use. In situations when
the structure begins to sag, the user can easily restore the gate to
the proper level.
Adjustment also proves invaluable in extreme
atmospheric conditions, e.g. in winter, when metal shrinks under the influence of
low temperatures. This feature makes the M16 adjustable steel hinge an
investment in the durability and comfort of gate use for many years.
PSG brand hinges are a guarantee of quality that has already been trusted by many
professionals. The products of this renowned brand meet the highest standards
of durability and precision, making them an irreplaceable choice among customers
looking for reliable solutions.

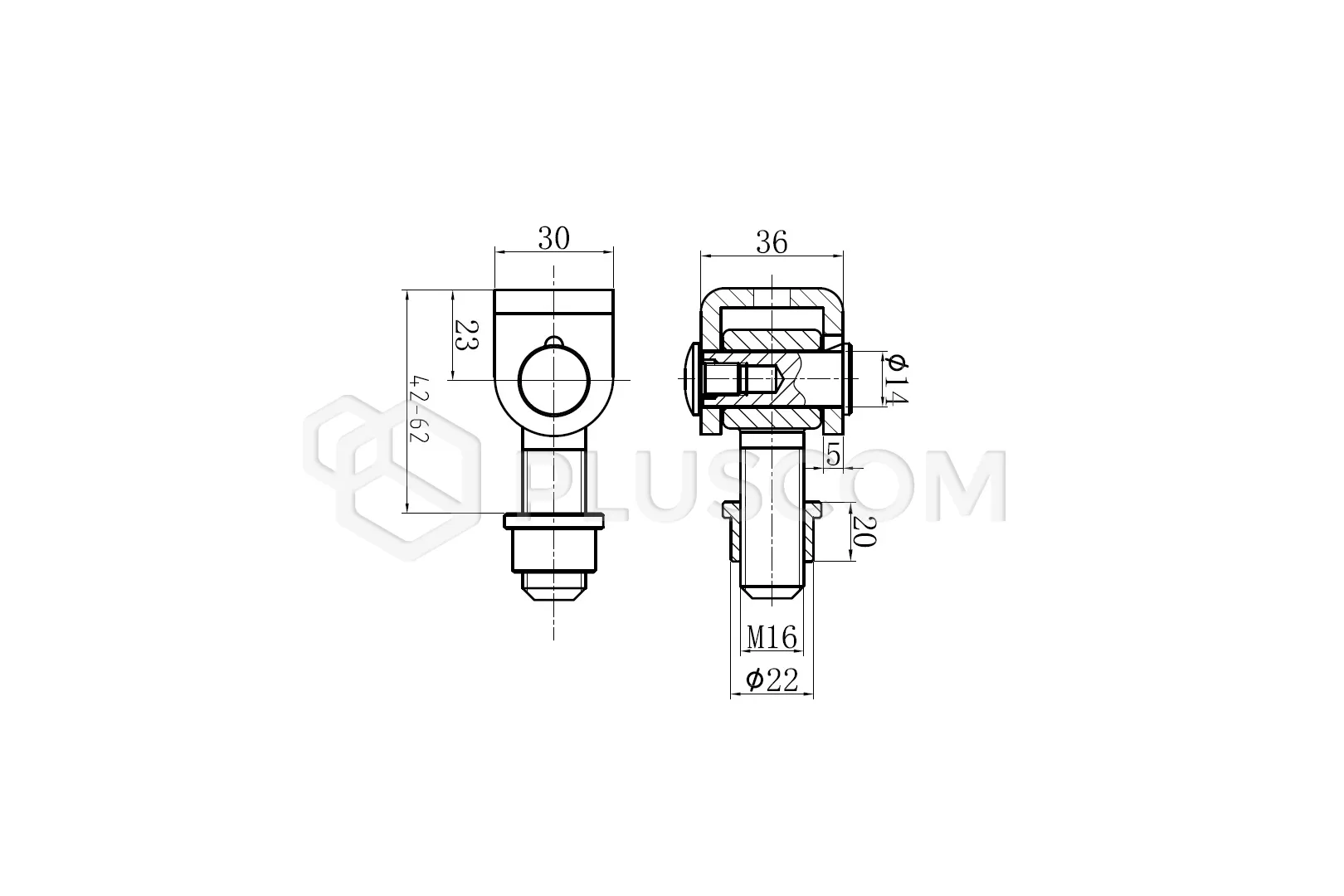

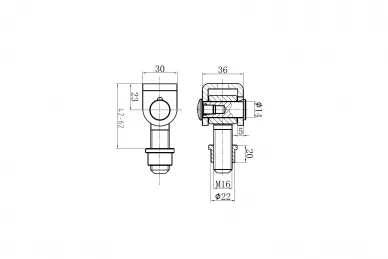

Technical data:
- Material: Steel
- Anti-corrosion protection: Galvanized
- Ear width: 36 mm
- Screw length: 40 mm
- Screw diameter: M16
